Music Dock With Remote for Android and Windows Devices

There are many charging and speaker docks for Apple devices in market when compared to Android or Windows devices. So i have come up with a design of dock which will work with both android and windows devices. Also, this will double up as computer speaker with a flip of switch. An IR Remote makes interaction with the device easy.

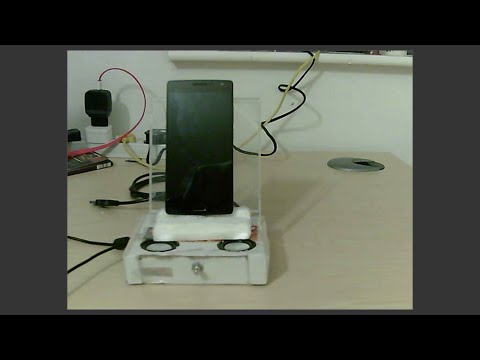

The demonstration of the dock is shown here.

The video takes you through the materials required, circuit explanation and assembly process.

Link for items:

DPDT Switches: www.ebay.ie/itm/201543920619

Audio Amplifier: www.ebay.ie/itm/201543920619

Speakers: www.ebay.ie/itm/201543920619

Micro USB Female: www.ebay.ie/itm/201543920619

Micro USB Male: www.ebay.ie/itm/201543920619

USB Sound Card: www.ebay.ie/itm/201543920619

Multimedia Remote: www.ebay.ie/itm/201543920619

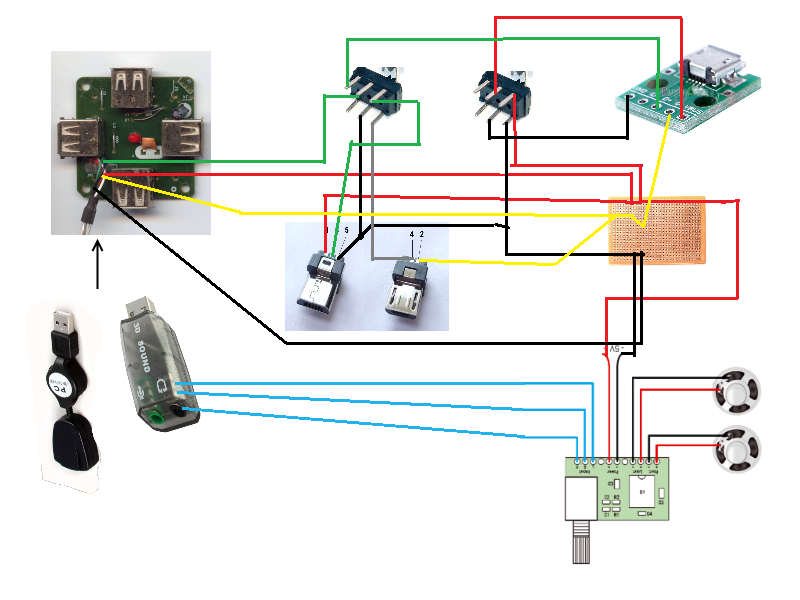

The diagram shows how the dock was wired. For a video on explanation click on the link https://www.youtube.com/v/ilfRvNxpXj4?start=109&end=324

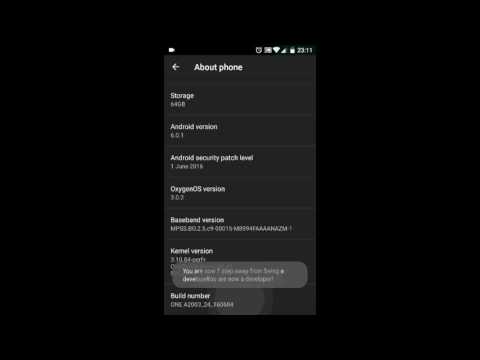

Audio through USB should be enabled before using the dock. The video explains the process of enabling audio through USB.

Once you enable audio through USB, the dock is ready for use. It can be used in speaker mode connected to computer and at the same time charge the android device. It can be used in dock mode without external cables.

Turn off the main switch connected to Micro USB female when using in standalone dock mode. When changing from speaker to dock mode, remove the android device, change it to dock mode and insert it back again.

If you have any suggestions for improvements kindly mention them in comments..
