DIY Carburater Clean; Removing the Top

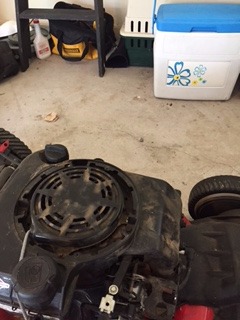

Unscrew Lawnmower Top using Phillips head screwdriver on two screws

Unscrew Filter Compartment Using Flathead Screwdriver and remove Blue Filter

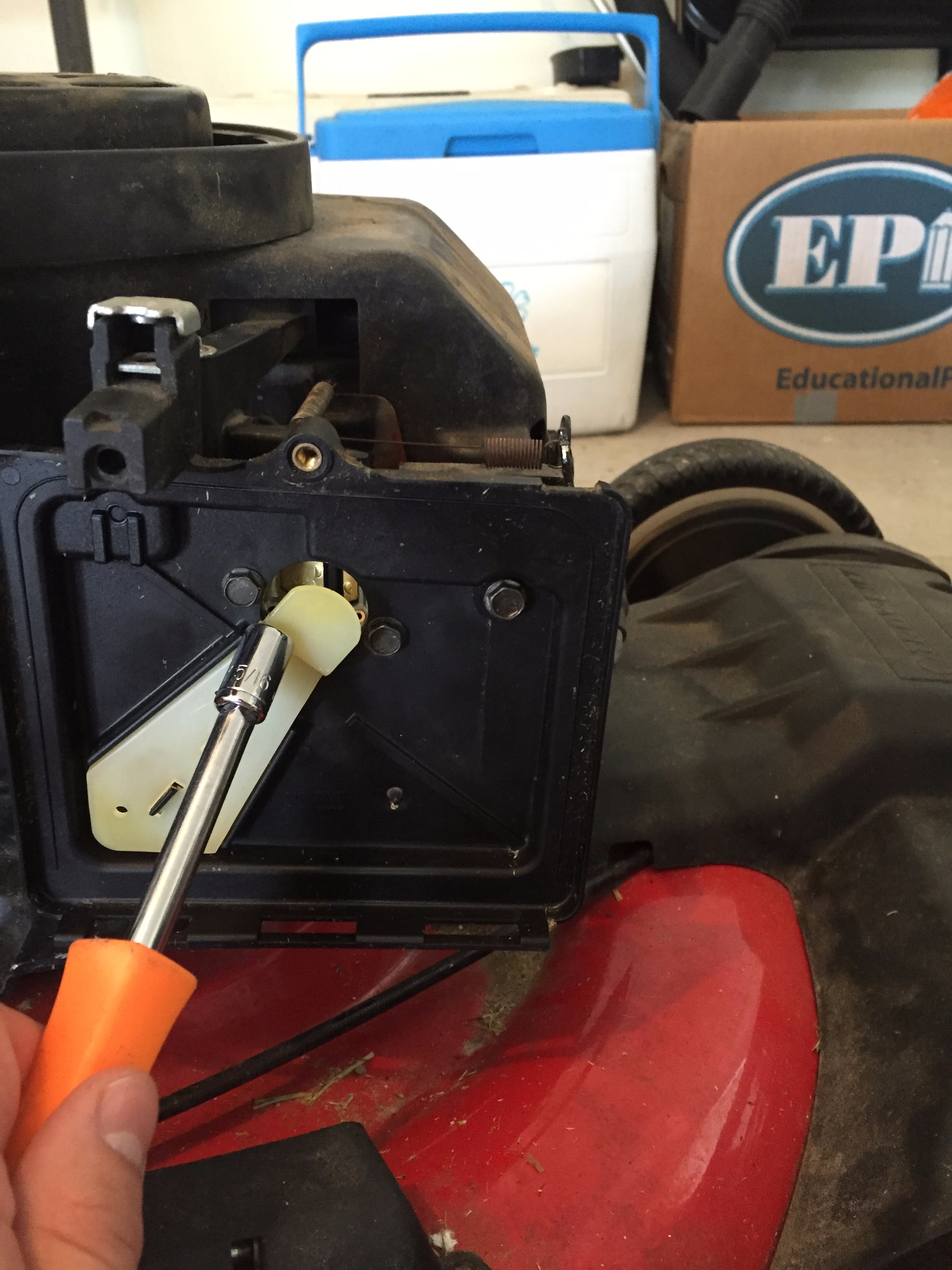

Unscrew three screws using 3/8 inch socket wrench, remove black filter holder

Find Fuel line (black hose)

Use Channel Locks (tool) to pinch Fuel Line Clasp

Remove Fuel line (third pic)

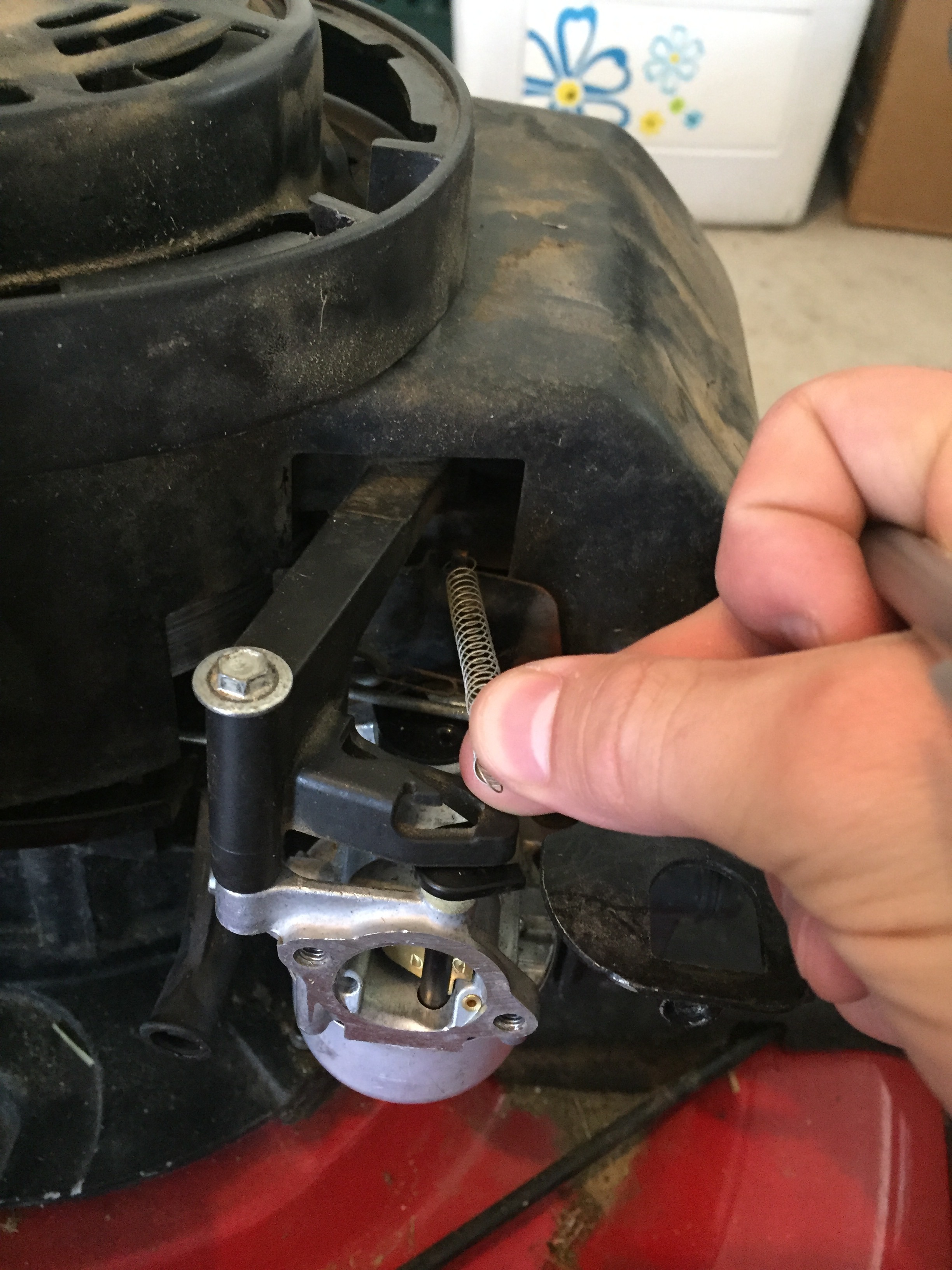

Locate Spring in Picture 1

Remove Spring

Picture 1: Loosen throttle control using 1/4 inch socket wrench to remove screw from the Throttle control

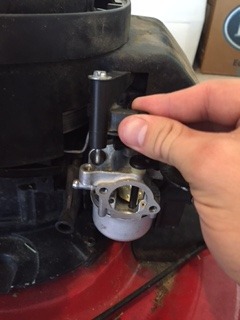

Picture 2: What it should look like after removal

Remove carburater Screws using 1/2 inch socket wrench

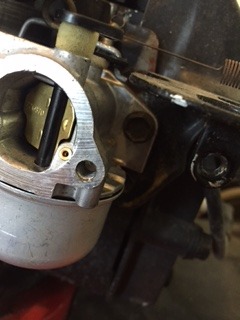

Utilize pictures 1 to 3 to see where existing carburater screws are located

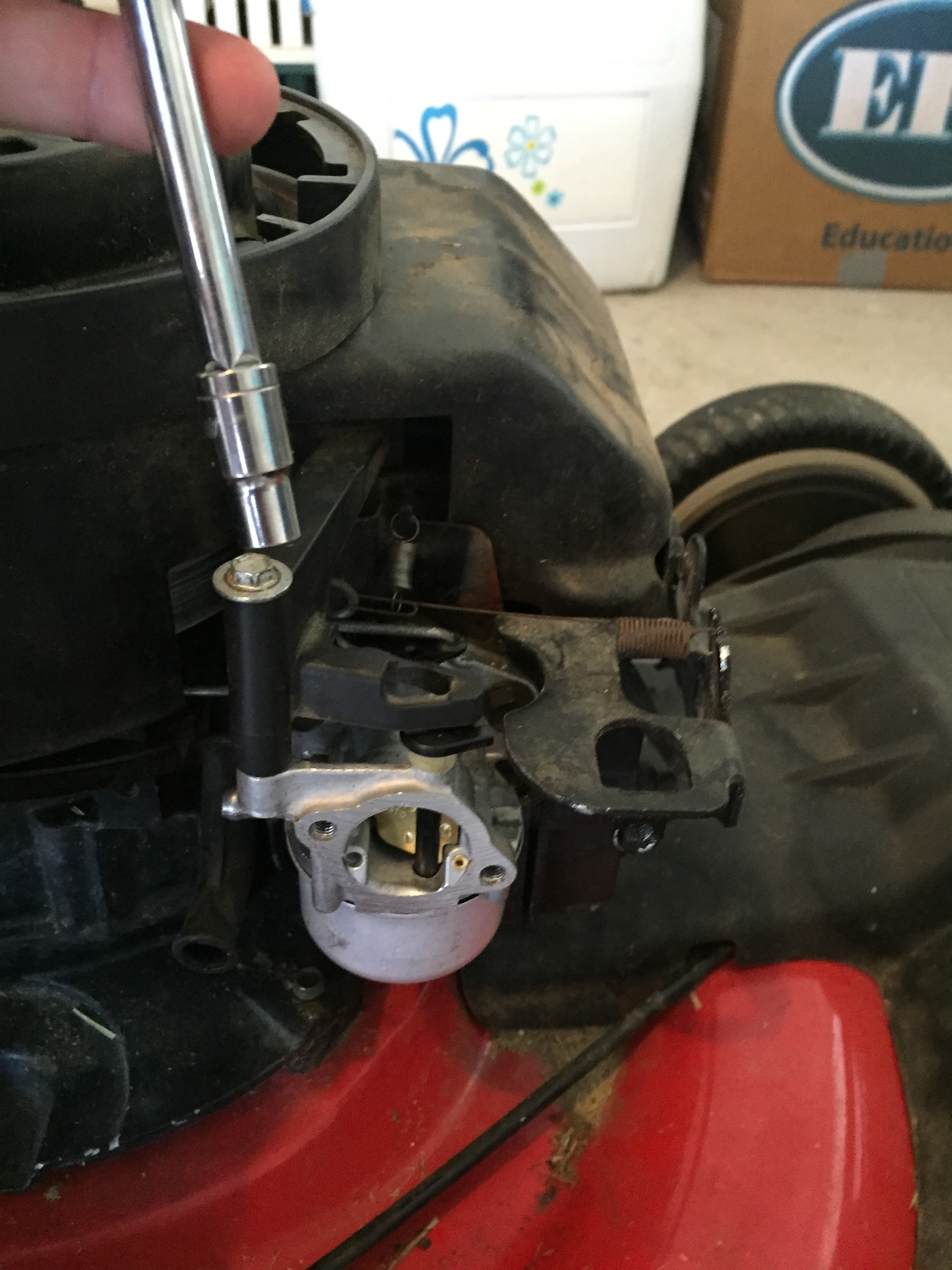

Picture 4: Begin unscrewing

Notice the carburater is still attached to a pin using the first two pictures

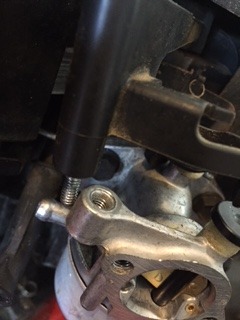

Picture 3: close up of Pin Attachment location

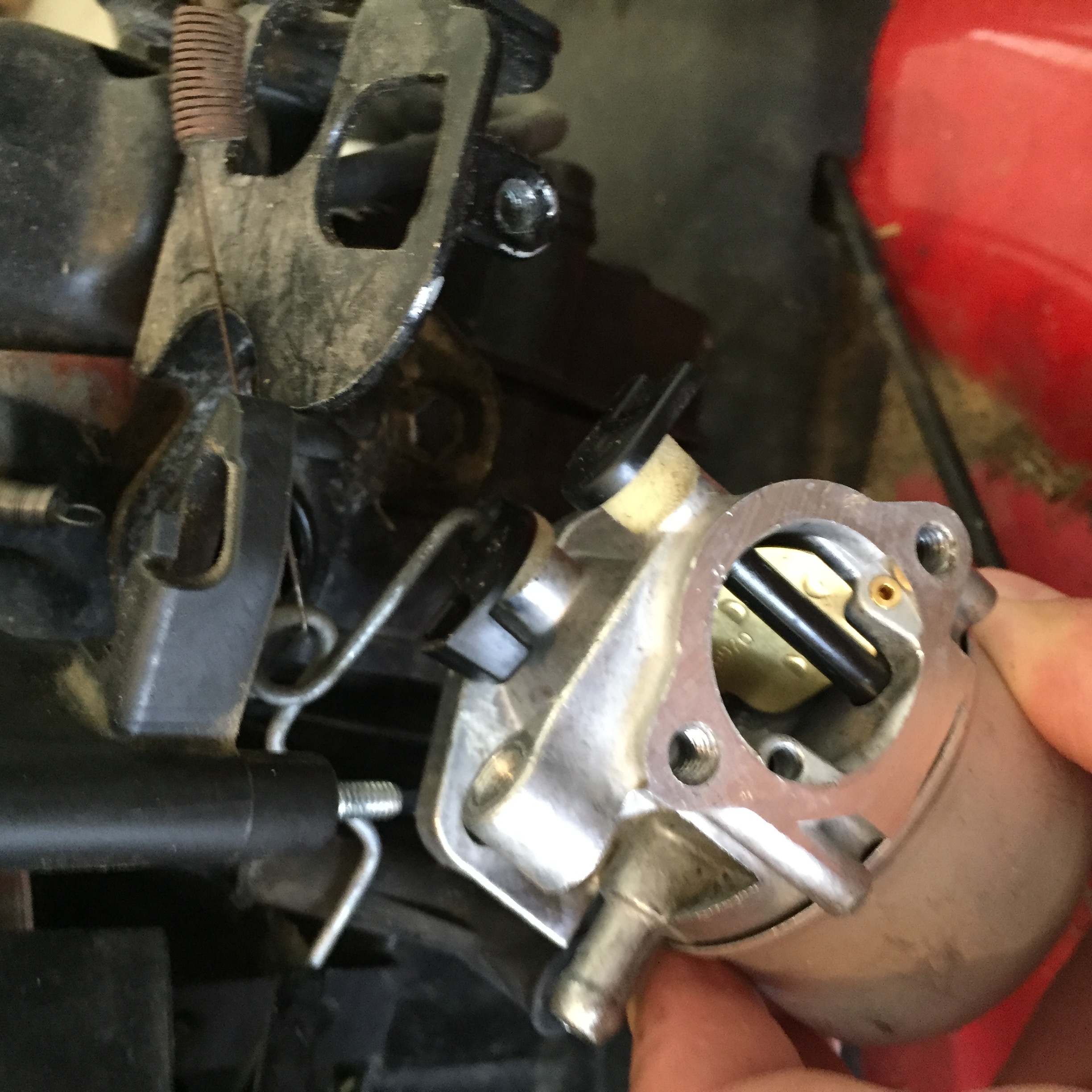

Procedure: remove carburator by tilting sideways; visit photo 4 for finished look

Place carburater on a surface you do not mind ruining such as a cardboard box

Use Carb clean (found at any general store)

Spray carburater using carb clean mixture at an angle from 6 inches away

Dry wet Carburater by letting it sit for 2-3 minutes

Revisit Slides 1-9 to Put back together the carb

Your lawnmower will now run more smoothly (and work)!
