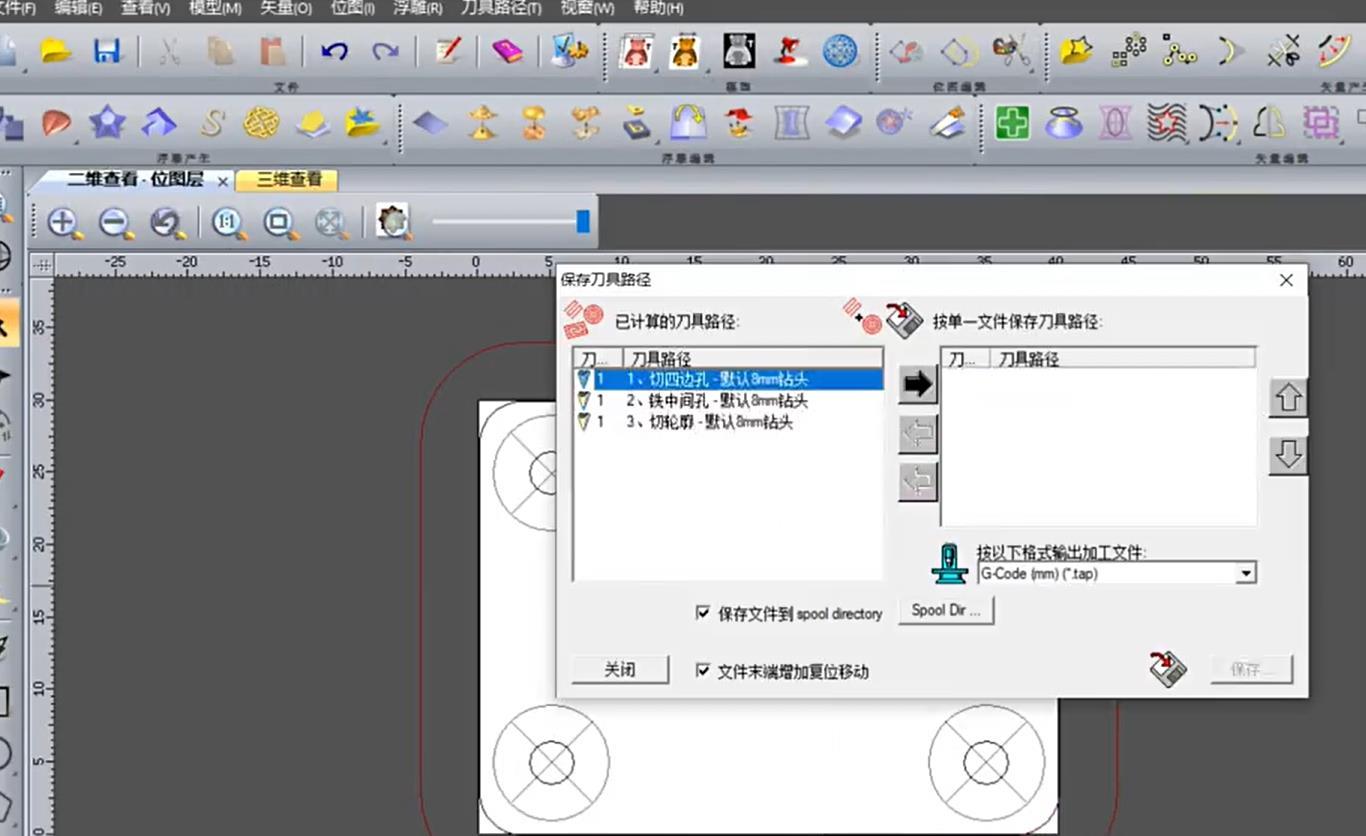

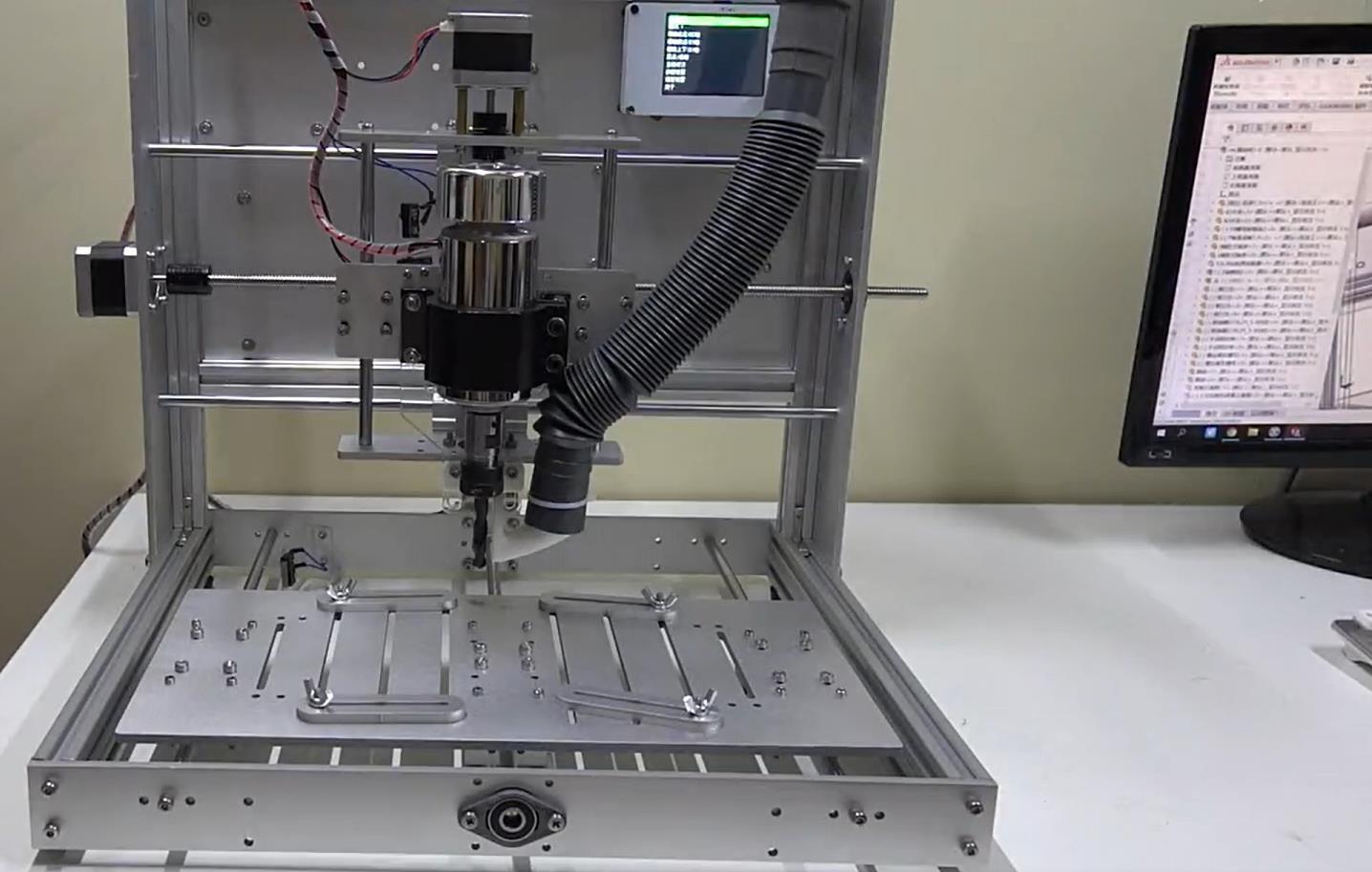

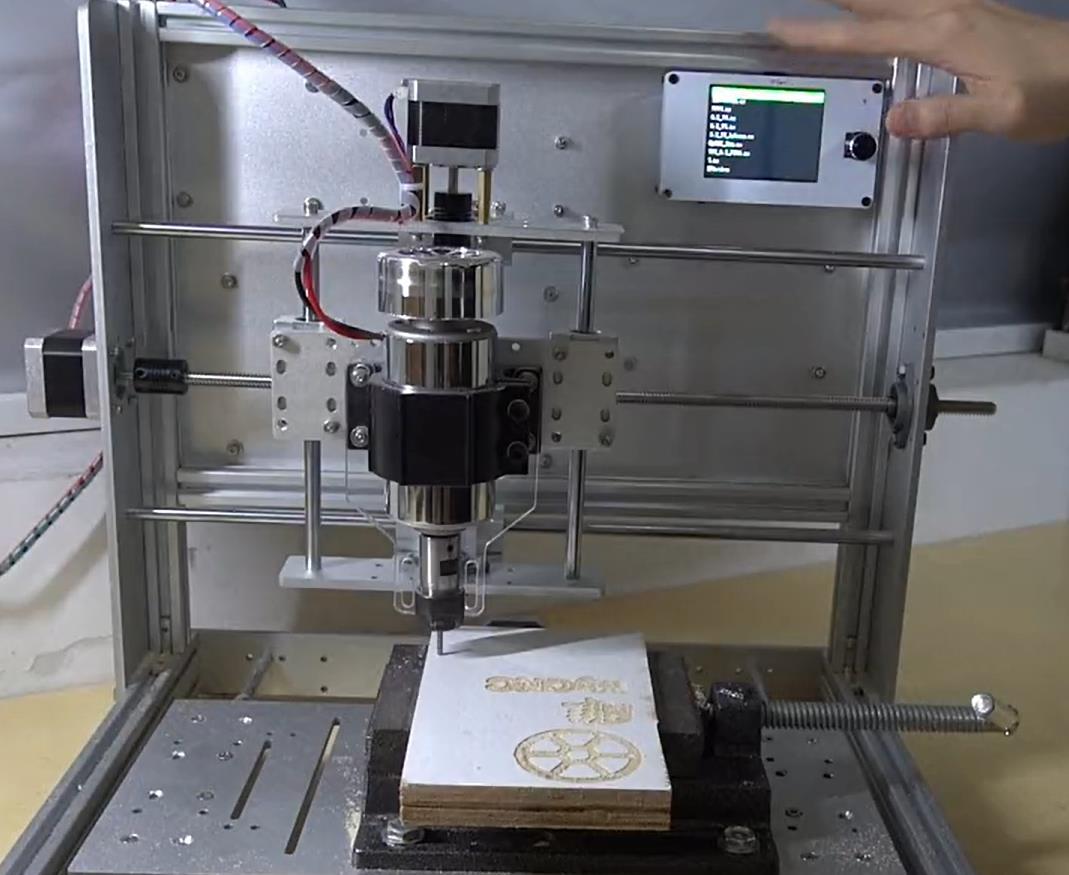

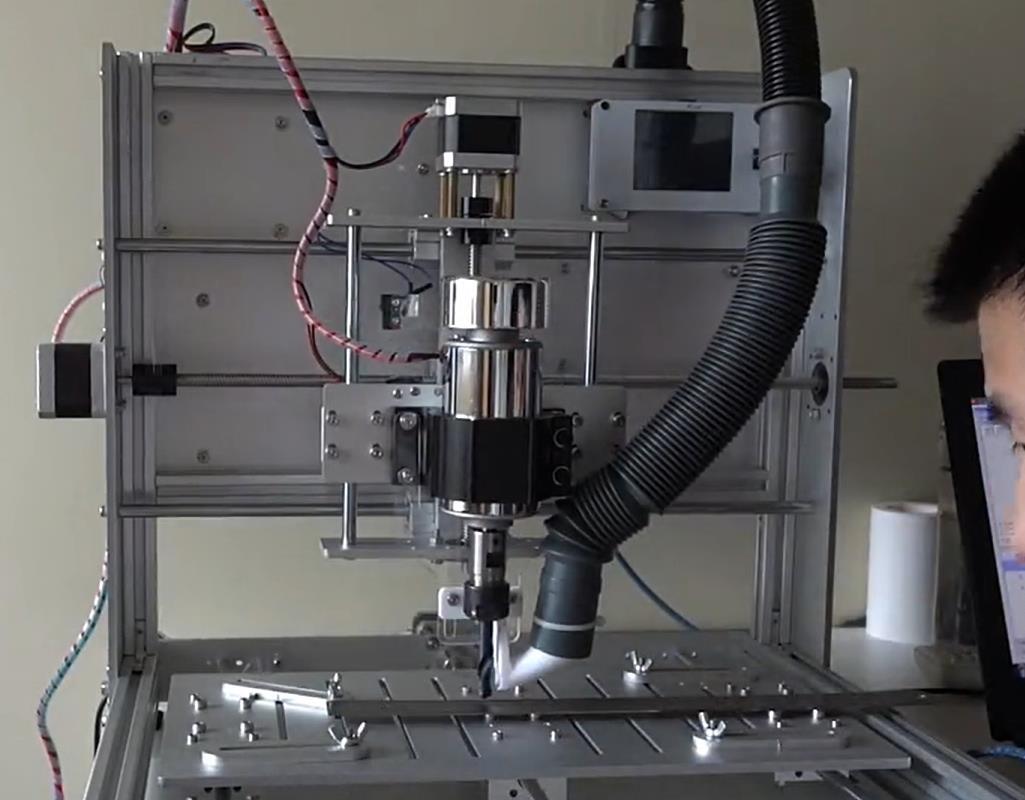

DIY CNC Engraving Machine

I often see people making their own cnc machines on the Internet, and I suddenly feel that I should not make viewers. I also want to have my own, so I decided to make one.

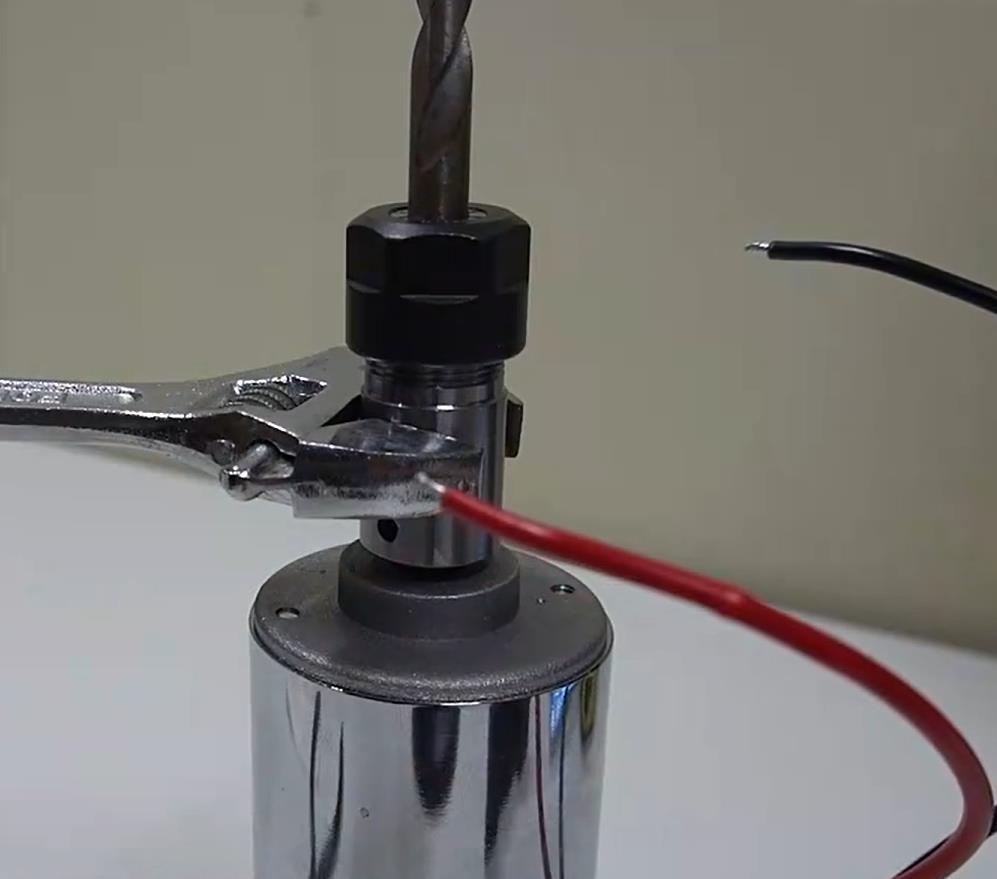

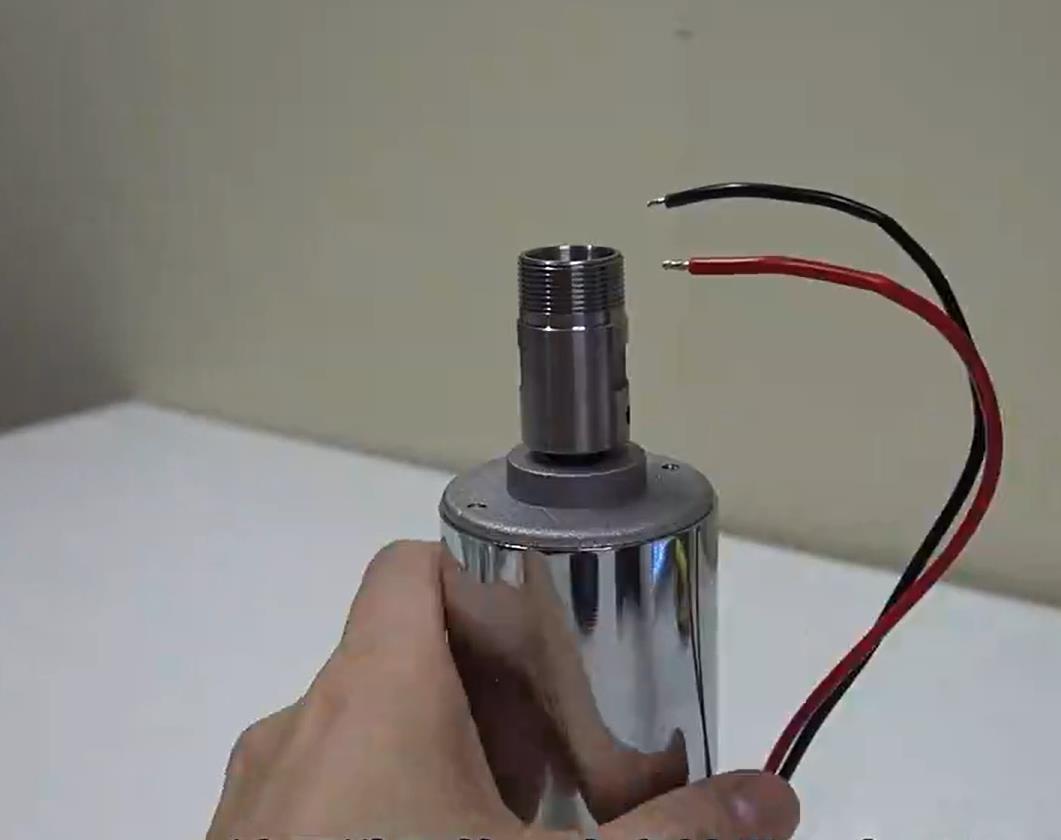

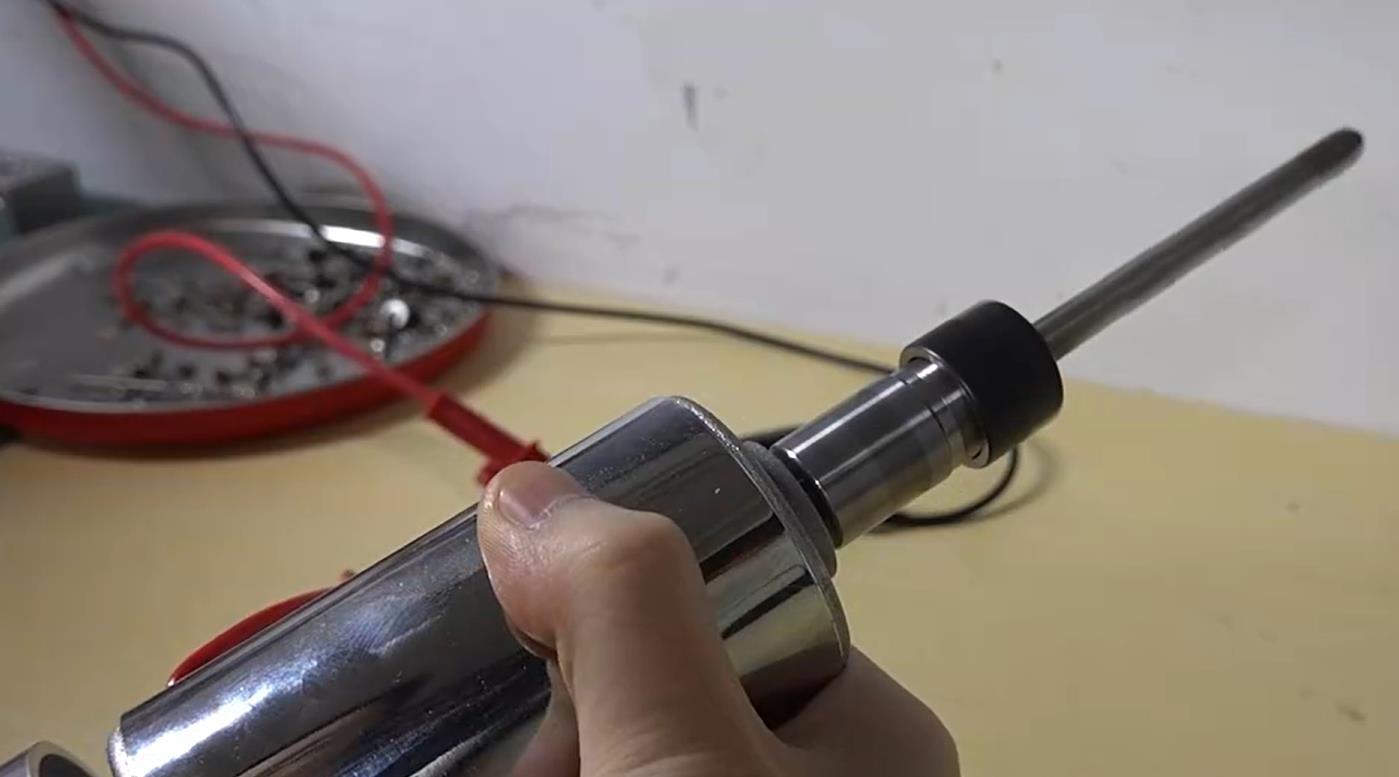

1. 12V, 300w spindle motor

2. 2 axis cnc laser engraving of electrical control board panel

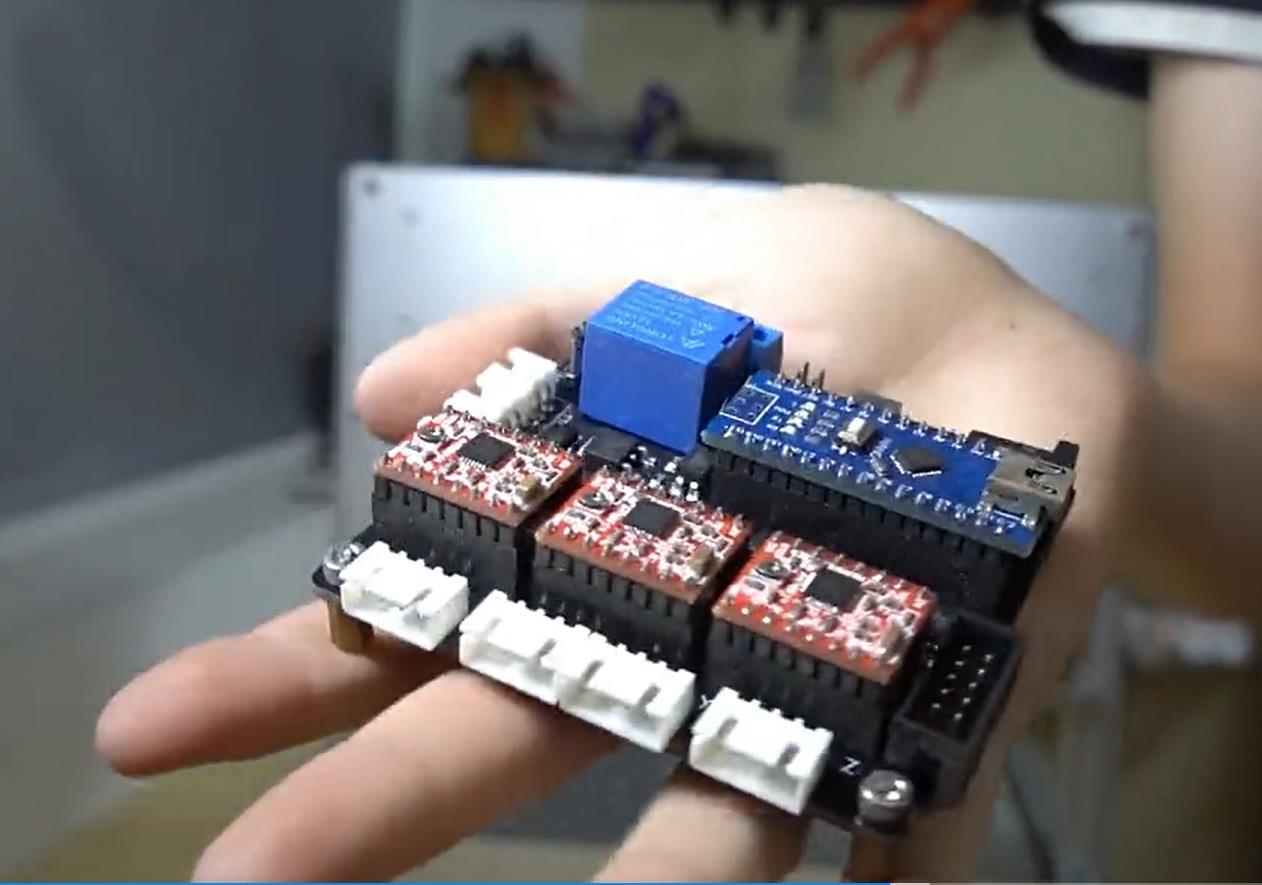

3. 3 Axis Main Circuit Board NAN0

4. Power supply

5. Acrylic sheet

6. Aluminum profile

7. Screw,

8. Polished rod,

9. Nut

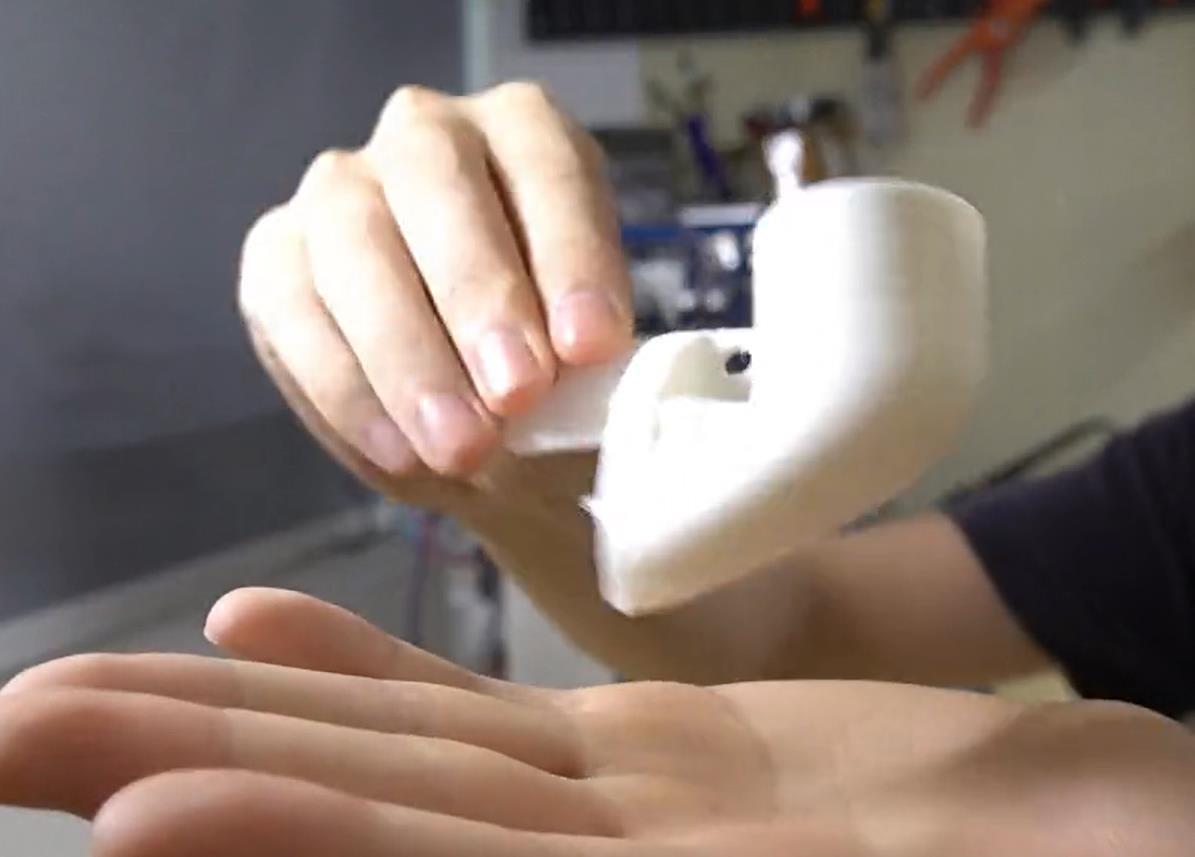

10. Dust cover fixing parts,

11. Vacuum nozzle

12. Hoses,

13. Large plastic bottle

14. Vacuum cleaners,

15. Vacuum adapter

Thanks for Capablemachining, and provide technical support.

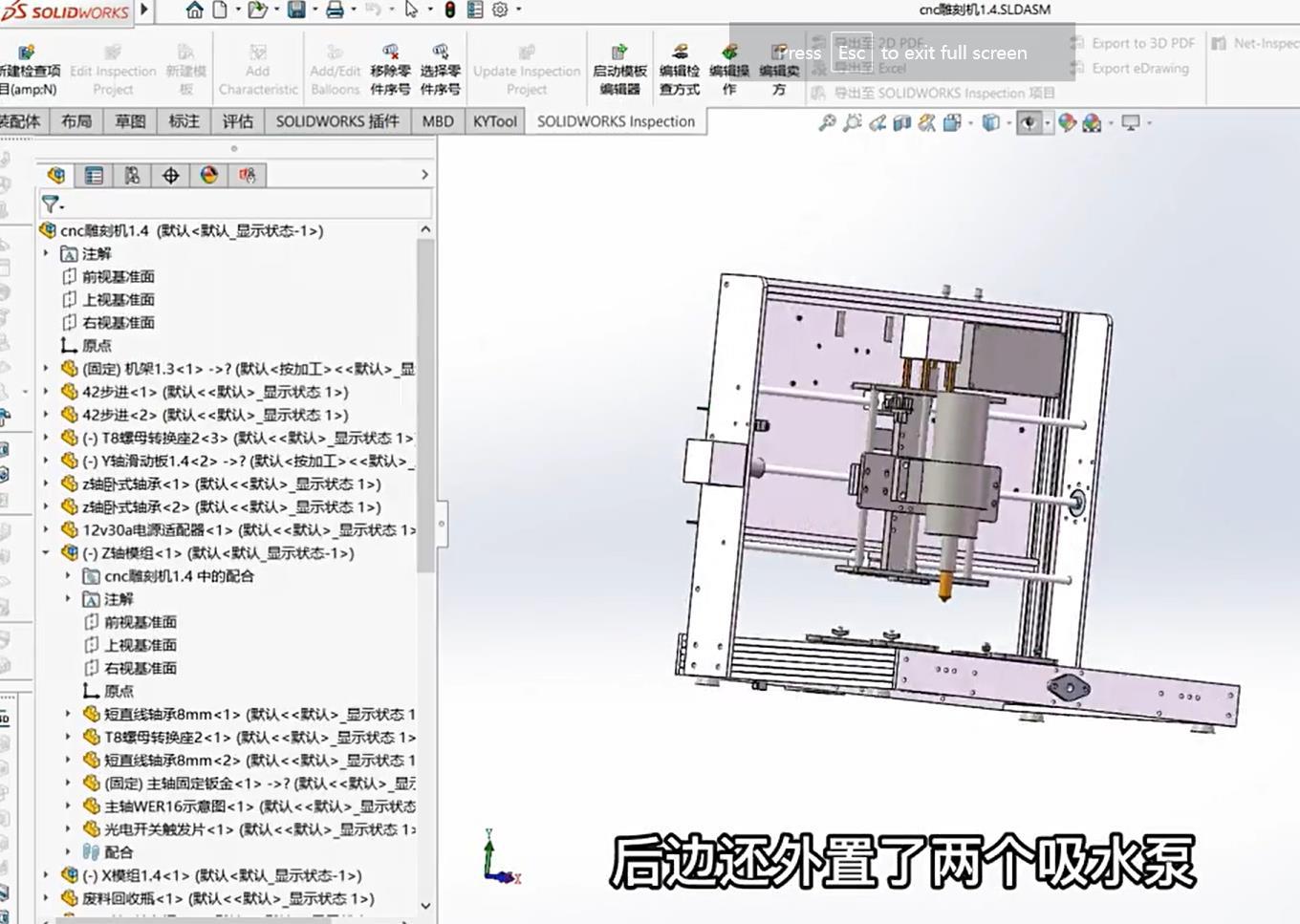

This machine was designed with reference to the current mature experience on the Internet and combined with its own budget that I have enough money.

Next, according to the design drawings, ready-made standard materials or parts are purchased directly, and those that need to be processed send the drawings to the factory for processing, especially the sheet metal parts. For other materials that cannot be bought directly, buy materials and process them yourself.

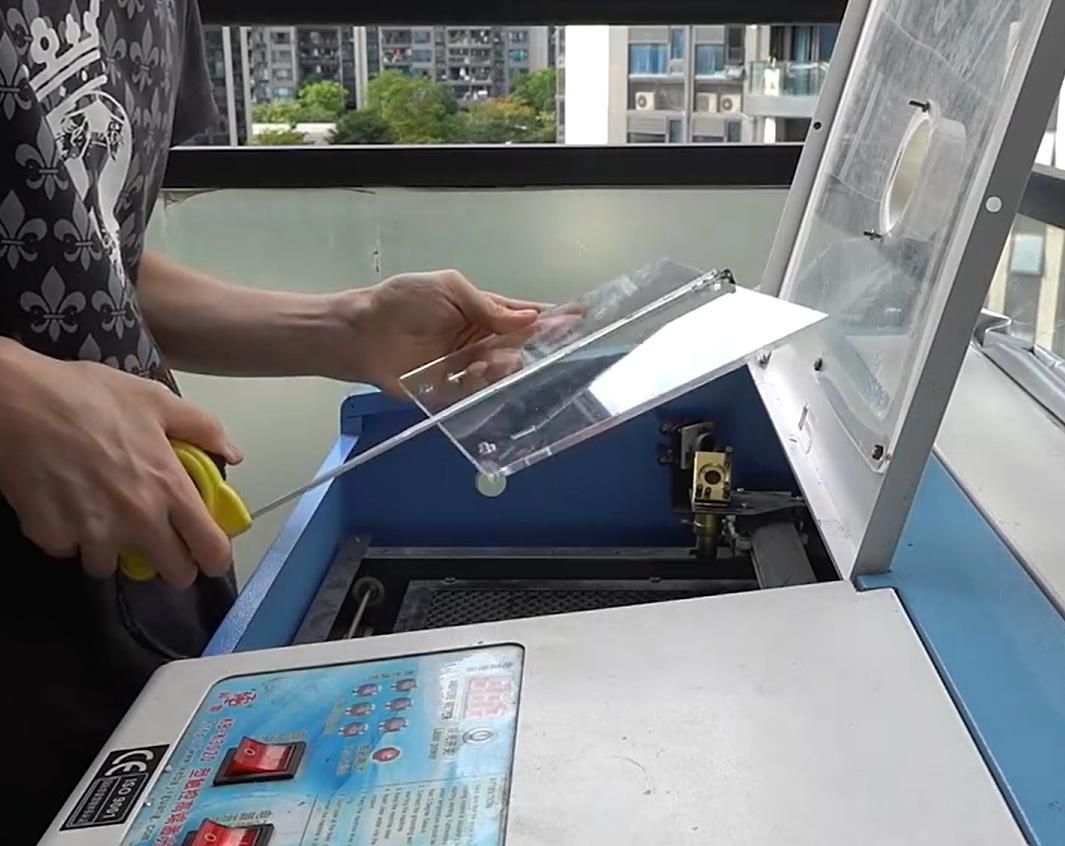

Acrylic cut into fixed mounting panels

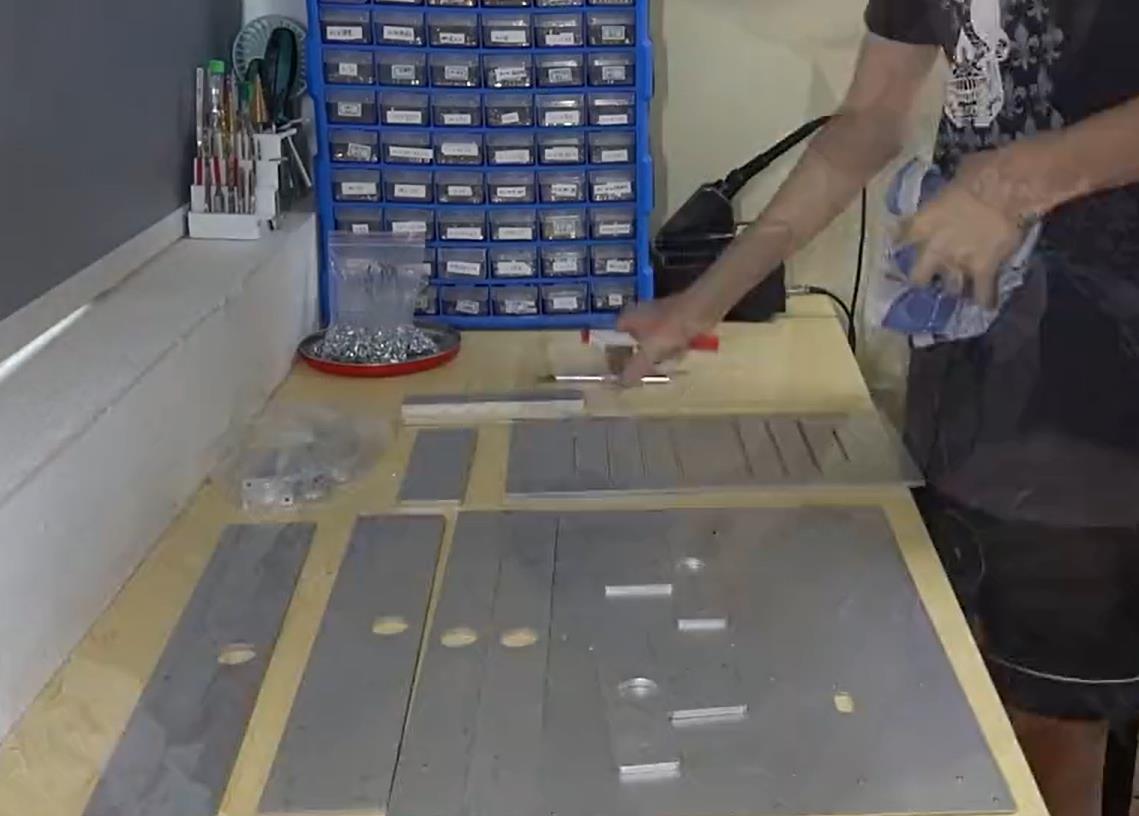

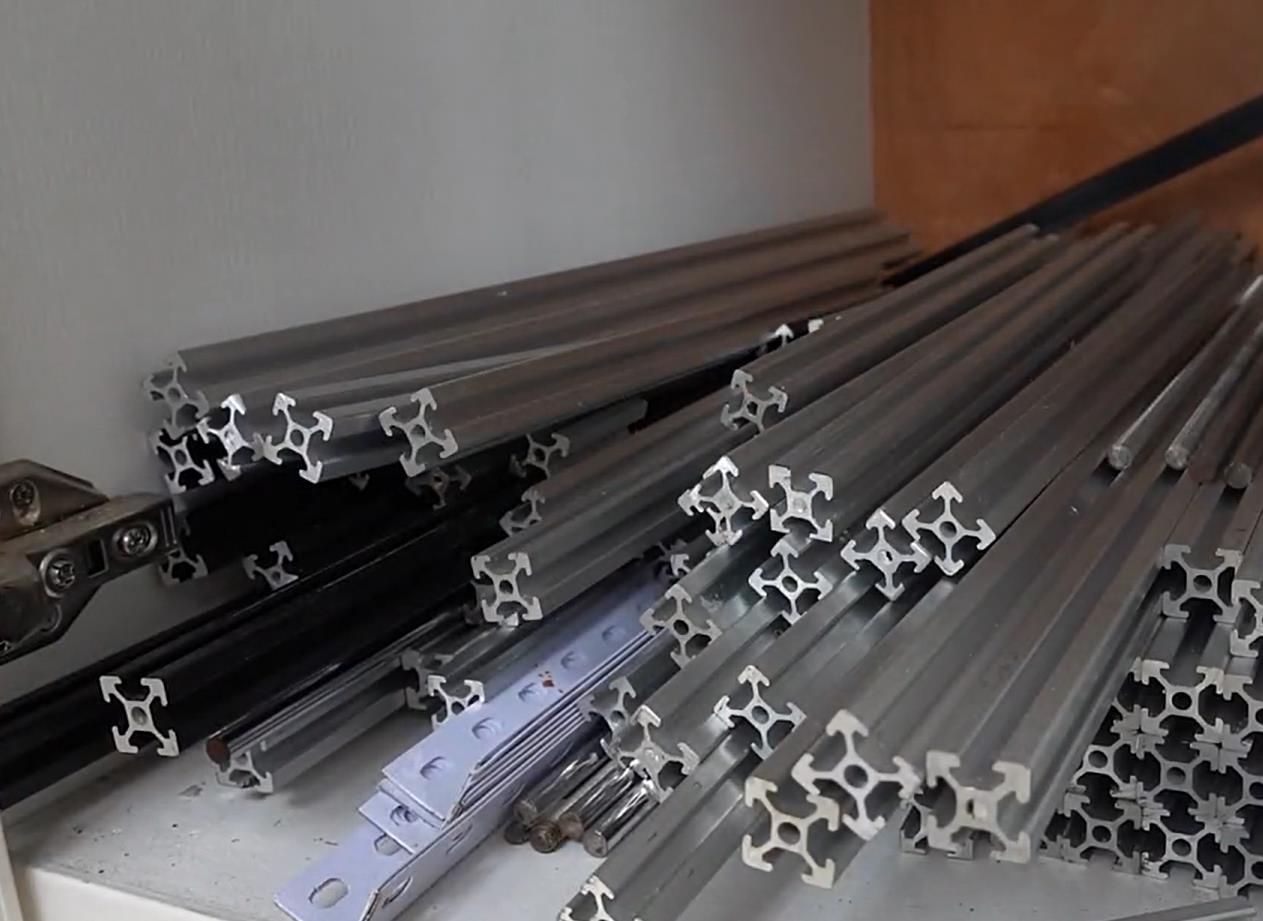

1. Cutting Aluminum Profiles

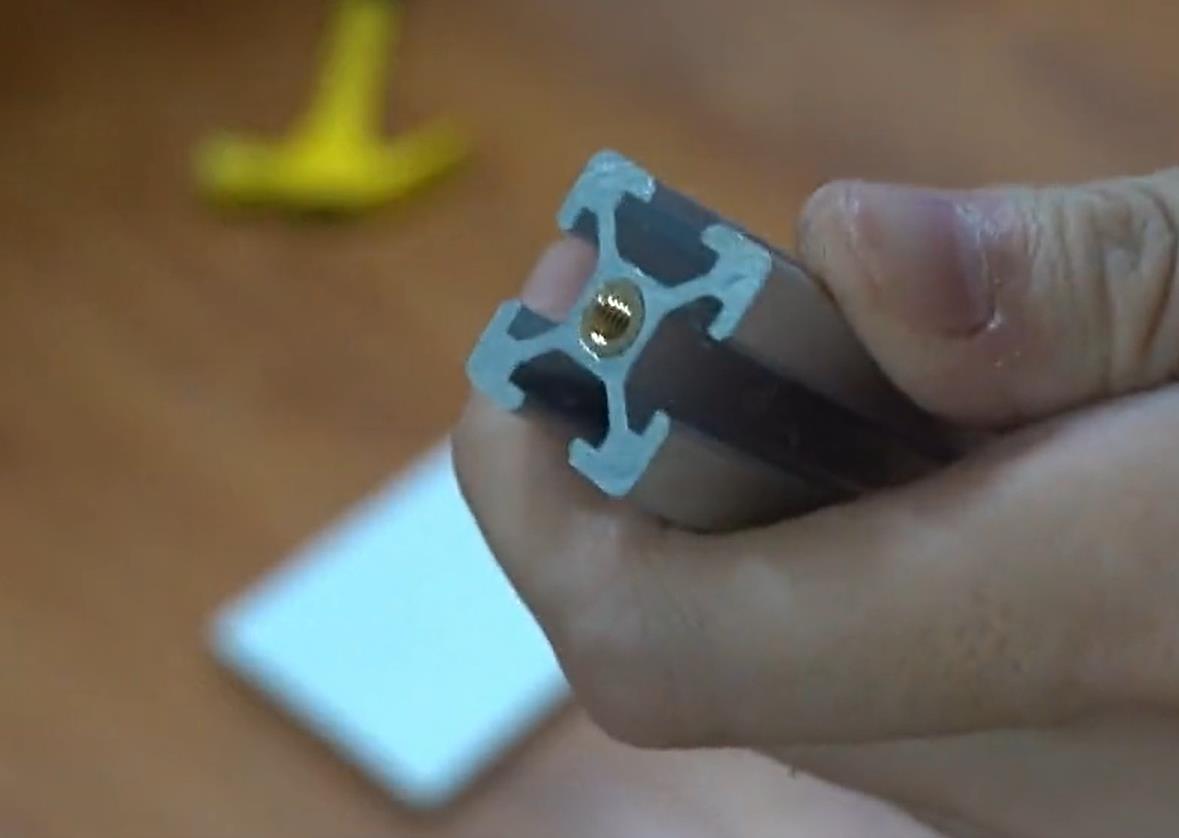

2. Embedded nut

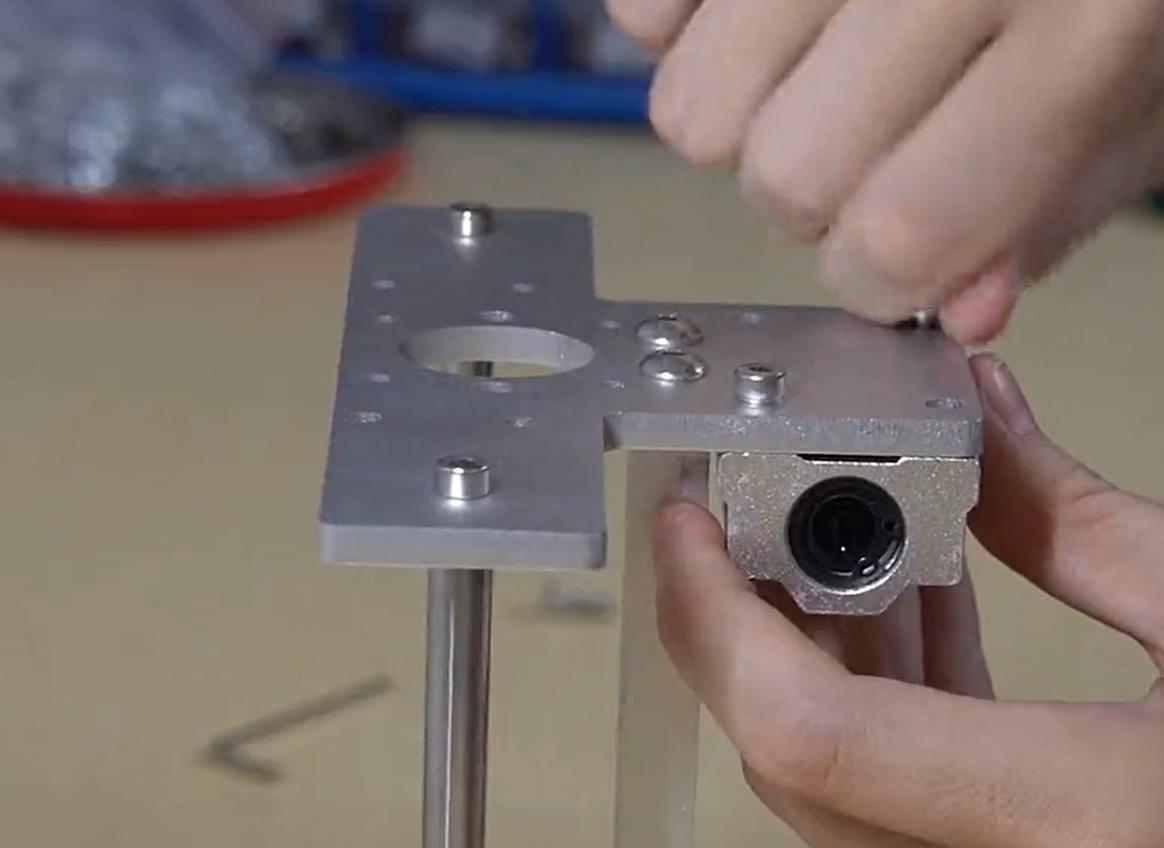

3. Assembly of aluminum profiles and sheet metal materials

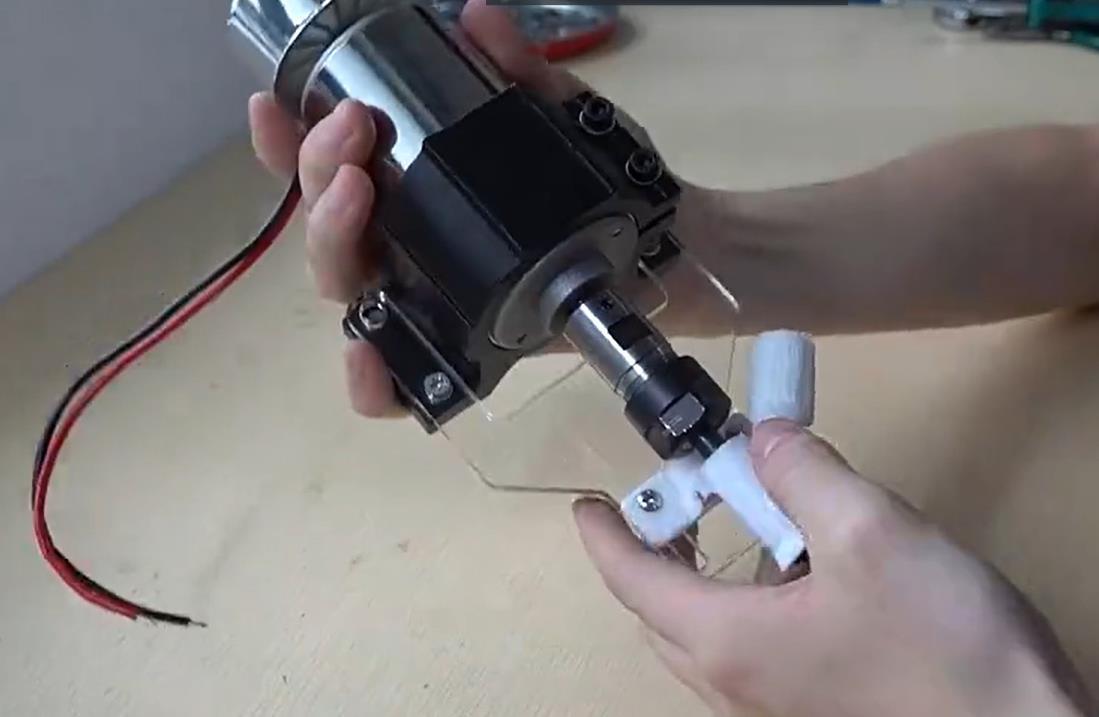

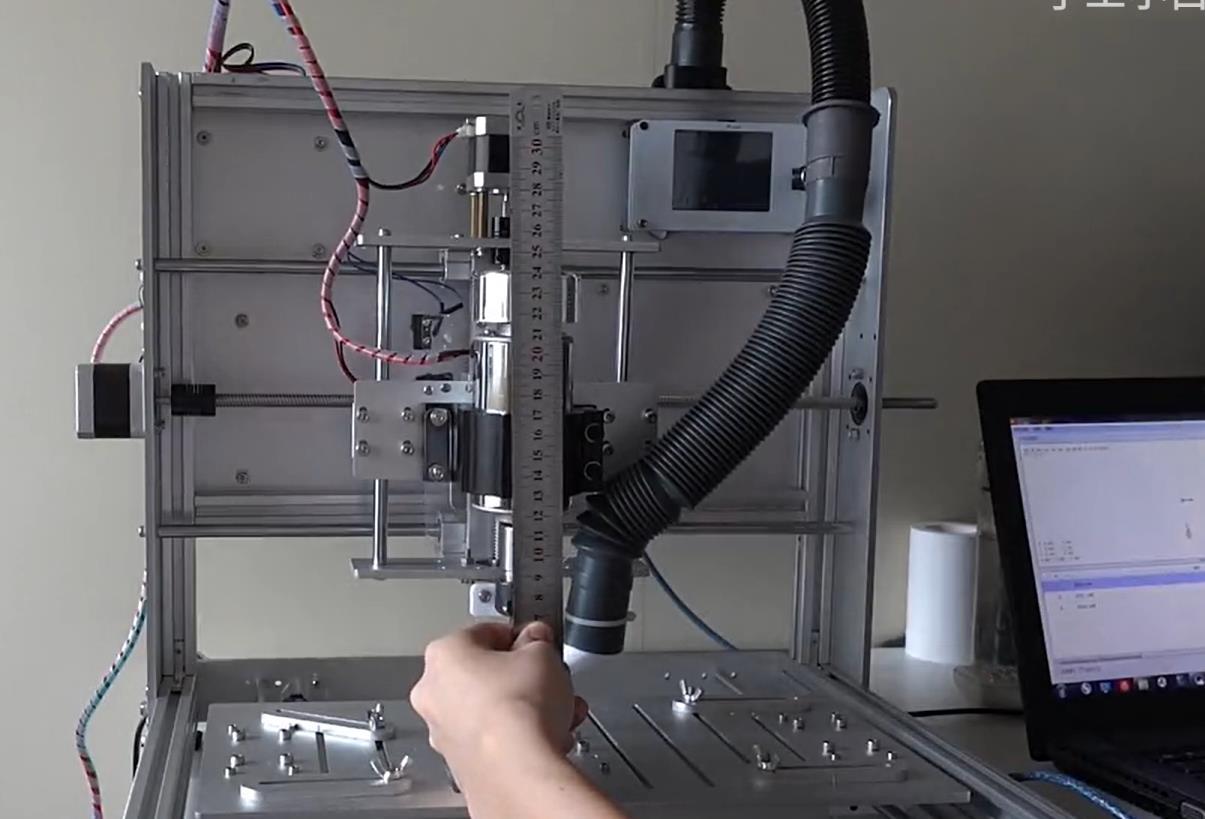

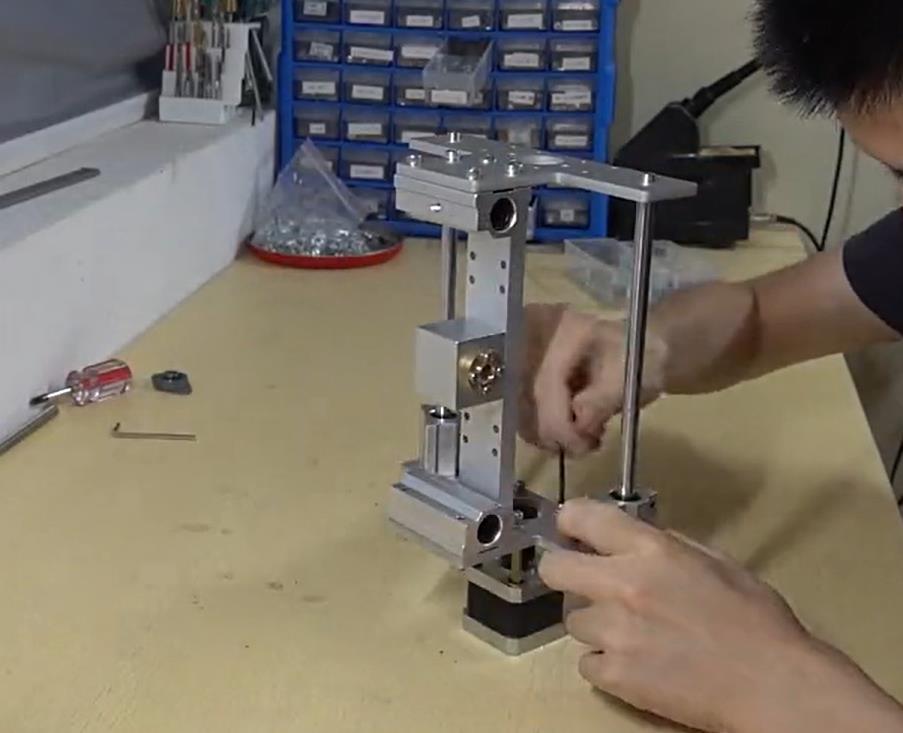

1. Assemble x, y, z axis main parts

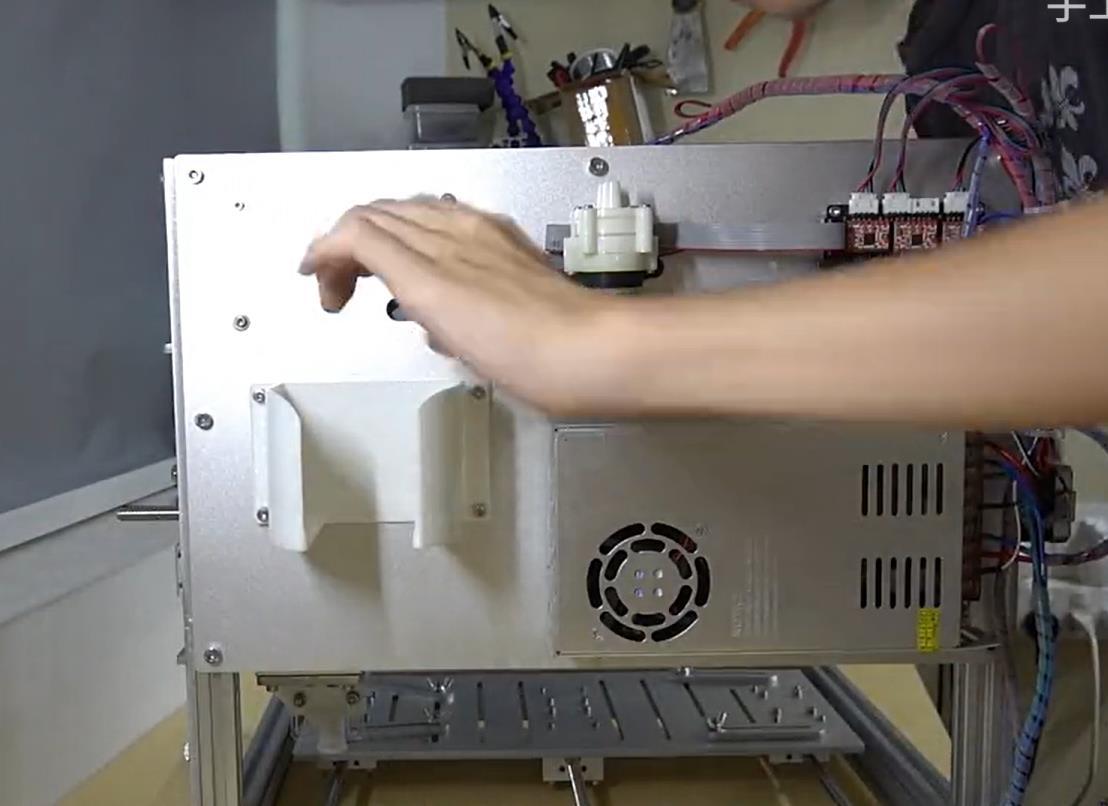

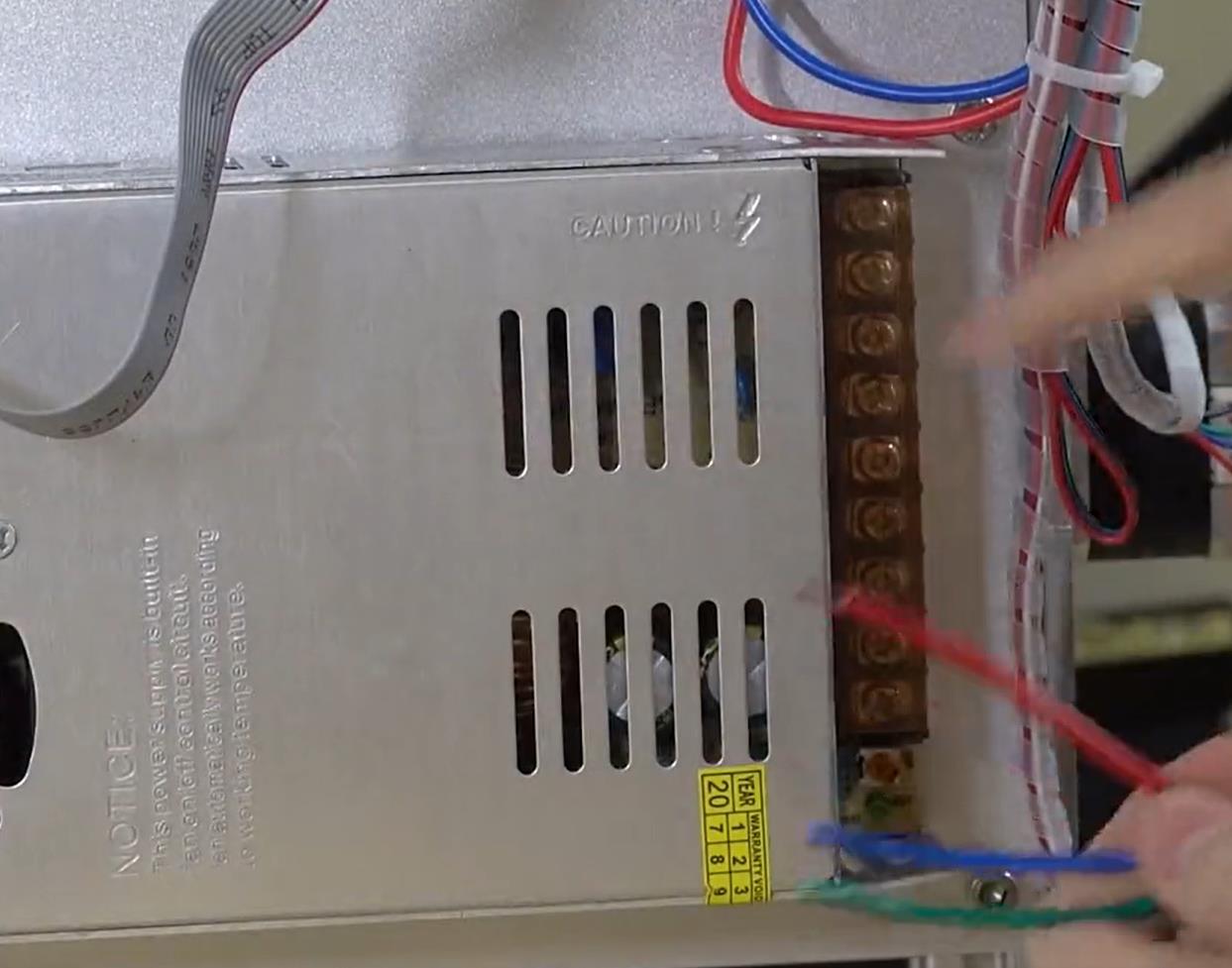

1. Assemble electrical control board panel and Power supply
