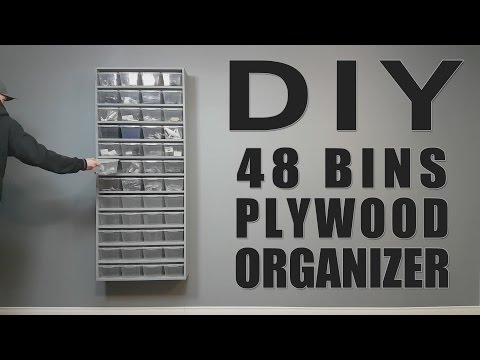

DIY Build - One Sheet Plywood - 48 Bins Organizer

How to build a very simple wall organizer using one single sheet of plywood and 48 plastic bins. I am building my workshop and I needed to add storage for my small parts. Quick and easy to build, this will organize my workshop. Im using small plastic bins : 6"1/4 wide, 3"3/4 high, 7"1/2 depth.

For this project, you will need :

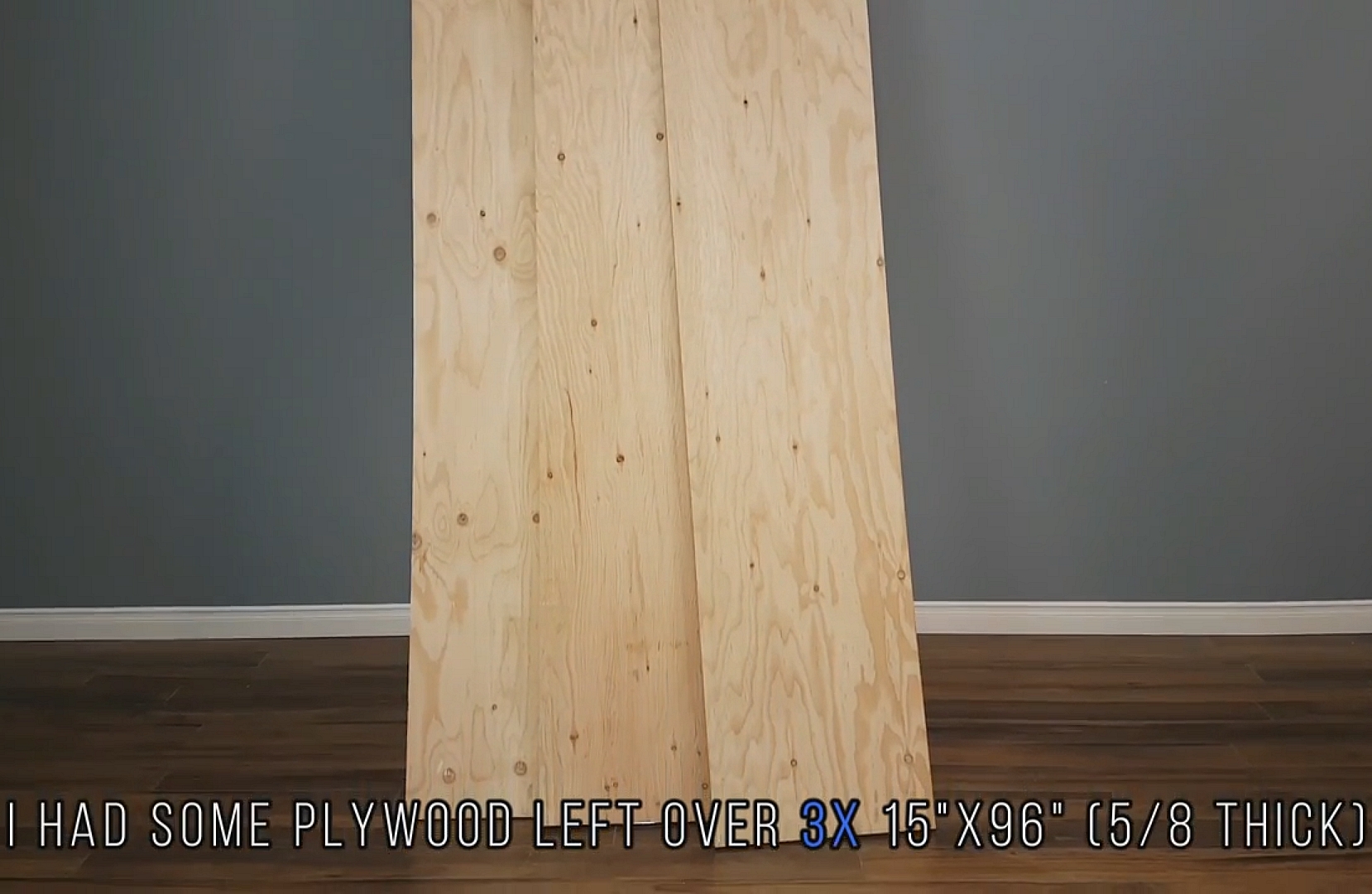

- 1 full plywood sheet (48"x96") or in my case i had some leftover plywood. (5/8 Thick)

- Wood Glue

- Nails or Screws ( or both for stronger build )

- Paint ( I used leftover wall paint )

Tools :

Table Saw

Miter Saw

18GA air Nailer

Sander

Drill or Impact Driver

Here is the cutting plan for all 15 pcs.

Im using my table saw and my miter saw to cut all the 15 pcs.

13X : 24"3/4 x 7"1/2 (629mm x 178mm)

2x : 62"1/8 x 7"1/2 (1578mm x 178mm)

Once it's done, im sanding all pieces before assembling.

Im using two 4"½ spacers to make sure i have the same distance between shelves. It also makes my job easier. Im using wood glue and brad nails. Later i will put trim screw to to add strength.

Because i plan to put a lot of weight in my bins, im adding screw to add strength. It's for my workshop but i still want a clean look. So trim screw have a smaller head than regular wood screw, and im using a jig i made to make sure that the same distance separates them.

Im using leftover latex wall paint to add some color to the plywood.

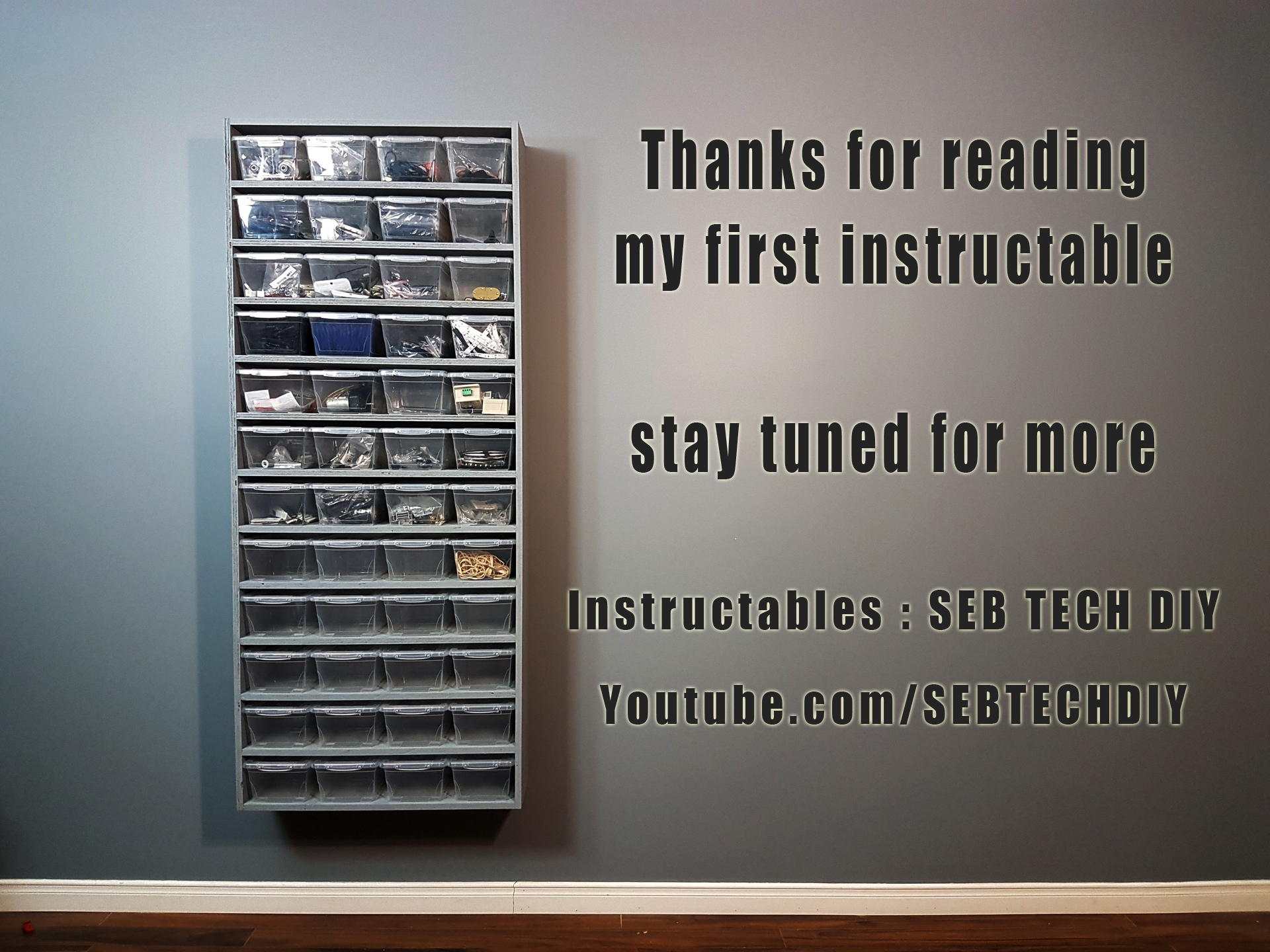

Now it's time to mount on the wall. I located 2 studs and used metal cornet brackets to make sure it's solid. I plan to put lot of stuff into my bins. I will add labels later. Im starting my youtube channel about DIY's and i have build this wall organizer for all my small parts.

Thanks for reading my first instructable.
