DIY Boost Converter || How to Step Up DC Voltage Efficiently

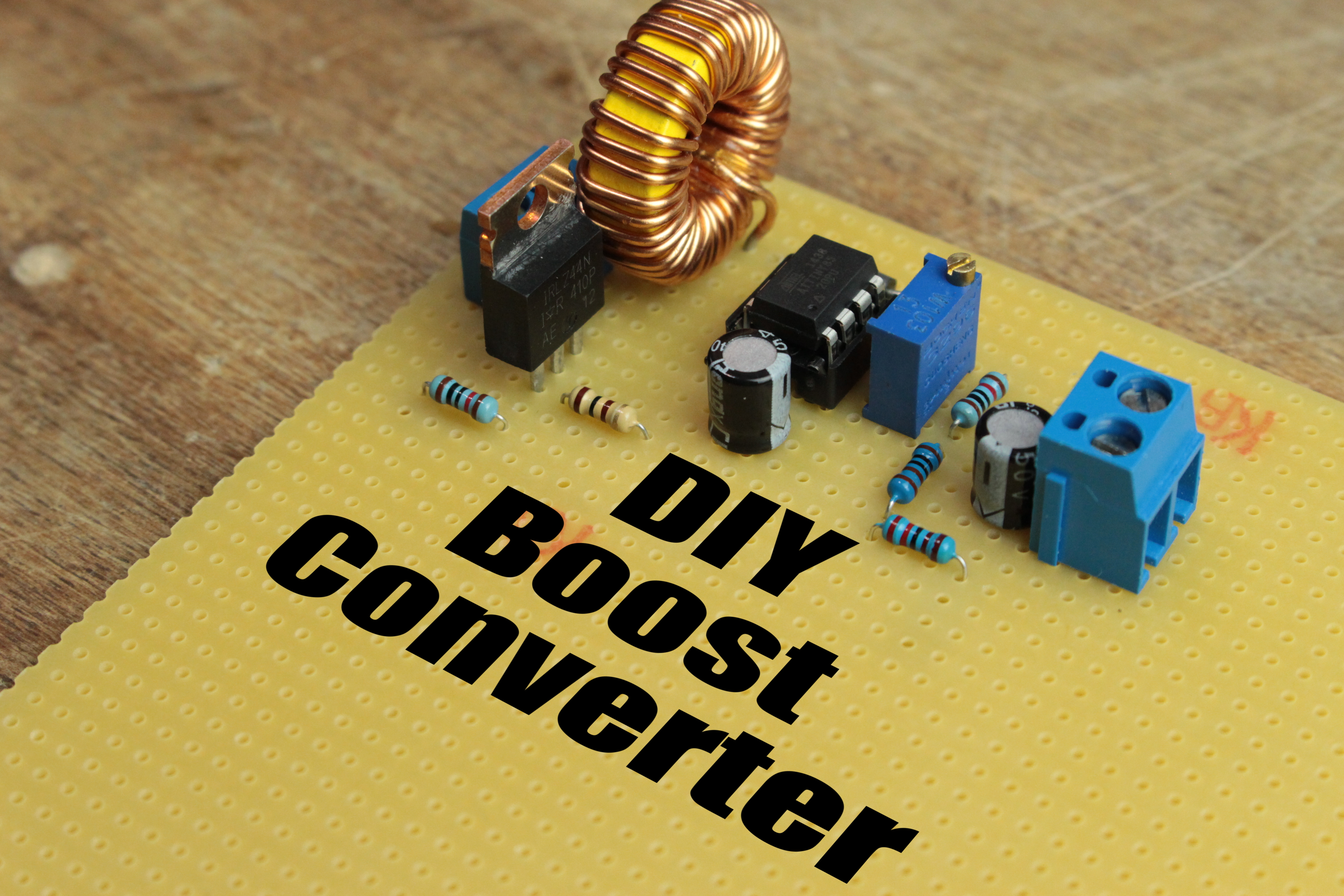

In this project I will show you an efficient and common way how to step up DC voltages. I will also demonstrate how easy it can be to build a boost converter with the help of an ATtiny85. Let's get started!

The video gives you all the information you need to create your own boost converter. The next steps just contain additional information for your convenience.

Here is a list of all the parts that you need with example sellers (affiliate links):

Aliexpress:

1x ATtiny85: https://s.click.aliexpress.com/e/_dVaIID1

1x IRLZ44N MOSFET: https://s.click.aliexpress.com/e/_dWhSrDl

1x 100µH Coil: https://s.click.aliexpress.com/e/_dU3eskP

2x 47µF Capacitor: https://s.click.aliexpress.com/e/_d7dOwRz

1x 100kΩ Potentiometer: https://s.click.aliexpress.com/e/_dX83GAF

1x 1N5819 Schottky Diode: https://s.click.aliexpress.com/e/_dYR45Bh

2x 10kΩ, 1x 1kΩ, 1x 2.2kΩ, 1x 100Ω Resistor: https://s.click.aliexpress.com/e/_dTPpXjt

2x PCB Terminal: https://s.click.aliexpress.com/e/_dYbstfZ

Perfboard: https://s.click.aliexpress.com/e/_dXx2Zv5

Ebay:

1x ATtiny85: http://rover.ebay.com/rover/1/711-53200-19255-0/1?...

1x IRLZ44N MOSFET: http://rover.ebay.com/rover/1/711-53200-19255-0/1?...

1x 100µH Coil: http://rover.ebay.com/rover/1/711-53200-19255-0/1?...

2x 47µF Capacitor: http://rover.ebay.com/rover/1/711-53200-19255-0/1?...

1x 100kΩ Potentiometer: http://rover.ebay.com/rover/1/711-53200-19255-0/1?...

1x 1N5819 Schottky Diode: http://rover.ebay.com/rover/1/711-53200-19255-0/1?...

2x 10kΩ, 1x 1kΩ, 1x 2.2kΩ, 1x 100Ω Resistor: http://rover.ebay.com/rover/1/711-53200-19255-0/1?...

2x PCB Terminal: http://rover.ebay.com/rover/1/711-53200-19255-0/1?...

Perfboard: http://rover.ebay.com/rover/1/711-53200-19255-0/1?...

Amazon.de:

1x ATtiny85: http://amzn.to/1E9ubfB

1x IRLZ44N MOSFET: http://amzn.to/1Osfnxn

1x 100µH Coil: http://amzn.to/1OsfxVz

2x 47µF Capacitor: http://amzn.to/1OsfIjE

1x 100kΩ Potentiometer: http://amzn.to/1OsfBEN

1x 1N5819 Schottky Diode: http://amzn.to/1OsfwBc

2x 10kΩ, 1x 1kΩ, 1x 2.2kΩ, 1x 100Ω Resistor: http://amzn.to/1E9uEhN

2x PCB Terminal: http://amzn.to/1GzZAZw

Perfboard: http://amzn.to/1YAqPI8

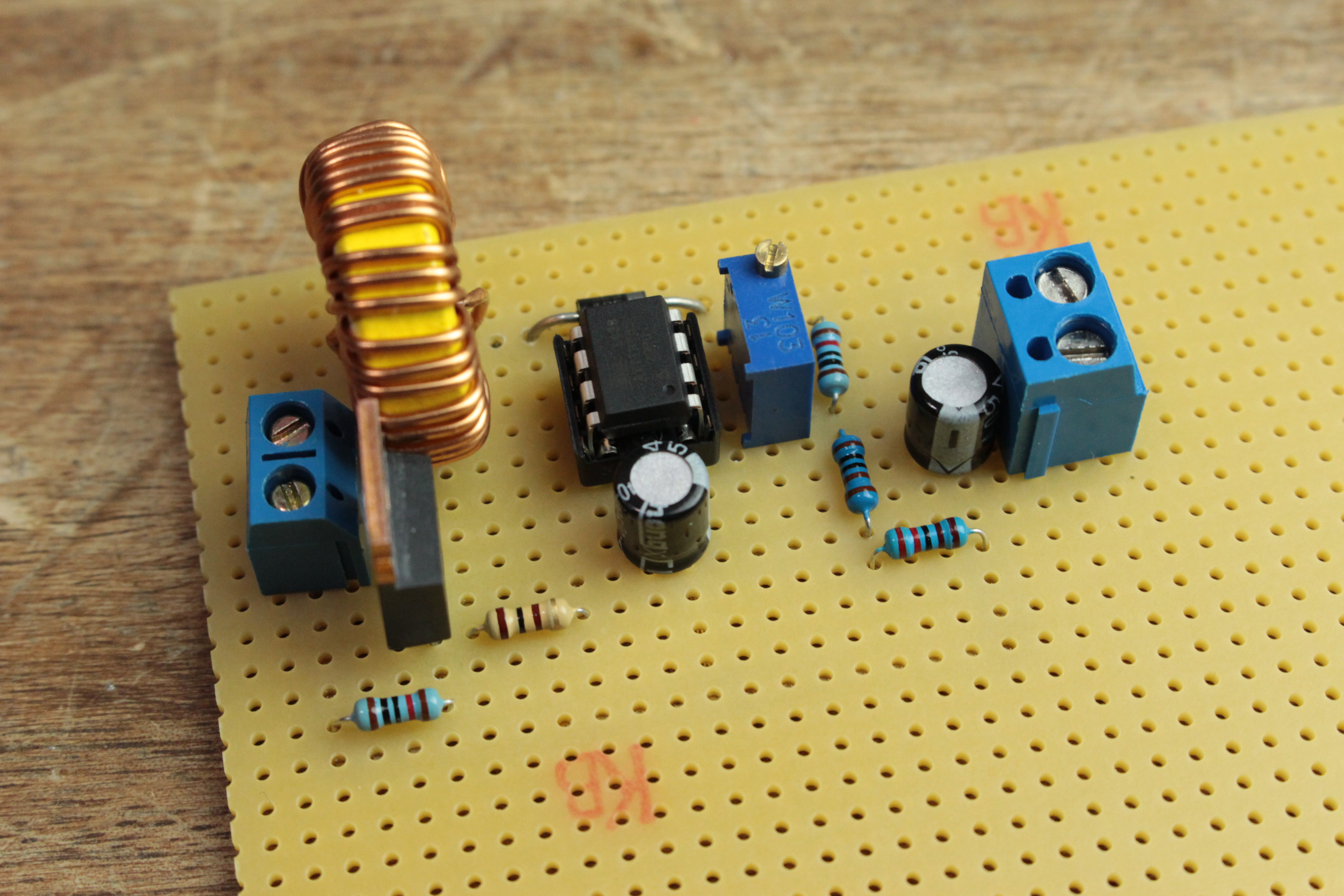

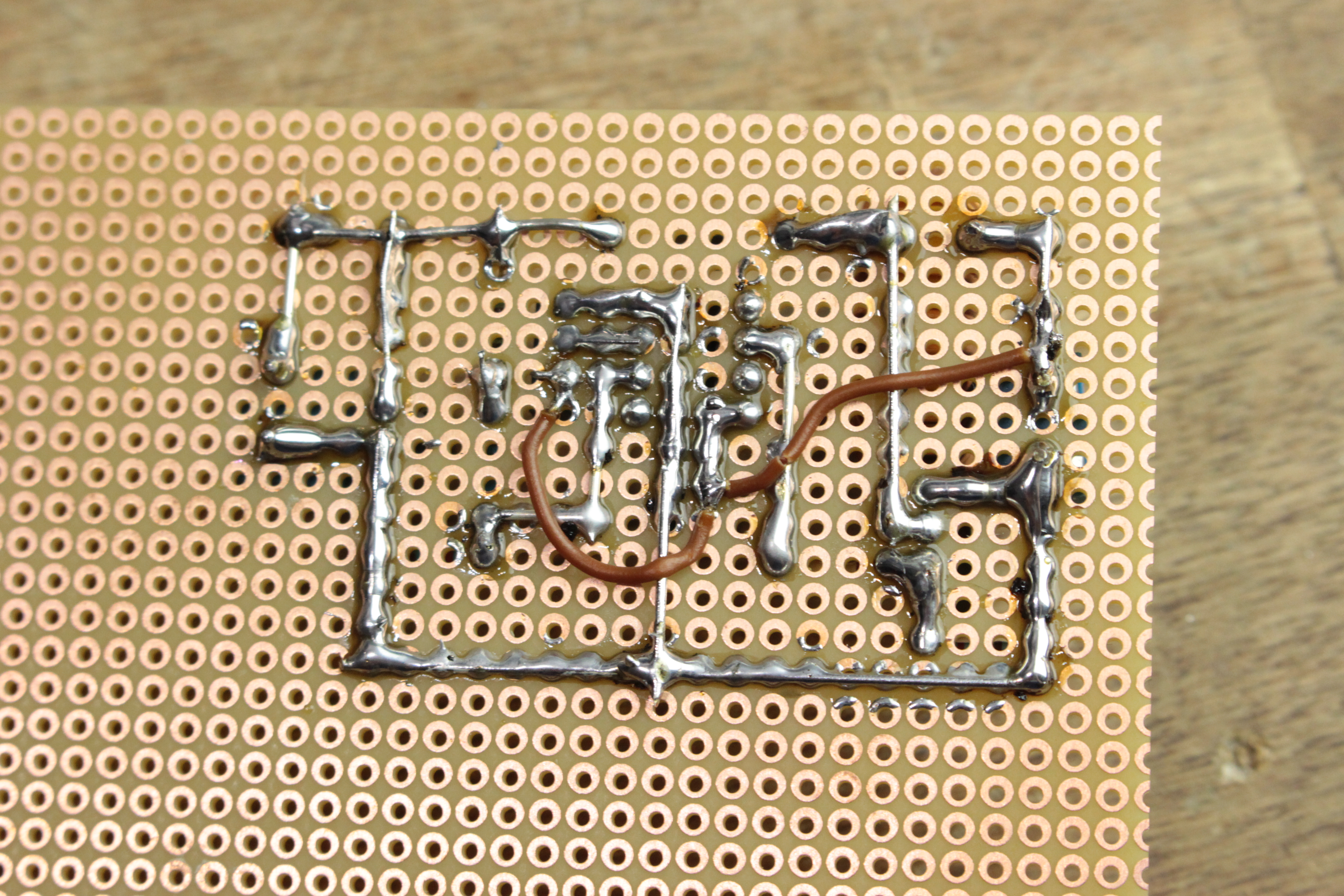

Here you can find the schematic for the project and reference pictures. The soldering process takes around 45 minutes if you know what you are doing.

In order to upload the code to the ATtiny85 you can use an Arduino Uno. Here is an older video of mine in which I demonstrated how to do that:

You did it! You just created your own Boost Converter!
