Bench POWER Supply (circuit)

Lable 8.jpg

Hi! Let's make a bench power supply. This is the first part about electric circuit. The next time I will show you how I've made a wooden case.

Parts


I used:

1) Power cable - http://s.click.aliexpress.com/e/49glUGRA

2) Power socket - http://s.click.aliexpress.com/e/DPfkn5wY

2.a) Fuses - http://s.click.aliexpress.com/e/4eGbAQ0u

3) AC to DC power Converter (24v) - http://s.click.aliexpress.com/e/FqLWRe4u

4) Voltage and current regulator (1.3 - 24v) - http://s.click.aliexpress.com/e/Ff2Jlk92

5) Precision Potentiometers 10 kOhm - http://s.click.aliexpress.com/e/o7ViT3NI

6) Potentiometer Knobs - http://s.click.aliexpress.com/e/kQITYuw4

7) Voltage and Amperage Monitor (10A) - http://s.click.aliexpress.com/e/olBUKU6U

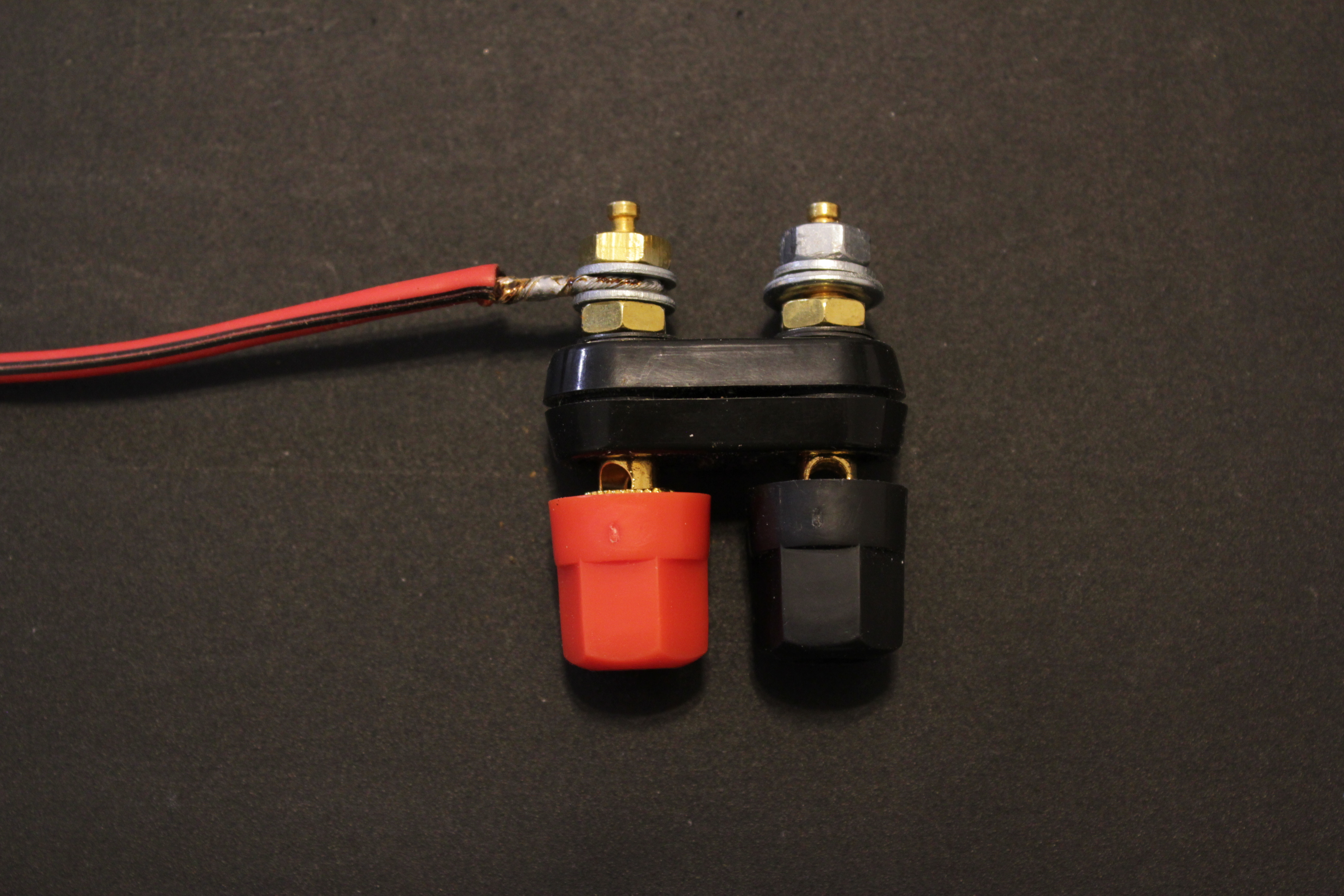

8) Banana Socket - http://s.click.aliexpress.com/e/sq4L8Ugg

8.a) Banana Connector - http://s.click.aliexpress.com/e/tBt5PZuc

9) mini DC Power Converter for fan - http://s.click.aliexpress.com/e/L9i9fxvO

10) Temperature Controller - http://s.click.aliexpress.com/e/5EbTJJr6

11) Fan (40mm, 12V) - http://s.click.aliexpress.com/e/E1QUClk4

AC 110/220V Input


The Power Socket has a 10 amperes fuse.

It means if we connect any electrical appliance, which consumes more than 10 amperes, the fuse will be blown and protect our circuit (blowing and short circuit protection test in the video).

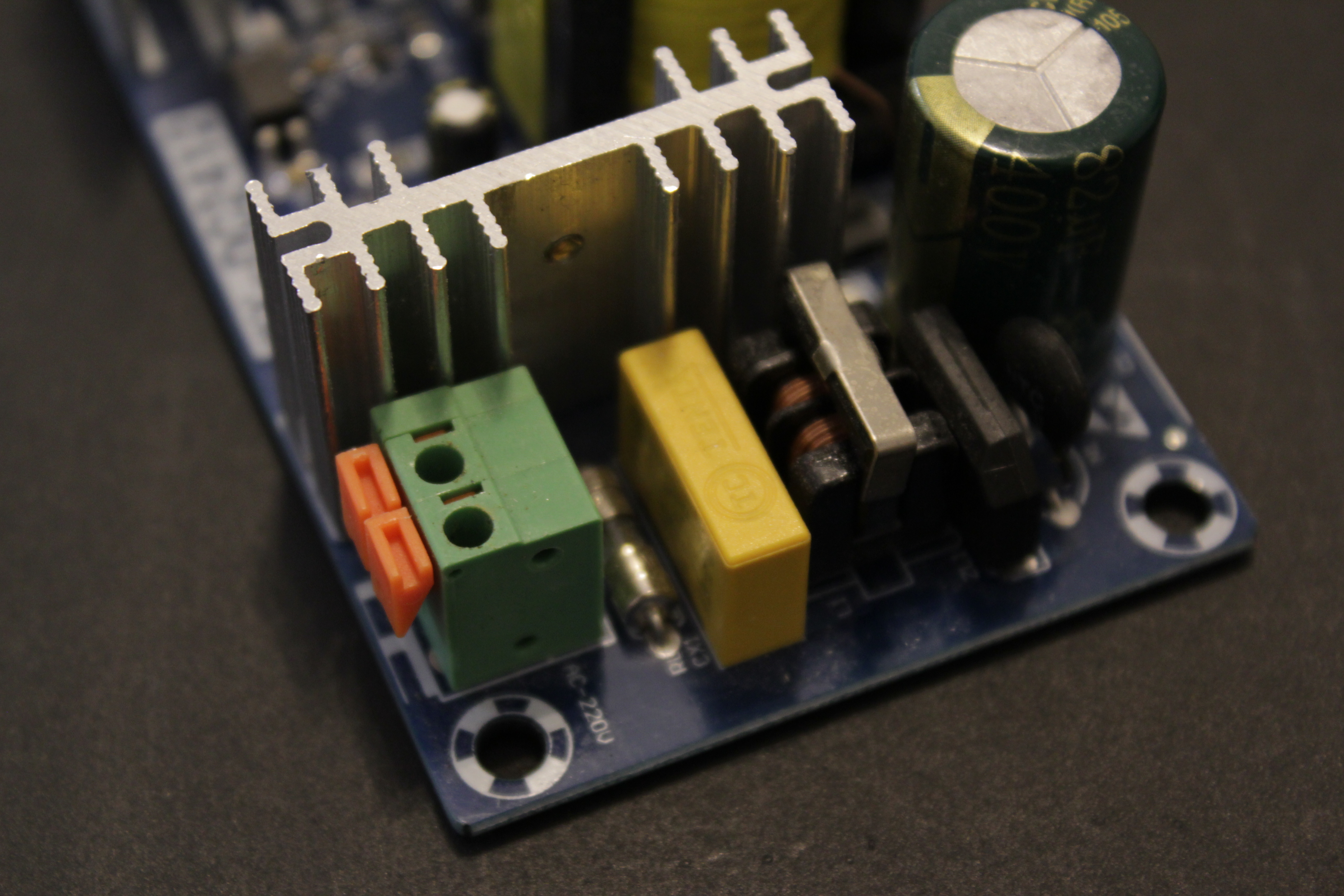

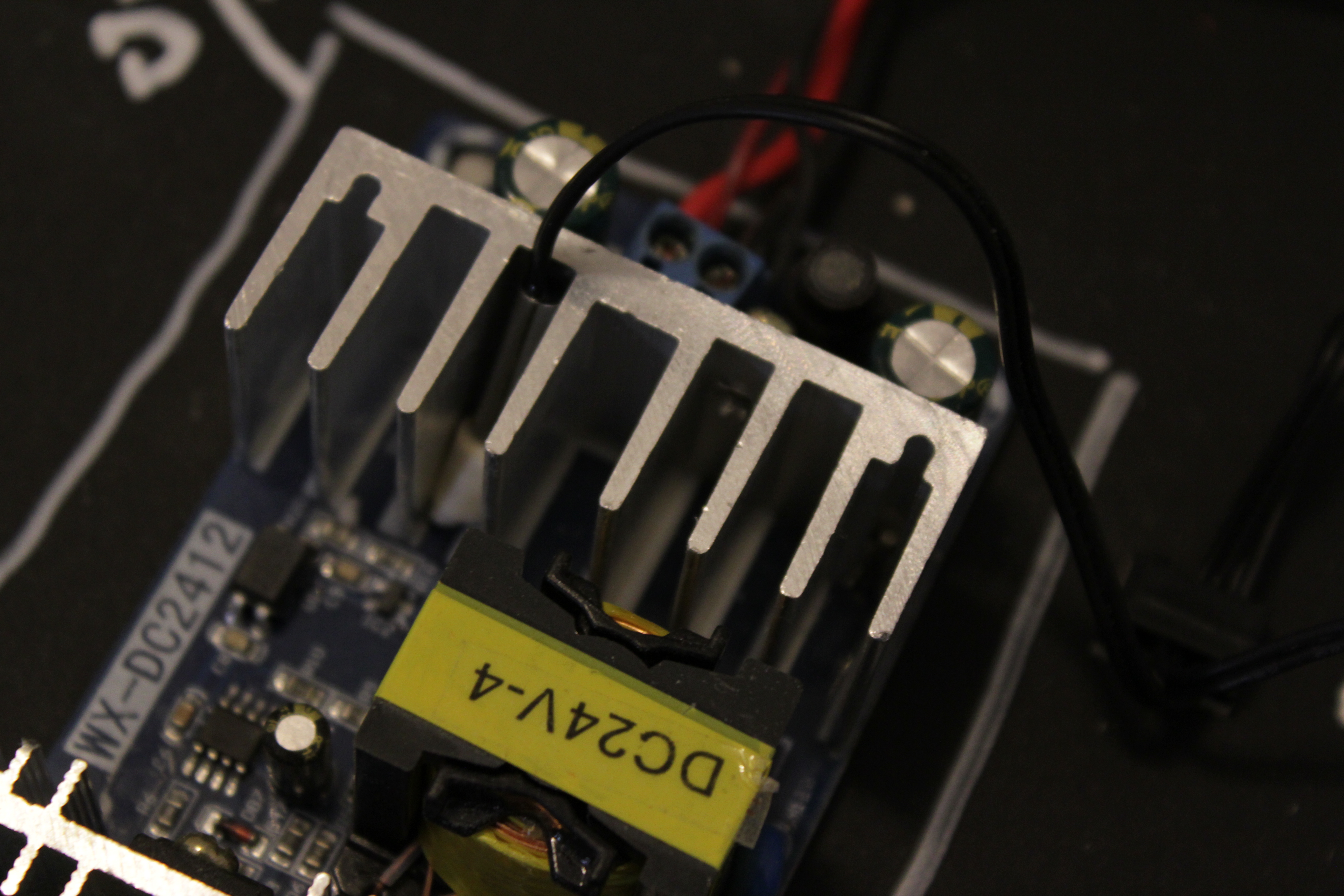

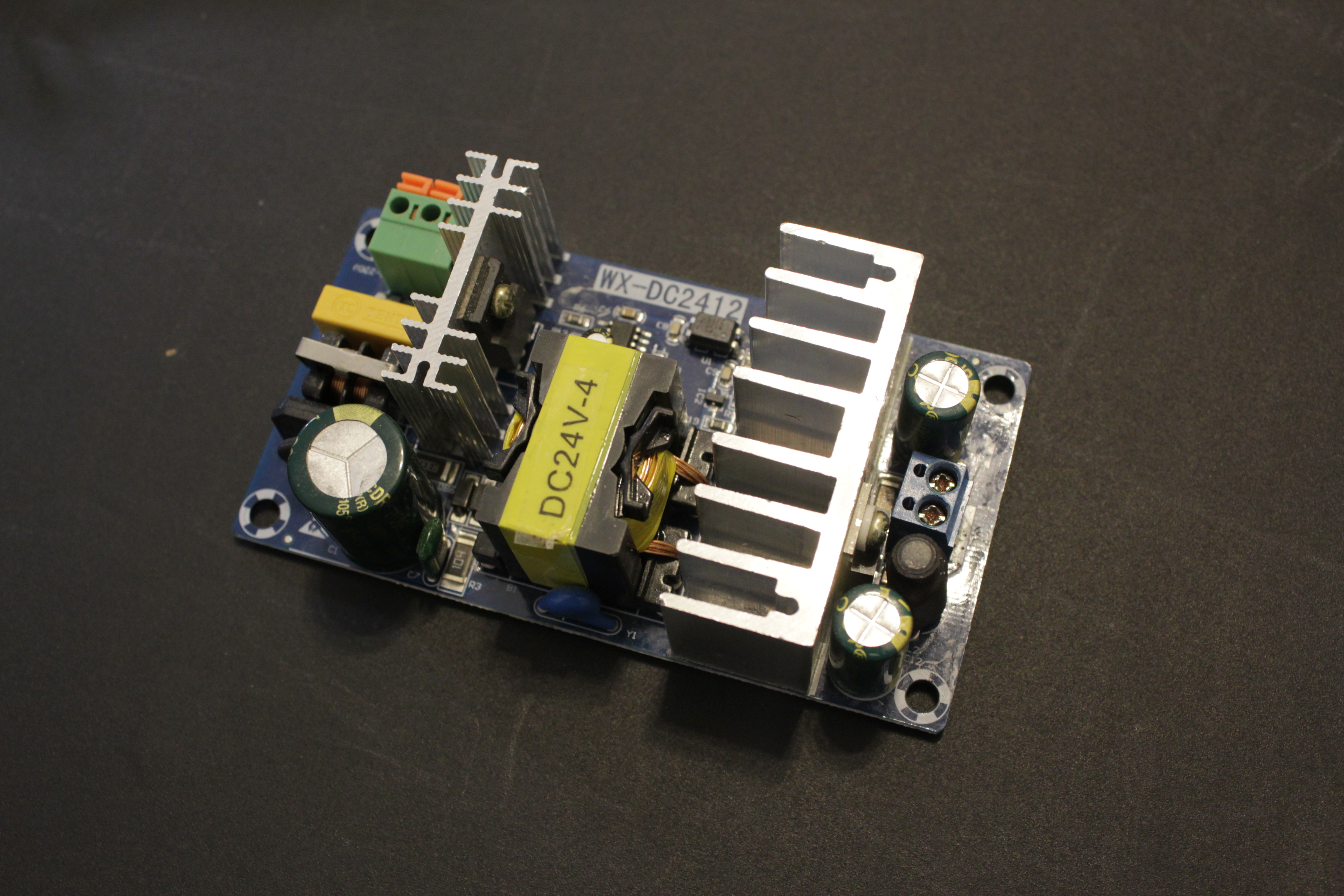

AC to DC Power Converter


The main part of our project is this AC to DC power Converter.

Input: AC from 85 to 265V.

Output: DC 24V.

Maximum load is about 4 Amp. It gives us 24 * 4 ≈ 100W

The Power Converter has an overload protection and short circuit protection (test in the video).

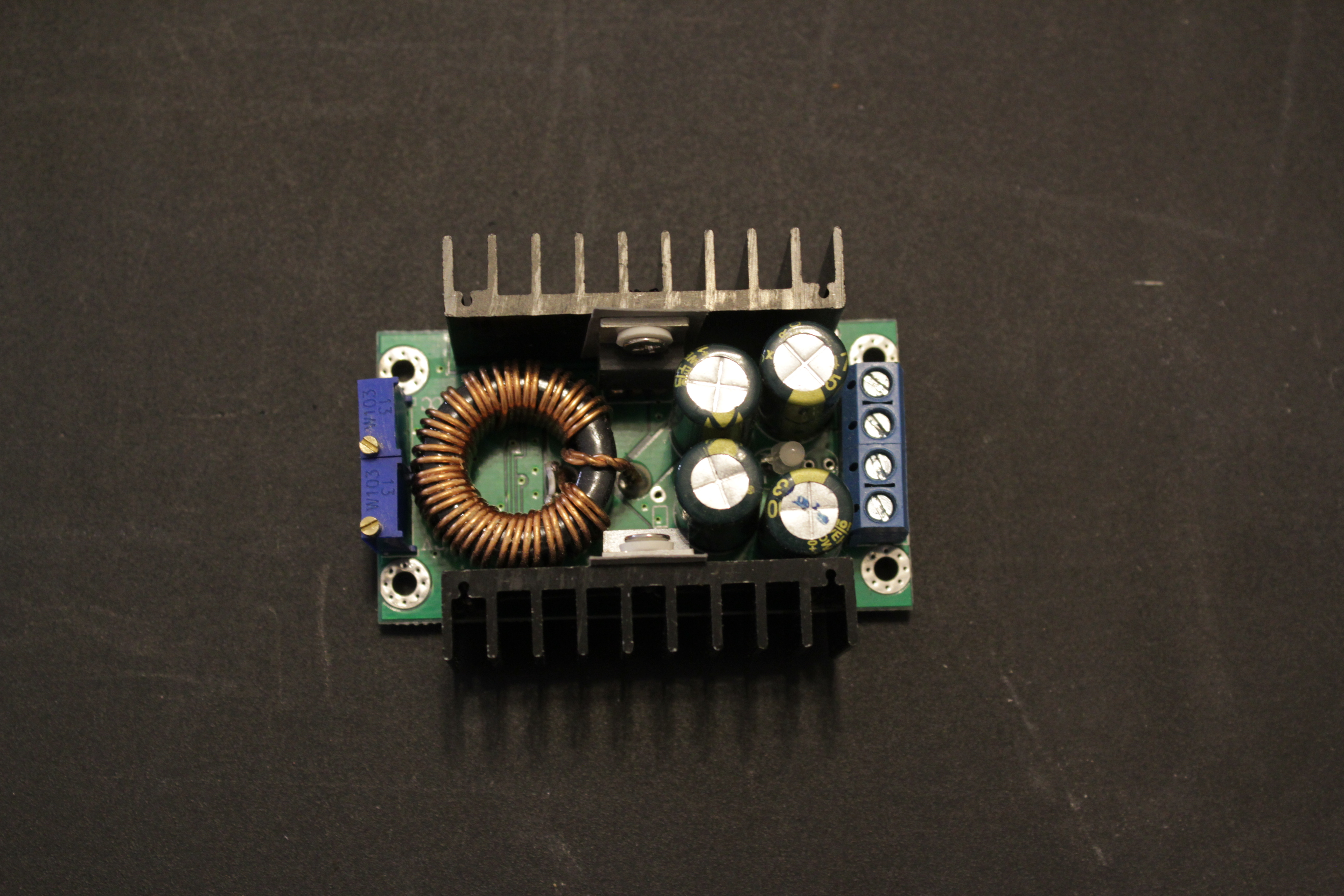

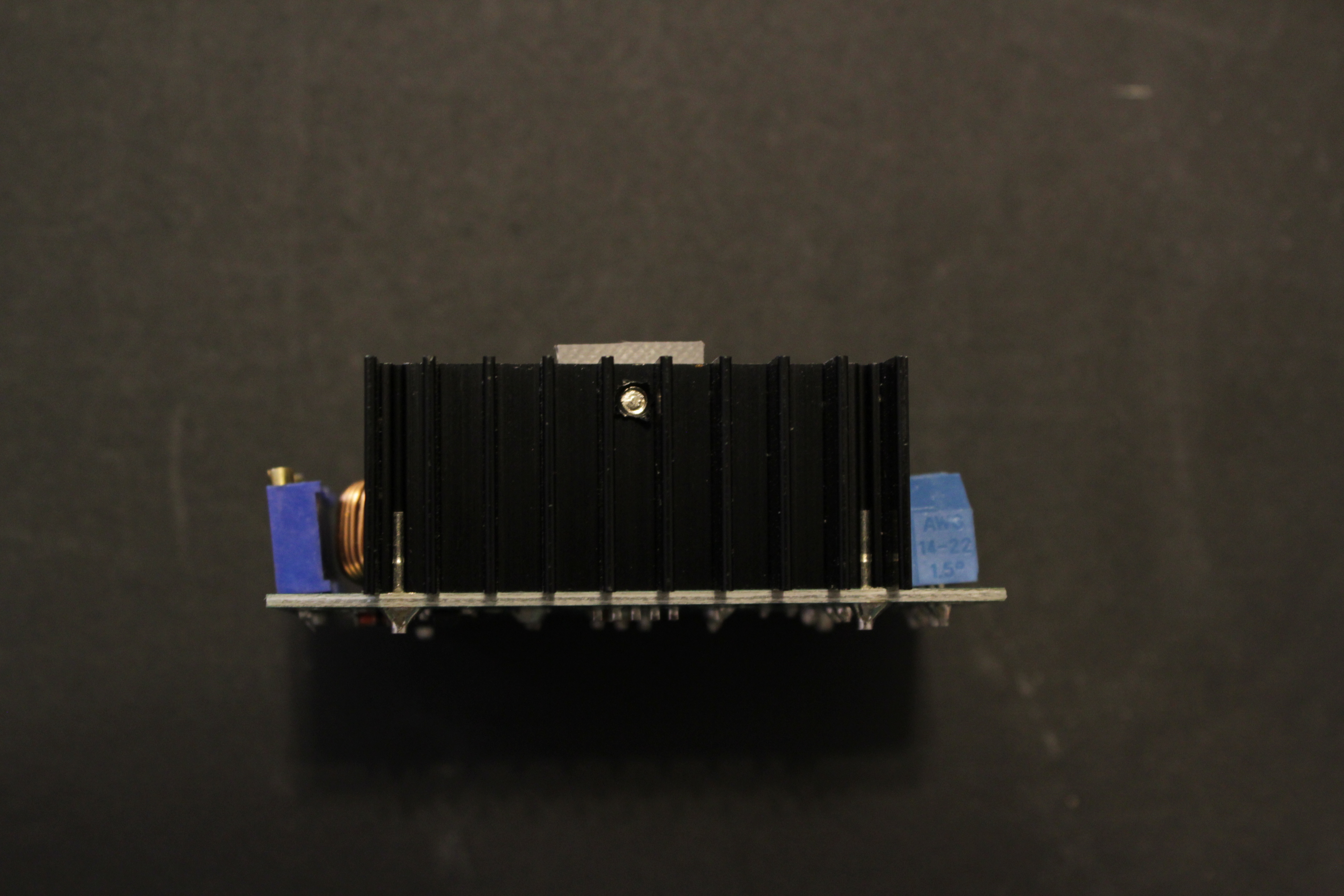

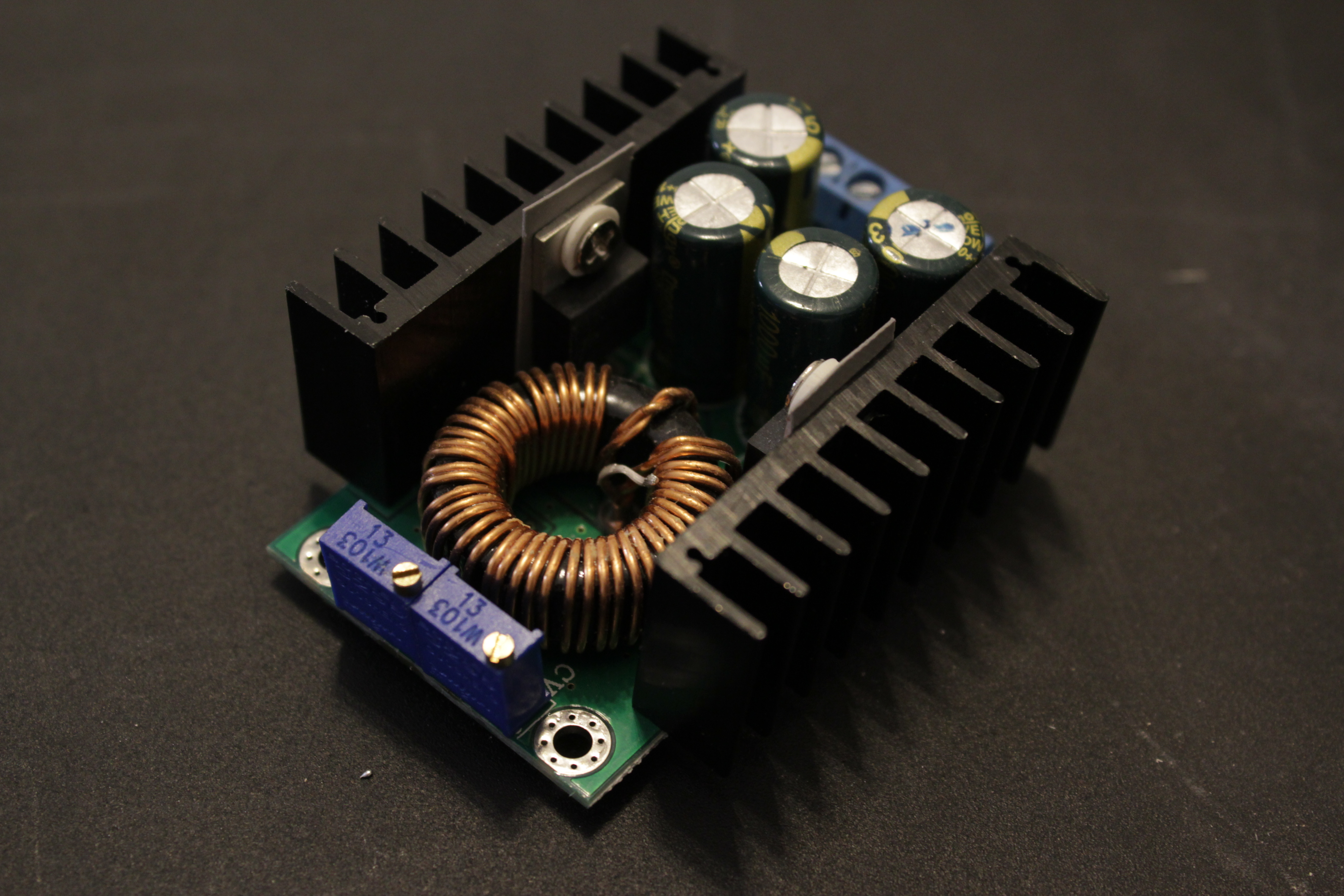

Voltage and Current Regulator


Input: DC from 7 to 32V.

Output: DC from 1.3 to 28V.

Maximum Output current is about 8 Amp.

Let's replace small potentiometers with large Precision Potentiometers.

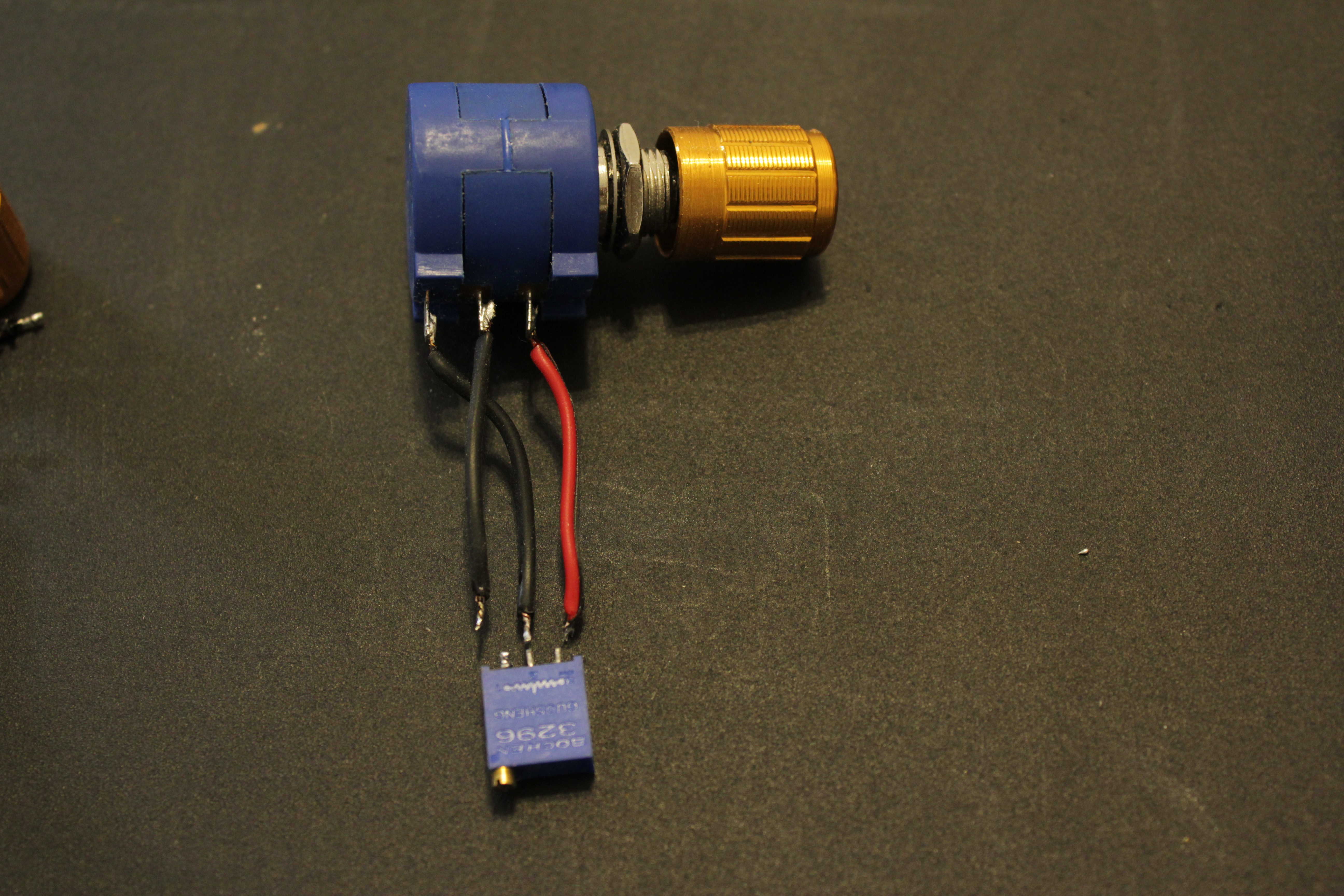

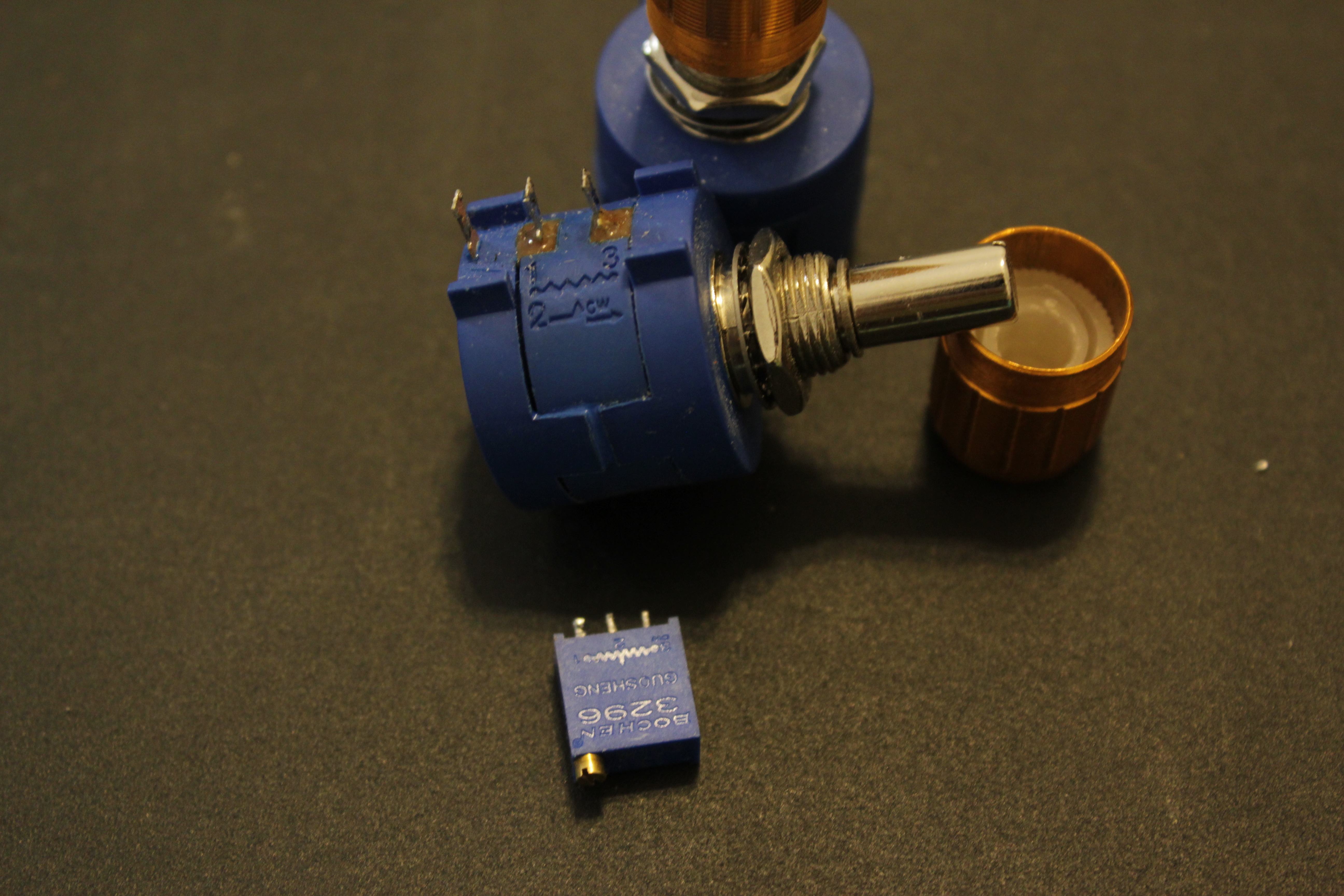

Precision Potentiometers


I used these Precision Potentiometers (R=10 kOhm). It is more accurate then single-turn potentiometers.

Pin layout:

- old Potentiometers: 1-2-3

- new Potentiometers: 2-1-3.

Be careful and solder, as in the picture.

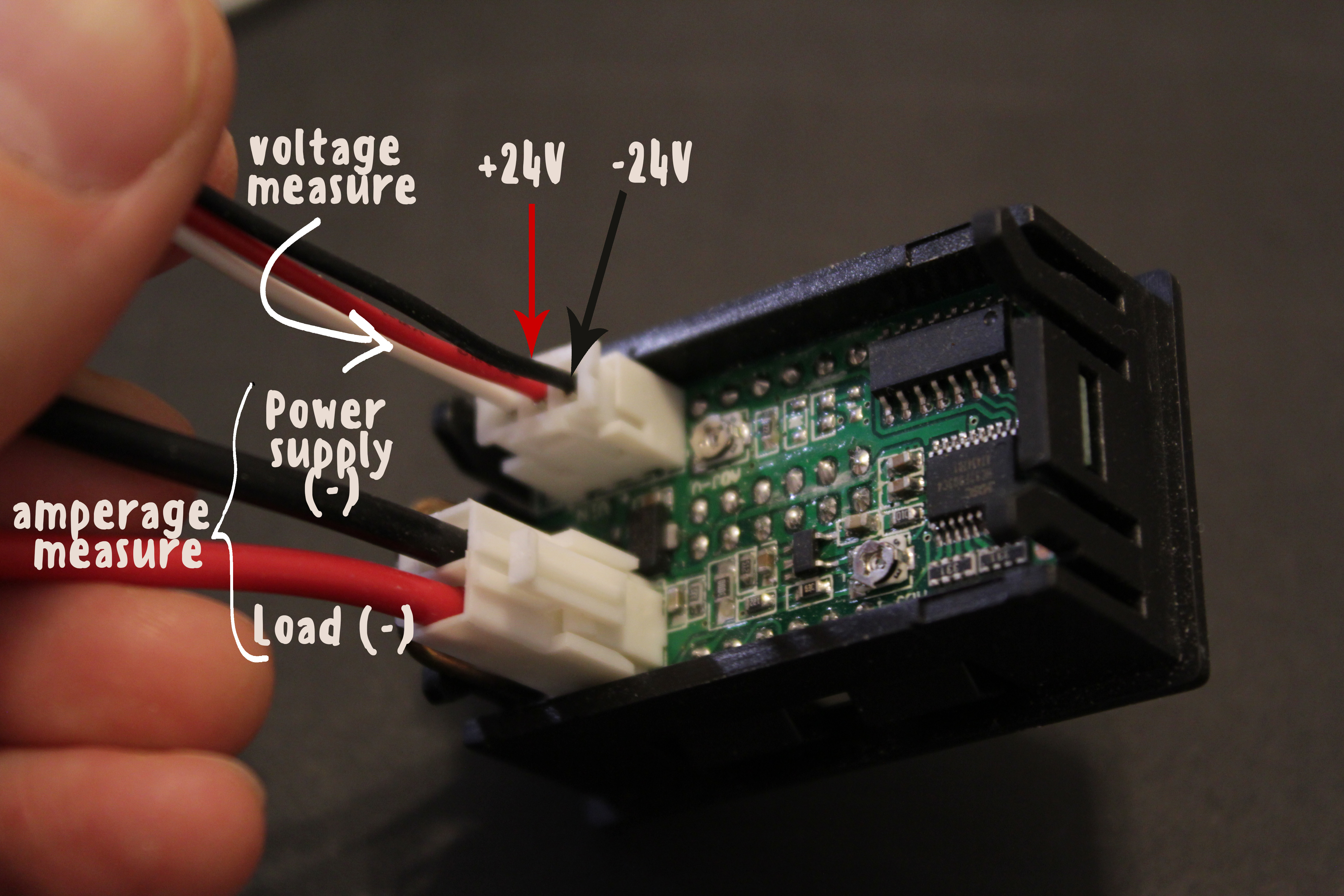

Voltage and Amperage Monitor


There are several models of voltage and current monitors. I advise you to buy with 4 numbers, because monitors with 3 numbers have less accuracy. Also use a 10A monitor for this project, because the 50A monitors do not work with low current.

Working voltage: DC4V-28V

Measuring Range: DC 0-200V, 0-10A.

(watch checking in the video)

Cooler


Now, if we want to use our bench power supply in a case, or for a long time, or use it at full capacity, we need to add a cooler.

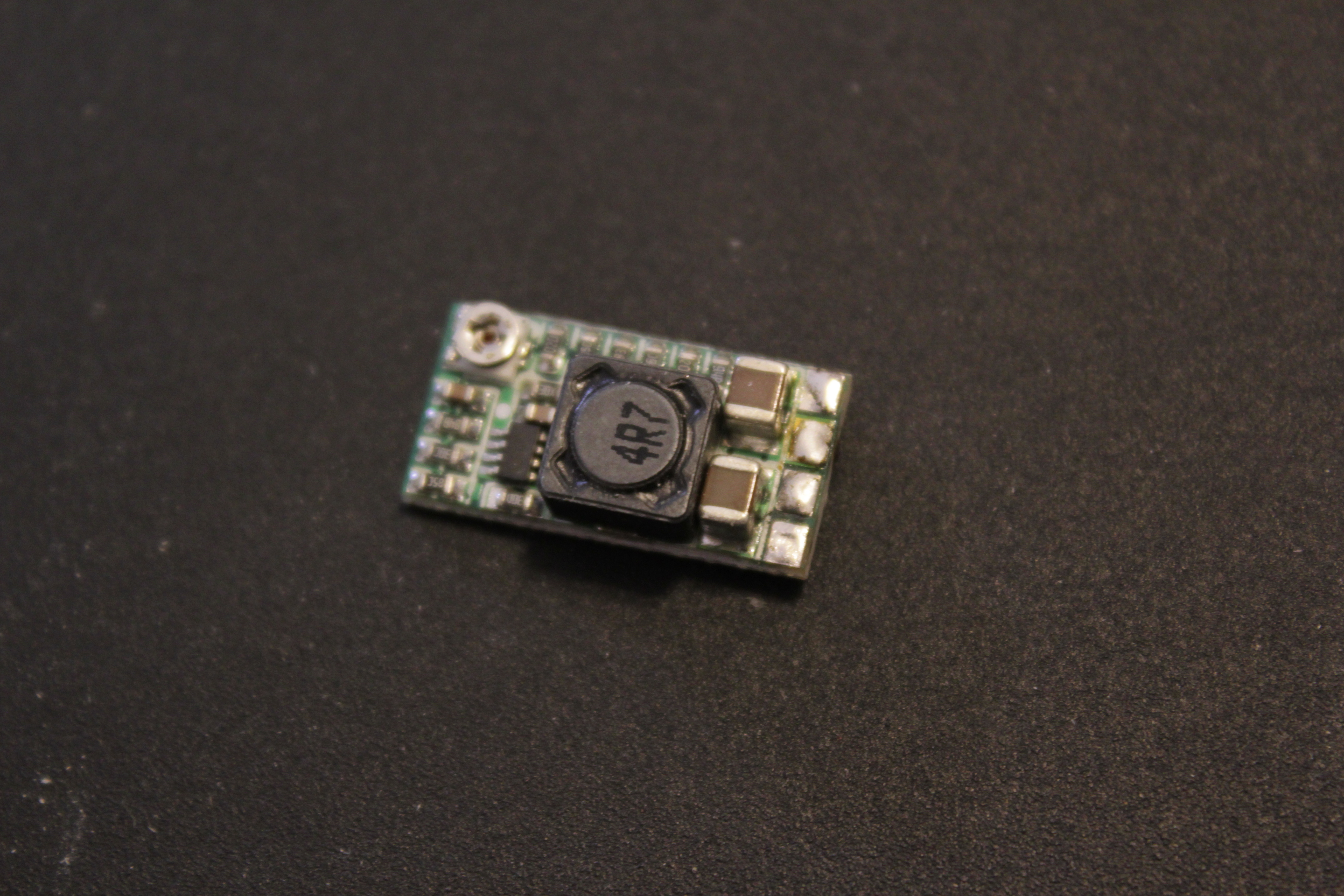

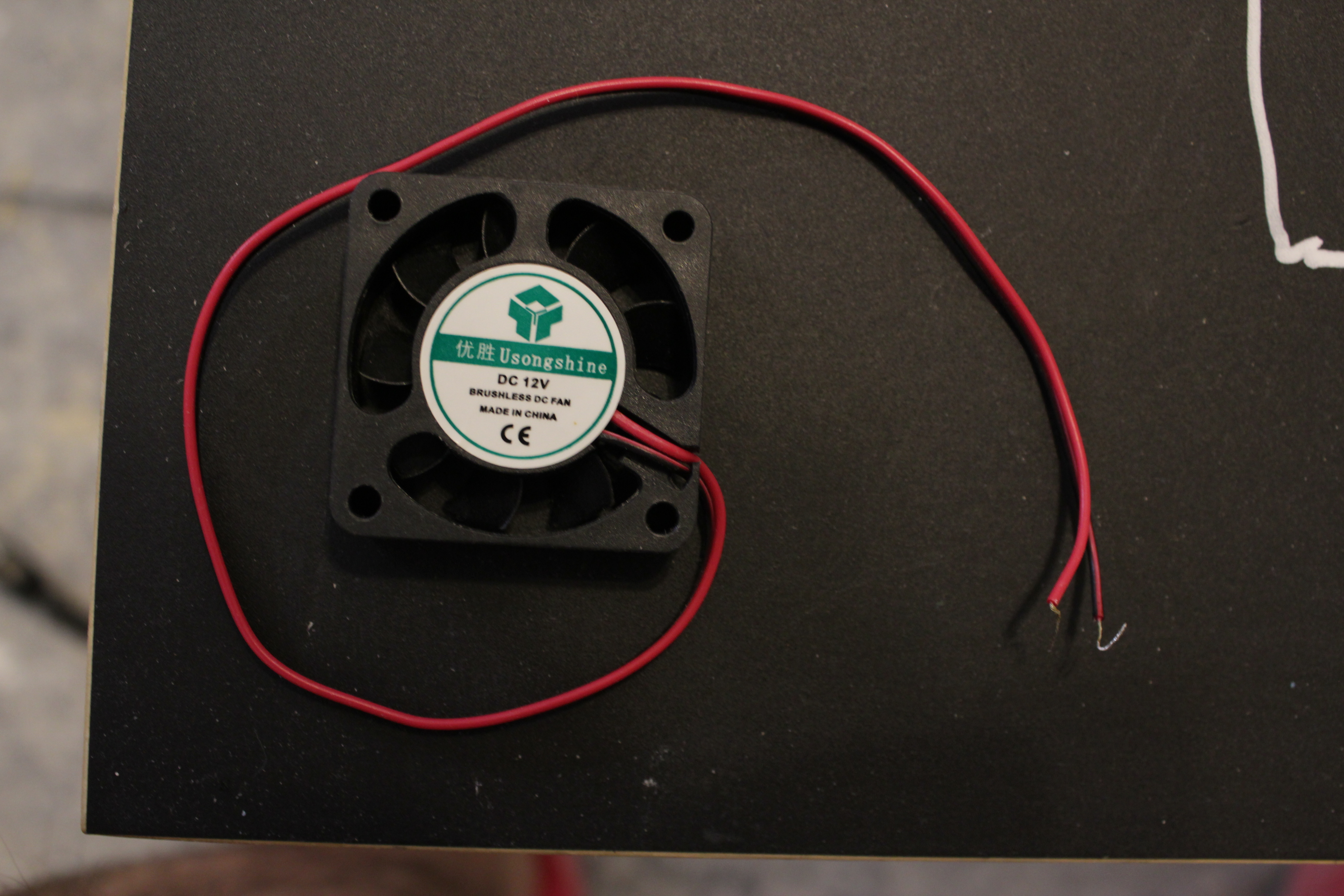

The type of cooler depends on the case. But now I'm going to use only this 40mm fan. This is a 12V fan. So, we need to use a mini DC power converter to get 12V from 24V. There is a voltage regulator.

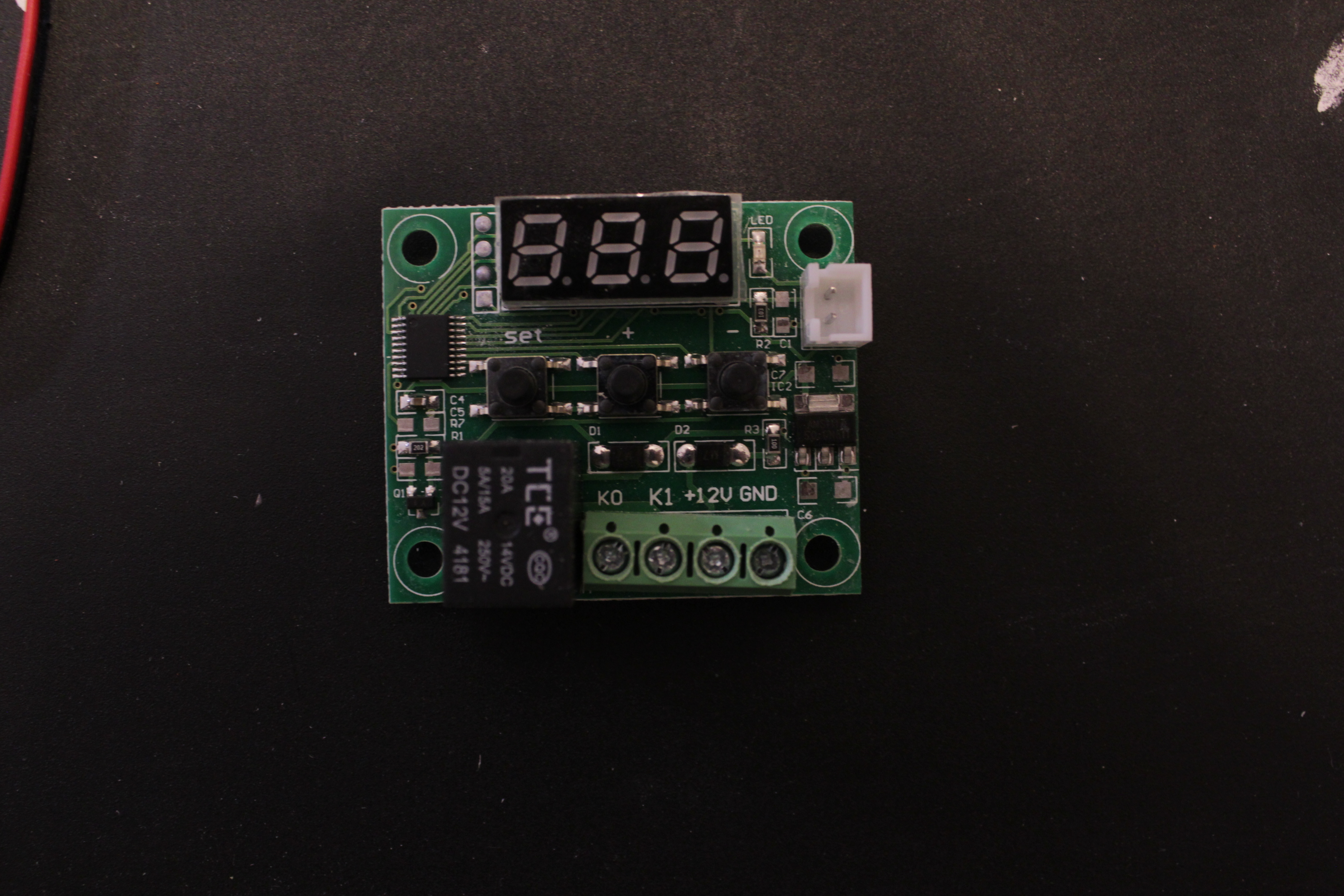

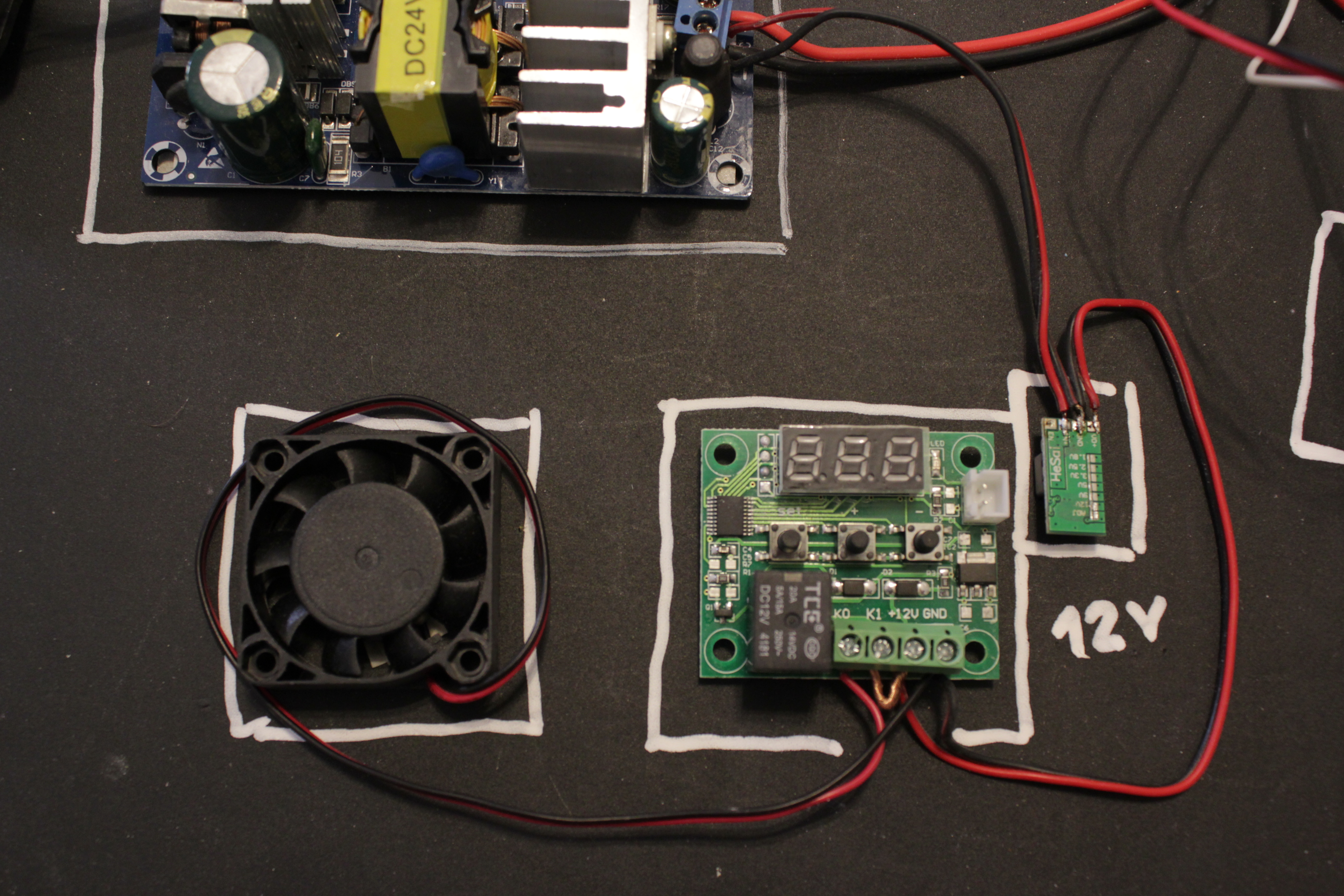

The last part for today is a Temperature Controller. It has a temperature sensor, indicator and relay.

You can configure at what temperature the fan will turn on and at what temperature it will turn off. Depends on you case.

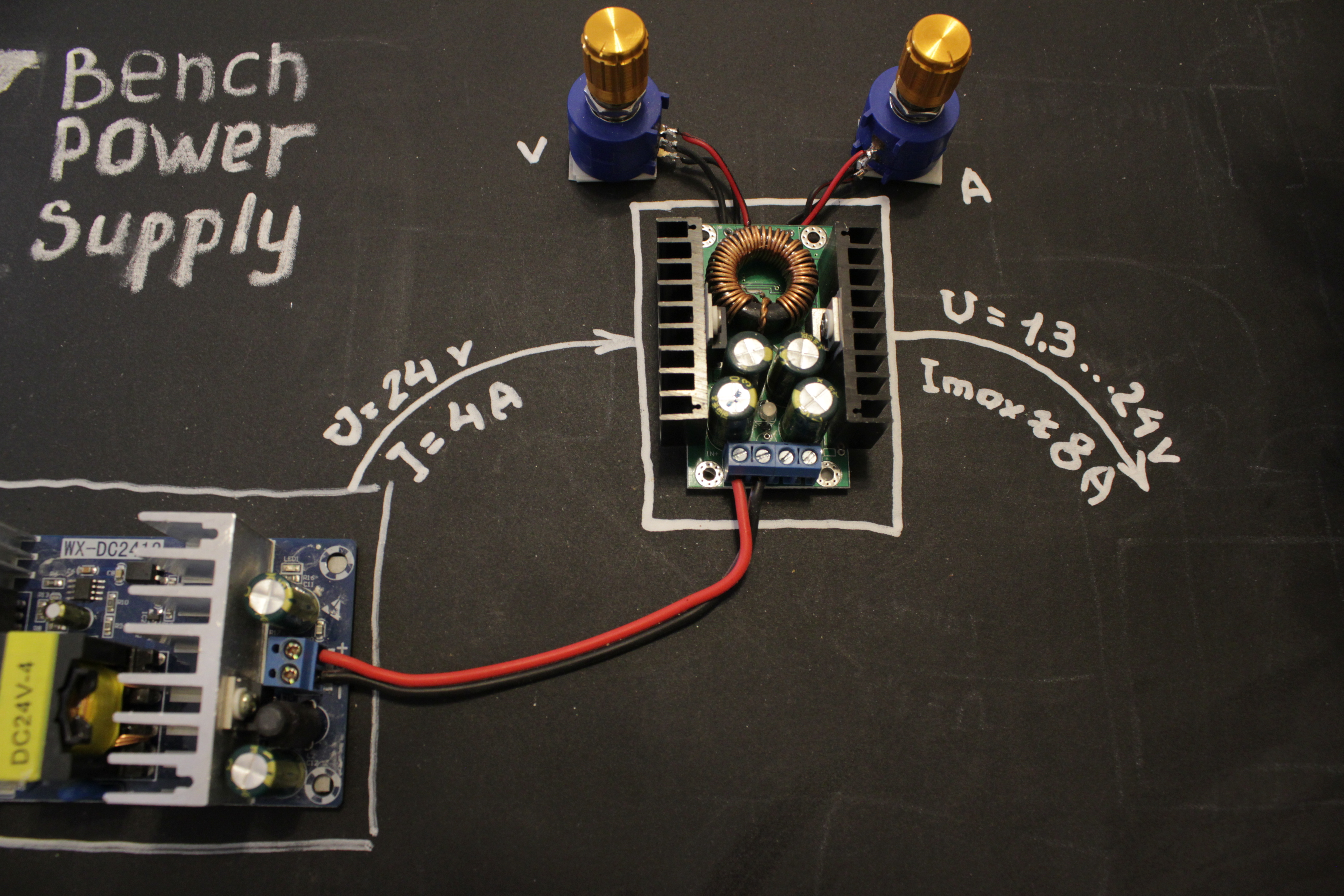

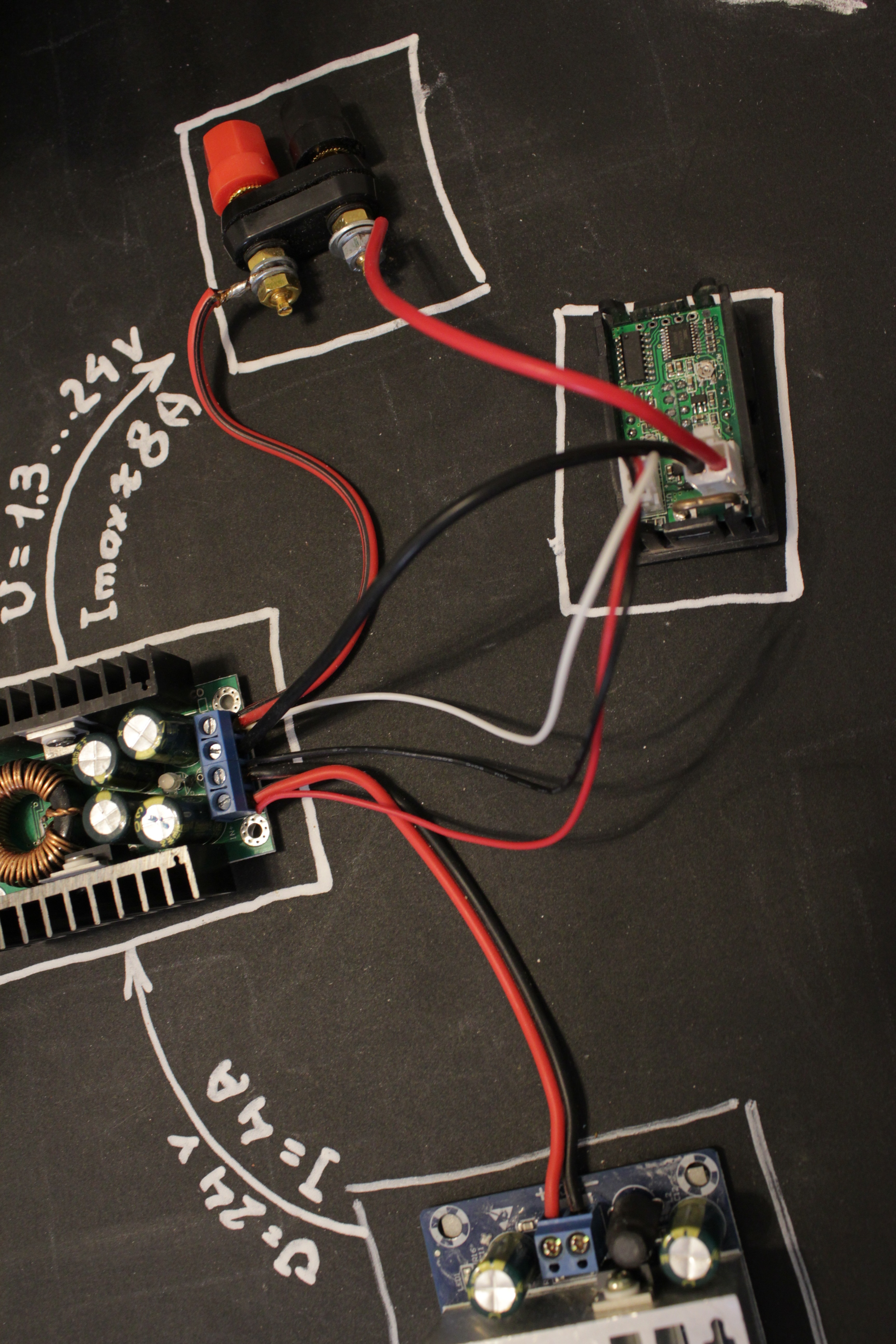

Just connect all modules like in the picture.

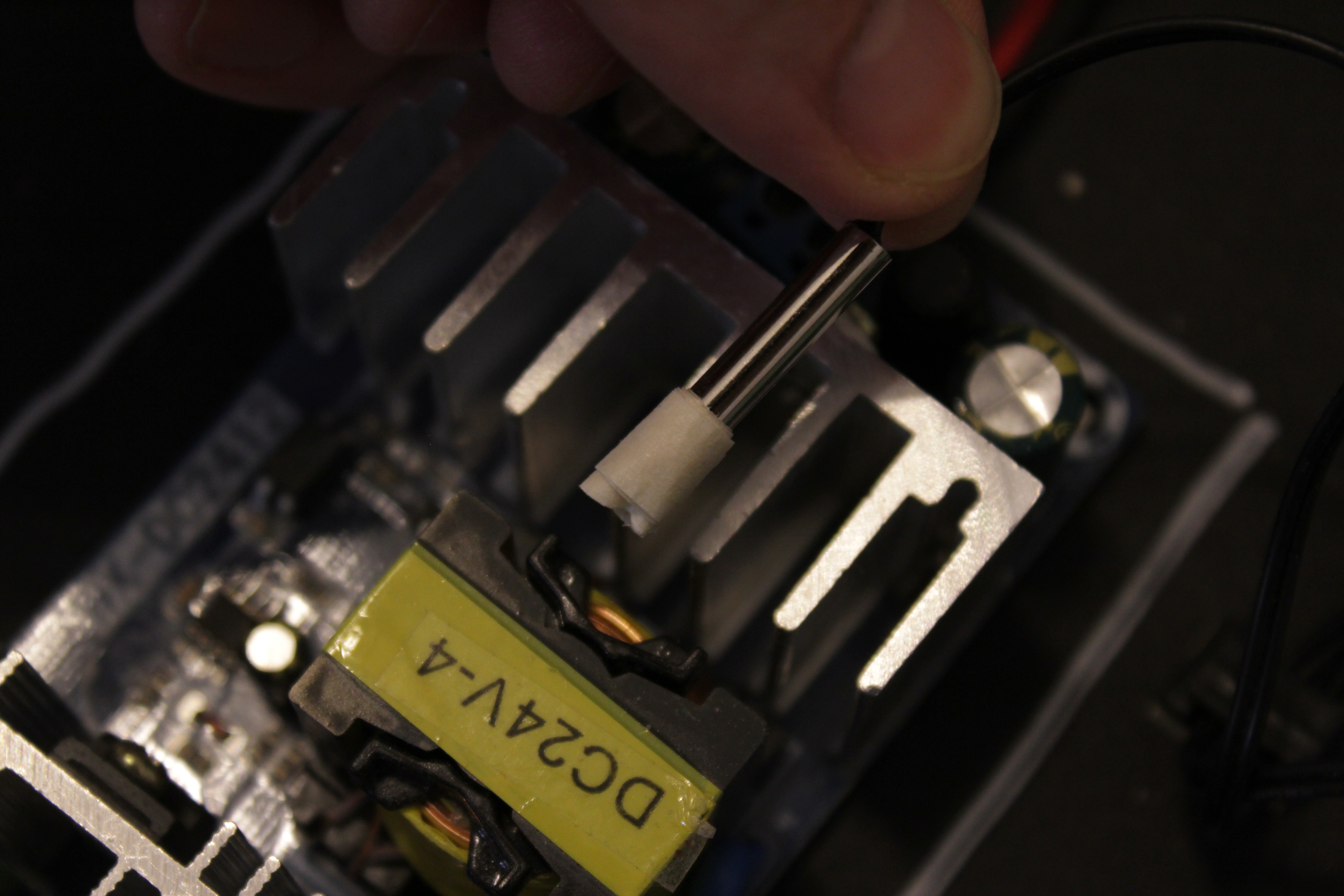

The hottest point of my circuit is AC-DC Converter's radiator. I put the temperature sensor into it. I'm gonna glue it using Thermal Compound Paste in the future.

Сonclusion

DIY Bench POWER Supply (#1/3 - Circuit)

So, today we've made our own 120W Bench Power Supply.

This is "easy to repeat" project. So, if you want to do something like this, please, ask your questions in the comments, I'll help you.

And watch the video, there are several tests.

Thank you, bye!
