DIY Bed Frame

Easy DIY Wooden Bed Frame Platform made from framing lumber.

Material

I have purchased all the material listed below at my local hardware store.

Here is what you will need to complete this modern bed frame :

[4x] - 2x6x8

[9x] - 2x10x8

[4x] - 2x4x8

[2x] - JoistHanger (2x6)

[112x] - 2½ Washer Head Screw

[30x] - 2½ Flat Head Construction Screw

[1x] - Wood Finish of your choice

Tools :

- Table Saw

- Miter Saw

- Orbital Sander

- Corner Clamp (1x) or Corner Clamps (2x)

Disclaimer : As an Amazon Associate I earn from
qualifying purchases you make using my affiliate links. It really help me continue to bring you more free content when you purchase using my affiliate link and it doesn't cost you more so it's a win/win situation.

Cutting / Ripping

1 - Using my miter saw, i start by cutting all my boards to the right length.

2 - Because i'm using construction lumber, i rip cut all my boards to the right width to give them a nice square edge. This will give my bed frame a more modern look.

You can check my description below to find all the final dimensions after cutting and ripping all pieces.

Headboard :

[3x] 1½ x 3½ x 31

[5x] 1½ x 7 x 86

Frame ( Bottom ) :

[2x] 1½ x 8 x 79

[2x] 1½ x 8 x 78½

Frame ( Top ) :

[1x] 1½ x 1½ x 86

[1x] 1½ x 5 x 86

[2x] 1½ x 5 x 78½

Supports ( Rough Lumber - No square edges ) :

[2x] 1½ x 3½ x 78½

[1x] 1½ x 5½ x 78½

[20x] ¾ x 2½ x 78½

Making the Headboard

For this step, i will make the headboard. I have 2 things to do, drill pocket holes and assemble everything with screws. Before we can start, you will need these boards :

[5x] 1½x7x86''

[3x] 1½x3½x31''

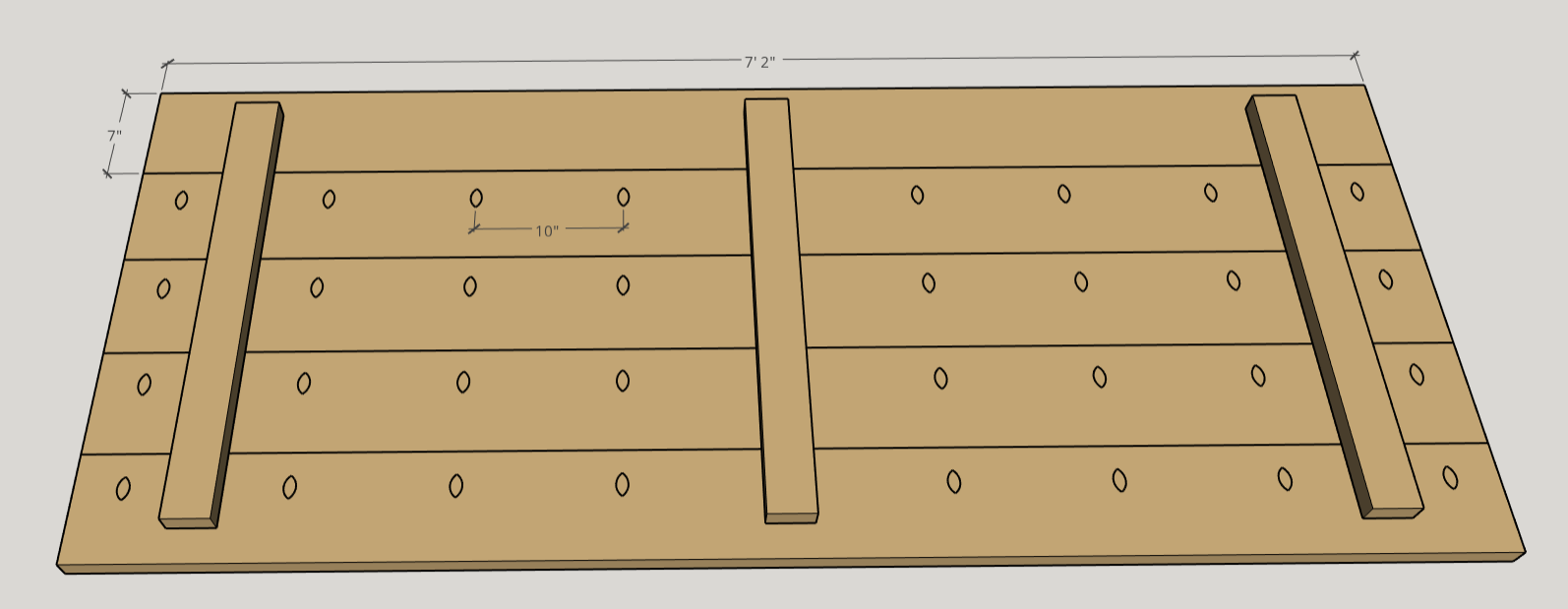

I start by drilling 9 pocket holes into 4 of the 5 boards. Then i assemble the 5 boards together using 36 2½ pocket screws. Once it's done, i'm adding the 3 2x4 to the back to make sure the headboard stay straight over the time.

Making the Base - Pocket Holes

I separate this step in two parts, ''bottom'' and ''top''

Frame ( Bottom ) :
[2x] 1½ x 8 x 79

[2x] 1½ x 8 x 78½ Frame

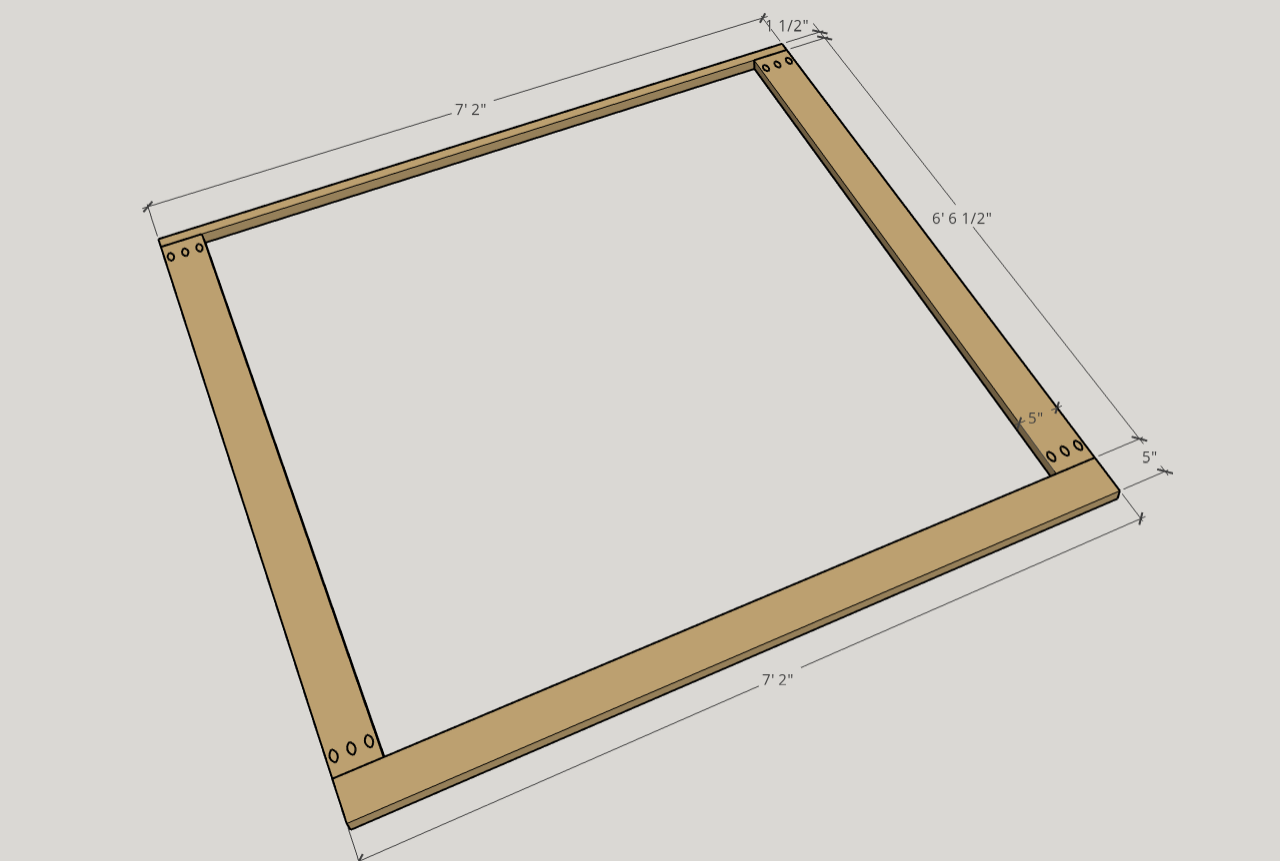

( Top ) : [1x] 1½ x 1½ x 86

[1x] 1½ x 5 x 86

[1x] 1½ x 1½ x 78½

Drill pocket holes according to the plan

Making the Base - Assembly

I assemble the 8 pieces together using 64 2½ pocket screws.

I start by assembling the 4 pieces that make the ''top'' then the 4 pieces that make the ''bottom''.

Once it's done, i'm joining the top and the bottom together.

Wood Finish

I'm using Sico ( PPG Brand ) outdoor wood stain for this project. Although this finish is ultra durable for a bed frame, it smell much more than interior wood stain. I literally had to ventilate the room for couple days. So my advice, choose the finish you want but make sure it's an interior finish.

Color : Boathouse #3549-407
