DIY Automatic Chicken Coop Door by April Wilkerson

Raising chickens and having access to fresh eggs is something that many seek to have, however, there are challenges that come with having to keep an eye on the coop every day. Although the chickens will go inside their chicken coop every evening on their own, manual coop doors will require users to remember every morning and every evening to coop and uncoop them. We will cover how April Wilkerson was able to make her very own automatic chicken coop door.

The build starts by making the door and frame pieces out of wood and cutting them into shape. Depending on the size of your chicken coop, the cuts will have to be adjusted to scale accordingly. For this project, April uses some scrap wood from her shop and cuts them to size.

After getting the pieces ready, the next step is to give them a few good coats of paint. Since all the components for this build will be hidden under the coop itself and then also under the nesting box, April will not be too worried about using untreated wood for this project. These wooden pieces will then be left until the paint is dry for the next step.

When attaching the chicken coop door, April uses a drill to assist in securing the wooden pieces together with screws. Once the pieces form the shape of a box, April attaches two hinges to the door itself can pivot open and close.

An electric linear actuator was required to drive this chicken coop door, however, the preferred model will need to be compact in size to fit with the smaller door. April selected our PA-07-4-5 micro linear actuator as it had the perfect size for the given space restrictions while still having sufficient force and speed for operating the door. With a huge variety of electric linear actuators and accessories to choose from, April highly recommends Progressive Automations to anyone in need of great customer service and quality products.

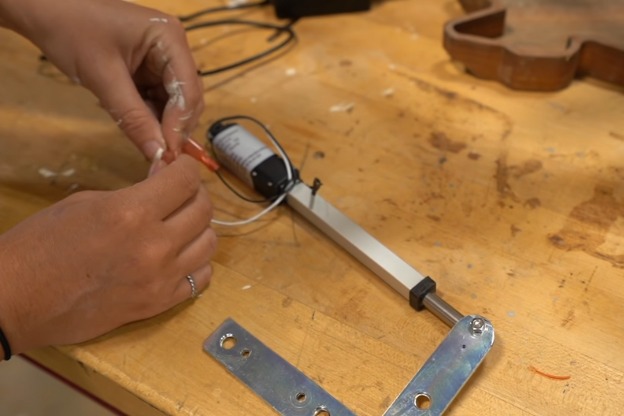

For the installation of the actuator, April added more painted wood scraps at the top to create a cubby for the actuator to go in. An L bracket gets attached to the top of the door before securing the front mounting hole of the actuator with the other end of the L bracket. During this installation, the actuator needs to be fully extended to keep the door in the closed position.

When testing out the system, April uses a transformer to temporarily give it electrical power. If you hear clicking but don't see any action, just reverse the connections across the two wire leads of the actuator and you should see it work perfect. April then clamps the door firmly shut as that's the position that needs to be established when the actuator is fully extended. It's crucial to move the actuator all the way forward and apply pressure on the bracket assembly so that this door is held shut completely before drilling down a screw to secure the actuator’s rear mounting hole.

Once all the tests are successful, the electronic components will then need to be wired together to enable the automatic operation of the door throughout the day. For the wiring diagram, check out the full project plan by April. Our AC-27-10-12 relay is used to enable the reversing polarity for extending and retracting the linear actuator. The signal that energizes the coils of the relay comes from a photocell so that the door will open whenever the sun comes out and then close whenever the sun goes away.

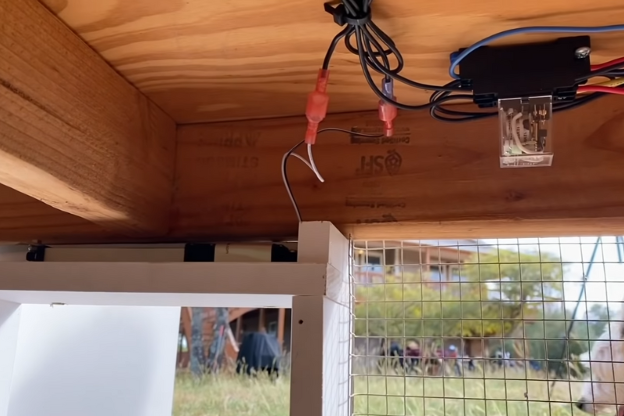

The final step is to install the automatic door on the chicken coop. April places all her important electronic components under the chicken coop to keep them out of the rain. In this final setup, a solar panel is used to keep a battery charged which then powers the rest of the chicken coop door. A fuse is also added between the battery and the actuator for extra electrical safety. To make room for the automatic door, April cuts into her chicken coop wire and added in two studs. She then slips the door into place and secures it with a few screws. For the photocell to work, April places it higher up on the coop and facing West to catch the evening light. The chickens start going home around nightfall and the door stays open until a little bit past that.

Now that the DIY automatic chicken coop door has been completed, we can watch the full video of it in action along with its build process!
