DIY Arduino Load Bank Lipo Storage/Discharger Station

Sometimes you charge your lipos but didn't flew, so you need storage the lipos.
I found in the flite test website one simple project, so my project basically its a remix.

My changes:

Added a SSD relay;

More Load resistor;

Cooler fan;

XT60 and balance connectors;

Small change in the code for better storage voltage value.

Material:
1x Arduino Uno R3

https://s.click.aliexpress.com/e/_ANNRYz

1x SSD Relay DC-DC(Im using a 100A version)

https://s.click.aliexpress.com/e/_AK1d3F

4x High Power Load Resistor(Im using 3R 100W)

https://s.click.aliexpress.com/e/_A3NtPj

1x - 10k resistor

https://s.click.aliexpress.com/e/_AduEuD

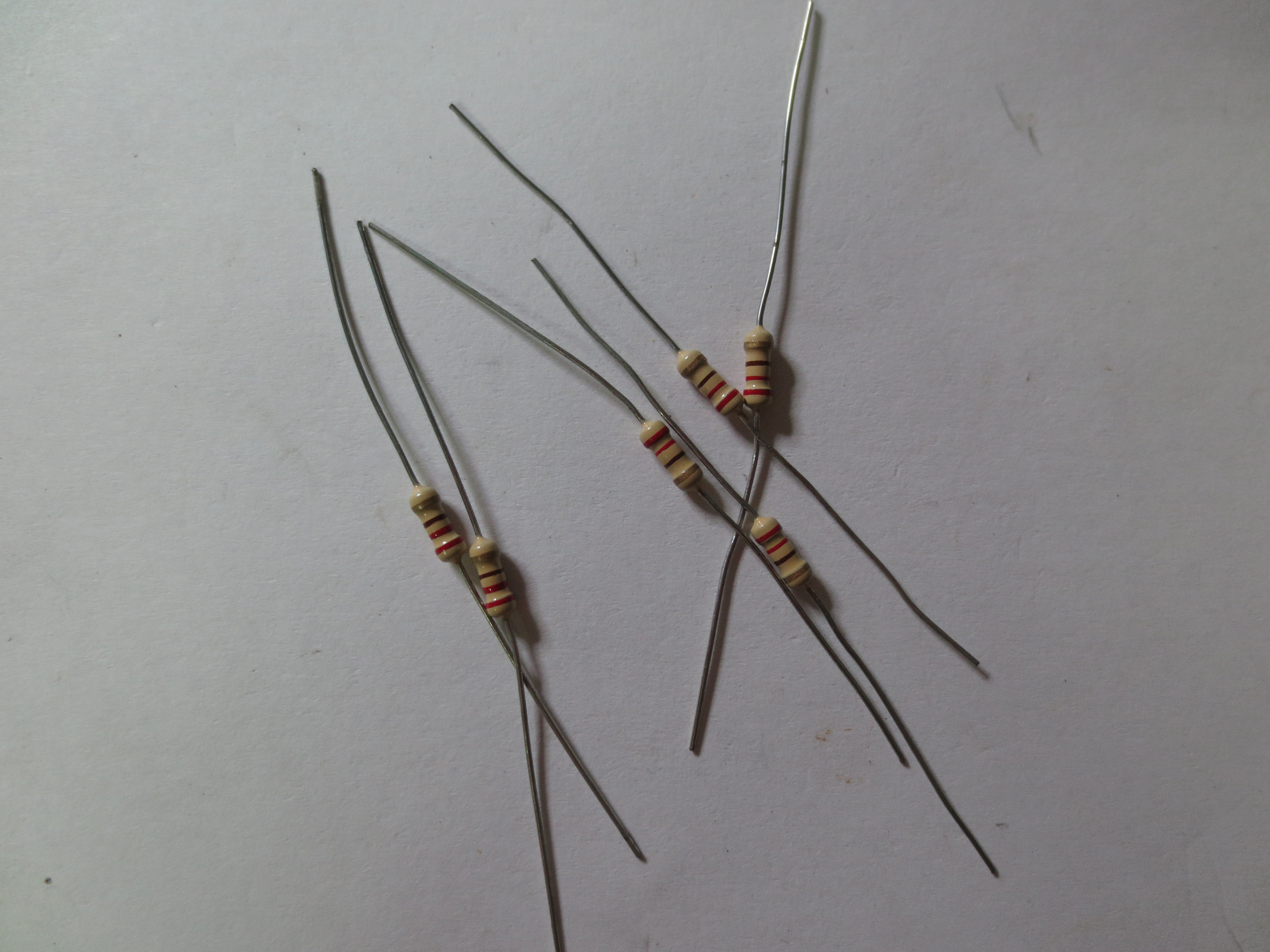

6x - 220ohm

https://s.click.aliexpress.com/e/_ADnadL

1x - 4S Lipo Balance Conector

https://s.click.aliexpress.com/e/_AWLwqN

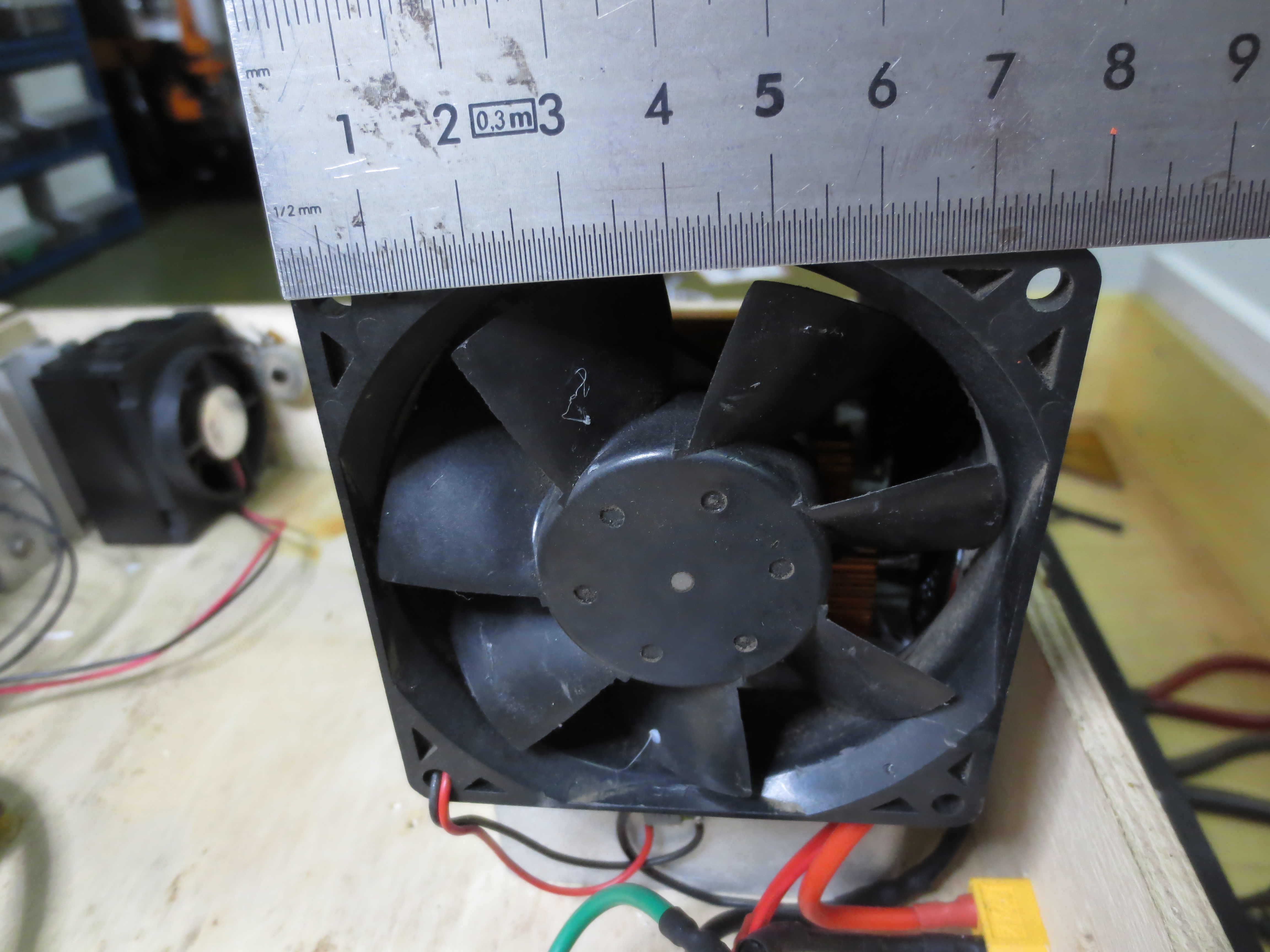

1x - Cooler Fan

https://s.click.aliexpress.com/e/_AS9kwz

1x - XT60 https://s.click.aliexpress.com/e/_ALT7Sp

5mm Leds

https://s.click.aliexpress.com/e/_AYrDep

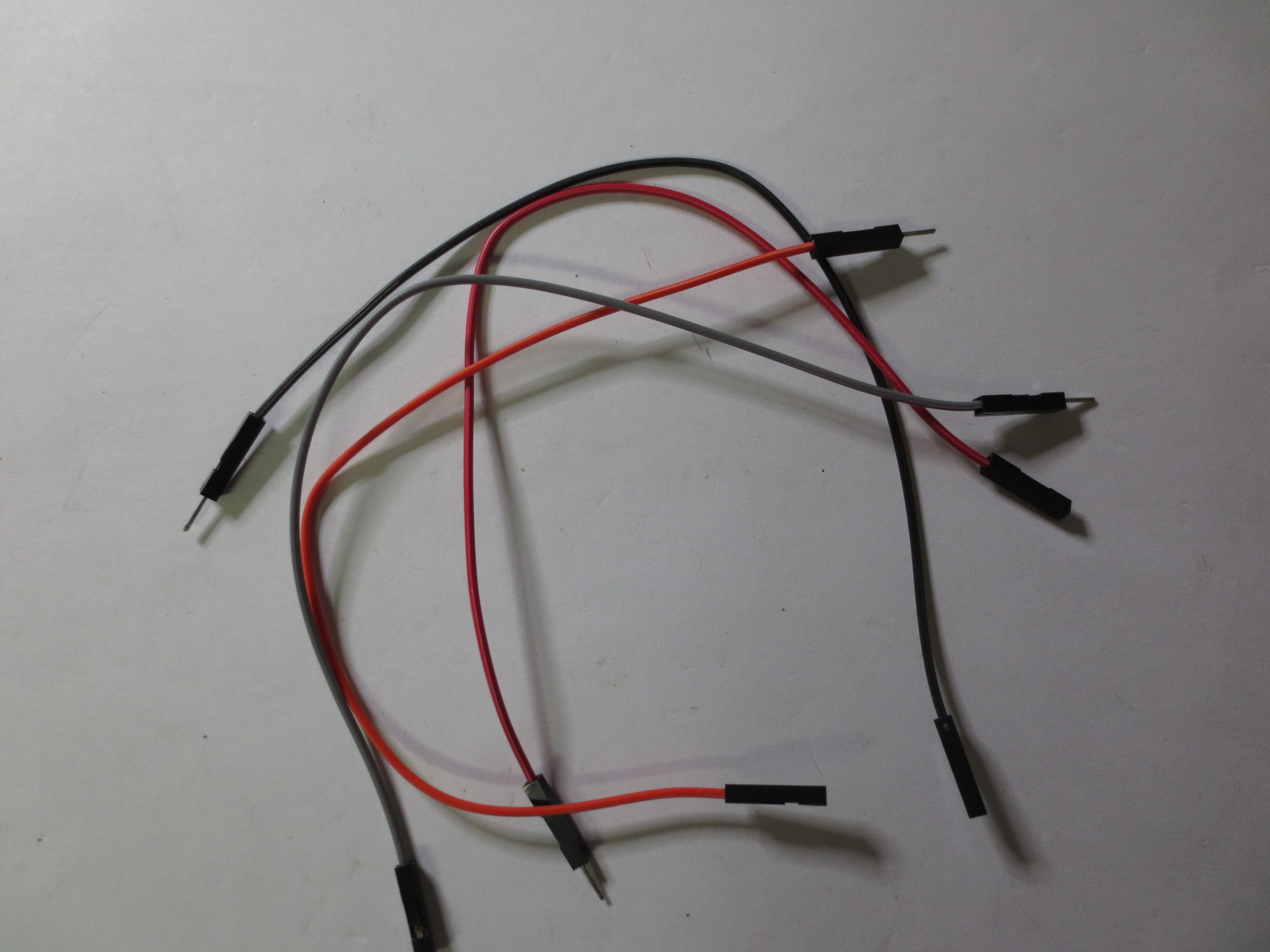

Jumpers for arduino

https://s.click.aliexpress.com/e/_APxXUH

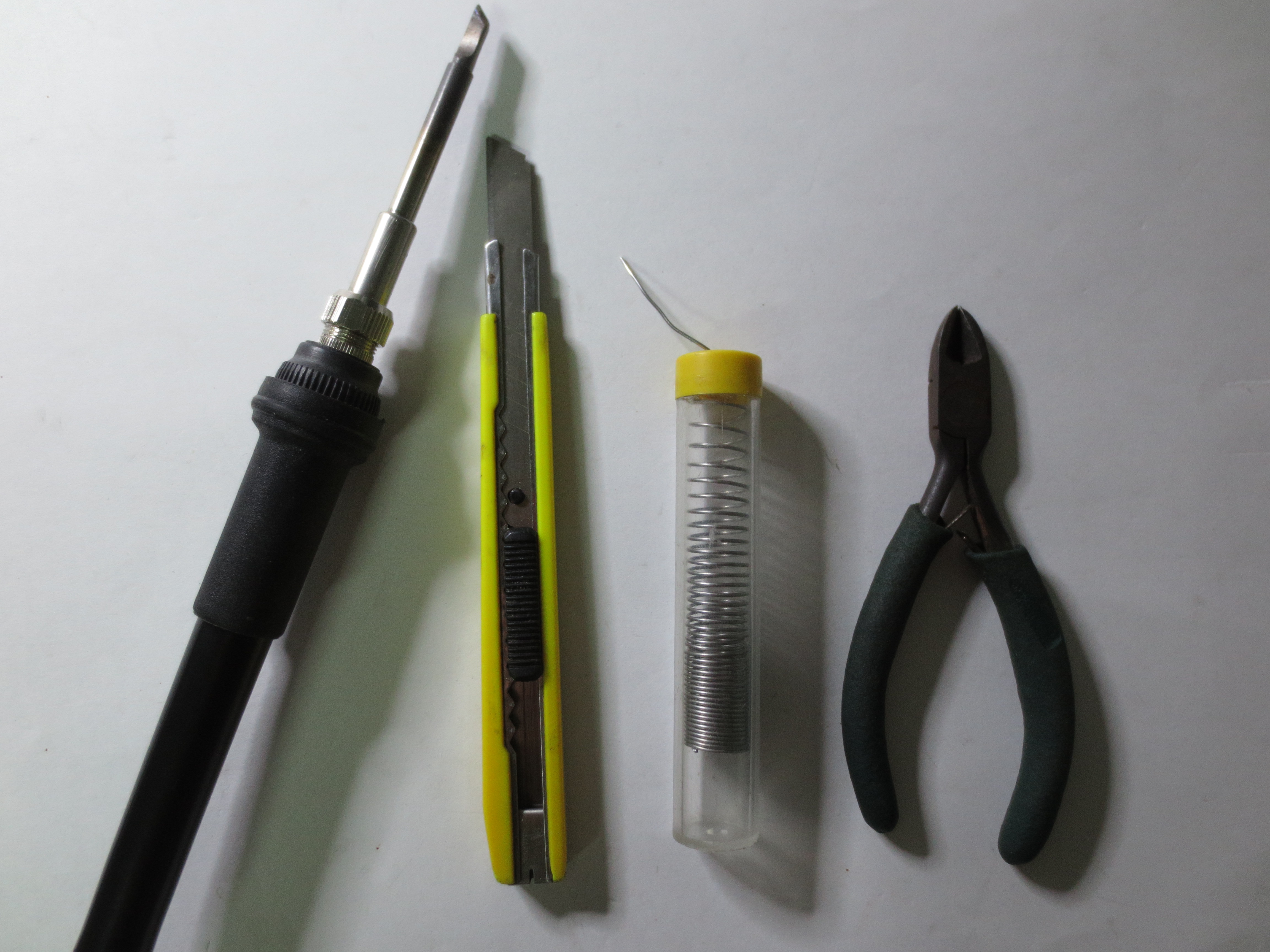

Solder Station

https://s.click.aliexpress.com/e/_AlLy1x

Drill Machine

https://s.click.aliexpress.com/e/_9JEMIz

Solder

https://s.click.aliexpress.com/e/_AAyZ3j

Cutting Pliers

https://s.click.aliexpress.com/e/_9yvDHR

Aluminium dissipator for load resistors

https://s.click.aliexpress.com/e/_9i1yCZ

Position all components in your own box.

Put the load resistors into the dissipator.

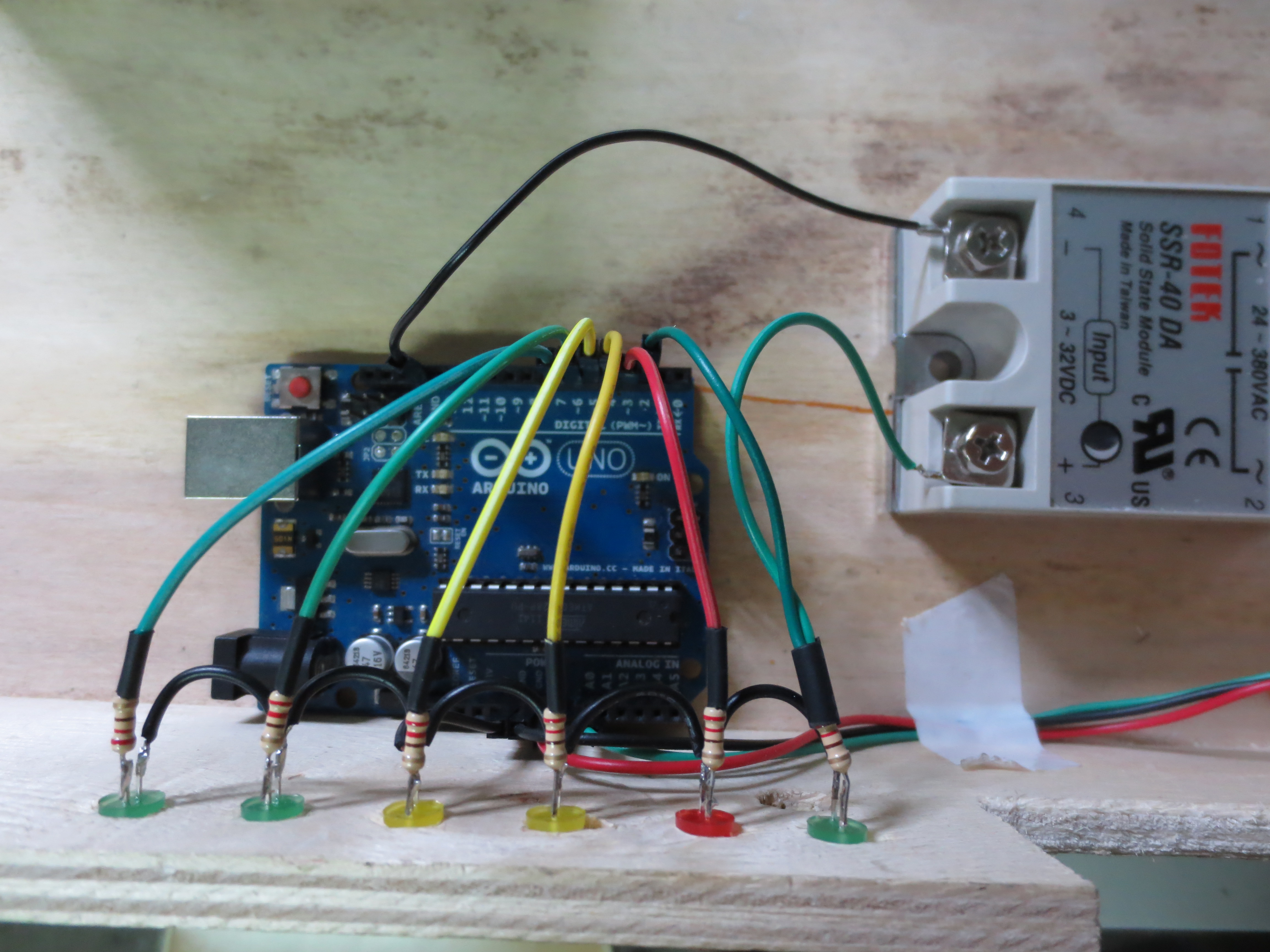

Wiring the leds and resistors to arduino.

Solder the 10K resistor to balance connector.

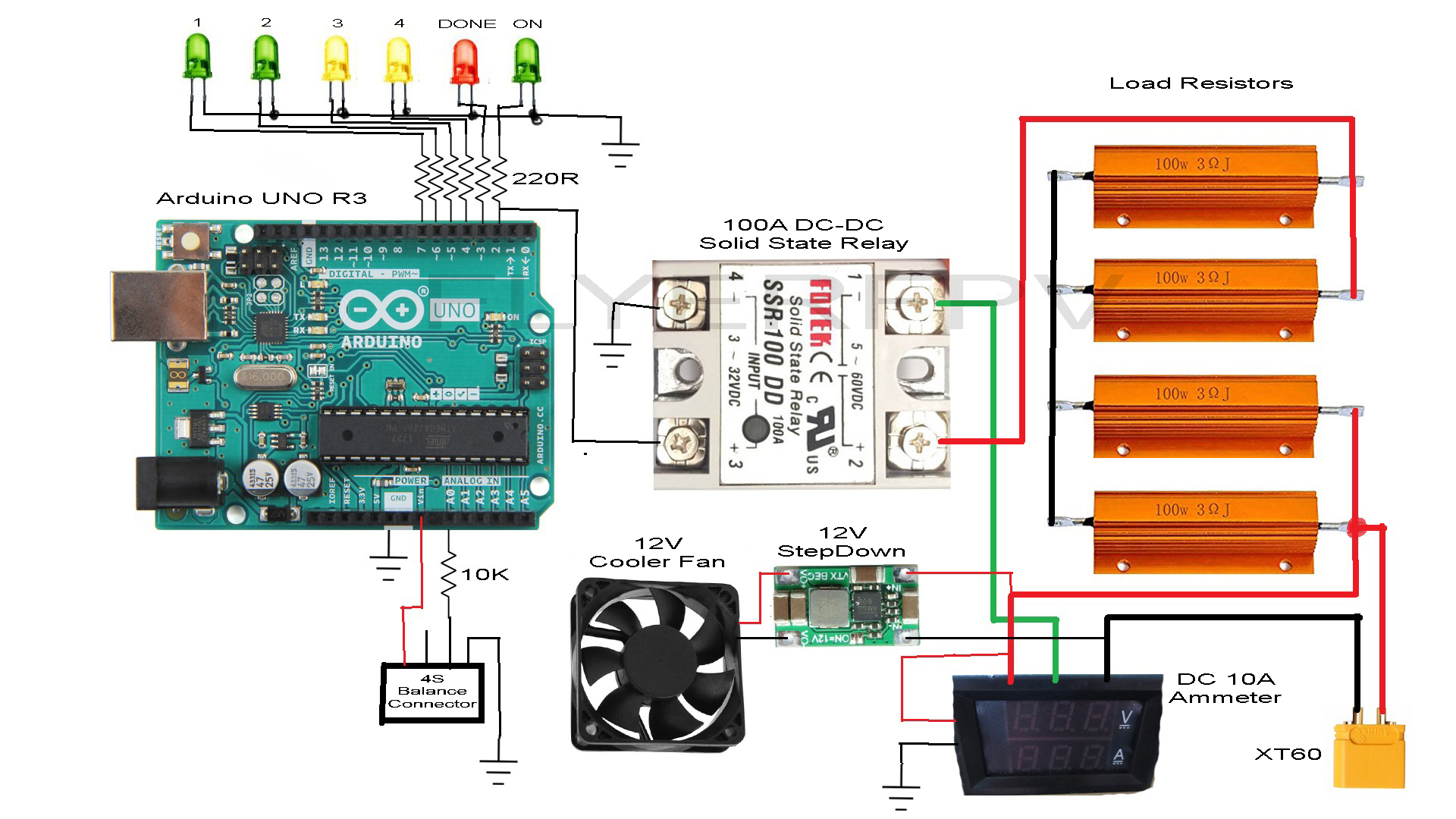

Wiring all wires from balance connector to arduino.

Thanks for watching.

Any question, please comment.

Project - https://www.flitetest.com/articles/arduino-based-diy-lipo-storage-discharger
