DIY Arduino Based Auto Label Dispenser Machine

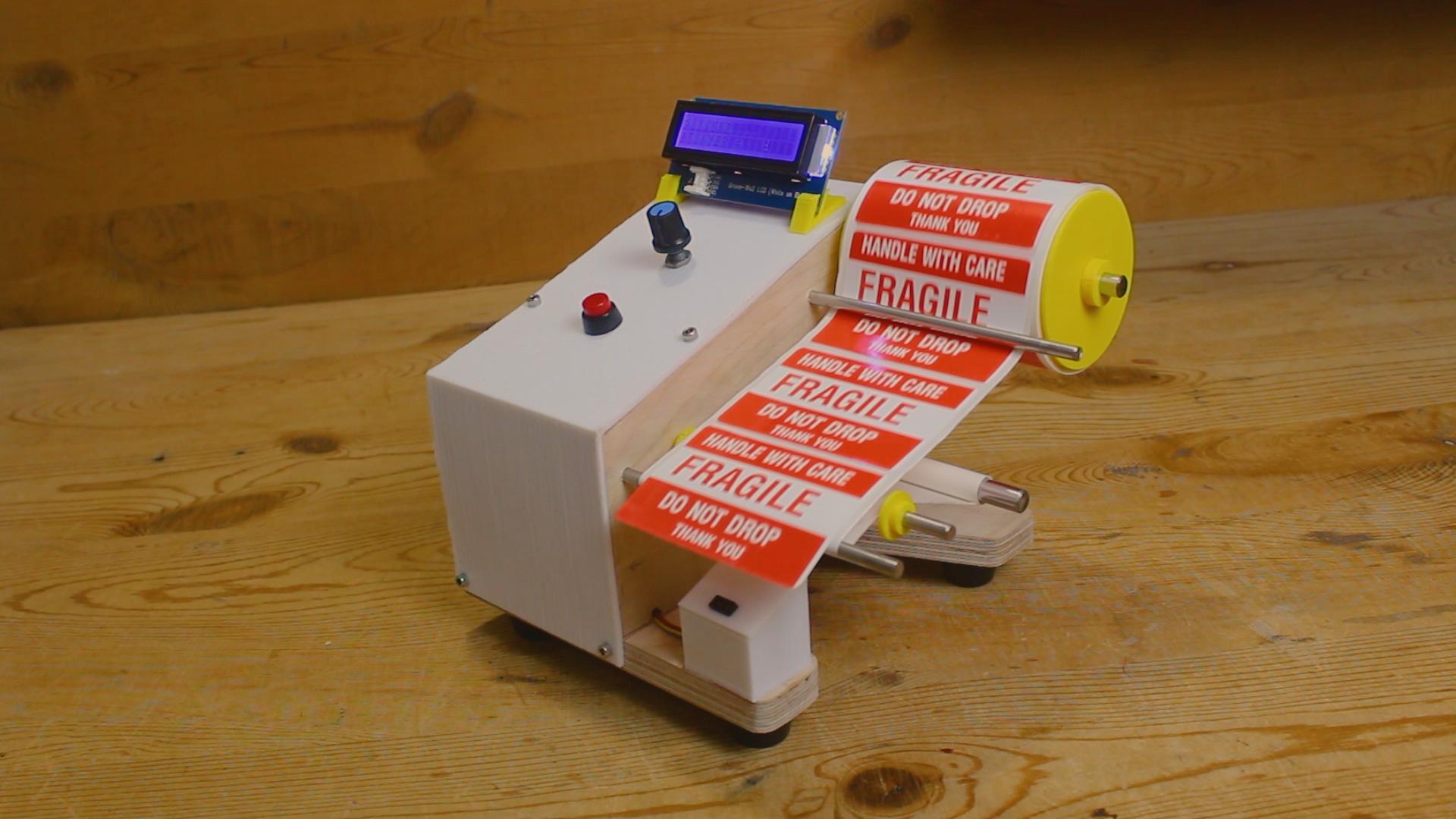

Hello makers in this video I have made a arduino based auto label dispenser machine, this machine dispense labels automatically.

When you are in packaging and transporting industry there are continue parcel which need to label some sticker, this machine very much helpful there.

It automatically peel off label and dispense this make process fast. For this I used arduino micro controller, stepper motor to feed label roll and IR sensor to detect label

JLCPB is best PCB manufacturer they have very resonable PCB pricing and fast PCB production
You can surely consider JLPCB for your any PCB needs $2/5pcs 2Layer & $5/5pcs 4Layer PCBs: https://jlcpcb.com

You can watch this complete video how I made this cool amazing fully automatic label dispenser machine

1. Custom PCB
2. Motor Clamp
3. Arduino Nano
4. A4988 driver IC
5. Nema 17 stepper motor
6. 5mm ID timing pully

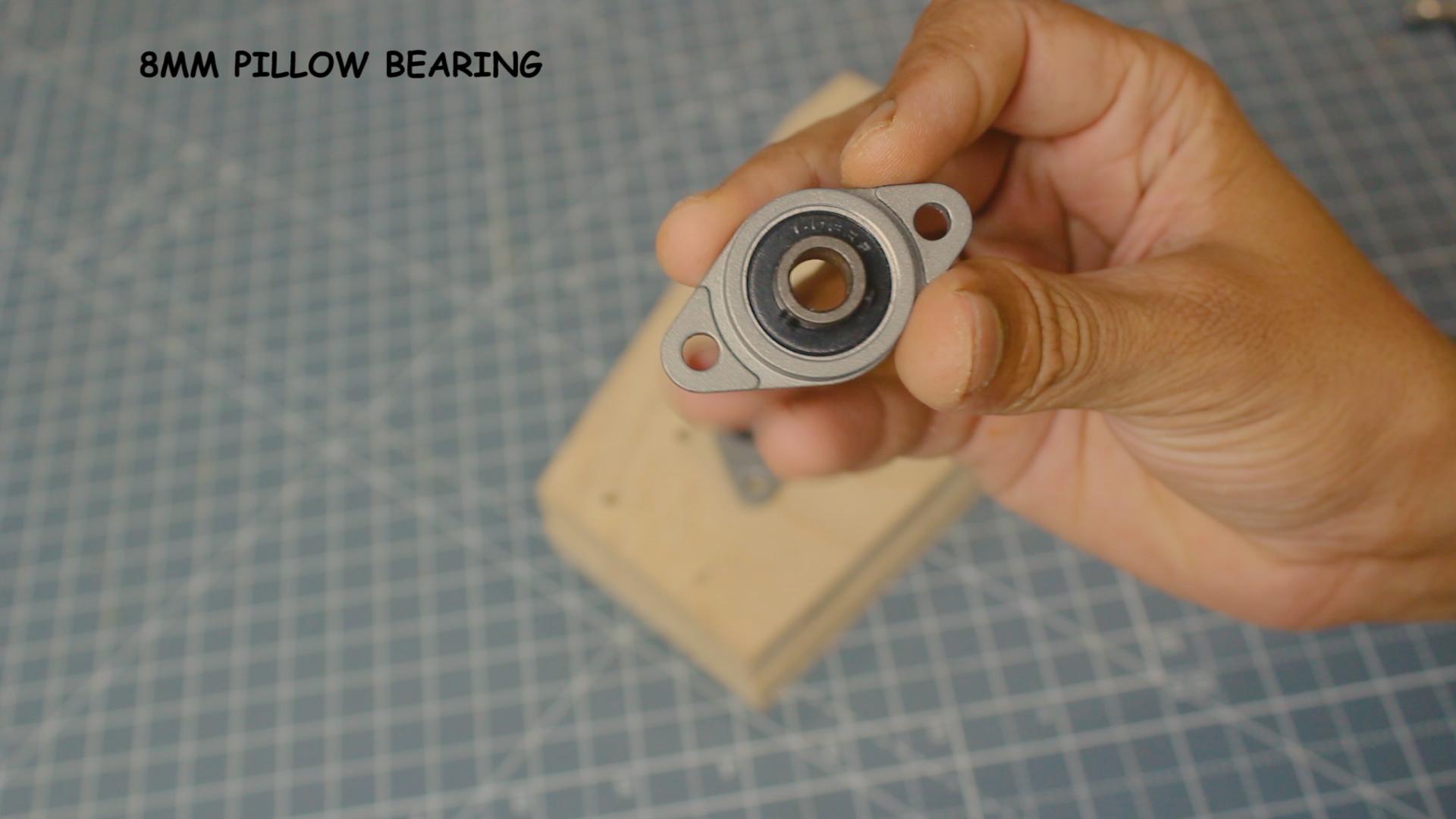

7. 8mm pillow bearing
8. 8mm & 5mm smooth SS shaft 200mm

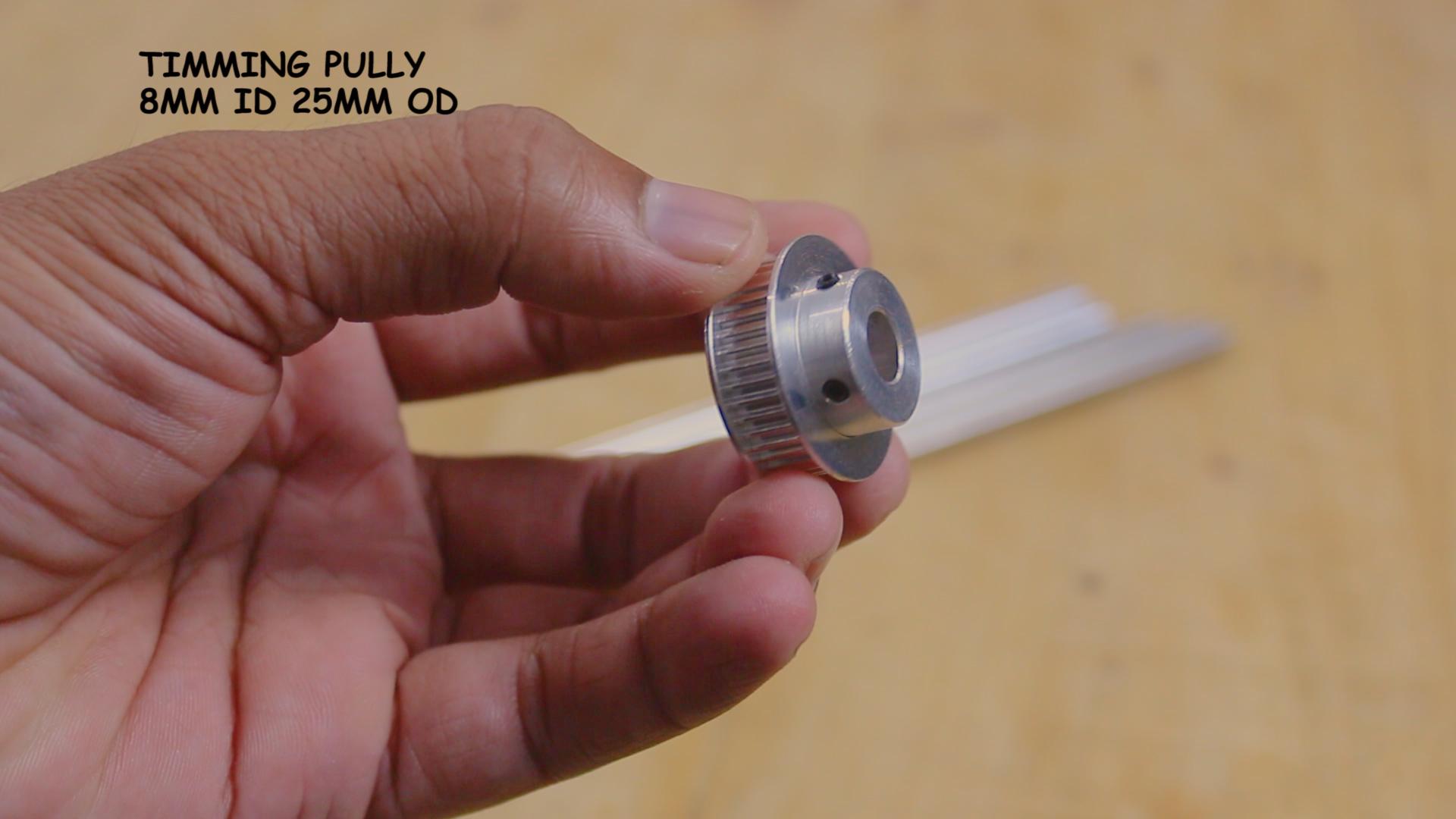

9. 8mm ID timing pully
10. Timing belt
11. Push button
12. Rotary Knob
13. 16X2 I2C LCD display
14. 3D printed parts
15. IR Sensor

All 3D files you can download it from here

https://www.thingiverse.com/thing:4631473

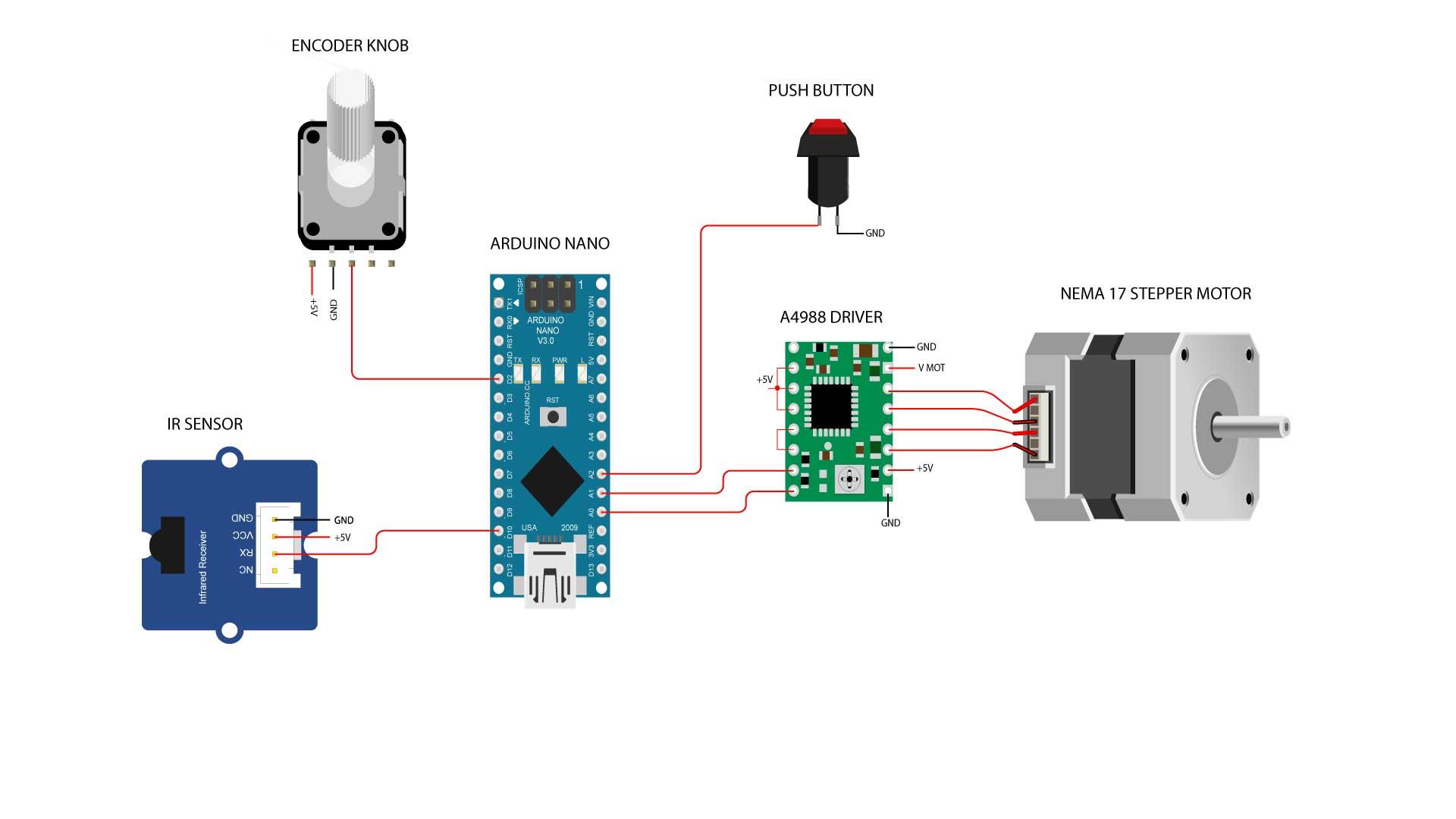

Here the gerber file of the PCB I used in this project also attached the simple circuit drawing so that you can make it if you don't want PCB

As you watched in video

Most of the part of this machine is made up of 12mm wooden sheet

There are mainly three wooden parts are Left, right and bottom part.

I mark the necessary dimensions on the wooden sheet and cut them with the help of my mini table saw

Then I placed the electrical parts and nema 17 stepper motor in between of two vertical wooden parts

I have used to 8MM shaft one to hold the label roll and one to pull the roll which is directly connected to the stepper motor,

Some 5 mm smooth rods are for slide guide for label

one IR sensor at the bottom continually detect the presence of label if label is not present it command stepper motor to run.

Some 3D printed parts are also used in this project like top cover of machine.

One 16X2 LCD is used for data display and some knob and push button is used for user data input.

hope you like this project if you have any comment please write it down below.
