Description:
This circuit simulates a real candle, lit with fire, and blown out with a mouth. Light up and play the "Happy Birthday to You" song, stop playing the music when it blows out.
Basic Parameters:
Product Name:DIY Kit Analog Electronic Candle Light
Work Voltage:DC 5V
Tips:
1.Please install SMD components at first;
2.Please install complex components preferentially;
3.Please pay attention to the installation direction of components.
4.Please make sure the soldering iron does not touch the components for a long time. Otherwise it is easy to damage the components.
Install 4pcs 560ohm 0805 SMD Resistor at R11-R14.
![DIY Kit Analog Electronic Candle Lights_1.jpg](/proxy/?url=https://content.instructables.com/FGY/77LG/JR6OH29K/FGY77LGJR6OH29K.jpg&filename=DIY Kit Analog Electronic Candle Lights_1.jpg)
Install 8pcs 1Kohm 0805 SMD Resistor at R15-R22
![DIY Kit Analog Electronic Candle Lights_2.png](/proxy/?url=https://content.instructables.com/FRH/JN68/JR6OH2AF/FRHJN68JR6OH2AF.png&filename=DIY Kit Analog Electronic Candle Lights_2.png)
Install 7pcs 0805 SMD Resistor.
![DIY Kit Analog Electronic Candle Lights_3.jpg](/proxy/?url=https://content.instructables.com/FE3/PMT2/JR6OH2AU/FE3PMT2JR6OH2AU.jpg&filename=DIY Kit Analog Electronic Candle Lights_3.jpg)
2pcs 1Kohm 0805 SMD resistor at R8-R9.
3pcs 10Kohm at R2,R4,R6.
2pcs 100ohm at R10,R23.

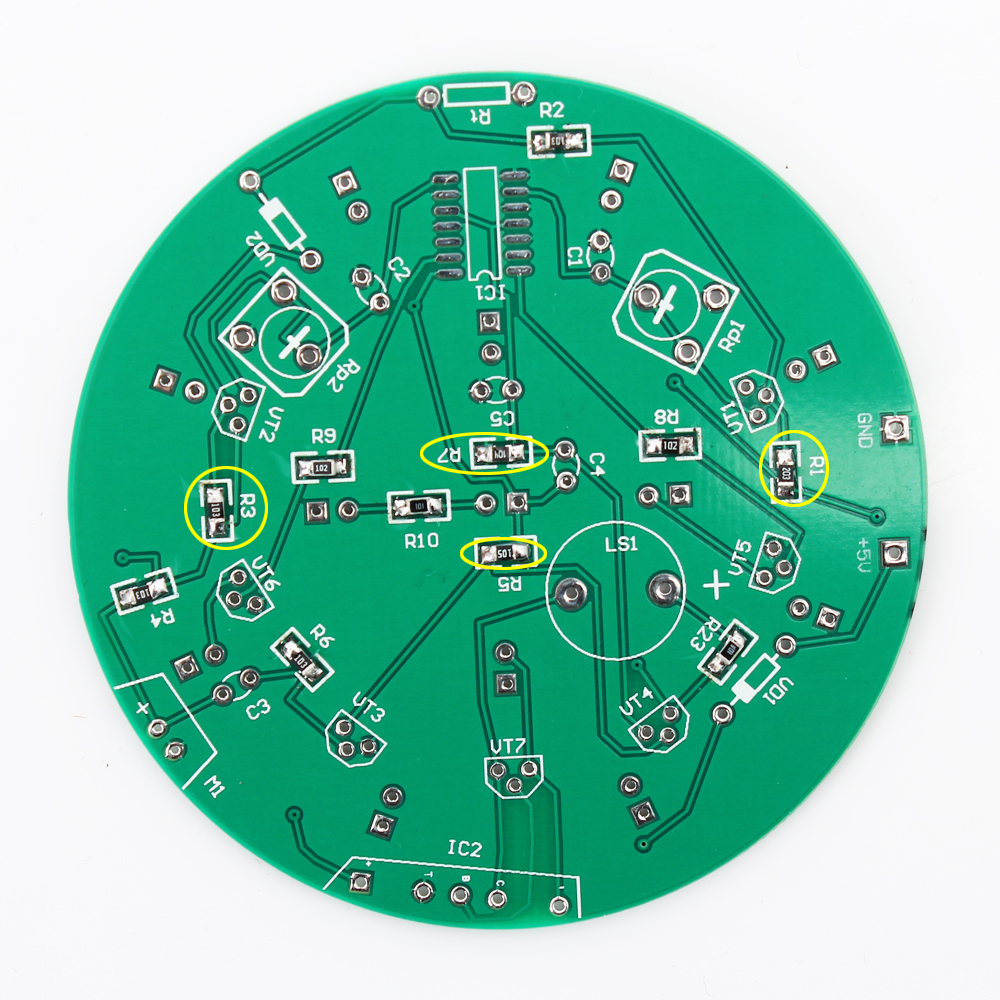

Install SMD Resistor at R3, R1, R5, R7
![DIY Kit Analog Electronic Candle Lights_4.jpg](/proxy/?url=https://content.instructables.com/FZX/T9QC/JR6OH2BG/FZXT9QCJR6OH2BG.jpg&filename=DIY Kit Analog Electronic Candle Lights_4.jpg)
1pcs 360ohm 0805 SMD resistor at R3.
1pcs 20Kohm at R1.
1pcs 1Mohm at R5.
1pcs 100Kohm at R7.

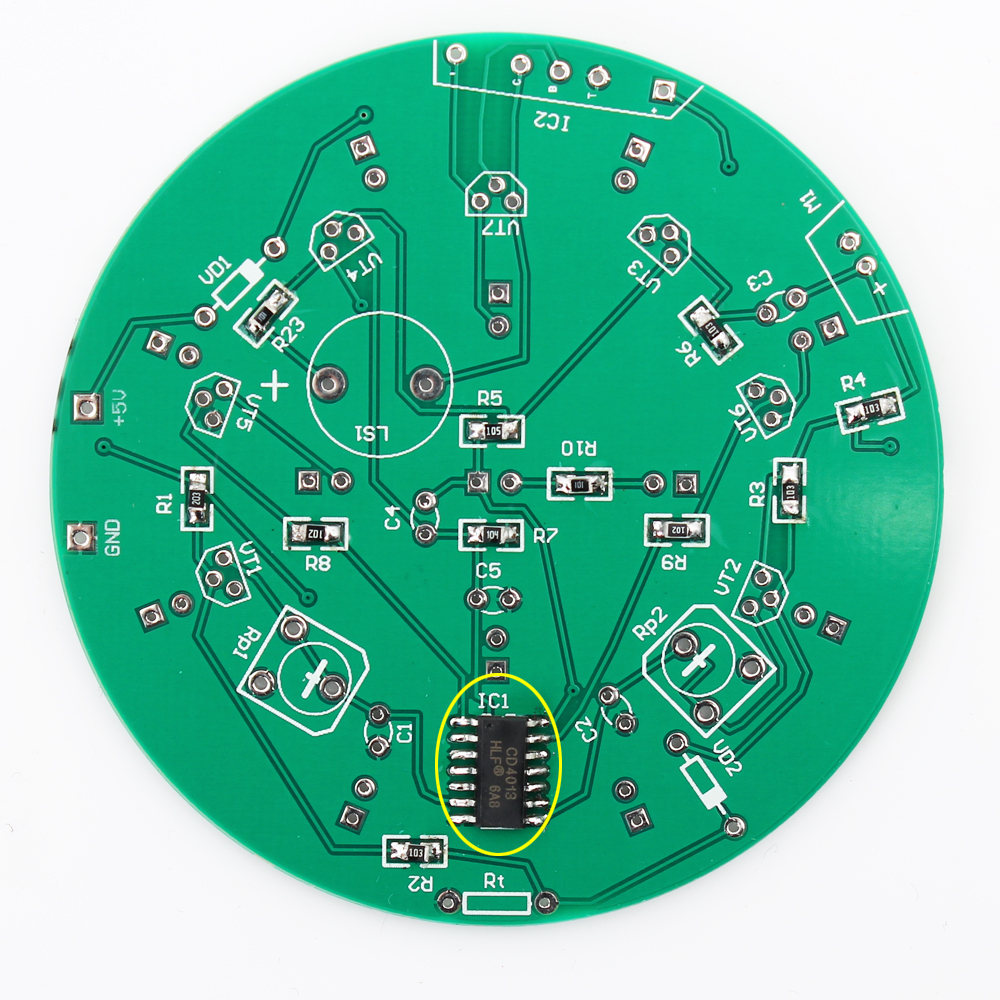

Install 1pcs SOP-14 CD4013 at IC2
![DIY Kit Analog Electronic Candle Lights_5.jpg](/proxy/?url=https://content.instructables.com/F5H/XR2F/JR6OH2BX/F5HXR2FJR6OH2BX.jpg&filename=DIY Kit Analog Electronic Candle Lights_5.jpg)
Please pay attention to the installation direction, adjacent pins can not be shorted.
Install 1pcs 1N4007 at VD1 and 1pcs 1N4148 at VD2.
![DIY Kit Analog Electronic Candle Lights_6.jpg](/proxy/?url=https://content.instructables.com/FTZ/EDFX/JR6OH2CQ/FTZEDFXJR6OH2CQ.jpg&filename=DIY Kit Analog Electronic Candle Lights_6.jpg)
Install 1pcs 10Kohm Thermistor at Rt.
![DIY Kit Analog Electronic Candle Lights_7.jpg](/proxy/?url=https://content.instructables.com/FTE/BFVP/JR6OH2D5/FTEBFVPJR6OH2D5.jpg&filename=DIY Kit Analog Electronic Candle Lights_7.jpg)
Please pay attention to the installation method, the sensor can not be too close to the PCB, it need to stretch about 5mm.
Install Ceramic Capacitors at C1-C5
![DIY Kit Analog Electronic Candle Lights_8.jpg](/proxy/?url=https://content.instructables.com/F9V/ZXD6/JR6OH2DK/F9VZXD6JR6OH2DK.jpg&filename=DIY Kit Analog Electronic Candle Lights_8.jpg)
2pcs 103 ceramic capacitors at C1,C2.
2pcs 104 ceramic capacitors at C3,C4.
1pc 102 ceramic capacitor at C5.

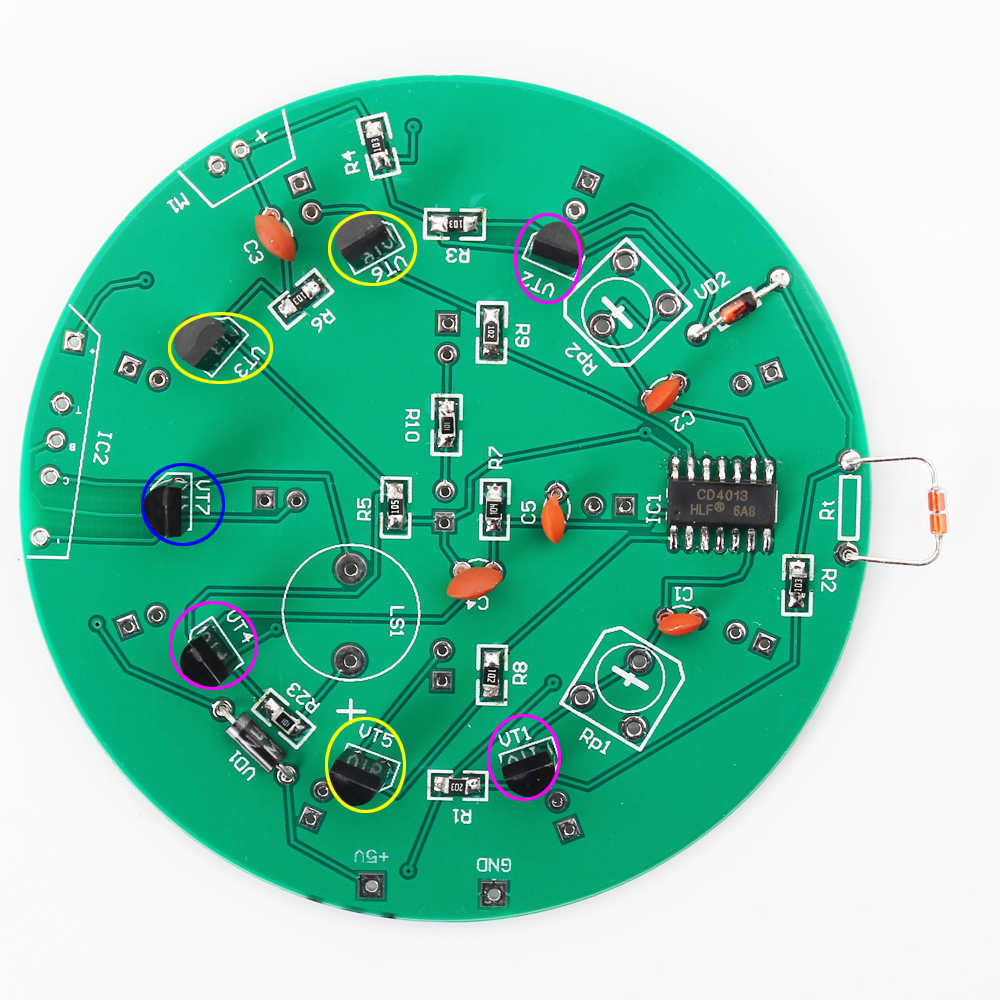

Install 7pcs Transistors at VT1-VT7.
![DIY Kit Analog Electronic Candle Lights_9.jpg](/proxy/?url=https://content.instructables.com/F3M/L5P0/JR6OH2DZ/F3ML5P0JR6OH2DZ.jpg&filename=DIY Kit Analog Electronic Candle Lights_9.jpg)
Install 3pcs S9012 at VT1,VT2,VT4.
3pcs S9013 at VT3, VT5, VT6.
1pc S8050 at VT7.
Install Bending Male Pin at +5V and GND
![DIY Kit Analog Electronic Candle Lights_10.jpg](/proxy/?url=https://content.instructables.com/F0K/ZH6V/JR6OH2EE/F0KZH6VJR6OH2EE.jpg&filename=DIY Kit Analog Electronic Candle Lights_10.jpg)
Install 13pcs LEDs at LED1-LED13.
![DIY Kit Analog Electronic Candle Lights_11.jpg](/proxy/?url=https://content.instructables.com/FOB/99C4/JR6OH2EG/FOB99C4JR6OH2EG.jpg&filename=DIY Kit Analog Electronic Candle Lights_11.jpg)
![DIY Kit Analog Electronic Candle Lights_12.jpg](/proxy/?url=https://content.instructables.com/F3W/ABGU/JR6OH2EI/F3WABGUJR6OH2EI.jpg&filename=DIY Kit Analog Electronic Candle Lights_12.jpg)
Install 8pcs 3mm Red LED at LED6-LED13.
Install 4pcs Red LED at LED2-LED5.
1pcs RGB LED at LED1.
Install 1pc Microphone at M1.
![DIY Kit Analog Electronic Candle Lights_13.jpg](/proxy/?url=https://content.instructables.com/F3P/8K9I/JR6OH2F0/F3P8K9IJR6OH2F0.jpg&filename=DIY Kit Analog Electronic Candle Lights_13.jpg)
Please pay attention to the installation direction.
Install Potentiometer and Passive Buzzer
![DIY Kit Analog Electronic Candle Lights_14.png](/proxy/?url=https://content.instructables.com/FGC/03A6/JR6OH2F1/FGC03A6JR6OH2F1.png&filename=DIY Kit Analog Electronic Candle Lights_14.png)
2pcs potentiometer at Rp1,Rp2.
1pc Passive Buzzer at LS1.
Install 1pc LX9300 Voice Chip at IC2.
![DIY Kit Analog Electronic Candle Lights_15.jpg](/proxy/?url=https://content.instructables.com/F1A/7CAN/JR6OH2FG/F1A7CANJR6OH2FG.jpg&filename=DIY Kit Analog Electronic Candle Lights_15.jpg)
![DIY Kit Analog Electronic Candle Lights Happy Birthday Thermal Sensor MIC Sound Control Simulation Candle DIY Learning.jpg](/proxy/?url=https://content.instructables.com/FUI/NYJB/JR6OH2EZ/FUINYJBJR6OH2EZ.jpg&filename=DIY Kit Analog Electronic Candle Lights Happy Birthday Thermal Sensor MIC Sound Control Simulation Candle DIY Learning.jpg)
![1.png](/proxy/?url=https://content.instructables.com/FRD/VW1E/KSONJF0B/FRDVW1EKSONJF0B.png&filename=1.png)
Please noted: It just need install Pin-1/Pin-3/Pin-5. There is no need to install Other pins.
If you have any interest in trying this Simulation Candle DIY Kits , you can check more details from ICStation.ICStation offer lots of popular electronic DIY kits for electronic diy project enthusiast, school, students, kids, beginners to learn basic knowledge about electronics and enjoy the fun of soldering something. For any further questions of the installation, feel free to contact us.
Thank you for your support. Enjoy making your project!
