DIY Air Cannon
![FA76AF81-08FE-4270-836C-9545733966B1.jpeg](/proxy/?url=https://content.instructables.com/FVY/03XL/JTMSHQIH/FVY03XLJTMSHQIH.jpg&filename=FA76AF81-08FE-4270-836C-9545733966B1.jpeg)
![2E795D93-8C39-4CAE-9238-A6FA530B208F.jpeg](/proxy/?url=https://content.instructables.com/FVJ/9BJP/JTMSHVEN/FVJ9BJPJTMSHVEN.jpg&filename=2E795D93-8C39-4CAE-9238-A6FA530B208F.jpeg)

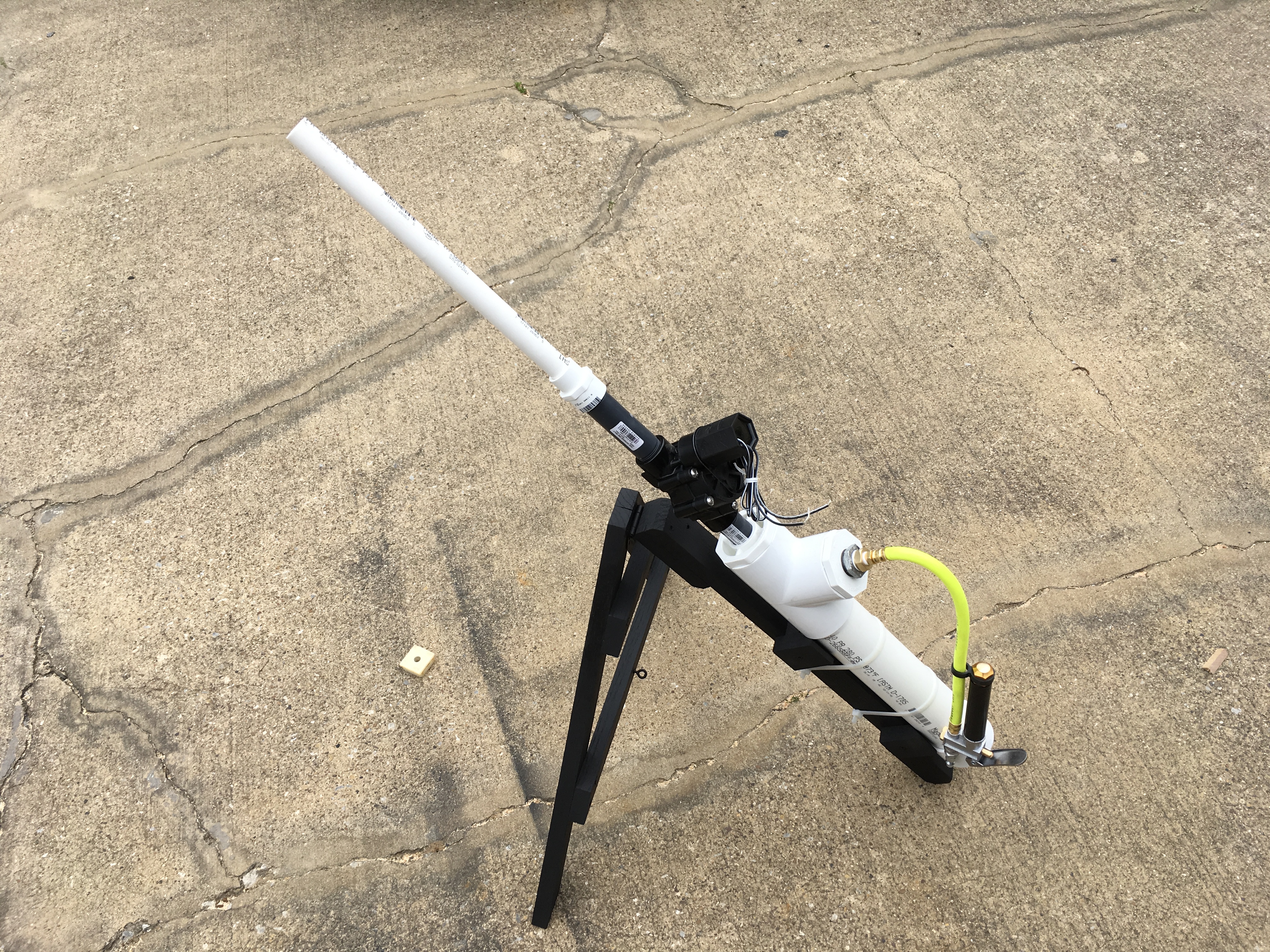

I made my first air cannon to demonstrate to my class how angles affect range in rockets. This has proven useful as it is a great way to demonstrate correlation in algebra. Be aware that any time high pressure air is used, there is a chance of explosion. Be sure to follow all instructions on packaging when applying pvc cement.
Gather Supplies
![DE4BB56B-7AF4-423A-83B7-D2078FB28880.jpeg](/proxy/?url=https://content.instructables.com/FTP/DF38/JTMSHSYW/FTPDF38JTMSHSYW.jpg&filename=DE4BB56B-7AF4-423A-83B7-D2078FB28880.jpeg)
2” cap
2” tee
2” to ¾” threaded coupler
2” to 1” threaded coupler
¾” threaded adapter
¾” to ½” adapter
¾” x 2” nipple (2)
2” x 24” pvc pipe segment
½” x 24” pvc pipe segment
1” to ¾” black iron bushing
¾ to ⅜ brass bushing
Tire pressure gauge with regulator
Male npt air hose connector ⅜
Wood for stand
Silicone plumber tape
2” tee
2” to ¾” threaded coupler
2” to 1” threaded coupler
¾” threaded adapter
¾” to ½” adapter
¾” x 2” nipple (2)
2” x 24” pvc pipe segment
½” x 24” pvc pipe segment
1” to ¾” black iron bushing
¾ to ⅜ brass bushing
Tire pressure gauge with regulator
Male npt air hose connector ⅜
Wood for stand
Silicone plumber tape
Assembly
![619D9732-8966-4A62-86F8-9D8A5B7E03E3.jpeg](/proxy/?url=https://content.instructables.com/FBK/MJSB/JTMSHU2M/FBKMJSBJTMSHU2M.jpg&filename=619D9732-8966-4A62-86F8-9D8A5B7E03E3.jpeg)
Assemble the items to look like mine, allow them to cure for an appropriate amount of time, and connect everything else that's threaded using plumbers tape to make seals.
