DIY AgriBot- the Agriculture Bot
by roboticswitharjun in Circuits > Arduino
1507 Views, 5 Favorites, 0 Comments
DIY AgriBot- the Agriculture Bot

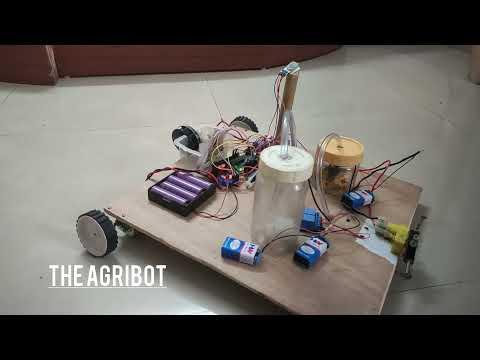

I am Arjun Agarwal, I'm in class 8, a 13 year old made a Robot which could help in agriculture. I coded it myself and made the app also myself. It can plough, dig, plant, water and fertilize the land. I could also be controlled by a phone using Bluetooth. I made the application myself and to prove my point, I even inserted my own watermark- "App made by Arjun Agarwal". To download the app- Click here.

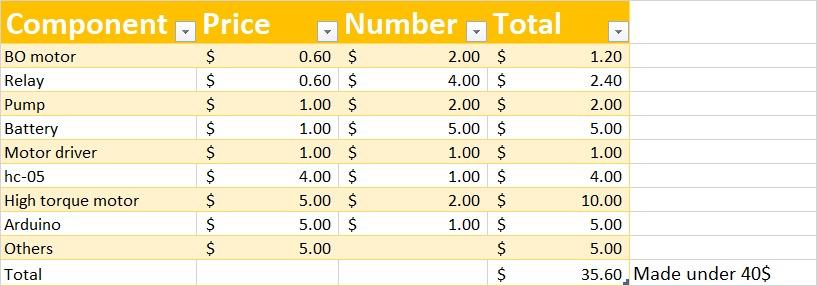

Supplies
To view click on the link->
- BO GEARED MOTORS
- RELAY MODULE
- PUMP
- 18650 cells
- 9v battery
- L298N MOTOR DRIVER
- HC-05 BT MODULE
- JOHNSON MOTOR
- ARDUINO UNO
- OTHERS(WOOD, TOOLS, CLAMPS, SCREWS)
Making the Frame
Make the Chassis using MDF wood and make holes for motor clamps and the spray tube of the pump outlet. Now attach the 2 pumps and then attach their outlets to the hole in the mdf. Attach the driving high torque motors.
Wiring
So wire the components according to this schematic. The motors with the L298 motor drivers are the High torque 12v motors and the motors with the relays are plougher and seed scattering system. The two pumps connected to the relay are for spraying fertilizer, water, pesticides, etc.
Wiring Simplified
Pump 1 relay → D11
Pump 2 relay → D12
Plougher motor → D8
Seed sowing motor → D9
L298 IN1_A → D2
L298 IN2_A → D3
L298 EN_A → D10
L298 IN1_B → D4
L298 IN2_B → D5
L298 EN_B → D6
HC-05 tx → D0
HC-05 rx → D1
L298 12V → 18650 Battery pack's +ve
L298 0V→ 18650 Battery pack's -ve
All Vcc/5v to 5v of Arduino
All gnd/0v to gnd of Arduino
Flow Chart
Here is a flowchart to help understand better.
Coding!
//Code by Arjun Agarwal for instrustable stem model 2021 #include <L298NX2.h> //Including library to control motors char val=0; //making a character val to given by store values const unsigned int EN_A = 10; // Enable pin to controll speed const unsigned int IN1_A = 2; //Input pins to control direction const unsigned int IN2_A = 3; const unsigned int IN1_B = 4; const unsigned int IN2_B = 5;//Input pins to control direction const unsigned int EN_B = 6;// Enable pin to controll speed L298NX2 motors(EN_A, IN1_A, IN2_A, EN_B, IN1_B, IN2_B);//telling the library where the motor drver pins are conntected void setup() { motors.setSpeed(80); //setting the speed Serial.begin(9600); //Starting Serial communication pinMode(8,OUTPUT); pinMode(9,OUTPUT); pinMode(11,OUTPUT); pinMode(12,OUTPUT);// setting the pins as out digitalWrite(11,1); digitalWrite(12,1);//turing the relay's off at first digitalWrite(8,1); digitalWrite(9,1); } void loop() { if(Serial.available() > 0) {val=Serial.read(); Serial.print(val); if(val == 'f') { motors.forward();// when f received go forward } if(val == 'b') { motors.backward();// when b received go backward } if(val == 'r') { motors.backwardA();// when r received go right by one wheel forward and one backward motors.forwardB(); } if(val == 'l') { motors.backwardB();// when l received go left by one wheel backward and one forward motors.forwardA(); } if(val == 'a') { motors.stop();// when a received stop motors } if(val == '2') { motors.setSpeed(50); // when 2 received set 50% speed } if(val == '5') { motors.setSpeed(65); // when 5 received set 65% speed } if(val == '7') { motors.setSpeed(75); // when 7 received set 75% speed } if(val == '1') { motors.setSpeed(100);// when 1 received set 100% speed } if(val == 'p') { digitalWrite(9,0); //plough on when reveived p } if(val == 'q') { digitalWrite(9,1); //plough off when reveived q } if(val == 's') { digitalWrite(8,0); //seed scatter on when reveived s } if(val == 't') { digitalWrite(8,1); //seed scatter off when reveived q } if(val == 'm') { digitalWrite(11,0); //pump1 on when reveived m } if(val == 'n') { digitalWrite(11,1); //pump1 off when reveived n } if(val == 'w') { digitalWrite(12,0); //pump2 on when reveived w } if(val == 'x') { digitalWrite(12,1); //pump2 off when reveived x } } }
DOWNLOAD L298NX2.h library - click here
Then import this library
Upload this code to the arduino UNO and your robot is ready

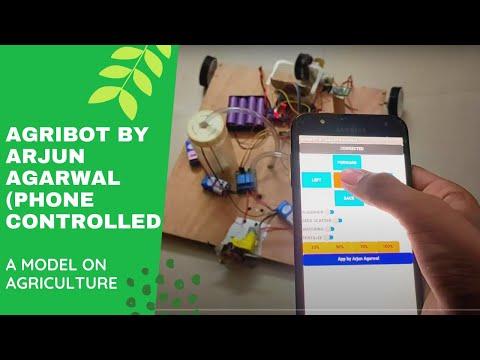

Download the AgriBot App
Now you can download the agribot app made by me-
Just click here to download the apk. This is not there in the play store due to the fees we need to pay to get it in playstore.
