DIY | Adjustable Timer Using 555 & Potentiometer

by DIYTechStudio in Circuits > Electronics

19338 Views, 88 Favorites, 0 Comments

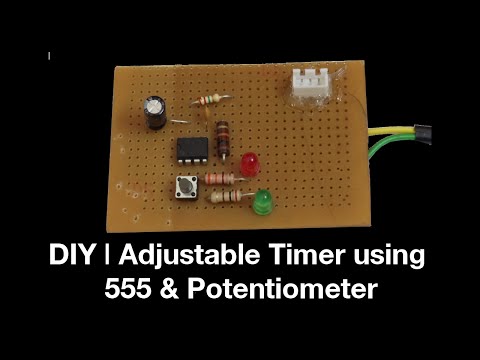

DIY | Adjustable Timer Using 555 & Potentiometer


DIY | Adjustable Timer using 555 & potentiometer

thumbnail 13.png

Making Video

DIY | Adjustable Timer using 555 & potentiometer

You can watch the making of the video by the clicking the video linked in this step or continue reading to make your own timer

You Can Subscribe To My YouTube Channel By Clicking HERE

Components Required

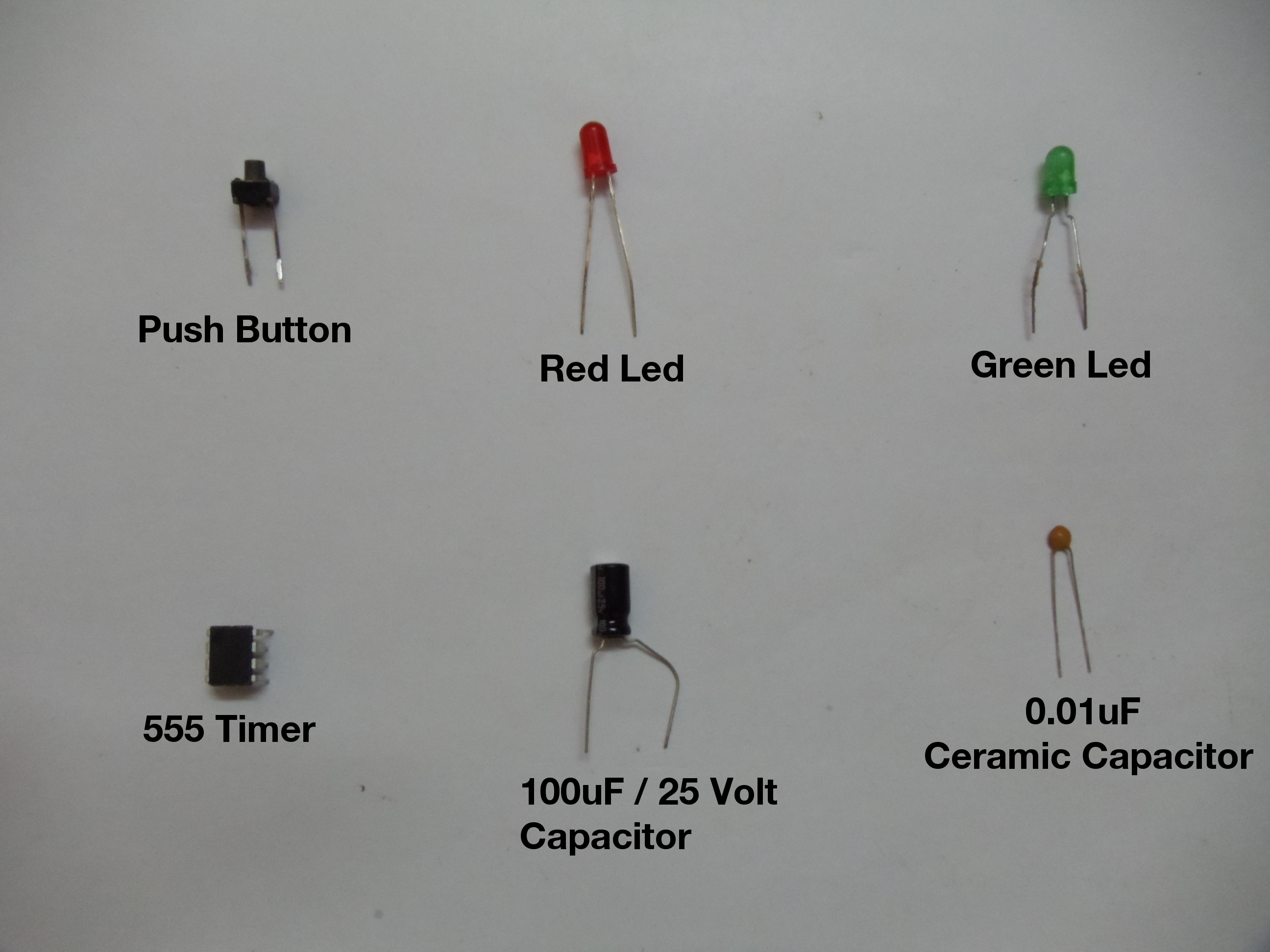

1. Push Button

2. 555 Timer IC

3. Red & Green Led

4. 100uF / 25 volt capacitor

5. 0.01uF capacitor

6. 2.2 Mega Ohm resistor

7. 10k Ohm Resistor

8. 330 Ohm Resistor

9. 220 Ohm Resistor

10 470k Ohm Potentiometer

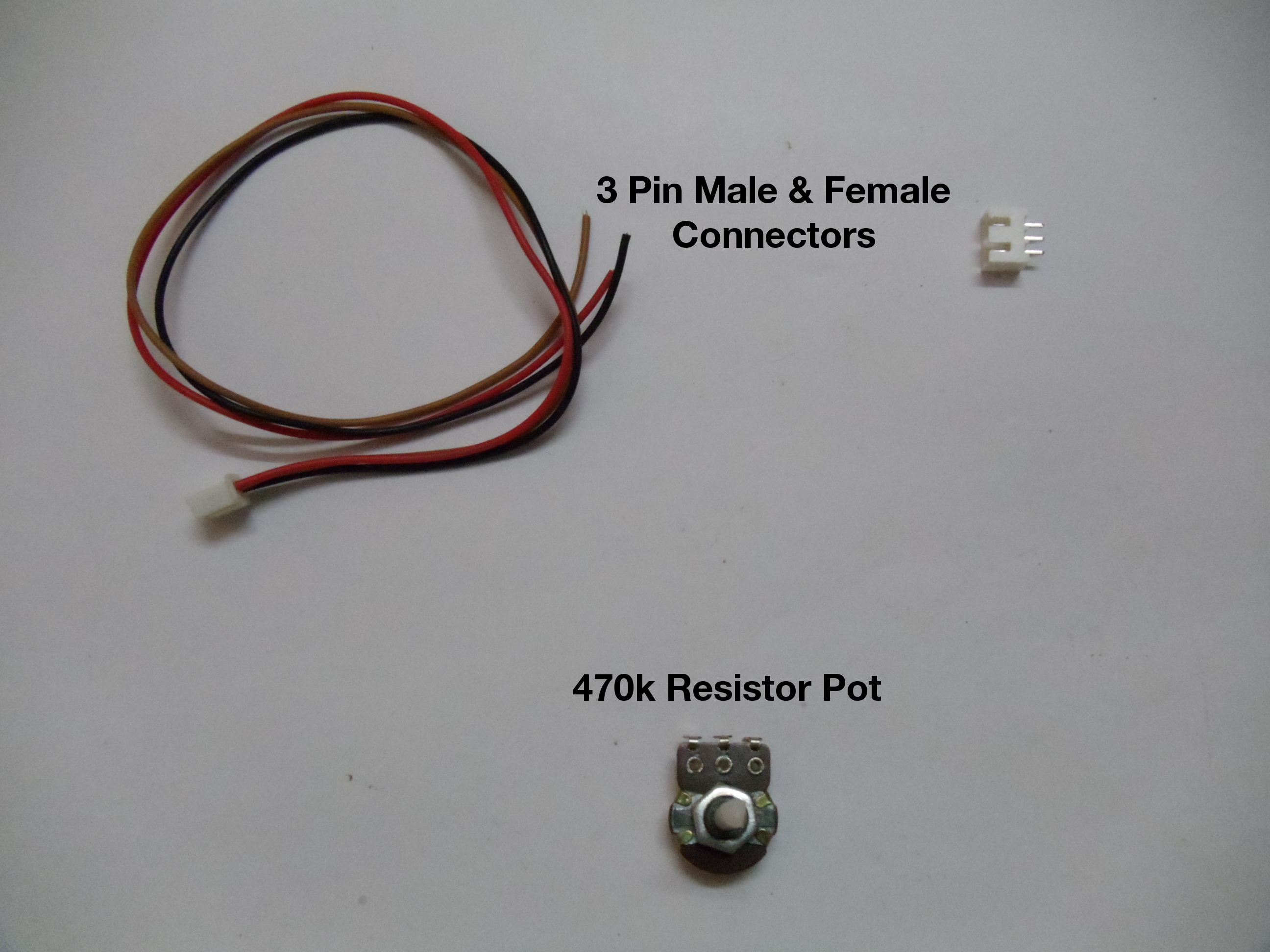

11. 3 Pin PCB male & Female connector

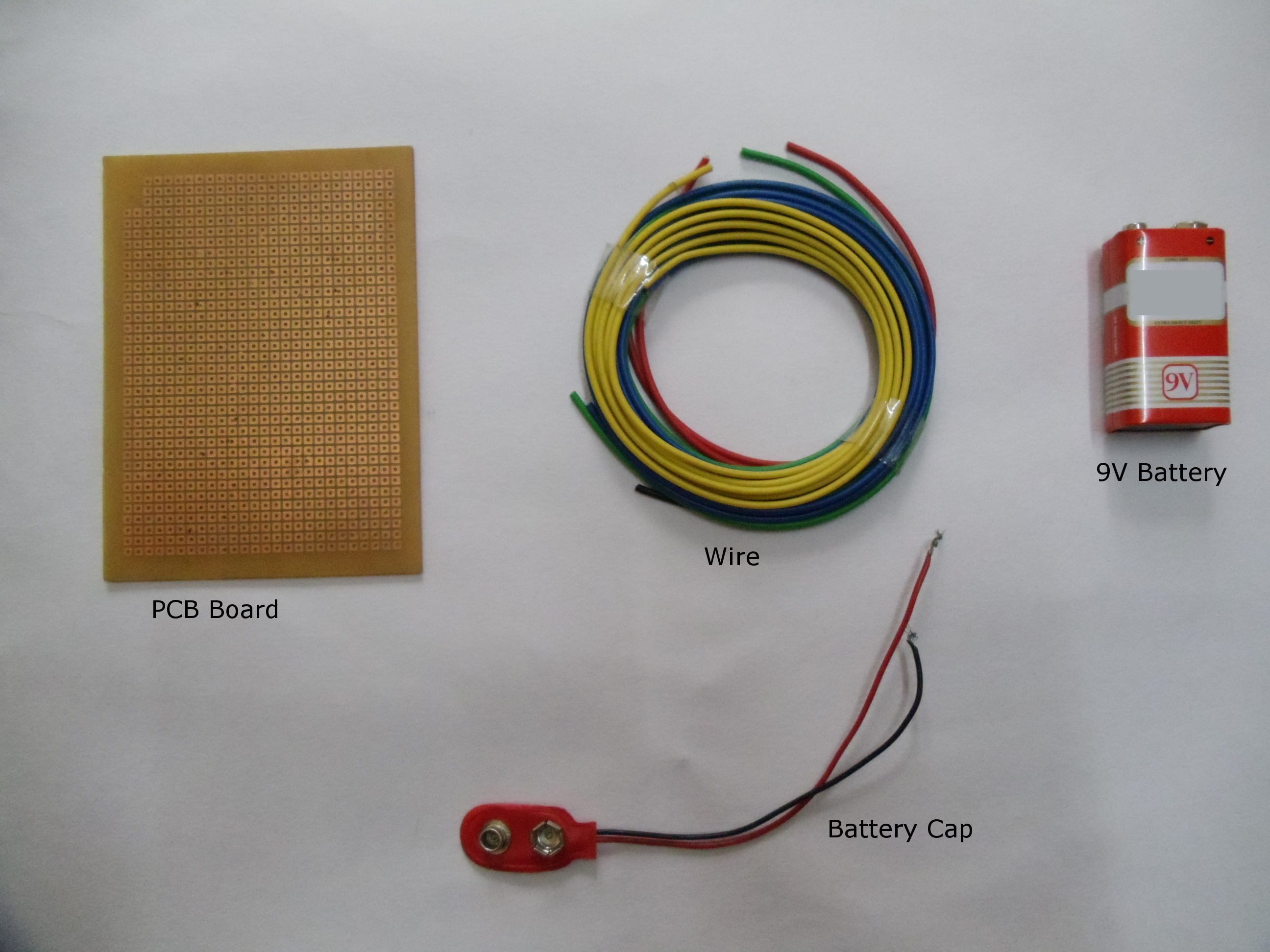

12. PCB Board

13. Wires

14 Battery & Battery Cap

15 Hot Glue Gun

16 Insulation Tape

Circuit Diagram


In my design i have used RED LED for output, But if you need real practical application i would suggest adding a

5 volt relay or a 5 volt buzzer so that it can perform some other operation once achieving the time.

Construction


Mount & connect all the components as per the circuit diagram.

Note :

1. as mentioned in the previous step in the image 3 i have used RED LED for output, But if you need real practical application i would suggest adding a 5 volt relay or a 5 volt buzzer so that it can perform some other operation once achieving the time.

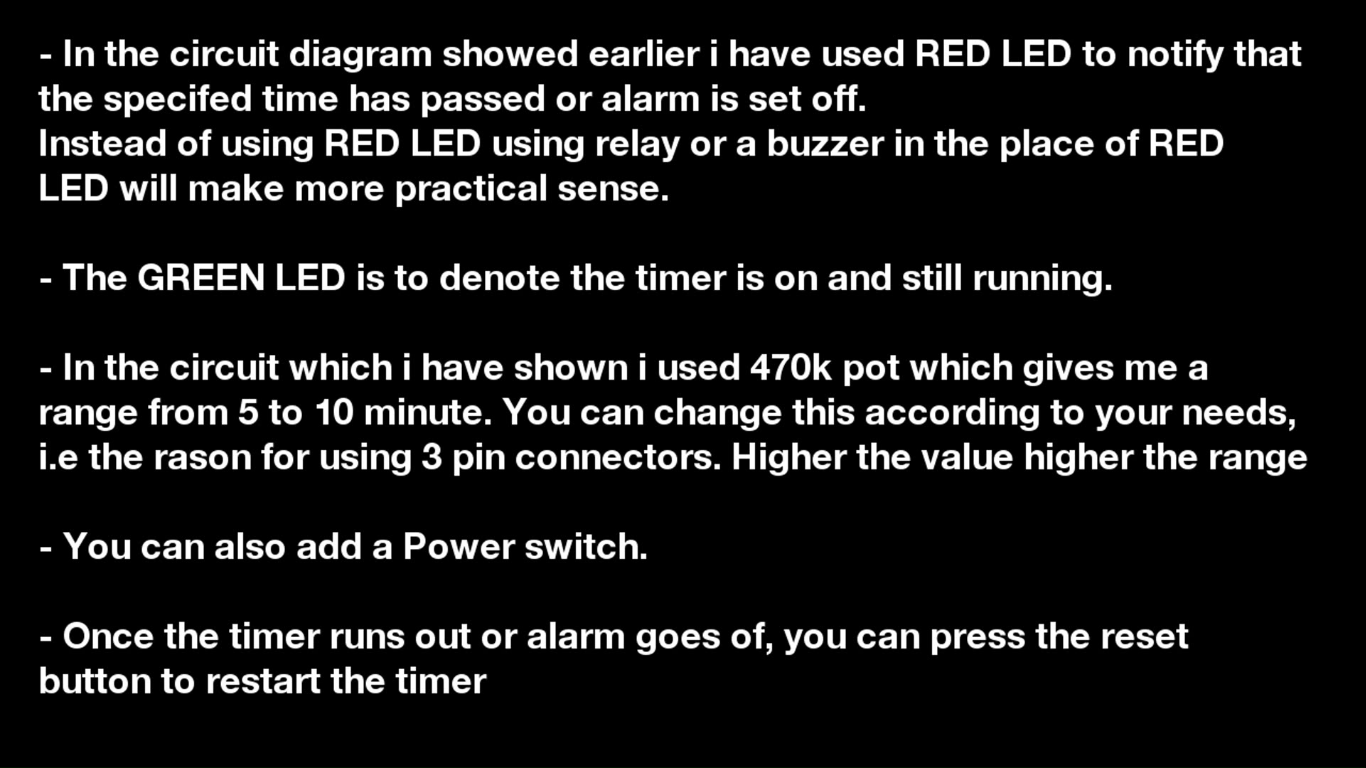

2. I have used 3 pin connector & attached it to 470k potentiometer as shown in the image 5. The reason for doing this is, so i can change the potentiometer for different timing. Using 470k pot i would achieve time range between 5 to 10 minute. To achieve lower time range using lower potentiometer will help.

3. to achieve higher time range you need to increase the value of the electrolytic capacitor which is connected to the pin 6 of the 555 timer (shown in the image 4)

4. This circuit achieves only a approximate value. To achieve a exact timer i would recommend using programmable or micro controller based timer(ex: Arduino)

Finished Images

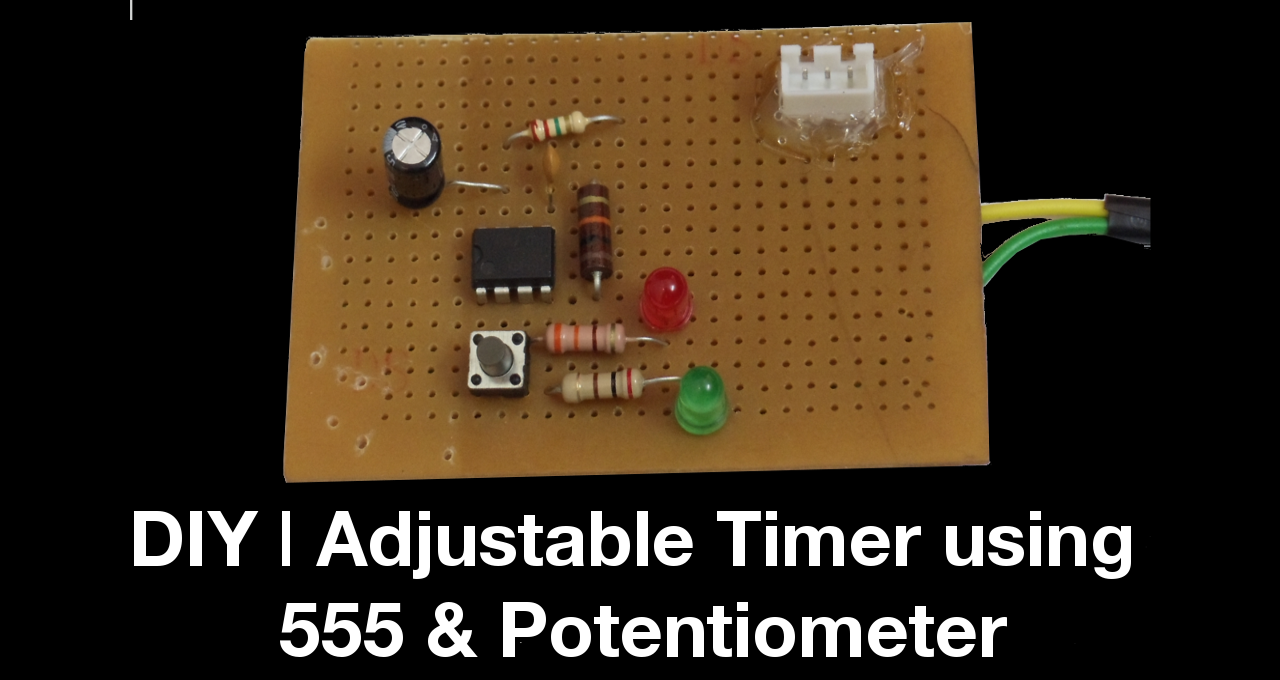

1st Image - Finished Board

2nd Image - Timer Running

3rd Image - Output

To watch the real time testing please CLICK HERE

Testing begins @ 2 minute mark

-------------------------------------------------------------------------------------------------------------------------------------------
