DIY $5.00 Sandblaster

by Withered Perception in Workshop > Home Improvement

1095873 Views, 1382 Favorites, 0 Comments

DIY $5.00 Sandblaster


Instagram: Withered_perception

I have some rust on my driveway and some old rusty tools I got from my grandfather years ago.

I have been looking at sand and soda blasters for about 6 months. They are either inexpensive and cheap or very well made and expensive!

So I decided lets just make one.

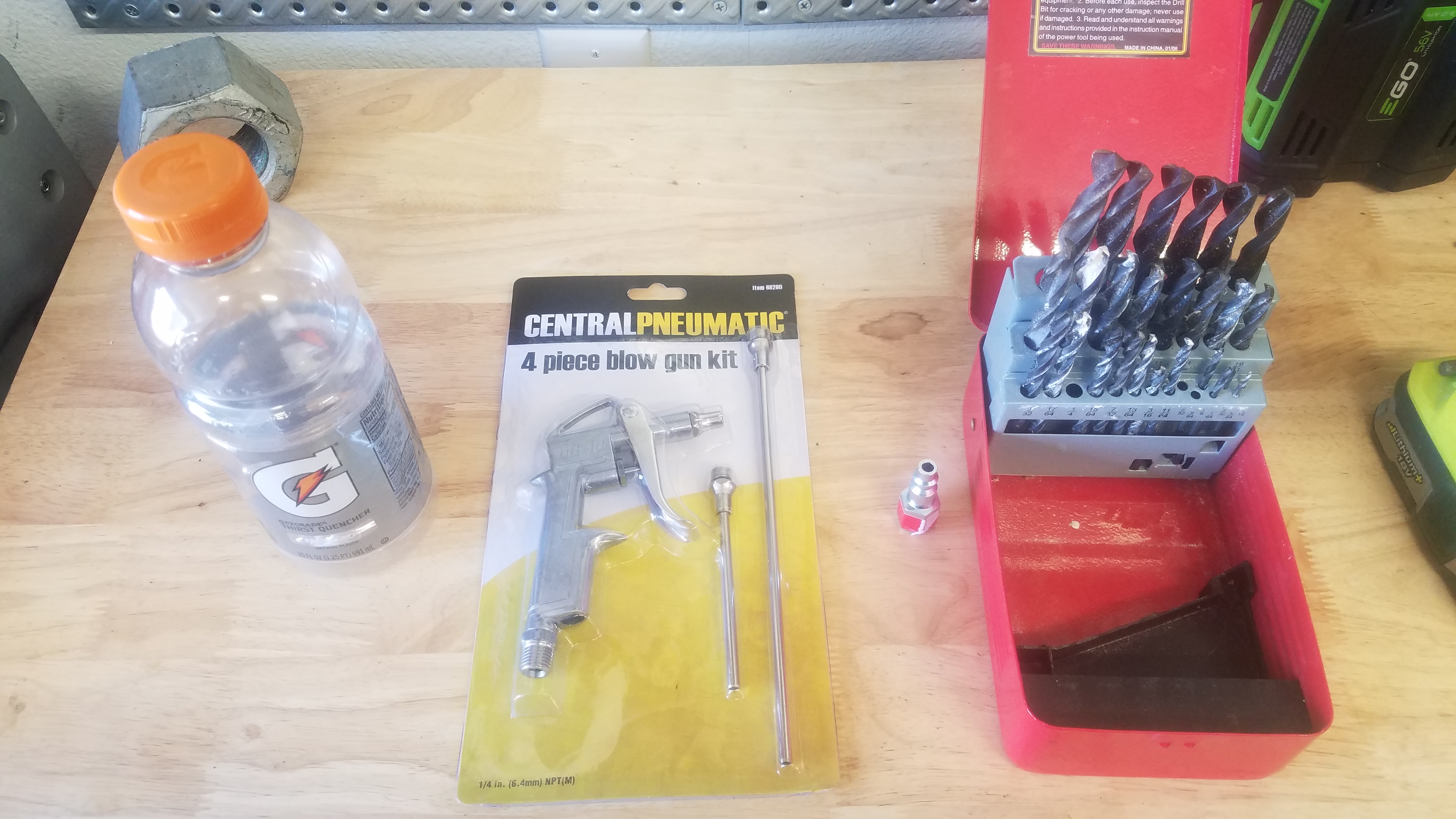

Get Crap


Go get some crap at Harbor Freight. This air gun kit ran $4.99.

Now find a bottle in the trash.

Say "Hi" to the Cat


This optional but important step may be the difference between you succeeding or failing.

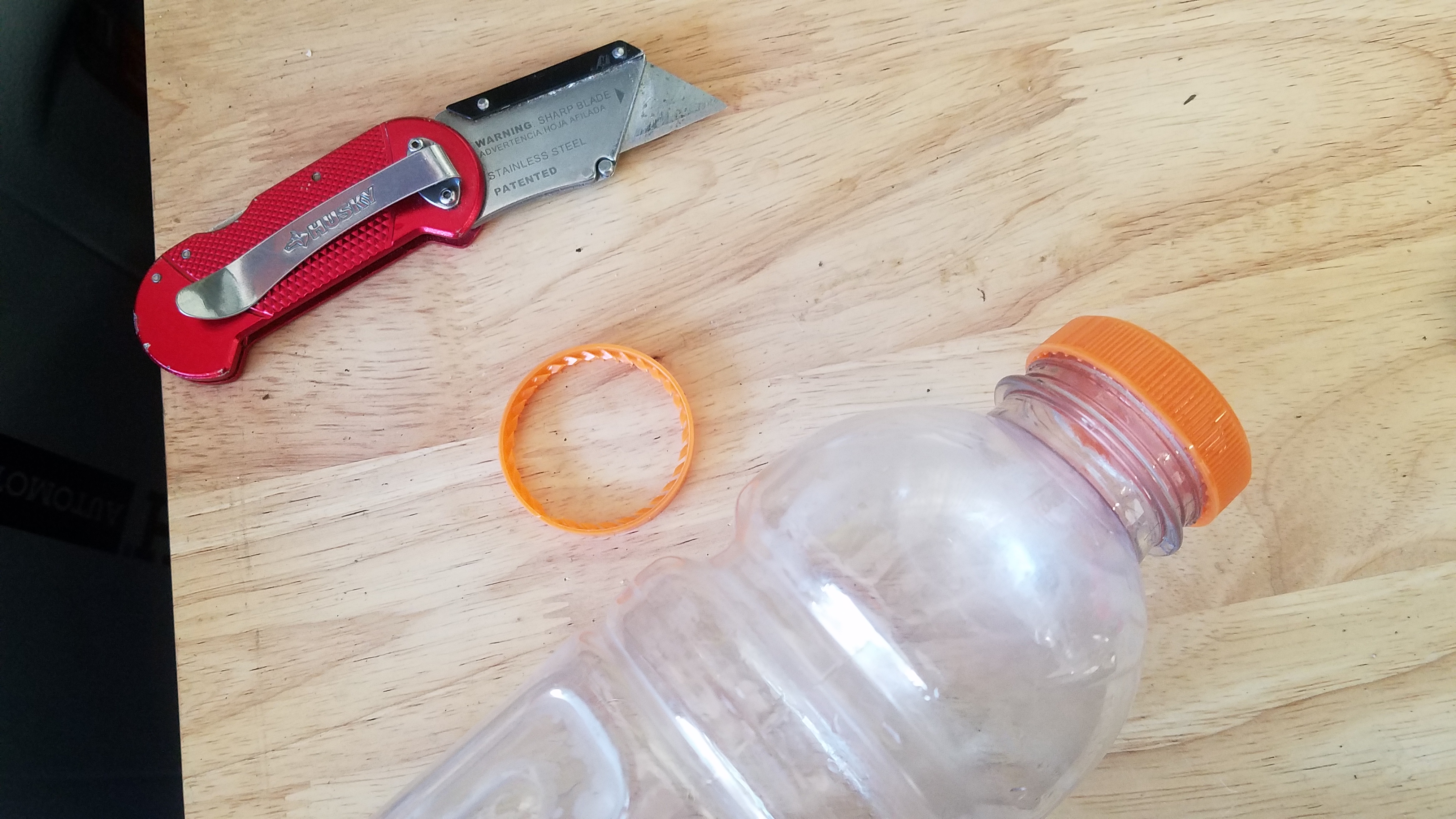

Cut the Neck


Remove the locking neck for the cap.

Drill


Grab a 3/16" bit and drill the neck just under the cap.

Test Fit


Push the air rod in. It should be very snug!

Mark


Mark the bottom of the air tube. Spin the tube around so you can hold the handle while you file.

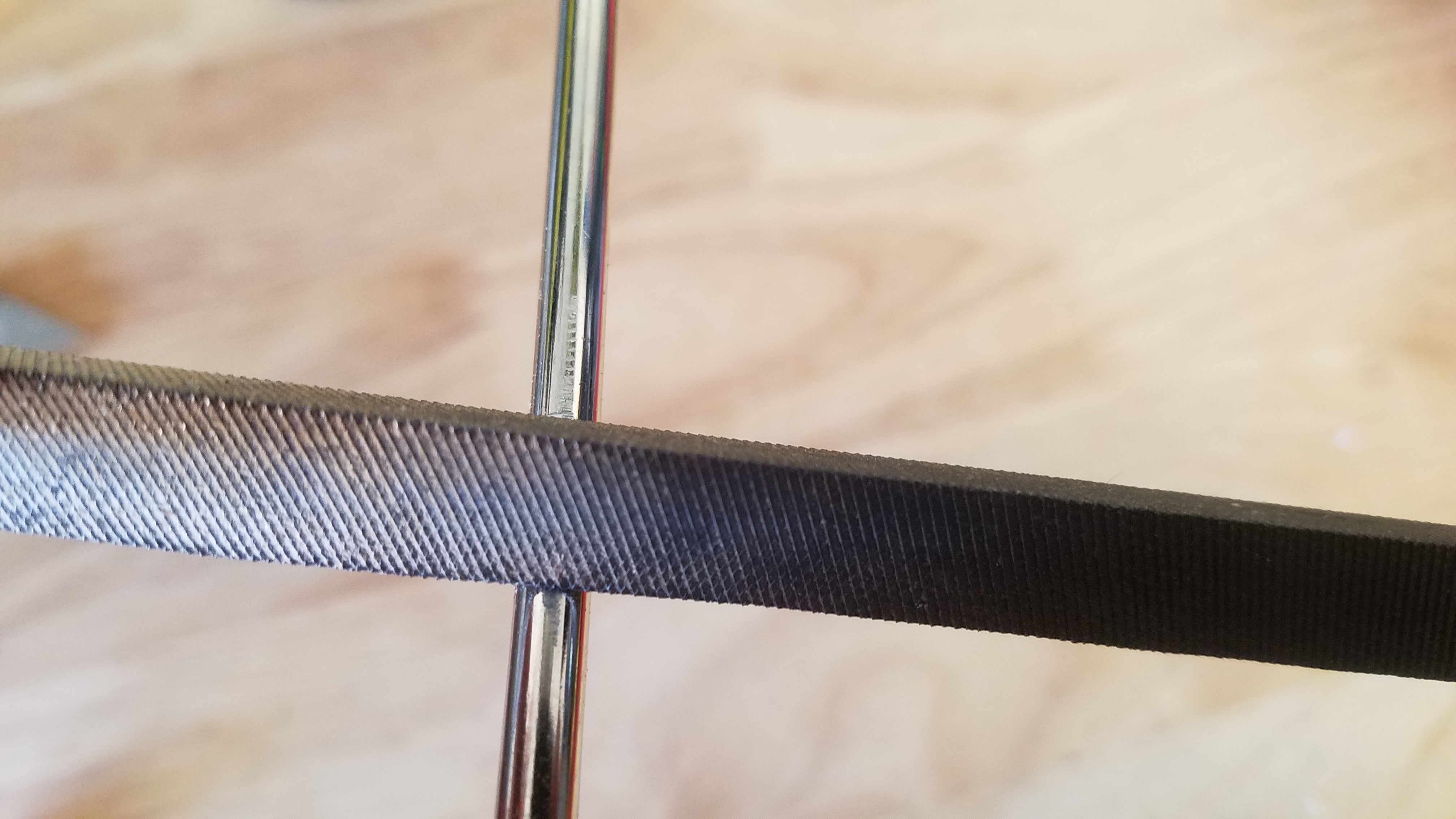

File


File a hole through the tube to let your media in. When you're done spin the tube back so the opening is at the bottom.

Fit


Get the tube back into the hole.

Seal


Not looking for the glue to actually stick here.

Just looking to prevent the hole from opening up too much while under pressure.

Test Blast


Put your Saftey goggles and gloves on and give it a good blast. I shot at the rust on the drive way and removed a spot (the white part) in just a few seconds.

I will give you an update on the driveway once I have time to do some actual blasting on it.

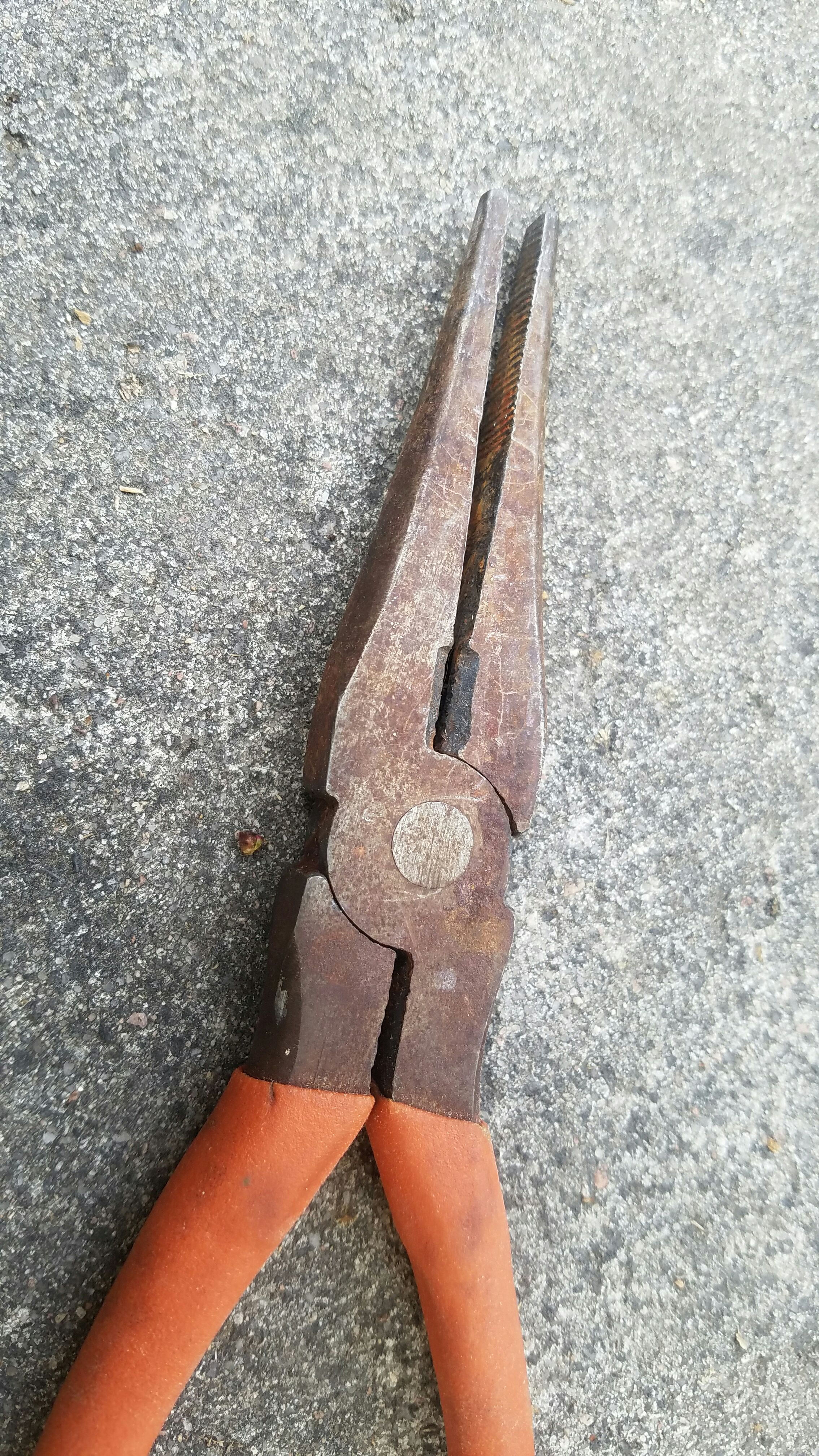

Real Deal


An old set of needle nose (rusty as hell...)

Blast Away


Clean as a whistle!

Extra Step

Because everyone keeps asking this is my air compressor a California Air Tools 10020c running at about 40 PSI for blasting.

I also use 20/40 crushed walnut for my media.

For PPE I use gloves, a P-100 respirator, long sleeves and a face shield. No excuses! Do not mess with your Safety!
