DIY 2D Plotter Shield for Arduino Nano With L293d

In this tutorial i will show you my shield for arduino based cnc.

Subscribe at my telegram channel for more interesting projects. (Its motivation for me)

Lets go!

• Arduino nano
• double side prototype PCB
• soldering iron
• wires
• two l293d chips

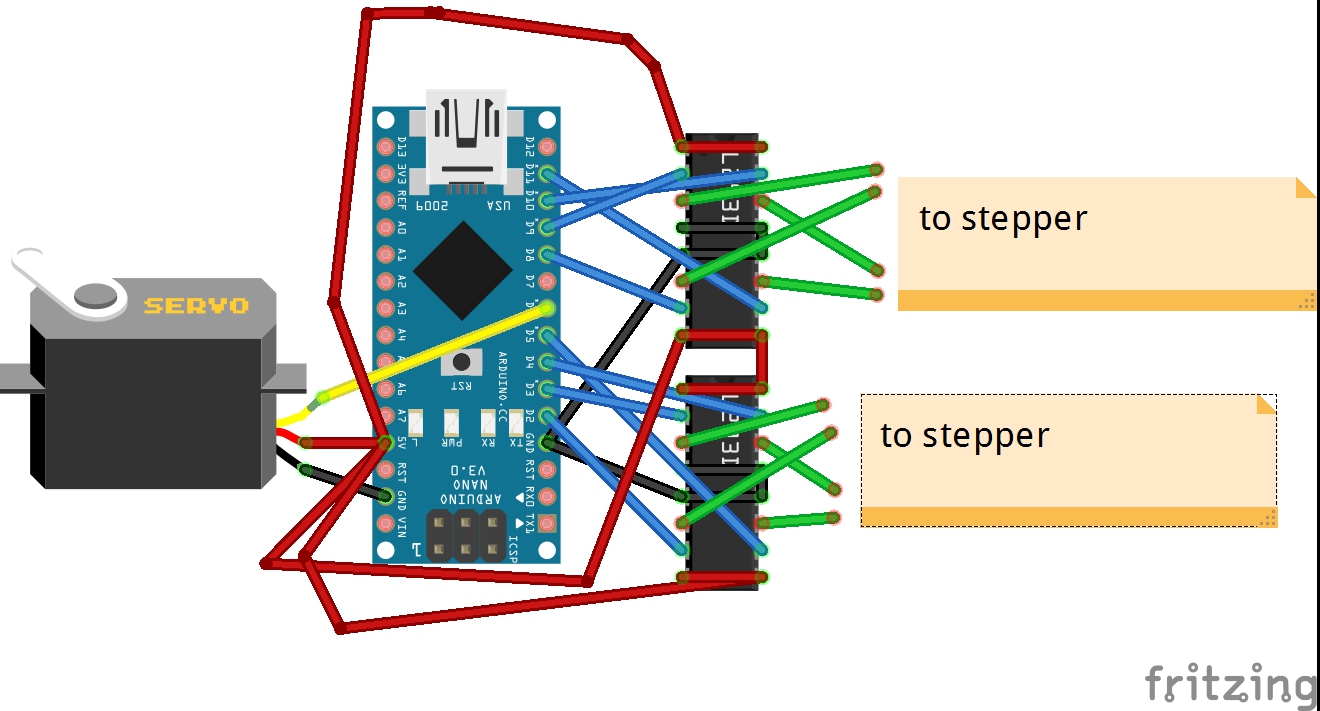

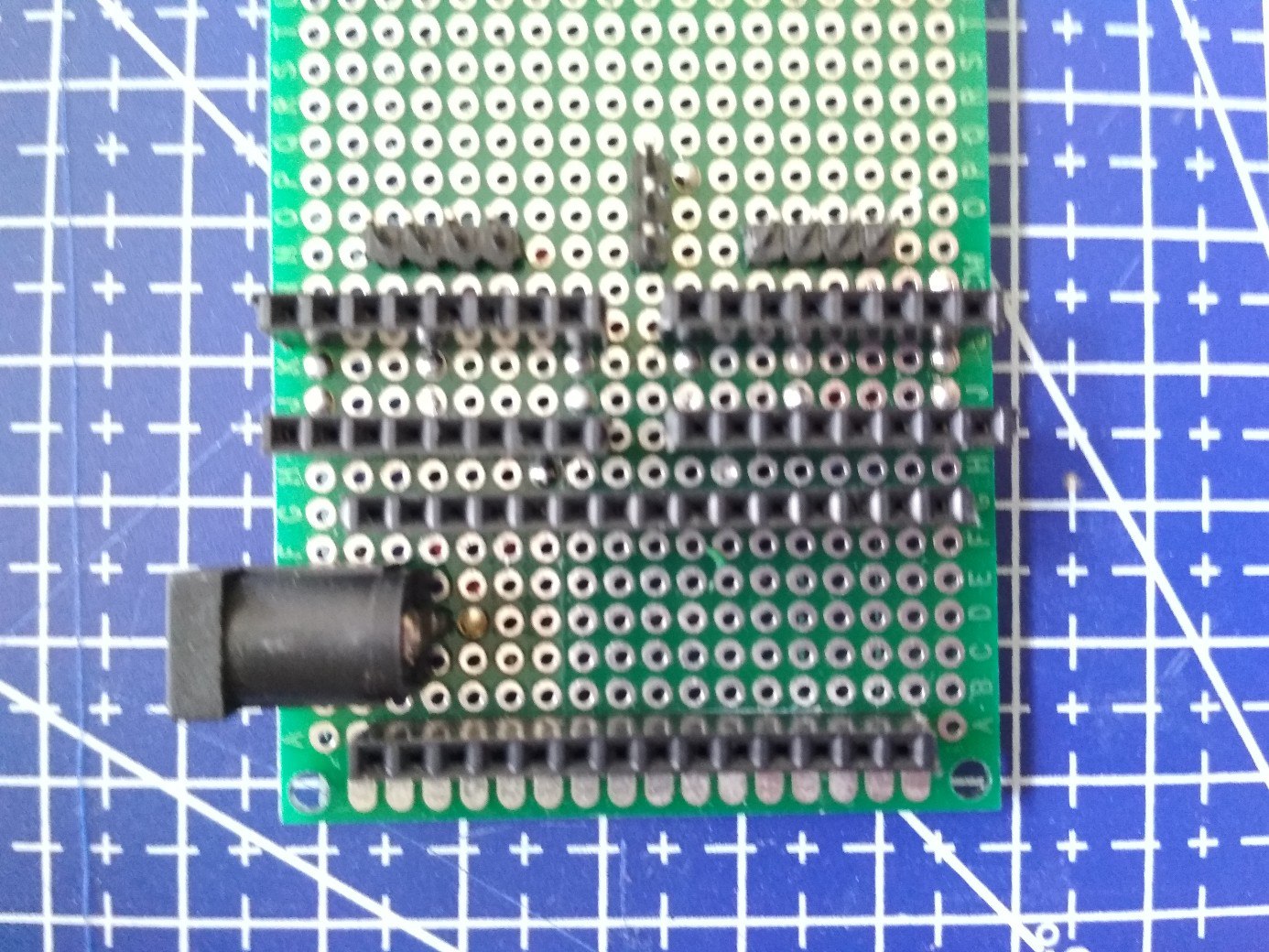

Solder pins for arduino and chips into pcb like at sheme

Connect 5v and gnd from 5.5x2.1 jack to arduino and chips

Connect arduino to PC. Install drivers. Upload sketch
