DIY 10W LED Lamp
Hello,
We will learn how to manufacture 10W LED bulb.
Using simple tools and Components
Components of the Project
1- We will use 10 power LEDs ,Each LED value is 1 Watt with Heat Sink Aluminum Base
2- With driver
3- Then we prove all those components on a piece of aluminum.
and other tools
Steps to Implement the Project

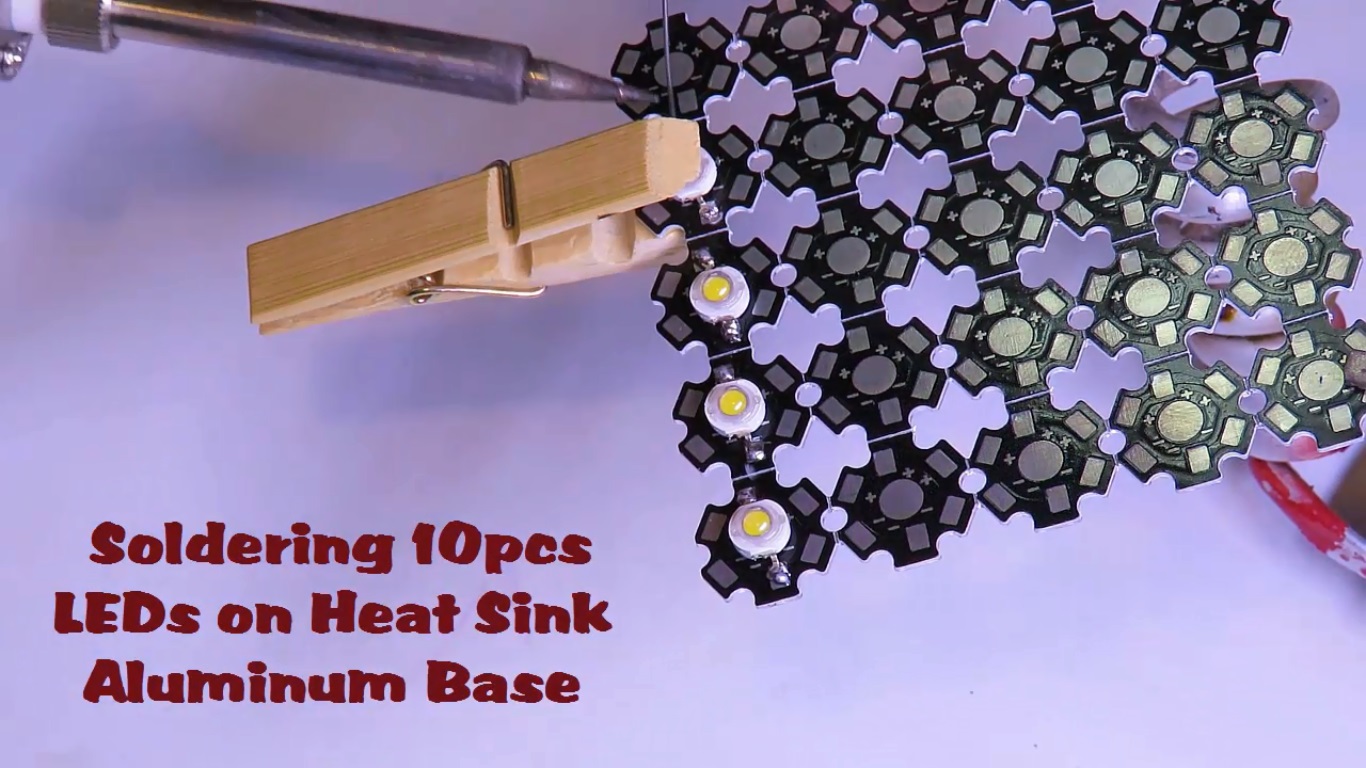

1- Soldering 10Pcs LEDs on heat sink aluminum base.
2- Testing each LED with 3.3V , 230 mA.
3- cutting 9pcs Aluminum slices 3cm * 1cm.
4- make a hole in each aluminum slice.
5- Each aluminum slide will prove a pair of LEDs.
6- Soldering the LEDs in series.
7- Testing LEDs strip with 30Volts DC at 300mA.

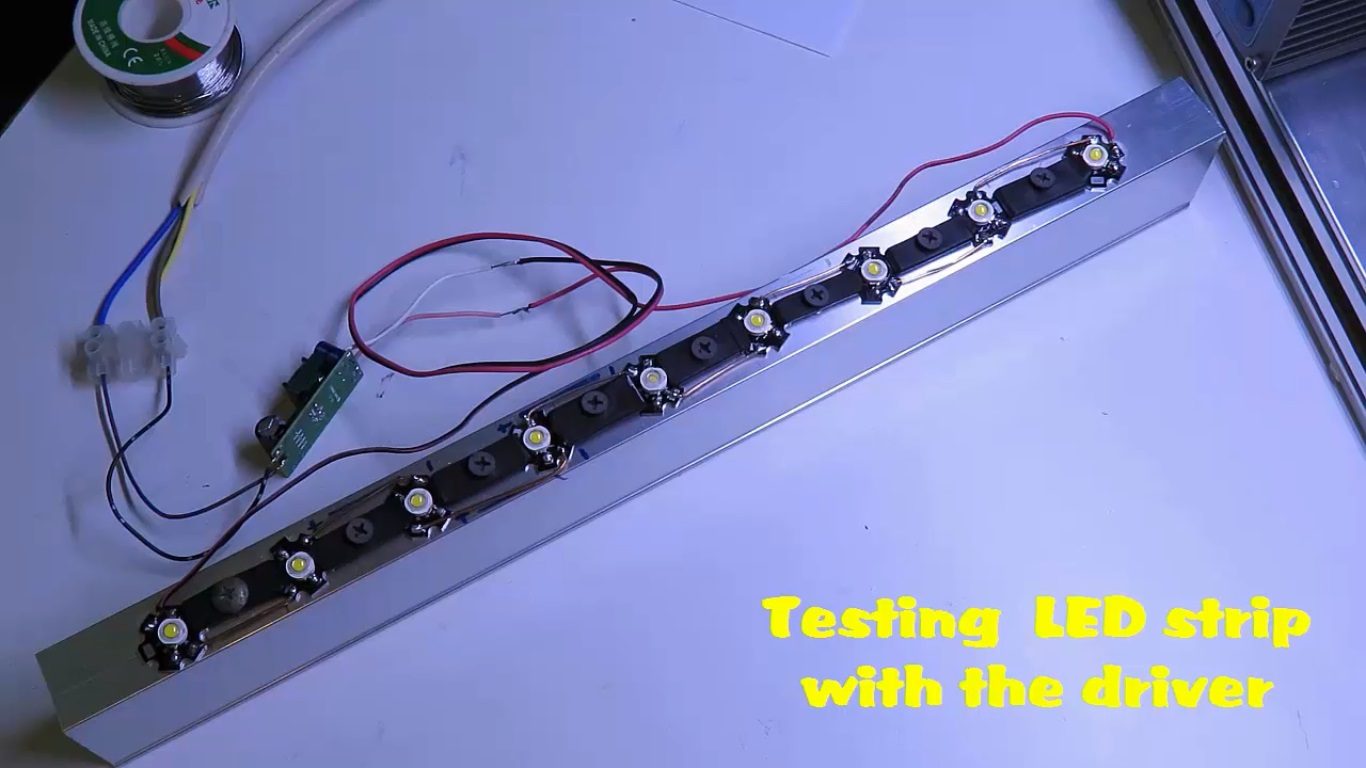

8- Testing LEDs strip with the driver.
