DIY : 100w Led Flashlight
![DSC_0411.JPG](/proxy/?url=https://content.instructables.com/FDS/HTSO/IN235FO8/FDSHTSOIN235FO8.jpg&filename=DSC_0411.JPG)
![DSC_0489.JPG](/proxy/?url=https://content.instructables.com/FZV/RAKZ/IN235FY4/FZVRAKZIN235FY4.jpg&filename=DSC_0489.JPG)
![DSC_0440.JPG](/proxy/?url=https://content.instructables.com/FC1/XVA0/IN235FUF/FC1XVA0IN235FUF.jpg&filename=DSC_0440.JPG)

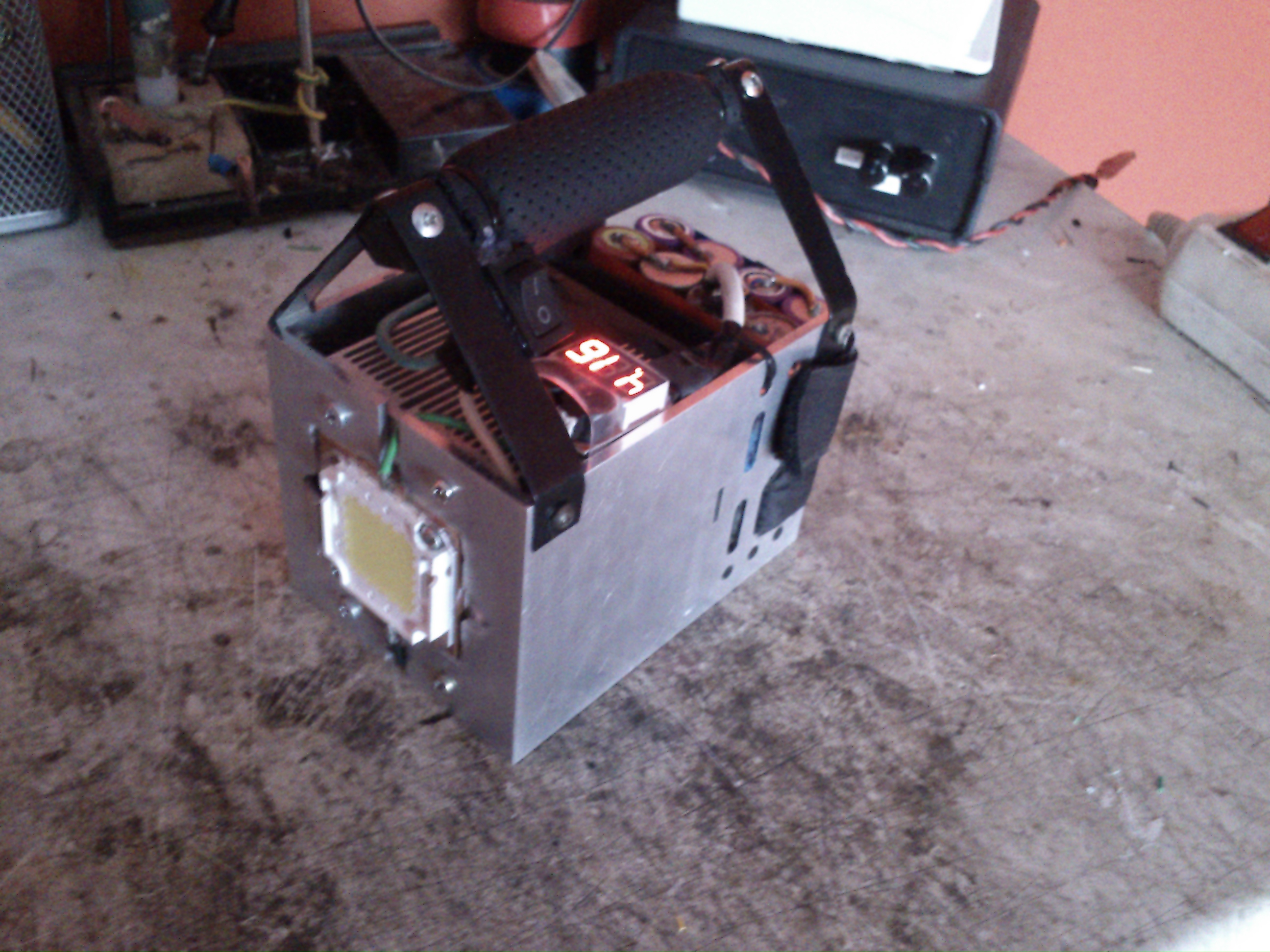

You ve probably seen something like this.
I needed something that is bright, can be used on bicycle and also you can carry when you go exploring.

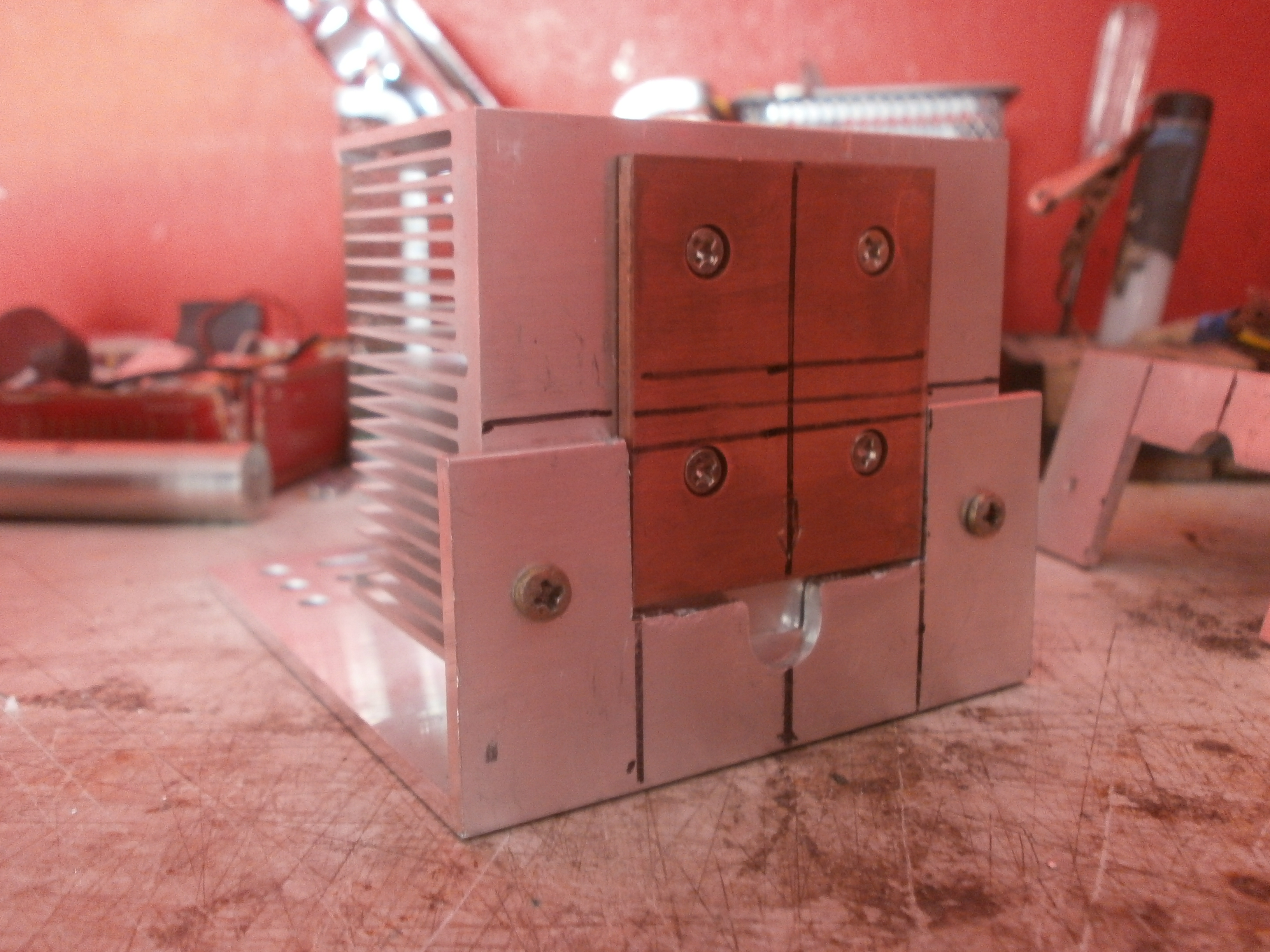

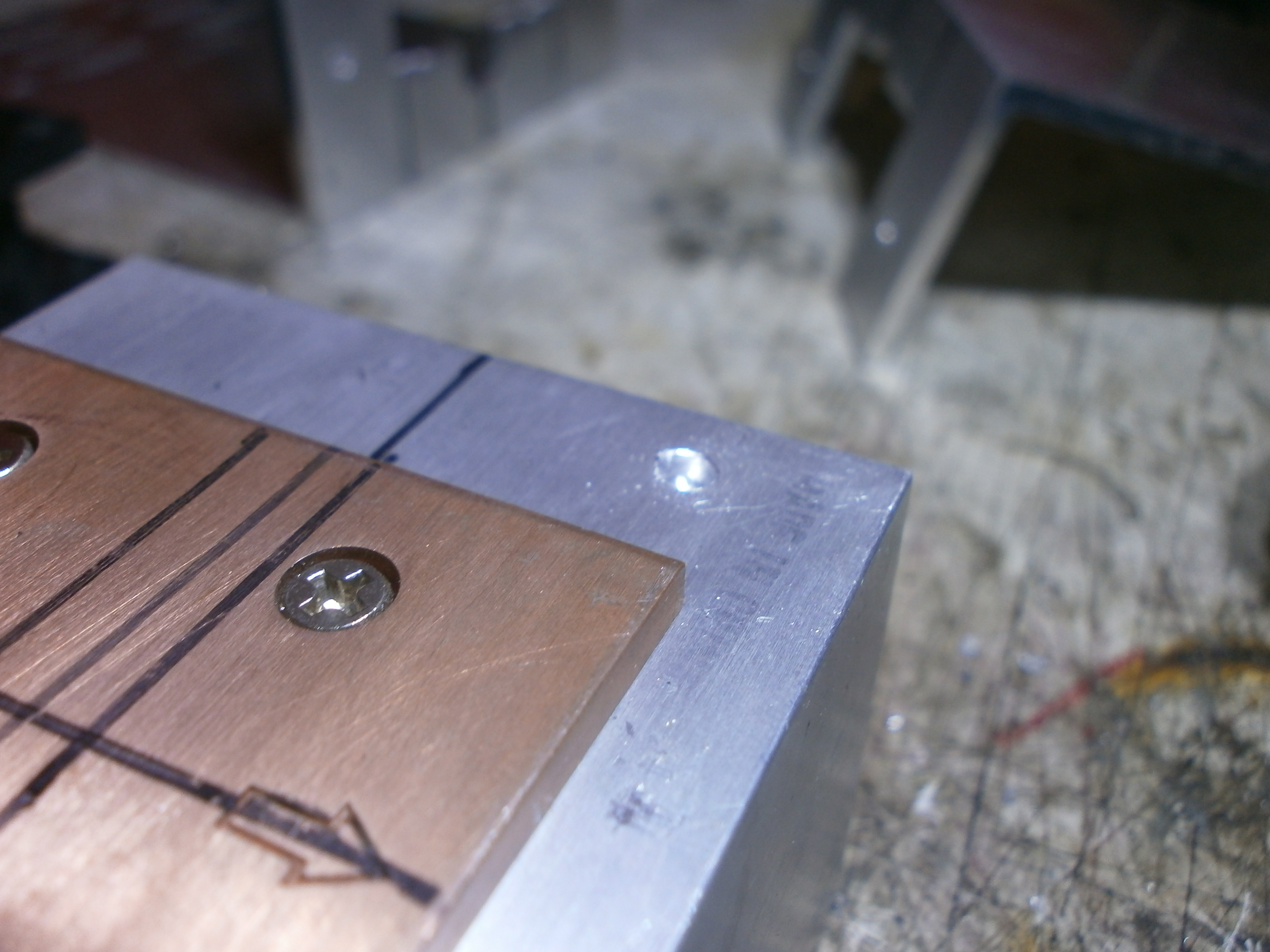

I made simmilar thing to DIY Perks portable sun but instead of using big CPU heatsink i used smaller one and whole body of flashlight to cool down LED.
Flashlight can work almost 1 hour on full brightness but i added potentiometer so i can dimm it and use it alot longer.
Battery that i used is 4S2P from old laptop batteries
Building
![P2130007.JPG](/proxy/?url=https://content.instructables.com/FAC/2GIG/IN235FZH/FAC2GIGIN235FZH.jpg&filename=P2130007.JPG)
![P2130006.JPG](/proxy/?url=https://content.instructables.com/FNF/2EL5/IN235FYX/FNF2EL5IN235FYX.jpg&filename=P2130006.JPG)
![P2130008.JPG](/proxy/?url=https://content.instructables.com/FLN/DSTF/IN235G04/FLNDSTFIN235G04.jpg&filename=P2130008.JPG)
![P2130012.JPG](/proxy/?url=https://content.instructables.com/F0C/O5QD/IN235G1A/F0CO5QDIN235G1A.jpg&filename=P2130012.JPG)
![P2130009.JPG](/proxy/?url=https://content.instructables.com/F7X/1LPN/IN235G07/F7X1LPNIN235G07.jpg&filename=P2130009.JPG)
![P2130010.JPG](/proxy/?url=https://content.instructables.com/FG1/5I9U/IN235G0K/FG15I9UIN235G0K.jpg&filename=P2130010.JPG)
![P2130011.JPG](/proxy/?url=https://content.instructables.com/FN8/0LE8/IN235G11/FN80LE8IN235G11.jpg&filename=P2130011.JPG)
![P2130013.JPG](/proxy/?url=https://content.instructables.com/F8C/DXEY/IN235G1F/F8CDXEYIN235G1F.jpg&filename=P2130013.JPG)
![P2250020.JPG](/proxy/?url=https://content.instructables.com/FYG/TA46/IN235G43/FYGTA46IN235G43.jpg&filename=P2250020.JPG)
![P2250021.JPG](/proxy/?url=https://content.instructables.com/FE5/2AD8/IN235G4E/FE52AD8IN235G4E.jpg&filename=P2250021.JPG)
![DSC_0492.JPG](/proxy/?url=https://content.instructables.com/FMW/YECA/IN235FYD/FMWYECAIN235FYD.jpg&filename=DSC_0492.JPG)
![DSC_0441.JPG](/proxy/?url=https://content.instructables.com/FYE/MJLV/IN235FVE/FYEMJLVIN235FVE.jpg&filename=DSC_0441.JPG)

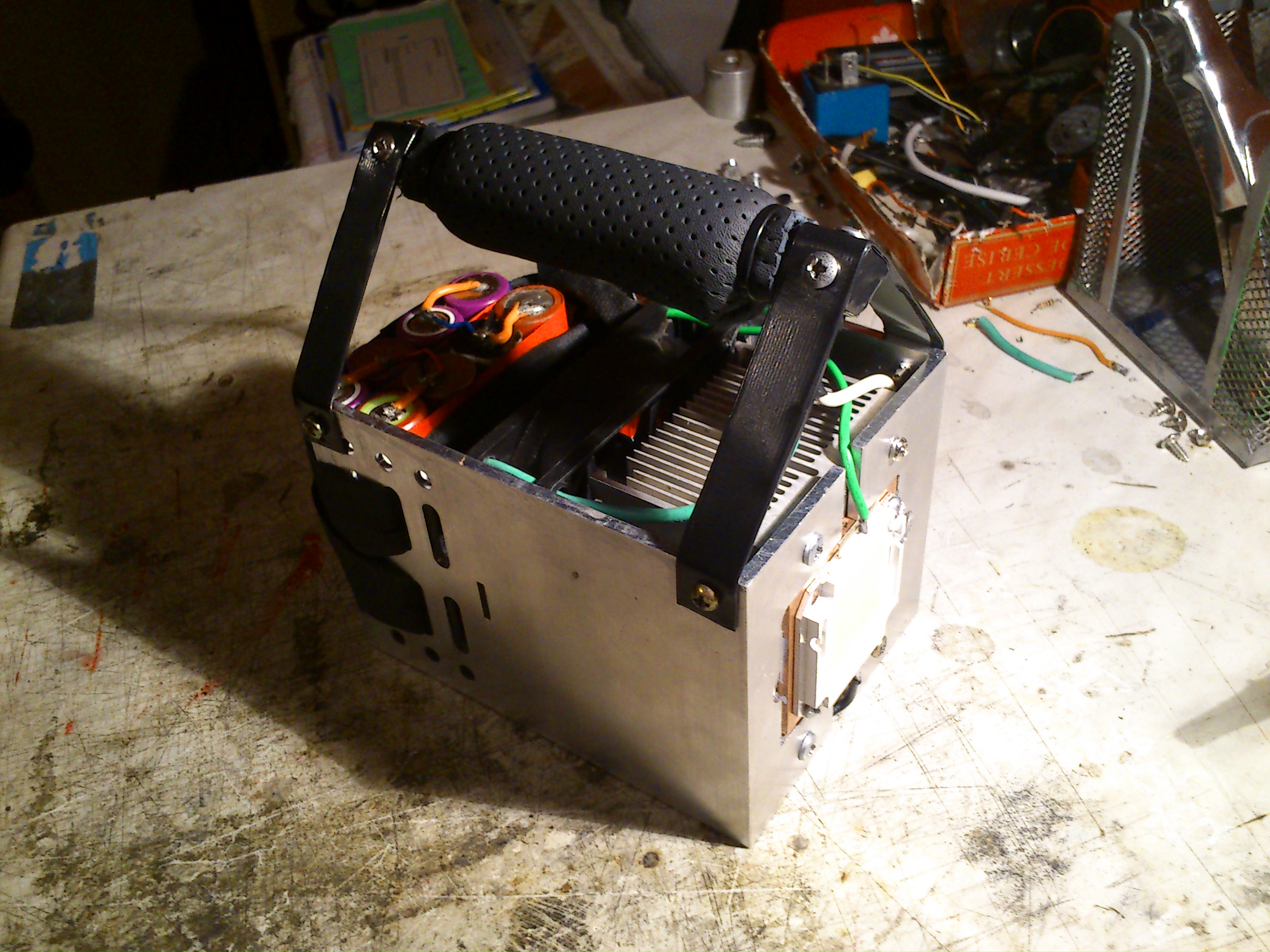

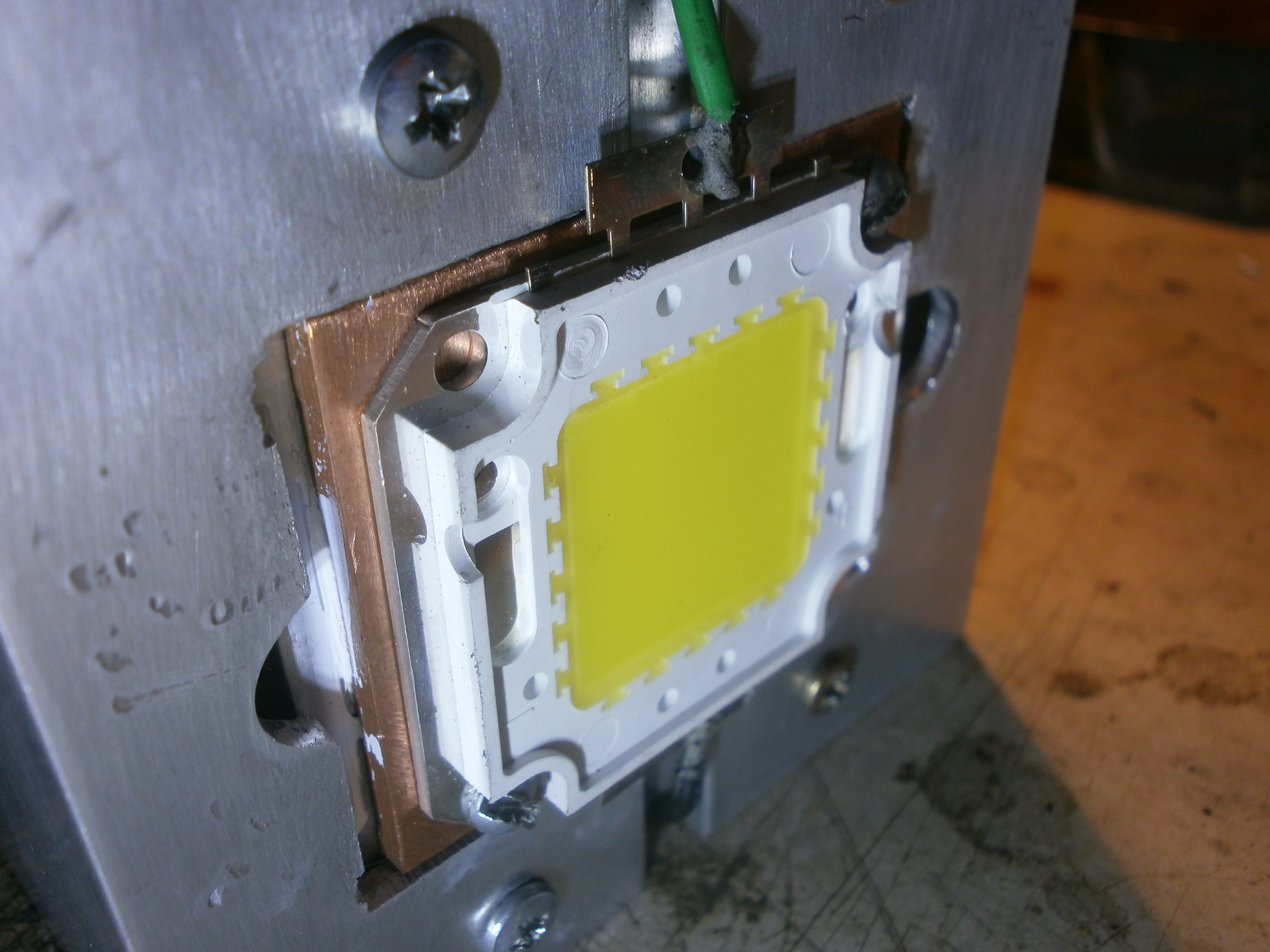

I used 8 18650 batteries, 100W LED and 150W boost converter.

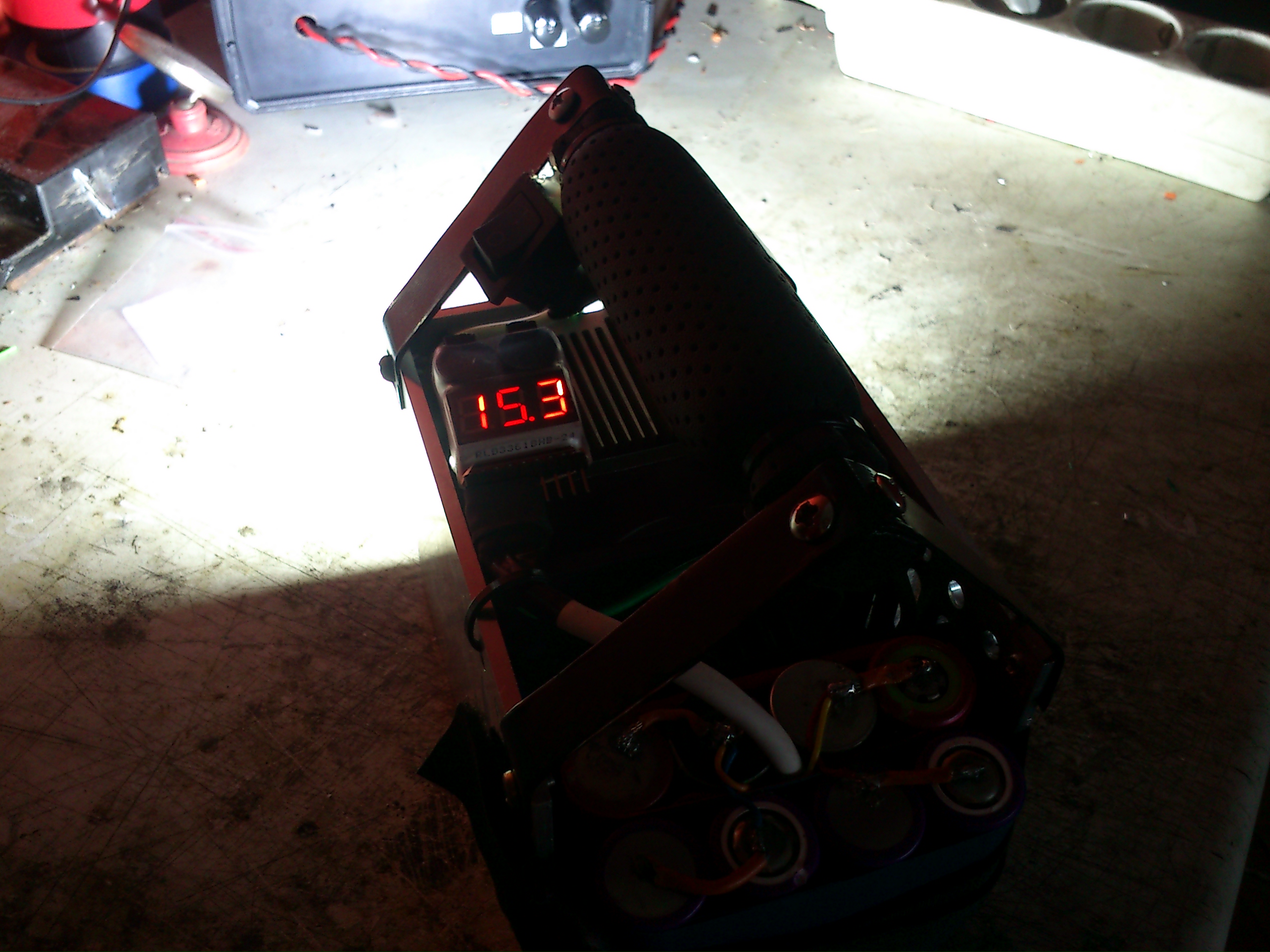

For monitoring batteries i got cheap Li-ion buzzer alarm that shows me voltage of all 4 batteries.
Fan is running on 6-7v and instead of step down converter i used resistor.
I installed small thumbwheel potentiometer from old headphones to control the light intensity.
I almost never use flashlight on full brightness becouse its really bright.
LED lenses could be added but since i use this in close enviroment i didnt put one.
Its really nice to carry this in forest becouse you can see everything in front of yourself.

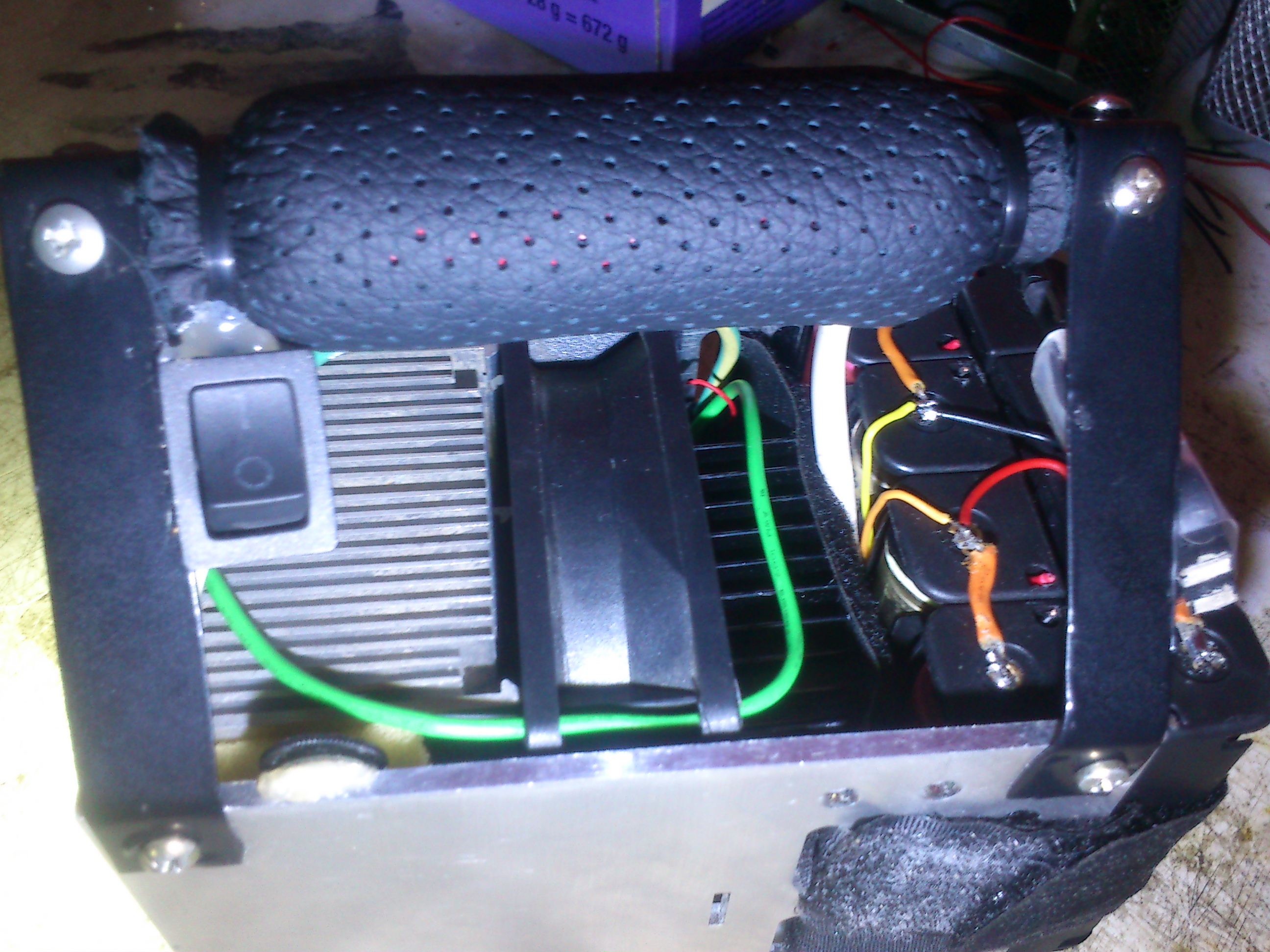

Switch is on the handle so i can turn it on and off really easy.
Battery
![DSC_0414.JPG](/proxy/?url=https://content.instructables.com/F4R/CGOD/IN235FOA/F4RCGODIN235FOA.jpg&filename=DSC_0414.JPG)
![DSC_0417.JPG](/proxy/?url=https://content.instructables.com/F2N/0OS3/IN235FOH/F2N0OS3IN235FOH.jpg&filename=DSC_0417.JPG)
![DSC_0418.JPG](/proxy/?url=https://content.instructables.com/FYZ/RGWB/IN235FPF/FYZRGWBIN235FPF.jpg&filename=DSC_0418.JPG)
![DSC_0419.JPG](/proxy/?url=https://content.instructables.com/FUG/7NIV/IN235FQI/FUG7NIVIN235FQI.jpg&filename=DSC_0419.JPG)
![P2250023.JPG](/proxy/?url=https://content.instructables.com/FP5/ES33/IN235G4O/FP5ES33IN235G4O.jpg&filename=P2250023.JPG)
![DSC_0428.JPG](/proxy/?url=https://content.instructables.com/FDO/SECX/IN235FST/FDOSECXIN235FST.jpg&filename=DSC_0428.JPG)
![DSC_0485.JPG](/proxy/?url=https://content.instructables.com/FH6/5OVQ/IN235FXW/FH65OVQIN235FXW.jpg&filename=DSC_0485.JPG)
![DSC_0461.JPG](/proxy/?url=https://content.instructables.com/FPJ/CBNR/IN235FWF/FPJCBNRIN235FWF.jpg&filename=DSC_0461.JPG)
![DSC_0467.JPG](/proxy/?url=https://content.instructables.com/F1Z/9RWO/IN235FXA/F1Z9RWOIN235FXA.jpg&filename=DSC_0467.JPG)
![DSC_0490.JPG](/proxy/?url=https://content.instructables.com/FDF/GWD4/IN235FY7/FDFGWD4IN235FY7.jpg&filename=DSC_0490.JPG)

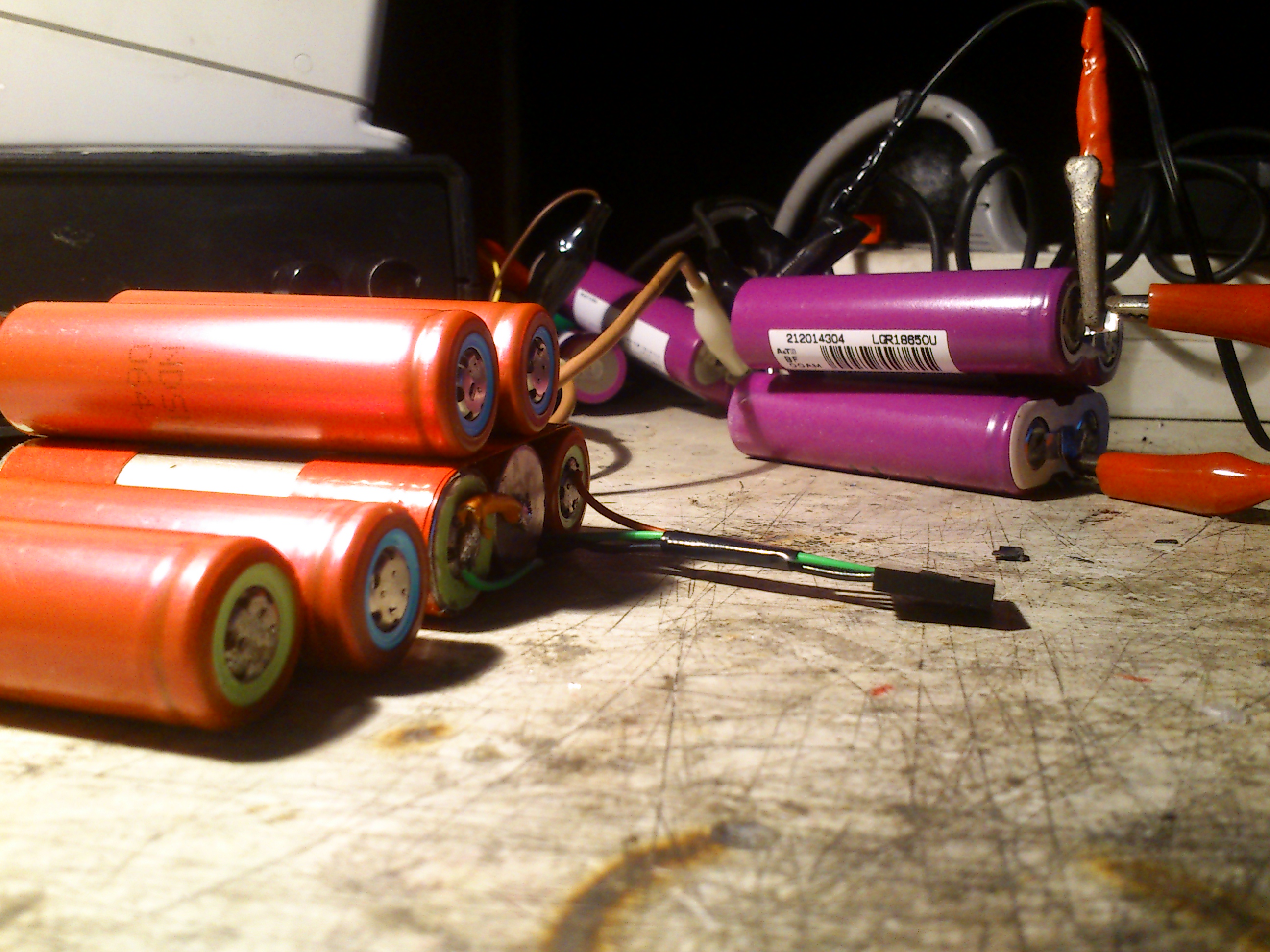

You can find cheap laptop batteries online or you can buy 18650s.
Good 18650 has about 2Ah capacity but they cost about 5€ per battery.
If you buy lot of laptop batteries you can get 2€ per battery and maybe even less.
When i tested batteries i used resistor across 18650 and i measured time.

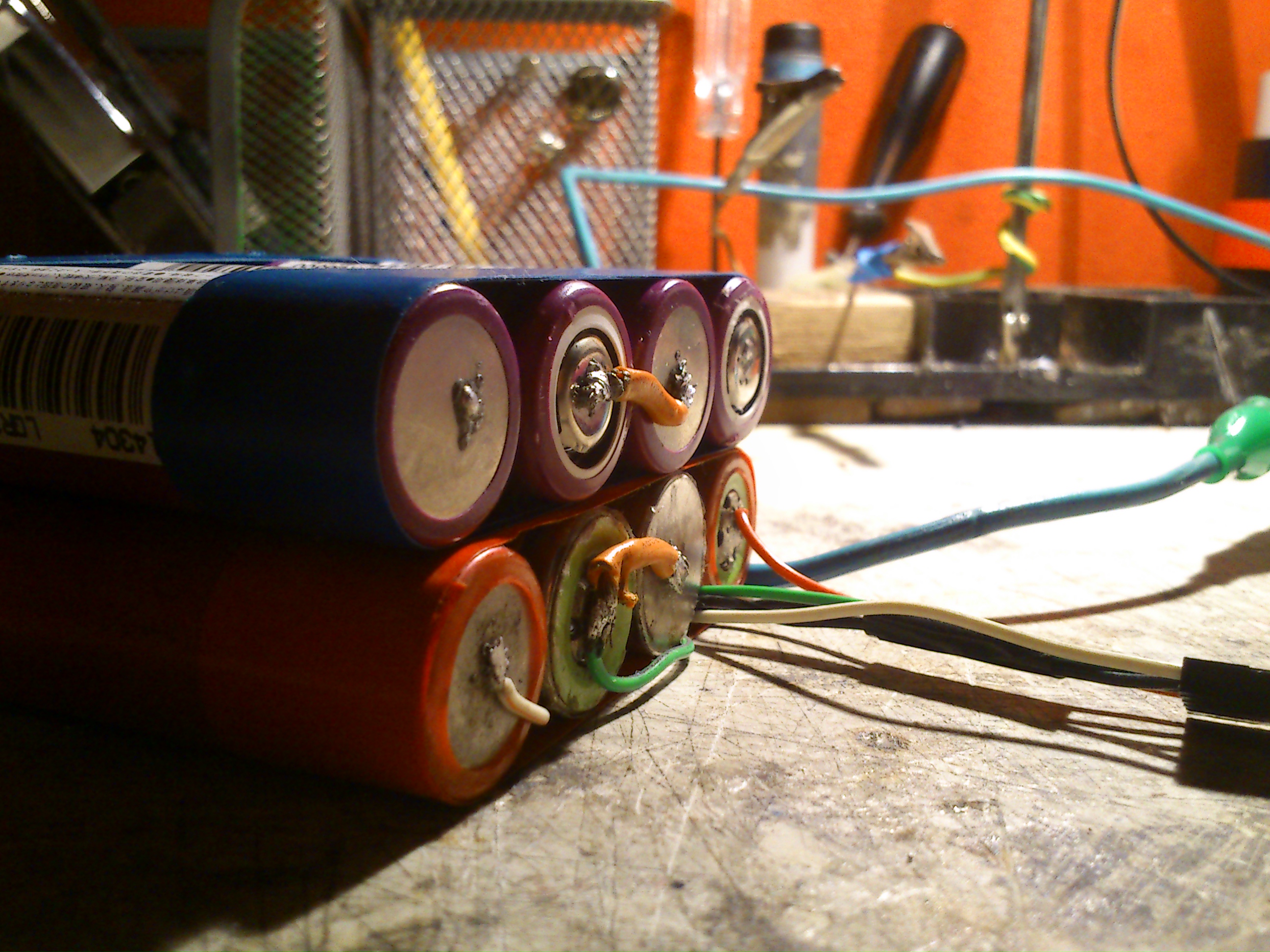

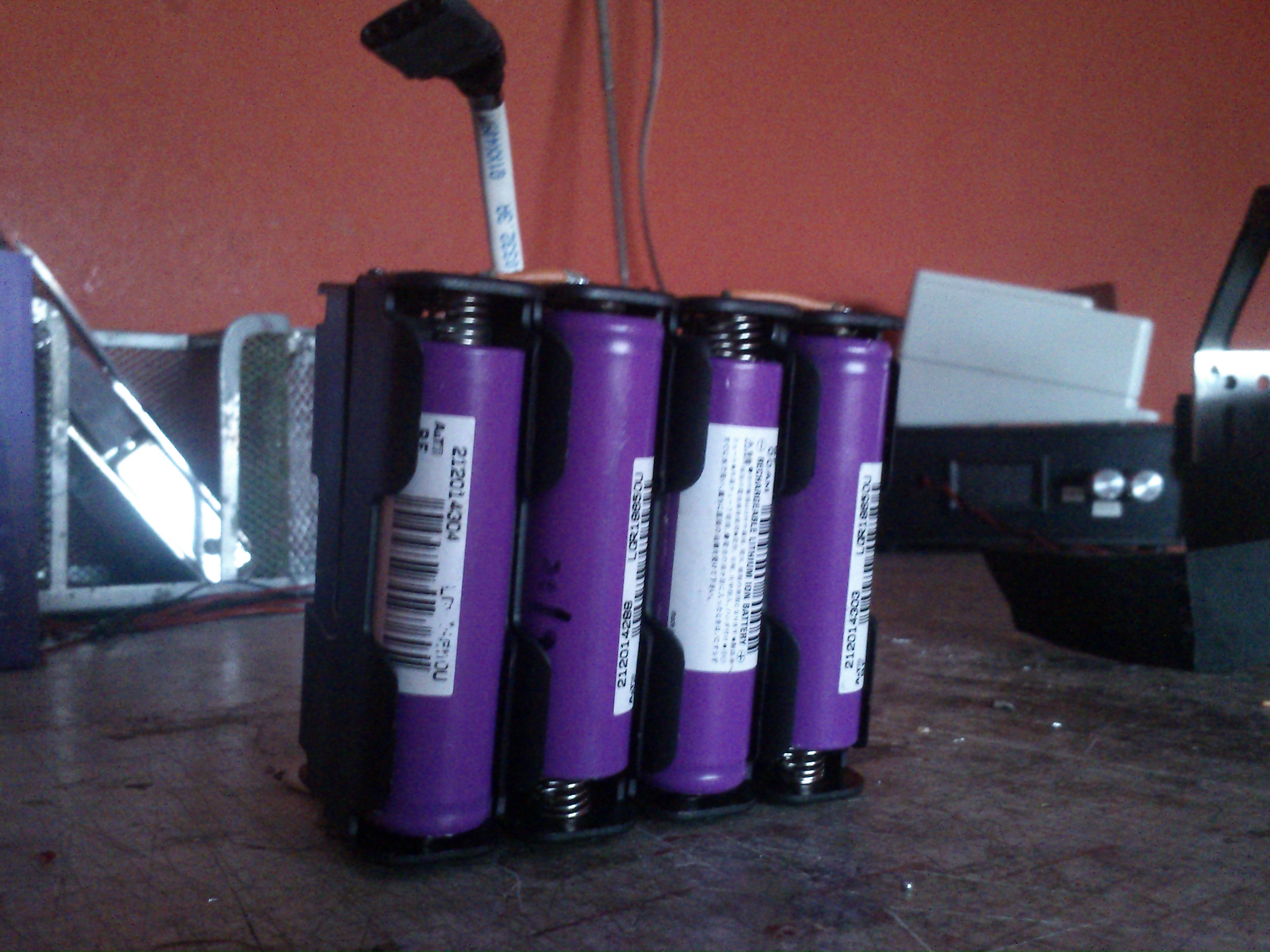

First i soldered them together but later i got 8 holders and use that instead.
To charge them i made 4 cell balance charger from 4 usb charger and 4 TP4056 usb lithium charging boards.
Each battery charges with 0,5A of current so it takes about 4-5h to fully charge it.
Flashlight can be powered from any source from 10v to 30v that can deliver 100w.
I just need to unscrew 2 terminals that are going from battery to booster and connect any other source
