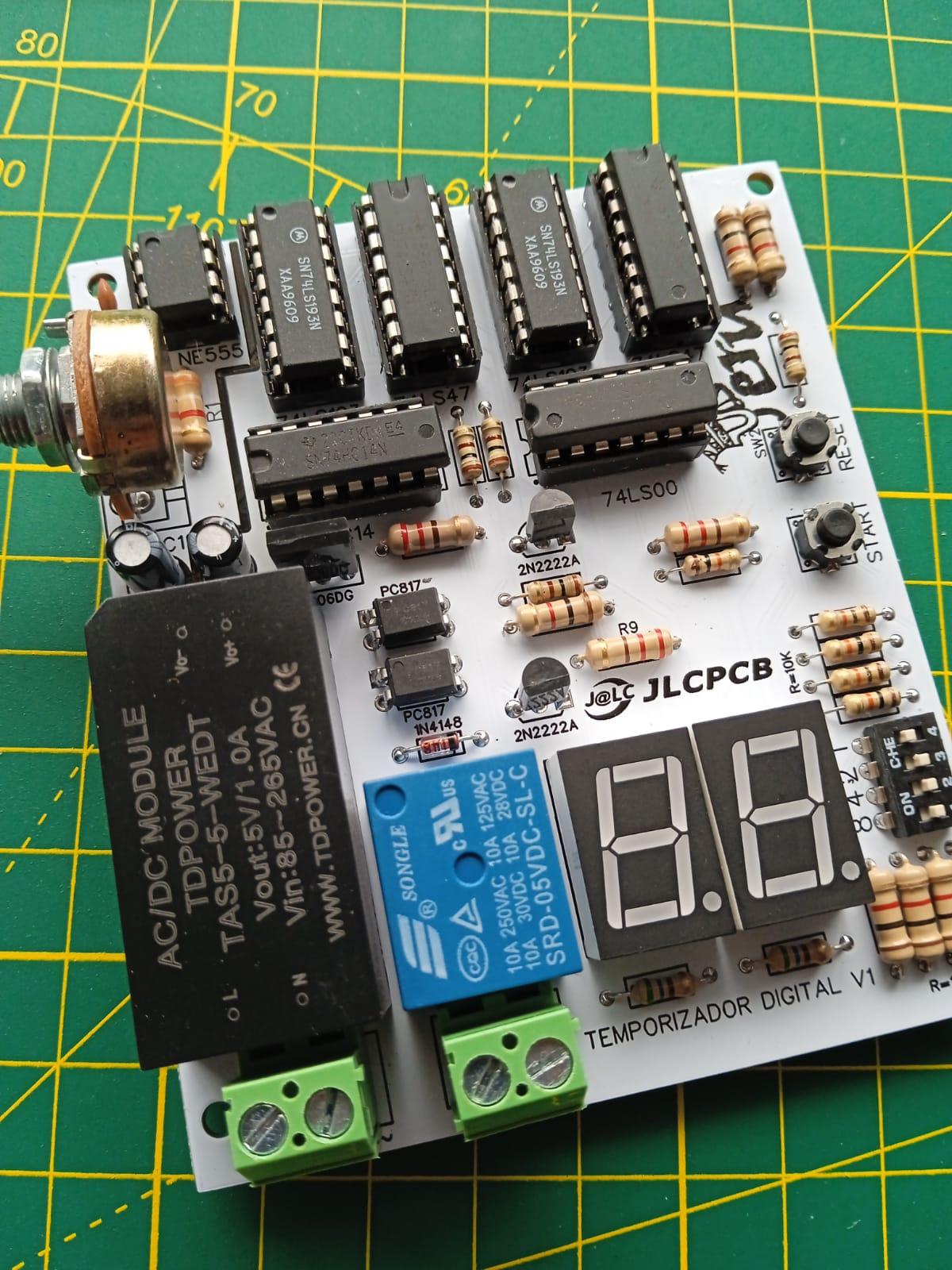

DIGITAL TIMER

I have developed this timer using counters, SCR for latching and NE 555 for time, programmable using binary logic.

GERBER PCB:

https://mega.nz/file/vNZGDJBY#ascWou_dMNX89cRxcR77gjglIlUypkmrTOCFJtjzzyc

Here is the schematic diagram you can analyze it, here we look at the electronic components and their values.

This timer is controlled by means of DOWN cascade counters in descent for counting in reverse, for time control we use an astable NE555 and for the latching pulse an SCR. The programming will be done with binary logic, that is, binary weights and we can only program tens from 09 seconds to 99 seconds.

The project works with 5VDC and has a module that converts 220VAC to 5VDC 1A, at the output we will control an AC 10A220VAC load, it can be a light bulb or even a motor.

I program the time that I require and I give it START, the LOAD is turned on and when it reaches 00 it turns off and so on we can program it and be able to see its operation is stable and reliable it could be done in many other ways with microcontrollers and/or arduino, etc. .

But many times they have asked us for a home project with digital electronics and for them I made this project.

·        1 AC/DC MODULE TDPOWER

·        2 IC 74LS193

·        2 IC 74LS47

·        1 IC NE555

·        1 IC 74HC14

·        1CI74LS00

·        1 ELECTROLYTE CAPACITOR 1UF16V

·        1 ELECTROLYTE CAPACITOR 47UF16V

·        1 50K POTENTIOMETER

·        1 RELAY 5VDC

·        2 COMMON ANODE DISPLAY

·        2 PUSH-BUTTONS 2 PINS

·        1 DIP SWITCH 8 PINS

·        1 SCR C106DG

·        2 TRANSISTORS 2N2222A

·        2 pcs 817

·        2 RESISTORS 500ohm 1/4W

·        1 DIODE 1N4148

·        7 RESISTORS 1K 1/4W

·        5 RESISTORS 10K 1/4W

·        4 RESISTORS 100ohm 1/4W

·        3 RESISTORS 220 ohm 1/4W

·        1 RESISTOR 3.8K 1/4W

·        2 BLUE TERMINAL BOARDS 2 PINS

·        1 CAP 104

·        1PCB

·        VIN 220VAC 60HZ

·        1 OUTPUT 220VAC

·        START BUTTON

·        RESET BUTTON

·        BINARY LOGIC PROGRAMMING

·        VISUALIZATION ON DISPLAY 7SEC

·        CONTROL FROM 09 TO 99 SECONDS

·        VARIABLE TIME

Aquí están las pistas e imagen 3D del pcb.

Once the pcb is designed, we will send our friends from JLCPCB to manufacture our PCB.
