DIGITAL INPUTS FOR PLC LOGO V1

This project is thought of in the realization of simulating the digital inputs of our PLCLOGO V1 that we carried out in a previous project

GERBER PCB:

https://mega.nz/file/2JBlgKrK#SfWUb_ZcFlNE6OQKjicK0my2vy2DJL0Bkxj0-OUzIZU

Like all my projects, I share the schematic diagram so that you can do it yourself. The schematic diagram was designed in EASYEDA, a very professional and free electronic circuit design software, we can observe the electronic components that we use for this project and their respective values.Like all my projects, I share the schematic diagram so that you can do it yourself. The schematic diagram was designed in EASYEDA, a very professional and free electronic circuit design software, we can observe the electronic components that we use for this project and their respective values.

It is a simple project but very good for the tests of our PLC LOGO V1

First we feed our PCB with the same power supply from our PLC at 24VDC

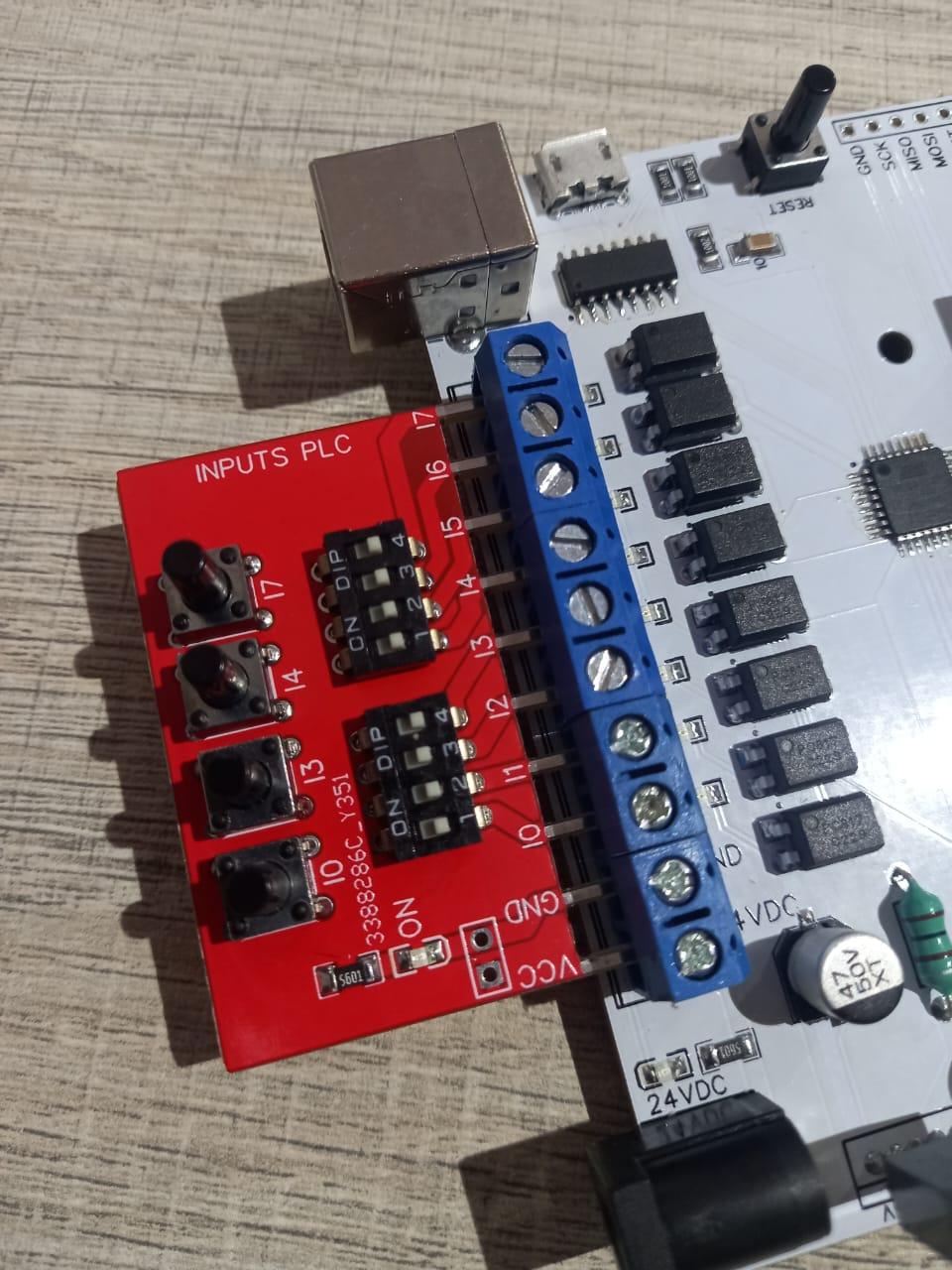

We have 4 pushbuttons as digital inputs and 8 digital inputs as switches.

The simulation is easy. We will control the optocouplers by means of the switches and pushbuttons for the control of digital inputs when closing the circuit.

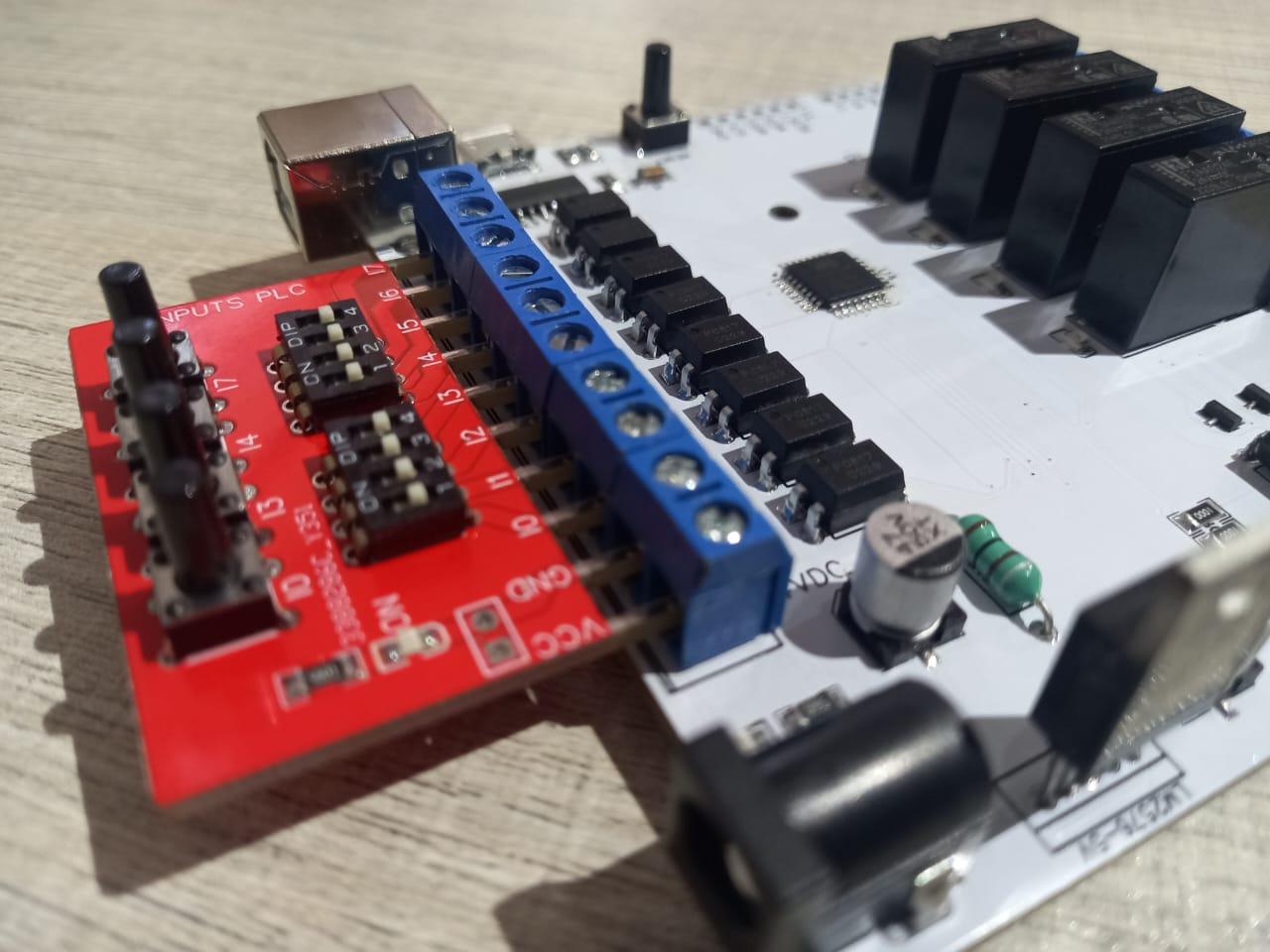

It has the exact way to insert it into the terminal blocks of our PCB

works with little current almost 10mA

• 2 DIPSWICTH 4 PINS
• 4 BUTTONS 4 PINS NO
• 1 DIODE LED 0805 GREEN
• 1 RESISTOR 1206 5.6K SMD
• 1 PCB

• VIN 24VDC
• IMAX 10mA
• CONTROL INPUTS DIGITAL I0-I7
• CONTROL PULSE DIGITAL I0-I3-I4-I7
• EFFICIENT

This project was made in the Easyeda software as we can see the tracks and the 3D image of the project working perfectly are no difficulty

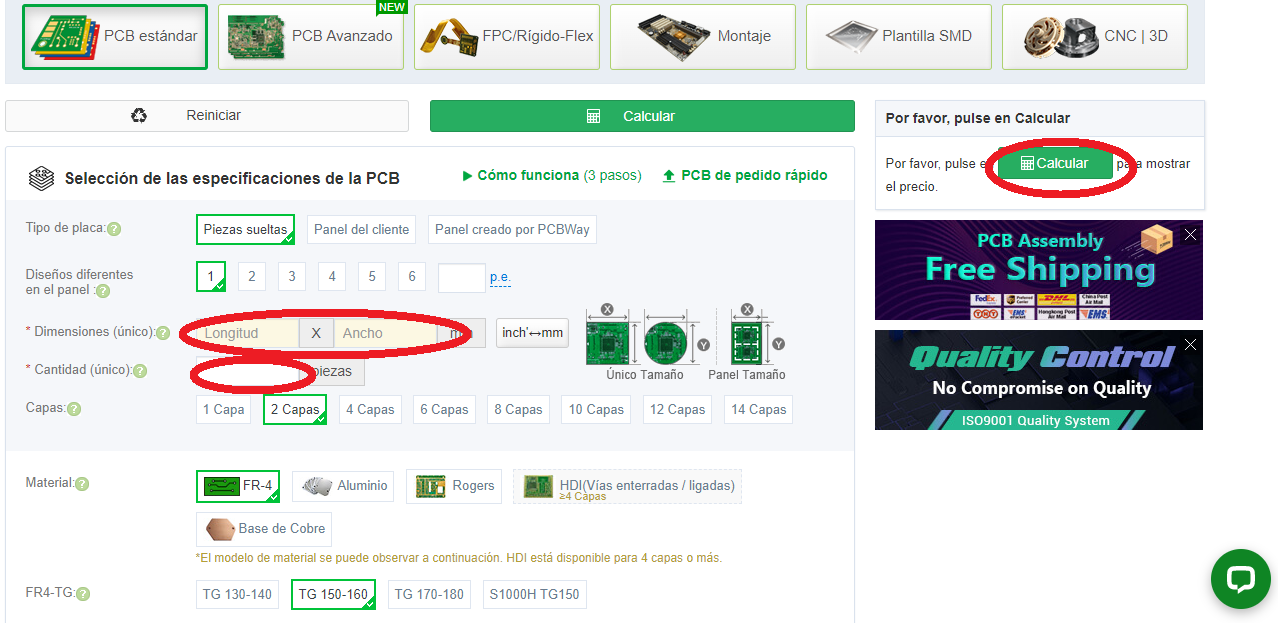

PCBWAY has 10 years in the electronics industry manufacturing professional PCBs, assembling PCBs managing to satisfy the demands of all parts of the world, in addition to meeting the highest quality and delivery time standards. PCBWAY allows the manufacture of your PCBs from 5 units.
