DHT11 With Raspberry Pi Pico

The DHT11 is a commonly used temperature and humidity sensor. The sensor comes with a dedicated NTC to measure temperature and an 8-bit microcontroller to output the values of temperature and humidity as serial data. The sensor is also factory calibrated and hence easy to interface with other microcontrollers. The sensor can measure temperature from 0°C to 50°C and humidity from 20% to 90% with an accuracy of ±1°C and ±1%.

1. Raspberry Pi Pico

2. DHT11 temperature and humidity sensor

3. Jumper wires

DHT11 pin > Pi Pin

Vcc > Pin 36

GND > Pin 38

Data > Pin4(GPIO28)

import array
import micropython
import utime
from machine import Pin
from micropython import const

class InvalidChecksum(Exception):
    pass

class InvalidPulseCount(Exception):
    pass

MAX_UNCHANGED = const(100)
MIN_INTERVAL_US = const(200000)
HIGH_LEVEL = const(50)
EXPECTED_PULSES = const(84)

class DHT11:
    _temperature: float
    _humidity: float

    def __init__(self, pin):
        self._pin = pin
        self._last_measure = utime.ticks_us()
        self._temperature = -1
        self._humidity = -1

    def measure(self):
        current_ticks = utime.ticks_us()
        if utime.ticks_diff(current_ticks, self._last_measure) < MIN_INTERVAL_US and (
            self._temperature > -1 or self._humidity > -1
        ):
            # Less than a second since last read, which is too soon according
            # to the datasheet
            return

        self._send_init_signal()
        pulses = self._capture_pulses()
        buffer = self._convert_pulses_to_buffer(pulses)
        self._verify_checksum(buffer)

        self._humidity = buffer[0] + buffer[1] / 10
        self._temperature = buffer[2] + buffer[3] / 10
        self._last_measure = utime.ticks_us()

    @property
    def humidity(self):
        self.measure()
        return self._humidity

    @property
    def temperature(self):
        self.measure()
        return self._temperature

    def _send_init_signal(self):
        self._pin.init(Pin.OUT, Pin.PULL_DOWN)
        self._pin.value(1)
        utime.sleep_ms(50)
        self._pin.value(0)
        utime.sleep_ms(18)

    @micropython.native
    def _capture_pulses(self):
        pin = self._pin
        pin.init(Pin.IN, Pin.PULL_UP)

        val = 1
        idx = 0
        transitions = bytearray(EXPECTED_PULSES)
        unchanged = 0
        timestamp = utime.ticks_us()

        while unchanged < MAX_UNCHANGED:
            if val != pin.value():
                if idx >= EXPECTED_PULSES:
                    raise InvalidPulseCount(
                        "Got more than {} pulses".format(EXPECTED_PULSES)
                    )
                now = utime.ticks_us()
                transitions[idx] = now - timestamp
                timestamp = now
                idx += 1

                val = 1 - val
                unchanged = 0
            else:
                unchanged += 1
        pin.init(Pin.OUT, Pin.PULL_DOWN)
        if idx != EXPECTED_PULSES:
            raise InvalidPulseCount(
                "Expected {} but got {} pulses".format(EXPECTED_PULSES, idx)
            )
        return transitions[4:]

    def _convert_pulses_to_buffer(self, pulses):
        """Convert a list of 80 pulses into a 5 byte buffer
        The resulting 5 bytes in the buffer will be:
            0: Integral relative humidity data
            1: Decimal relative humidity data
            2: Integral temperature data
            3: Decimal temperature data
            4: Checksum
        """
        # Convert the pulses to 40 bits
        binary = 0
        for idx in range(0, len(pulses), 2):
            binary = binary << 1 | int(pulses[idx] > HIGH_LEVEL)

        # Split into 5 bytes
        buffer = array.array("B")
        for shift in range(4, -1, -1):
            buffer.append(binary >> shift * 8 & 0xFF)
        return buffer

    def _verify_checksum(self, buffer):
        # Calculate checksum
        checksum = 0
        for buf in buffer[0:4]:
            checksum += buf
        if checksum & 0xFF != buffer[4]:
            raise InvalidChecksum()

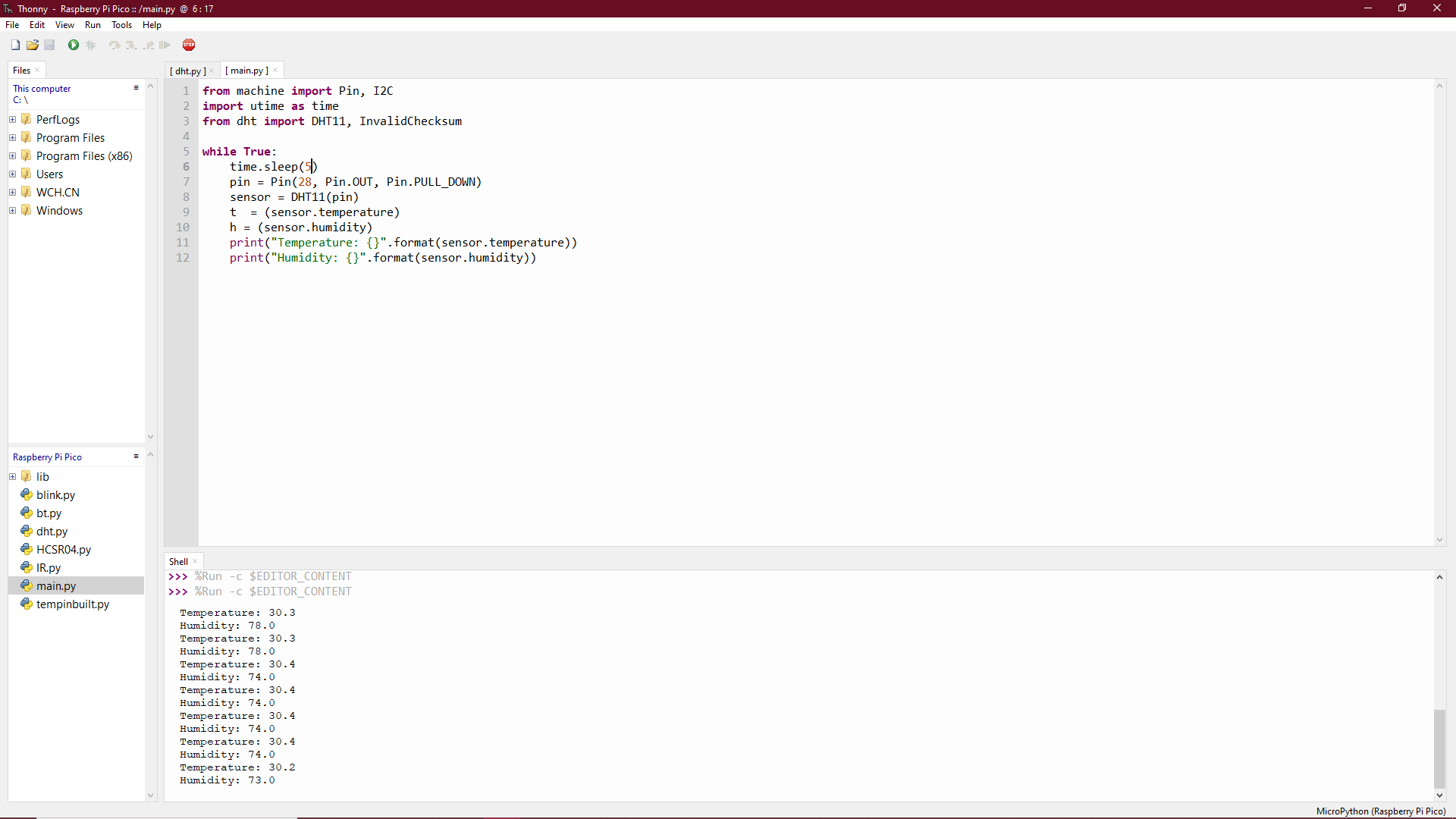

from machine import Pin, I2C
import utime as time
from dht import DHT11, InvalidChecksum

while True:
    time.sleep(5)
    pin = Pin(28, Pin.OUT, Pin.PULL_DOWN)
    sensor = DHT11(pin)
    t  = (sensor.temperature)
    h = (sensor.humidity)
    print("Temperature: {}".format(sensor.temperature))
    print("Humidity: {}".format(sensor.humidity))
