Hello,

today I’m gonna show you how to make a really simple DC motor speed controller.

Watch the Video

the video is in my Youtube channel Chris' Project

The Schematic

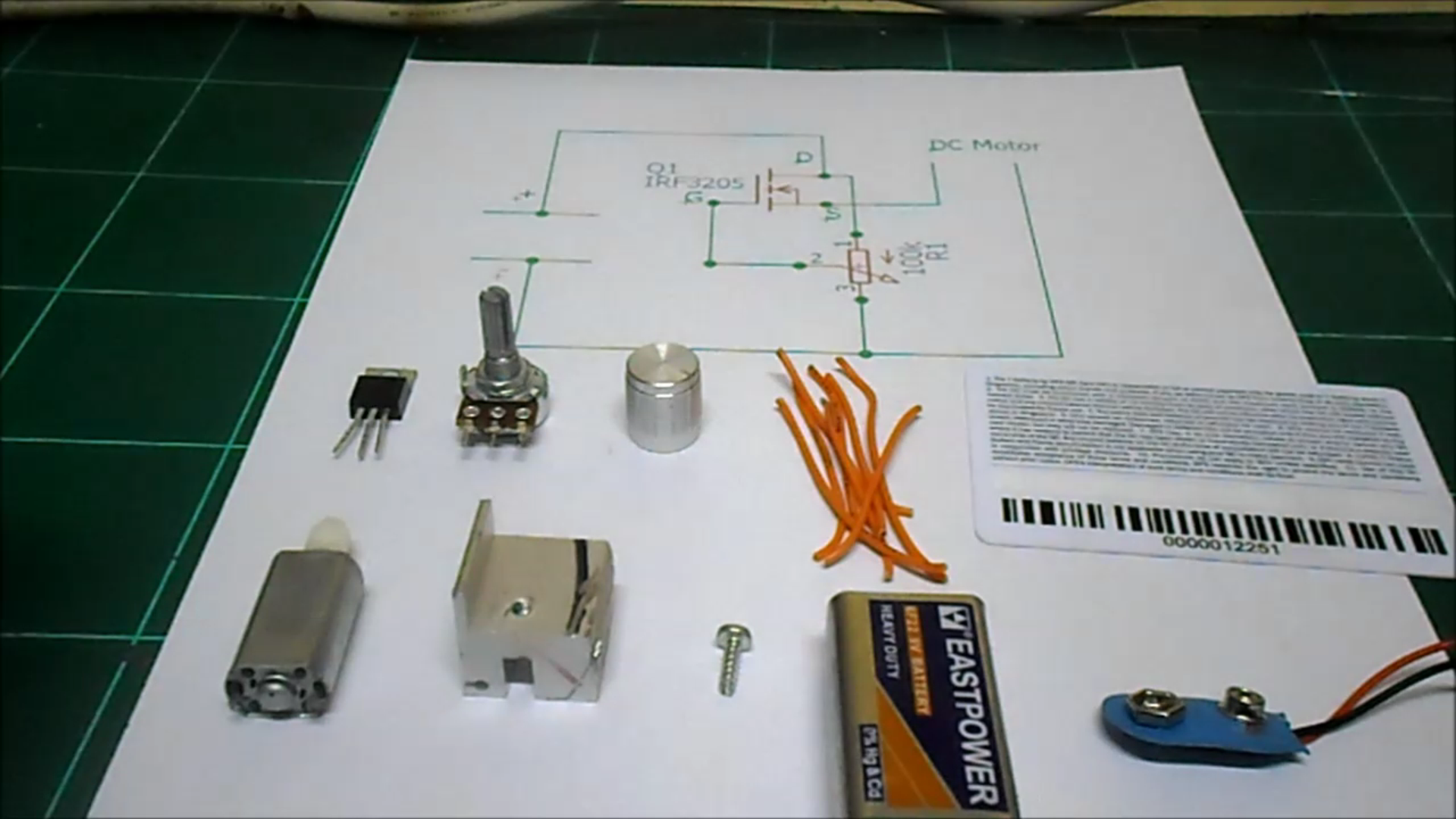

Buy All of the Components


The components for this project are:

1pc IRF3205 mosfet

1pc 100k ohm potentiometer

1pc potentiometer knob

some wires

1pc old credit card

1pc DC motor

1pc heatsink

1pc skrew

1pc 9V battery clip and a 9V battery.

Put the Heatsink on the Mosfet


Put the heat sink on the mosfet with the skrew

Glue the Components to the Credit Card


Glue the mosfet and the potentiometer to the credit card

Connect the Battery Clip


Connect the positive wire of the 9V battery clip to the drain pin of the mosfet and the negative wire to the dc motor.

Connect the Potentiometer


Connect the left pin of the potentiometer to the drain pin of the mosfet, the middle pin to the gate pin of the mosfet, and the right pin to the negative wire of the 9V battery clip.

The Last Connection


Finally connect the source pin of the mosfet to the other pin of the dc motor. Now just plug in the 9V battery and we are done.

Testing


If you connect everything correctly than if you turn the potentiometer anticlockwise the motor will spin faster and if I turn the potentiometer anti clockwise the motor will slow down.
