DC Motor Mount

I made this motor mount for my friends project

here is her blog link: https://wp.nyu.edu/rc3989/2018/12/12/caged/

Use a caliper to measure dimensions.

If you can find access the data sheet, the dimensions will be listed there as well.

but i found this motor a while back, so i couldnt find it

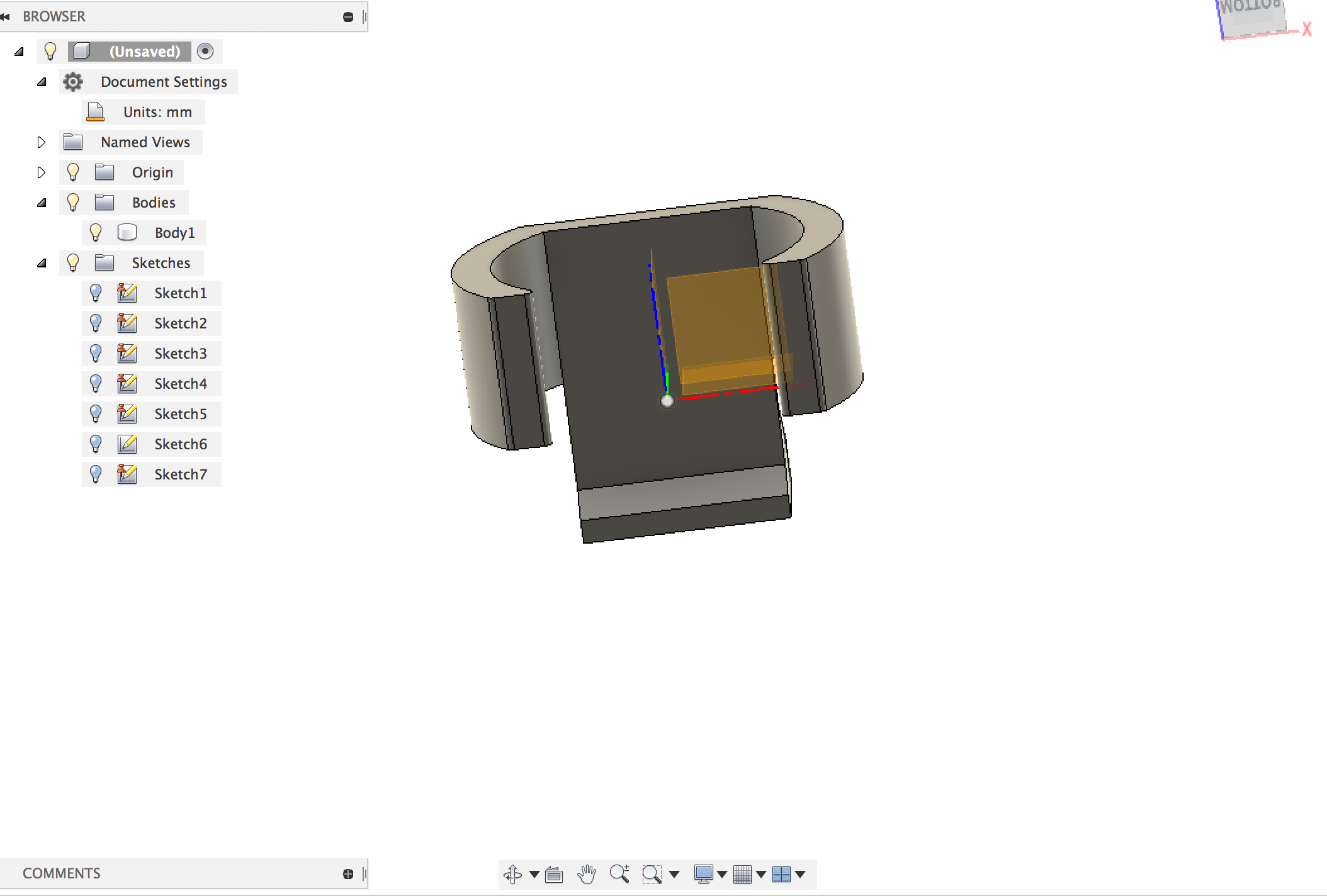

I design the model on Autodesk Fusion 360, starting from the fitting part, then adding the support and mounting structure. I designed the mounting hole to fit M3 screws. i also designed the support because it snap of easier than generated support, also the bottom side will look better

Use any slicer that works for your printer
in my case, I'm using a ultimaker printer, so I use cura to prepare the print file.

I designed the support for the vertical mount, so no need to select support.

The support comes right off with little effort.

Gumroad page:

https://gum.co/bTZje

Thingiverse page:

https://www.thingiverse.com/thing:3301265
