DANGER! Footstep-detector

by 3023lillian in Circuits > Arduino

655 Views, 0 Favorites, 0 Comments

DANGER! Footstep-detector

Screen Shot 2021-05-15 at 11.10.35 AM.png

https://www.instructables.com/Arduino-Sound-Sensor-with-LED/

This is another device transformed from Arduino - Sound Sensor (with LED) made by MertArduino, however this time the function is used to detect any footsteps approaching to you, it can be used when you're off task watching Youtube videos, gaming, or all sorts of thing without getting busted by your mom!

Supplies

  • Arduino Board
  • Red LED
  • Sound Sensor
  • Mini breadboard
  • Wires
  • Data transfer cable
  • Resistor 220 Ohm

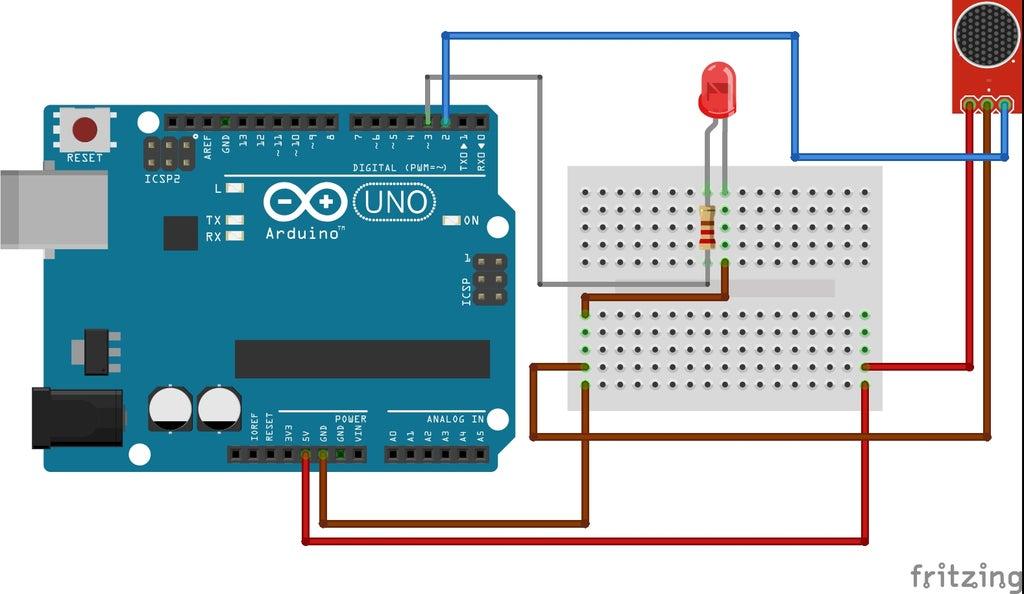

Connect the Circuits


Image from: https://www.instructables.com/Arduino-Sound-Sensor-with-LED/

The Code

Screen Shot 2021-05-15 at 11.17.25 AM.png

https://create.arduino.cc/editor/3023lillian/8464e594-2145-4dfa-bf6c-04df6c6a7c70/preview

Decorate and Cover It Up!


Step 1: Get three pieces of 9.7*6cm cardboard

Step 2: Glue them together like the second picture above (I used hot glue)

Step 3: Put your completed circuits plus the breadboard and the Arduino board into the slot made by cardboard

Step 4: Cover it up with paper or any materials that are able to be seen through in order to make sure the light shines through

Step 5: Add any pizazzes you want on it

Test It Out!

Arduino 期末專題
