D4E1 Ring Rattle
![Schermafbeelding 2022-12-14 200855.jpg](/proxy/?url=https://content.instructables.com/FAQ/1V9M/LBNNYE6O/FAQ1V9MLBNNYE6O.jpg&filename=Schermafbeelding 2022-12-14 200855.jpg)
The rattle allows blind and deaf people to feel and hear the rhythm of the rotating ring.
Supplies
![image (99).png](/proxy/?url=https://content.instructables.com/F99/K17H/LBNNYE9J/F99K17HLBNNYE9J.png&filename=image (99).png)
![image (98).png](/proxy/?url=https://content.instructables.com/F4J/5VOR/LBNNYE9K/F4J5VORLBNNYE9K.png&filename=image (98).png)
![IMG_5247.JPG](/proxy/?url=https://content.instructables.com/FW0/OZQ6/LBNNYE98/FW0OZQ6LBNNYE98.jpg&filename=IMG_5247.JPG)
![319187829_649477726872948_541193084455352811_n.png](/proxy/?url=https://content.instructables.com/F4F/PU8Y/LBNNYE9I/F4FPU8YLBNNYE9I.png&filename=319187829_649477726872948_541193084455352811_n.png)
- 3d prints
- tube with diameter 8mm in aluminium
- juggle ring
You can buy the juggle ring in the Decathlon. The tube is easy to find online or in a DIY shop like Brico. The 3D prints can be easy printed with a little 3D printer like the Ultimaker.
3D Printing
![IMG_5229.JPG](/proxy/?url=https://content.instructables.com/F1R/CSO5/LBNNYENW/F1RCSO5LBNNYENW.jpg&filename=IMG_5229.JPG)
![IMG_5248.JPG](/proxy/?url=https://content.instructables.com/FS4/EKHJ/LBNNYENZ/FS4EKHJLBNNYENZ.jpg&filename=IMG_5248.JPG)

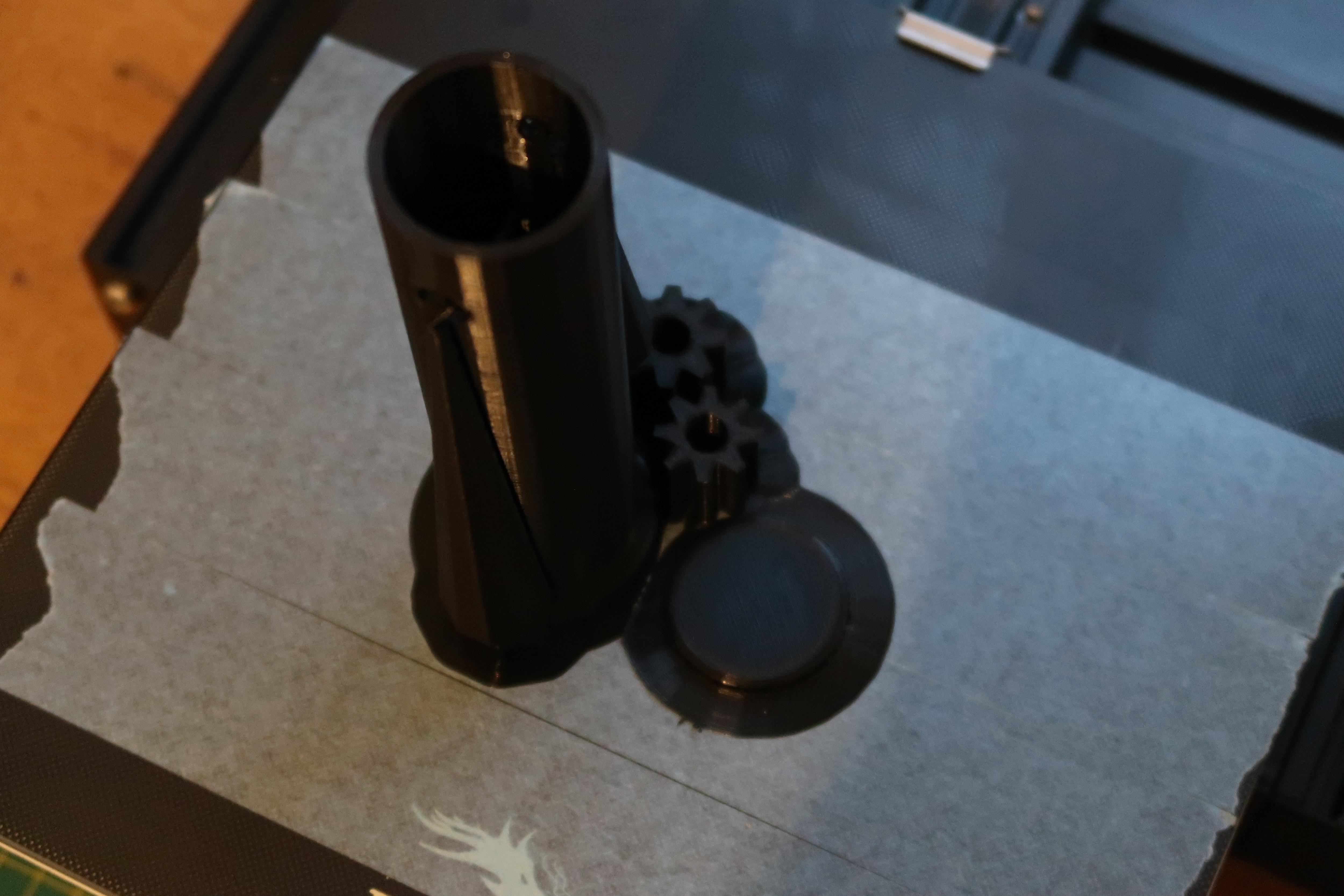

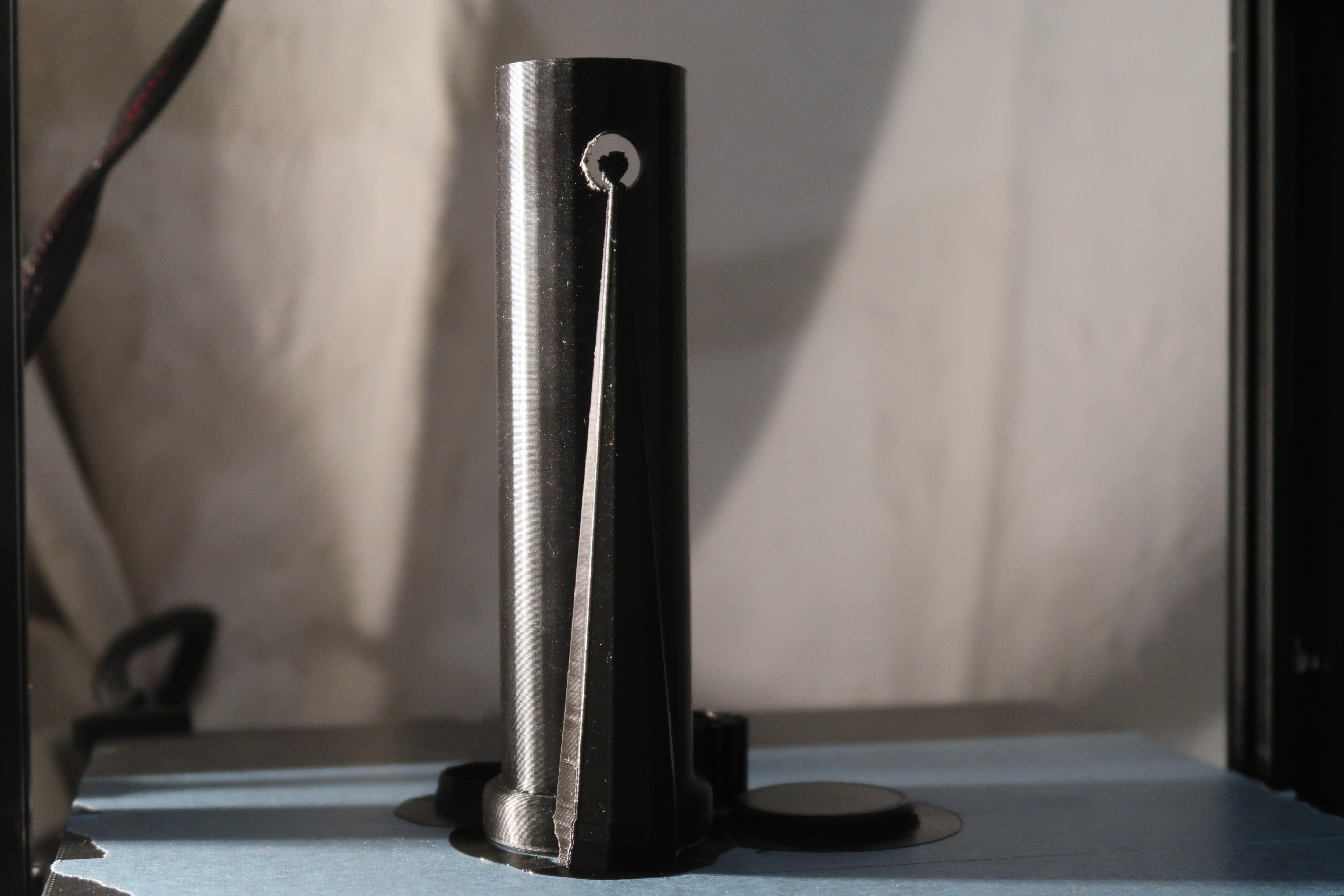

First, print the 3D models
- middle part
- gear
- lid
the STL files can be found here.
The Axis
![IMG_5249.JPG](/proxy/?url=https://content.instructables.com/FW1/IRQM/LBNNYESW/FW1IRQMLBNNYESW.jpg&filename=IMG_5249.JPG)
Cut the aluminium tube about 25cm. This part will become the axis.
Through Everything
![IMG_5250.JPG](/proxy/?url=https://content.instructables.com/FU8/LCR2/LBNNYEXP/FU8LCR2LBNNYEXP.jpg&filename=IMG_5250.JPG)
![IMG_5253.JPG](/proxy/?url=https://content.instructables.com/FEM/TLE6/LBNNYEXQ/FEMTLE6LBNNYEXQ.jpg&filename=IMG_5253.JPG)
![IMG_5257.JPG](/proxy/?url=https://content.instructables.com/FZY/KCP5/LBNNYEXR/FZYKCP5LBNNYEXR.jpg&filename=IMG_5257.JPG)

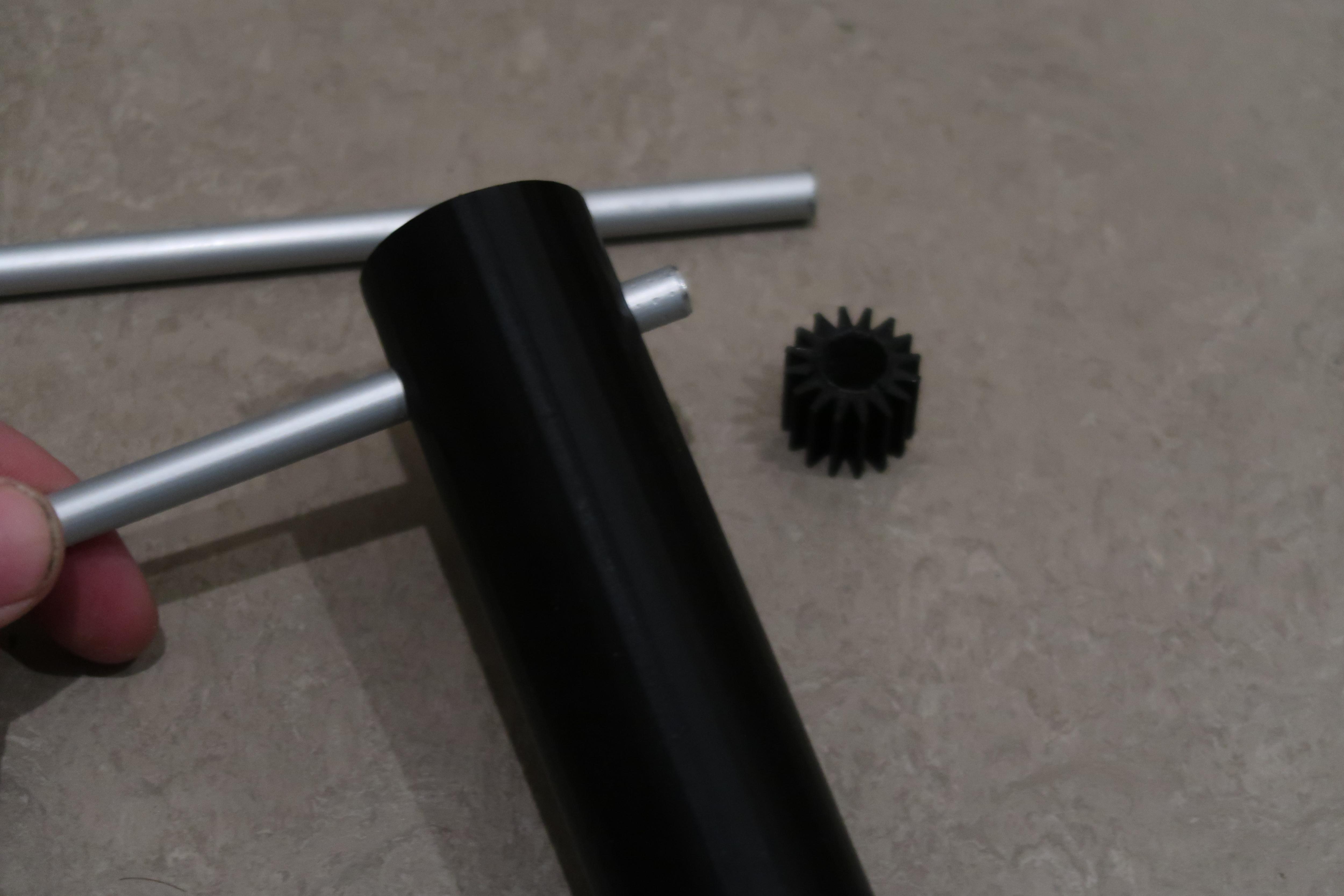

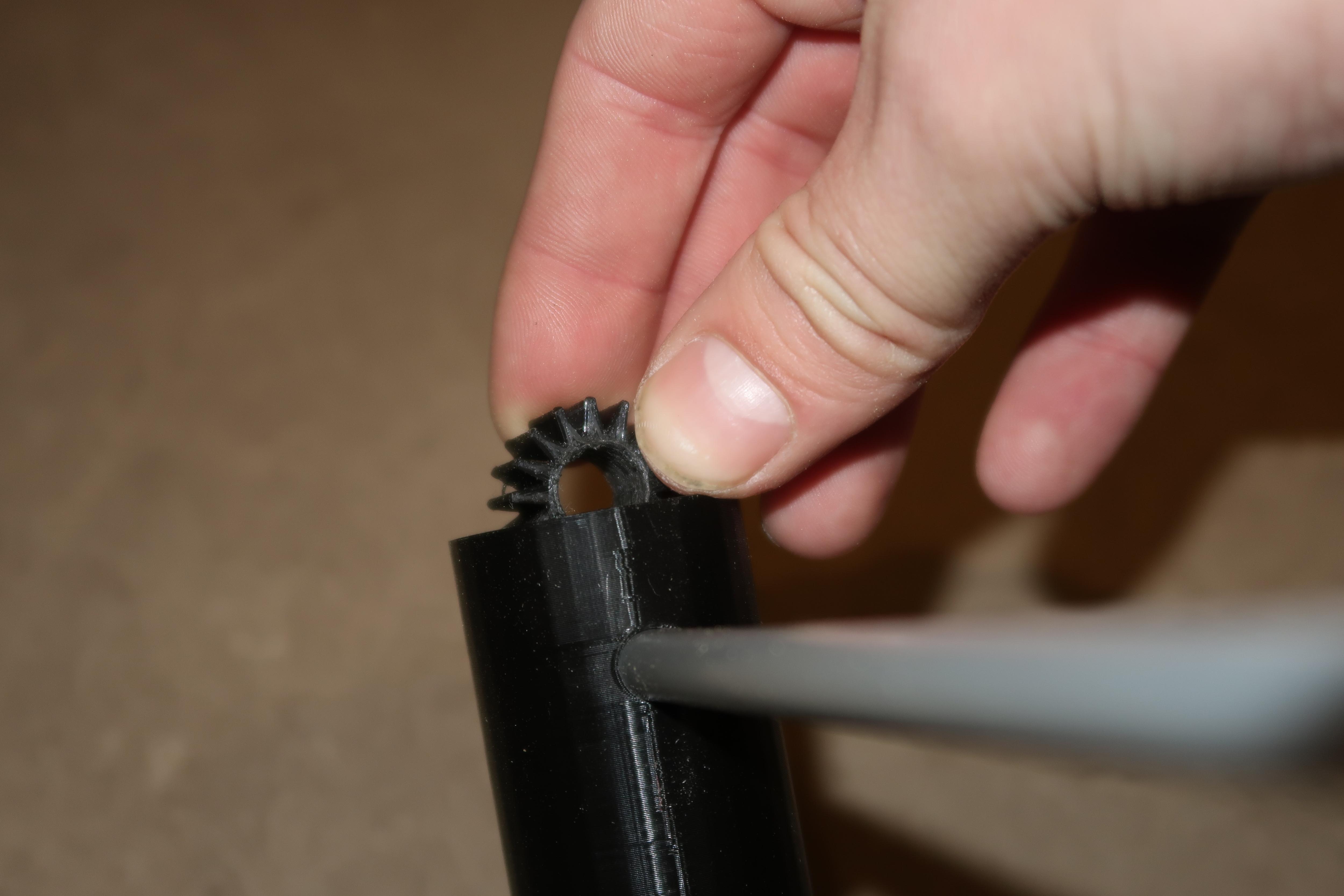

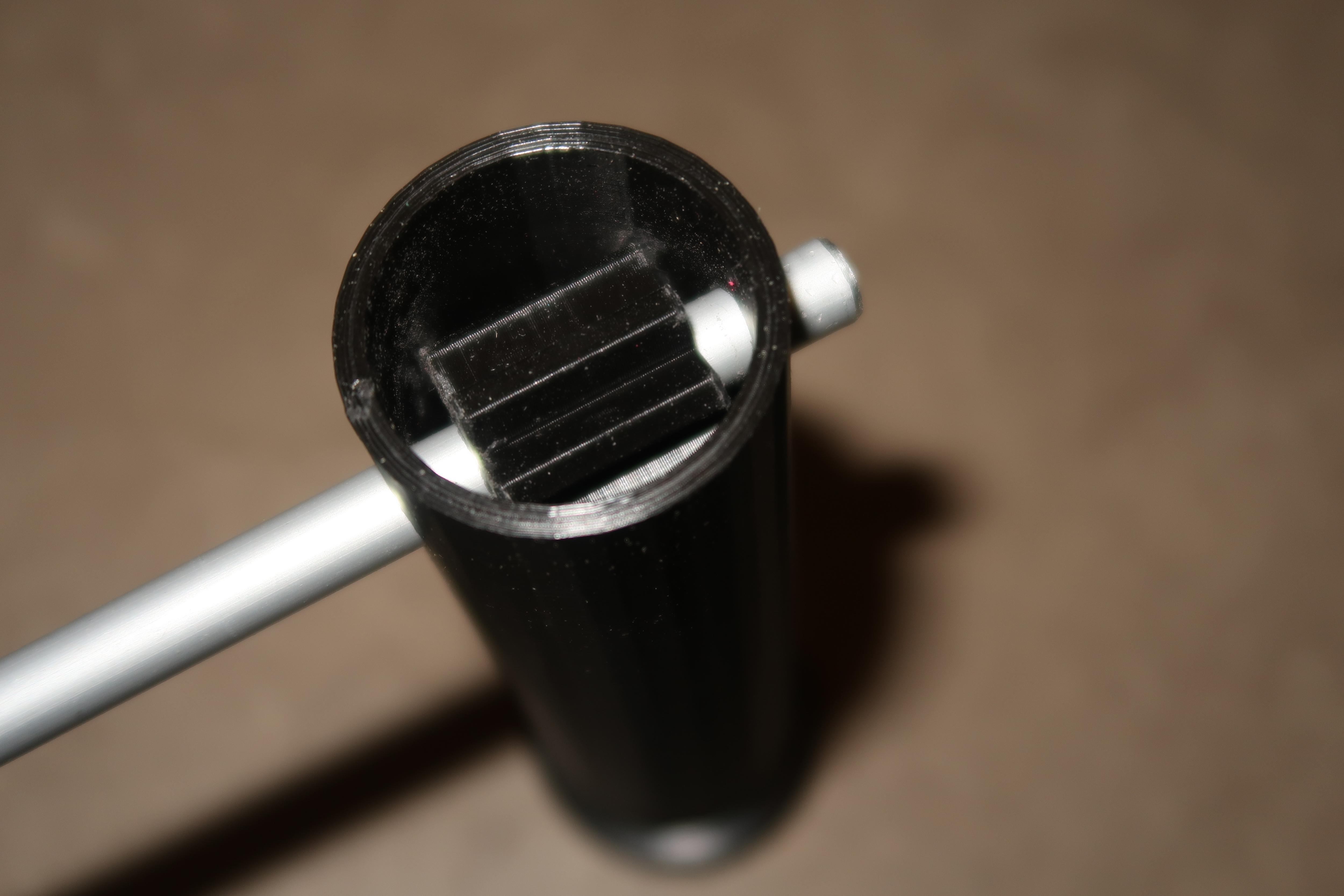

Slide the axis through all the holes. The gear should be inside the socket.
Close With the Lid
![IMG_5262.JPG](/proxy/?url=https://content.instructables.com/FLV/2NPN/LBNNYF4O/FLV2NPNLBNNYF4O.jpg&filename=IMG_5262.JPG)
![IMG_5265.JPG](/proxy/?url=https://content.instructables.com/F83/TC13/LBNNYF4R/F83TC13LBNNYF4R.jpg&filename=IMG_5265.JPG)
Put the lid on the socket, so that it is completely closed.
Drill
![IMG_5273.JPG](/proxy/?url=https://content.instructables.com/F8Y/0ZHA/LBNNYF9X/F8Y0ZHALBNNYF9X.jpg&filename=IMG_5273.JPG)
![IMG_5274.JPG](/proxy/?url=https://content.instructables.com/F1J/NU96/LBNNYF9Y/F1JNU96LBNNYF9Y.jpg&filename=IMG_5274.JPG)
![IMG_5275.JPG](/proxy/?url=https://content.instructables.com/F58/7OZT/LBNNYFA1/F587OZTLBNNYFA1.jpg&filename=IMG_5275.JPG)

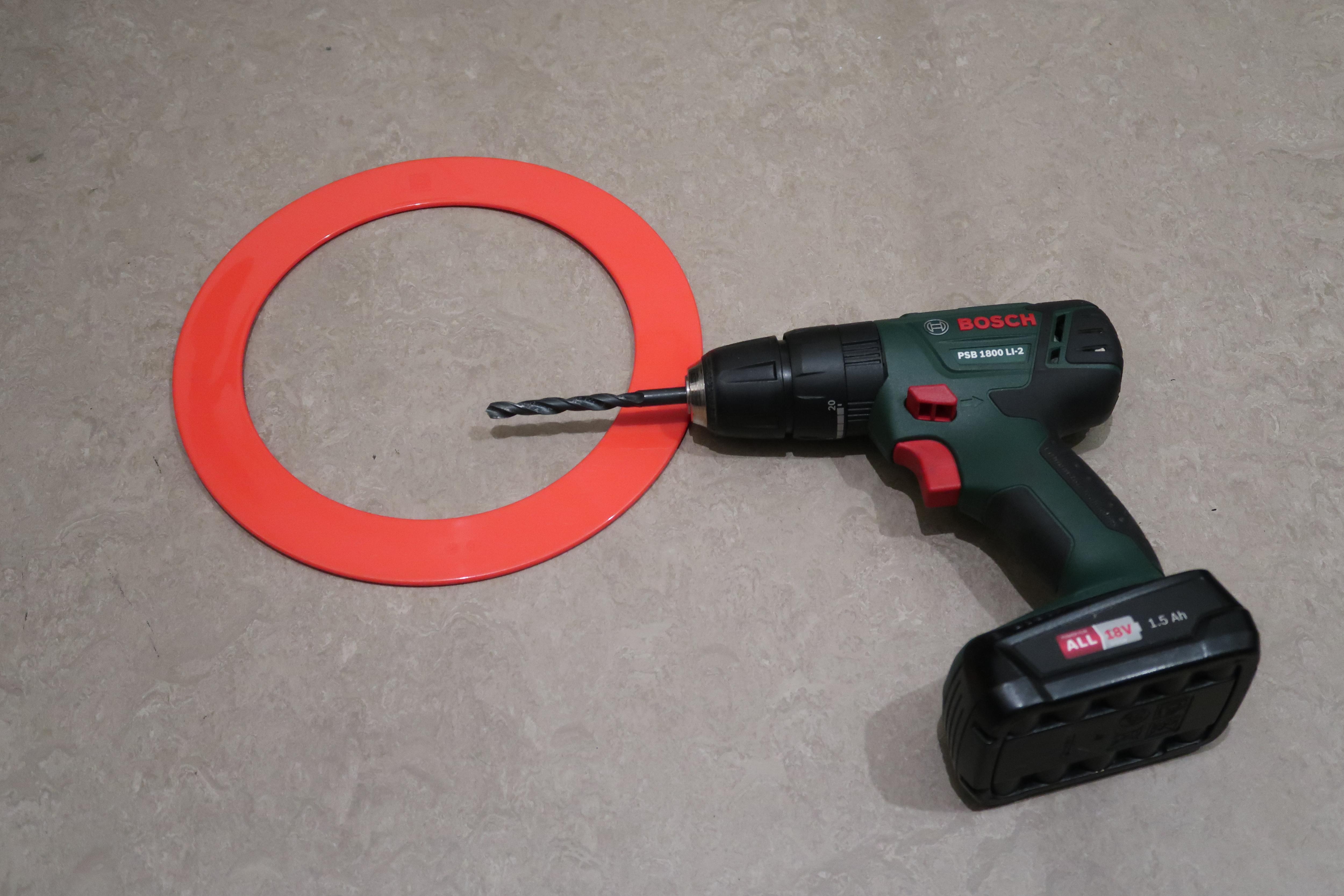

Drill a hole in the juggle ring.
Glue
![IMG_5276.JPG](/proxy/?url=https://content.instructables.com/FHO/PAQ2/LBNNYFDQ/FHOPAQ2LBNNYFDQ.jpg&filename=IMG_5276.JPG)
![IMG_5277.JPG](/proxy/?url=https://content.instructables.com/FFP/MDXF/LBNNYFDR/FFPMDXFLBNNYFDR.jpg&filename=IMG_5277.JPG)

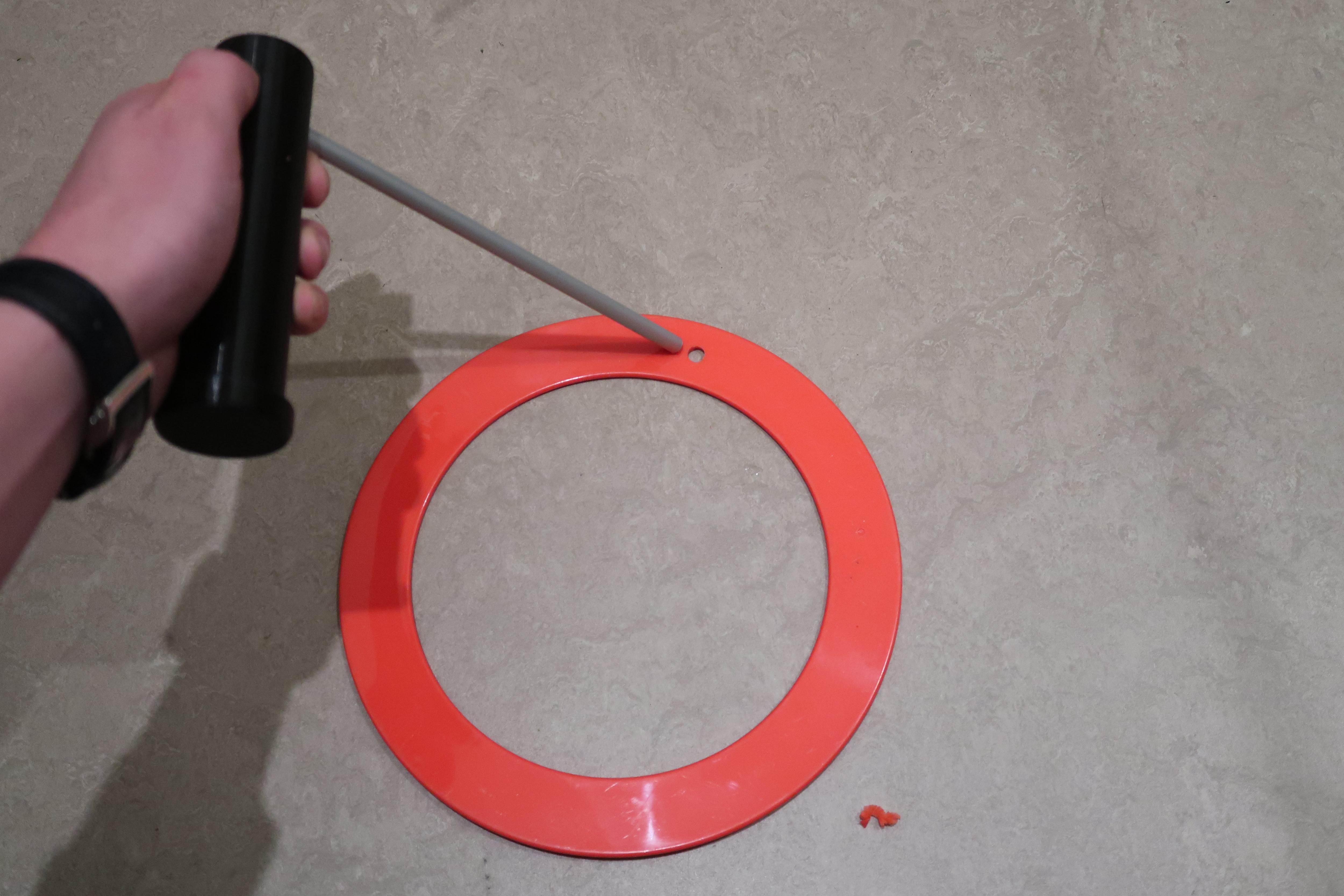

Glue the ring firmly to the shaft. You are ready!
