Customizable 3D Printed Chain Bracelet

I have always been intrigued by print in place 3D prints. I tried to design my own chain, but no matter what I did it always came out messy due to supports. This made me wonder if there was a way to make it without using supports. After lots of designing and test printing, I came up with a method that did exactly that. An added feature to this method is that you can use multiple colors without needing a multi-color 3D printer. I am also selling these bracelets on my etsy, EstBuilds, for those you do not have access to a 3D printer.

• 3D Printer
• 1-2 Colors of Filament
• Optional - Glue Stick and Tape
• Optional - Scissors and Printer

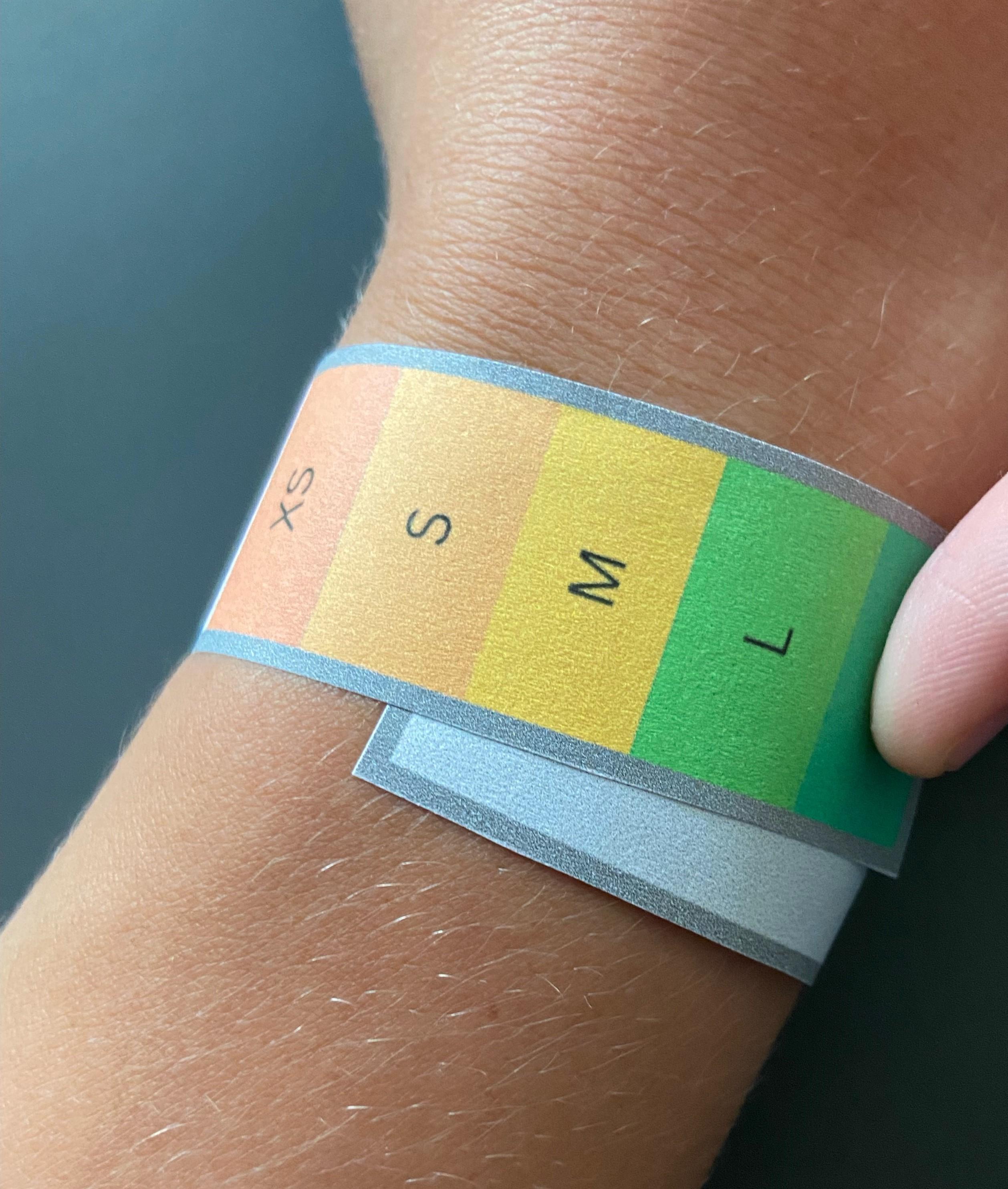

There are two ways two choose a size. If you have a printer, I would recommend printing the attached png. You can then cut out the sizing tool. Just like the picture, you can wrap it around your wrist and it will show your ideal size. The other option is to just go off of average wrist sizes based on the following: XS - Toddlers/Young Kids. S - Teens/Petite Women. M - Average Women. L - Average Men. XL - Larger Men. Again, I would definitely recommend the sizing tool to get the most accurate sized bracelet.

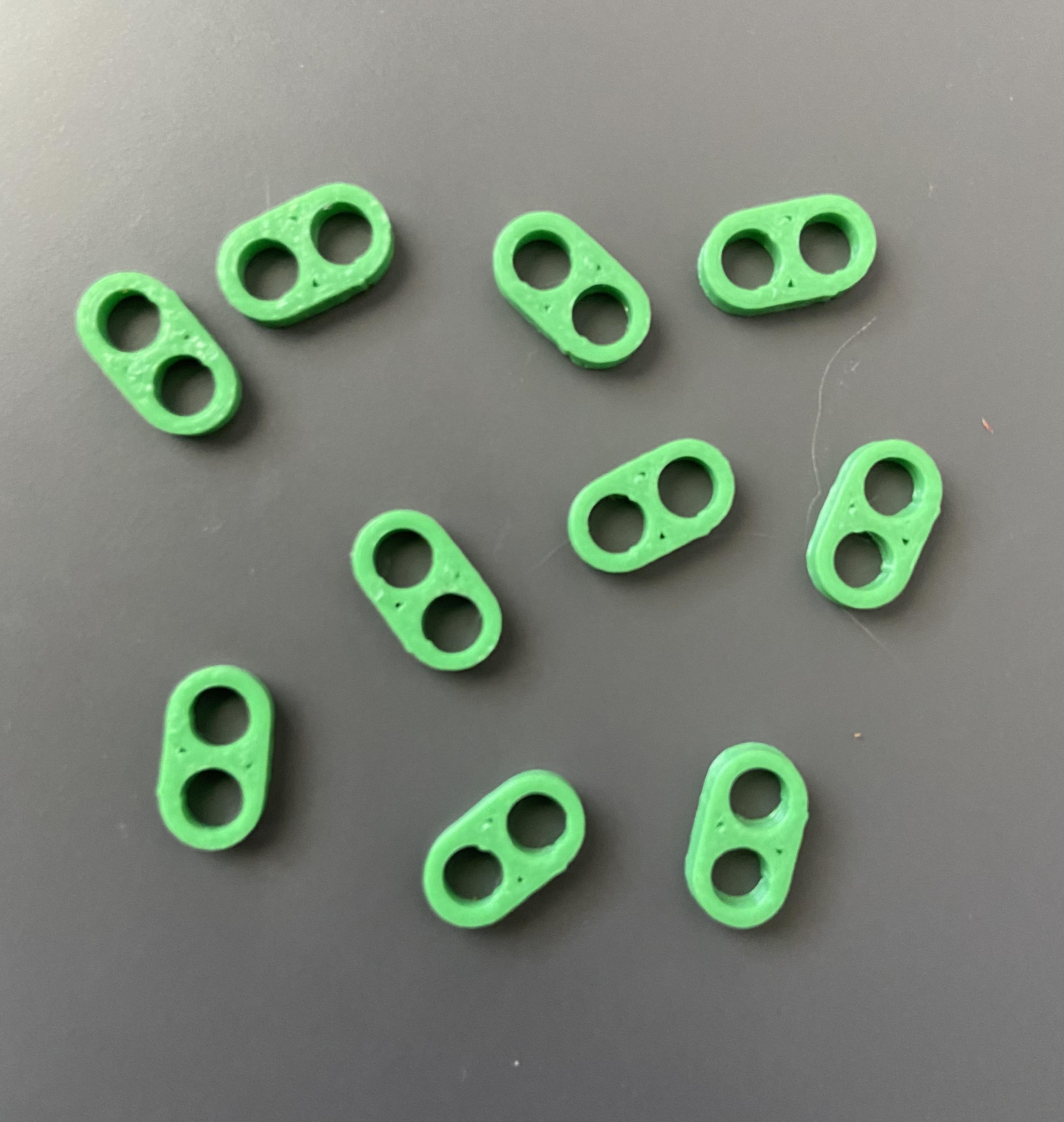

These are called the horizontal pieces because they can be printed flat on the print bed for the best quality print. Download the STL file for your size and print!

No matter the size you selected you will need just 1 clip. Download the STL file and print! This piece can be printed flat on the print bed as well.

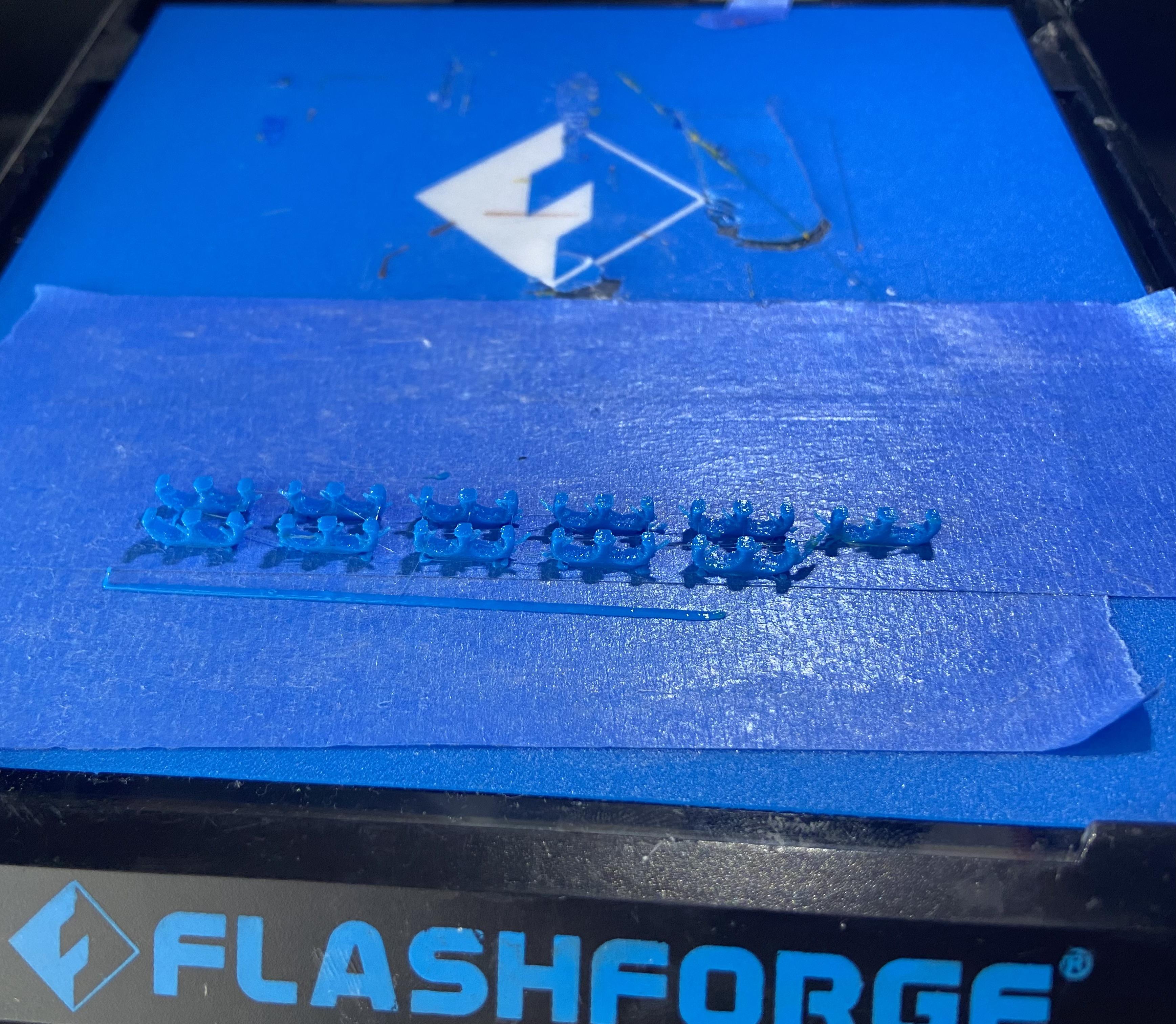

These are called the vertical pieces because they have to be standing up so you are able to pause the print and add the horizontal pieces in. No supports should be needed because the design is made up of arches. This design was done in Tinkercad (shown in picture). If you are using two colors you should change the color at this step. Since the pieces are pretty small, you can place tape down and add glue on top to add extra grip (as shown in attached picture). Download the STL file for your size and print!

Pause the print a little over half way of it being completed. Connect all the vertical pieces with the horizontal pieces. Make sure the clip is on one of the ends. Also make sure the vertical prints pieces stick through the horizontal pieces, so the print can be continued no problem. Once you are ready you can continue the print.

If all steps were followed and the print went well, you should have a chain on the print bed. You can take it right off and since no supports were used you do not need to clean it up at all!

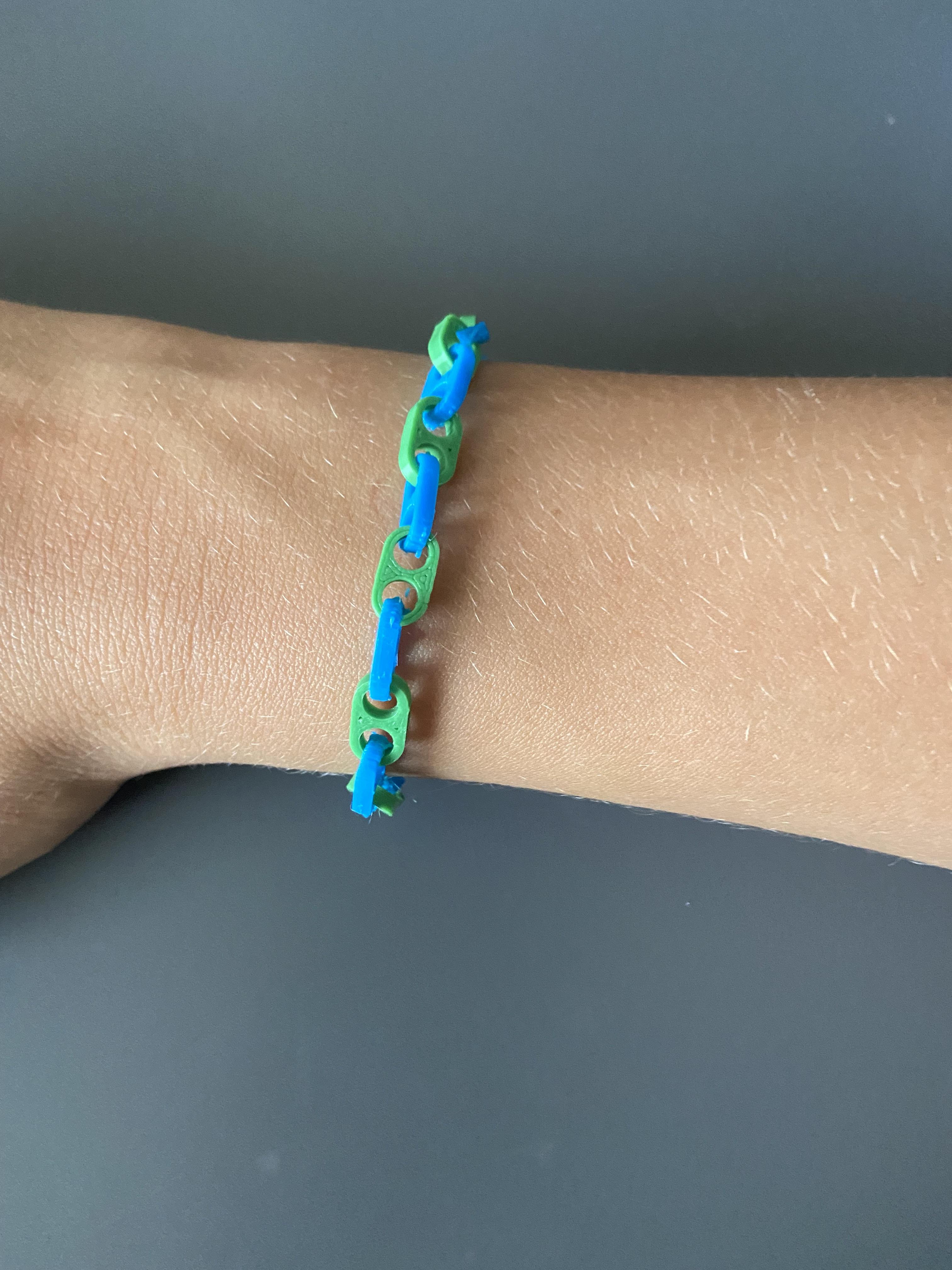

Just click the chain together and you have finished your bracelet!
