Cryptex Type_c. Flash Drive With Secret Mechanical Lock

Cryptex. type_C

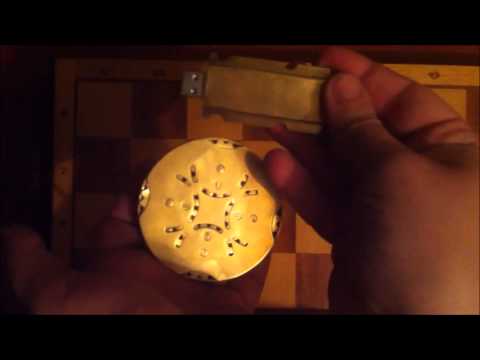

Cryptex type_c. Flash drive with secret mechanical lock

Description:

-USB specification : USB3

Case: Brass

Wall Thickness: 1.5mm

Lock digits: 4

Key combination: unlimited

Featuring:

-Mechanical lock

-100% Handmade

-Handmade USB flash drive built in with mechanical lock. This is a toy puzzle. You may even consider that this is a tactical toy. Rotate the gears and you open the container, of course, if you know the code.

=========

UPD 24.04.2016 i just found photo of assembly. Check step 2

What I Plan to Do, and More Photos


This cryptex assembled from 21 parts.

In future i want build cryptex with 2 and 3 secret locks

What i want add in future

1. + electromechanical lock. If someone open external casing - flash drive will be still blocked

2. + Cryptosystem that encode data on memory bank

Assembly


I just found photo of assembly

Not all parts. Instructable will be updated soon
