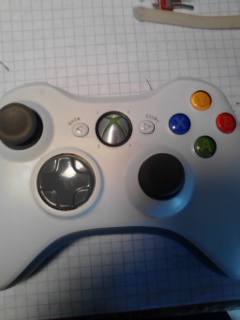

Cruise Control / Togle RT Button: XBOX 360 Controller Mod

This is a togle button that controls the RT button. But the principle is almost the same for every button and can be applied to almost any controller.

Enjoy!

These materials are very easy to find you may have them laying around!

Toggle switch

Wire

Hot Glue

Foam (optional)

TOOLS

Dremel

Drill

Hot Glue Gun

Soldering Iron

I will not go into great detail about this step because there are many other tutorials on how to take apart the controller, but it must be done.

Find a point where you want to access the switch, i made mine discreet as possible by using the hole used to access the screws holding the controller together that should be out at this step.

To fit your toggle switch depending on the size you will do different steps but its the same principle. drill the hole wide enogh to fit the head of the switch and cut the tubular tunnel to size so the circuit board dosent touch the button using drills and dremel bits. clean these cuts after fitting.

TIP: If you dont have enough room cut some of the support that is holding the trigger assembly shown in the last picture.

Solder two wires to the leads of you switch and glue the switch the way you want to.

Solder each lead to the two leads of the switch to the to the two highlighted contacts in the picture. put styrofoam between the switch and the board if needed.

To close the case make sure to put the case back in such a way that no wires get cought in the buttons or any moving part.

This mod is good for minecraft digging of flying planes in GTA or any other game that has repetative holding of the index finger.#firstworldproblems . Use this responsible and have fun! Dont forget to follow!
