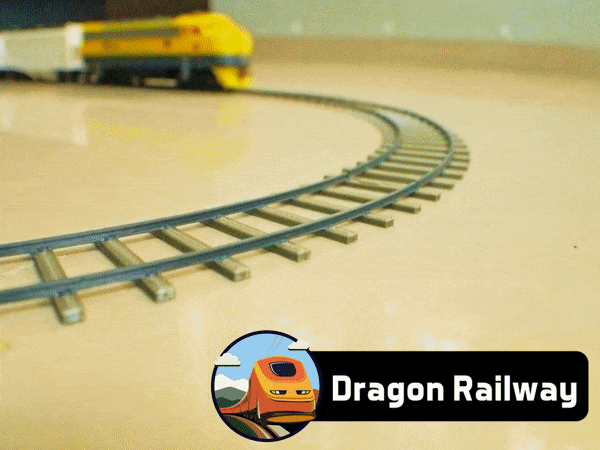

Dragon Railway: Complete Open Source Ecosystem

This project is focused on creating a highly detailed and accurate scale model of a railway system, complete with locomotives, wagons/rail cars, tracks, control systems and other accessories.

Due to the parametric nature of Fusion360; You can create your own railway layout, with the ability to adjust the track length, curves or even create your own custom tracks.

We will also be incorporating various interactive elements such as lights and sounds to bring the Locomotive to life. The main objective is to create a functional and accurate replica of a real railway system using Fusion 360, and to demonstrate the potential of 3D printing in the field of model railways.

Highlights:

• 1/64 scale ( S scale)
• Realistic models
• Detailed Manuals
• Easy assembly
• Bluetooth control

A complete Open Source ecosystem:

Locomotives:

1. F7 Locomotive
2. GP7 Locomotive
3. GP60 Locomotive

Wagons /Rail Cars;

1. Tanker Car
2. Open hopper Car
3. Gondola Car
4. Box Car

Tracks:

1. Straight tracks - Parametric
2. Curved Tracks - Parametric
3. Turnouts
4. Crossings

Accessories:

1. AutoCoupler
2. Easy Railer

Control Systems:

1. BLE Locomotive Control (using Android/IOS app)
2. Dragon Loco Controller

Project Links:

Github - Source Files: github.com/DragonRailway

Printables - STL files: printables.com/rambros

Assembly Manuals : google docs

Notes:

Some files are not uploaded here due to the 25MB file size limit on instructables. They are linked to printables and github.

Software:

• Fusion 360
• Cura Slicer
• Arduino IDE

Materials required:

• PLA filament (Colours as per your choice)
• Super Glue
• Glue stick (for glue gun)
• Solder wire
• Wires
• M2 screws (4mm, 6mm)

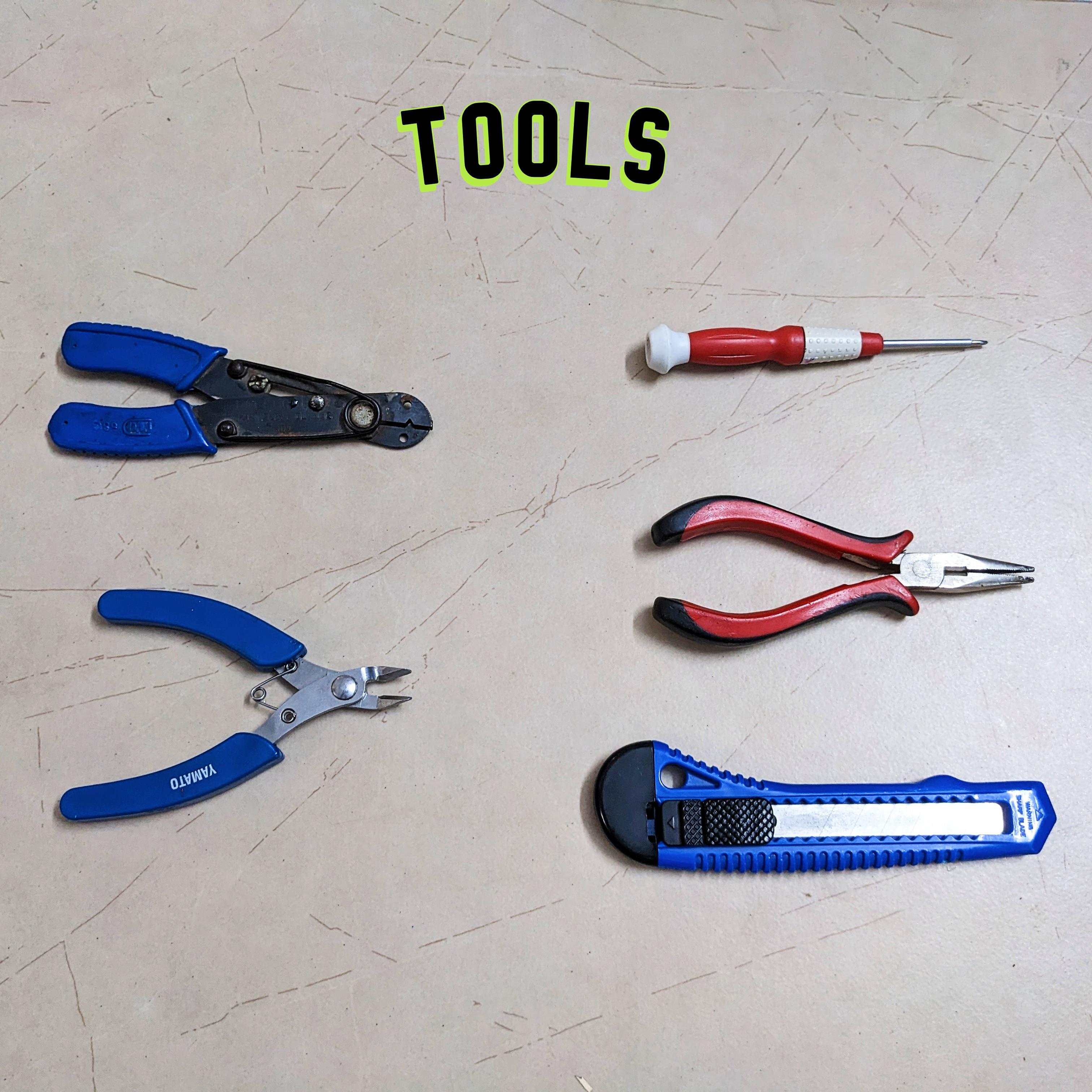

Tools:

• 3D printer (obviously)
• Screw Driver
• Soldering iron
• Wire Cutter
• Wire Stripper
• Glue Gun
• Hacksaw or Dremel

These are the main supplies, Other components are listed in their respective Steps

The design is optimized for 3D printing, with a focus on minimizing the amount of material used while maintaining structural integrity. The final product is a functional train track that can be used with 3D printed model trains.

Using the parametric capabilities of Fusion 360, you can easily adjust various parameters such as track length & curvature to create unique track layouts.

Dragon Railway uses 22.5mm track - S scale - Standard gauge

Customisable parameters:

• Straight track: Length (in mm)
• Curved track: Arc Length (in deg), Radius (in mm)

And the good thing is, you don't have to be an expert to customize these tracks. Just download, open the file; adjust parameters and let Fusion 360 do its thing! export as STL and print

Create custom tracks with Fusion 360:

1. Open Fusion 360 and open the Track (Straight or Curved) you want to customize.
2. Select the "Modify" tab and then click on the "Change Parameters" button. This will open the Parameters dialog box.
3. Select the parameter you want to edit and change its value. This will update the design automatically.
4. Right Click on the model and use "Save as Mesh" option to export the STL file.

You just want to get started and don't want to mess with fusion 360? You can download the STLs provided here & start printing right away!

Download STLs: printables

Get Source CAD files: github

Notes:

• Before printing the curved tracks be sure to check minimum track radius supported by the respective locomotive.
• Larger radius (above 500mm) is better for stability, it is also compatible with all locomotives. So it recommended to use large radius curves where ever possible.
• For now, only the straight and curved tracks are customisable. The crossings and turnouts are not parametric.

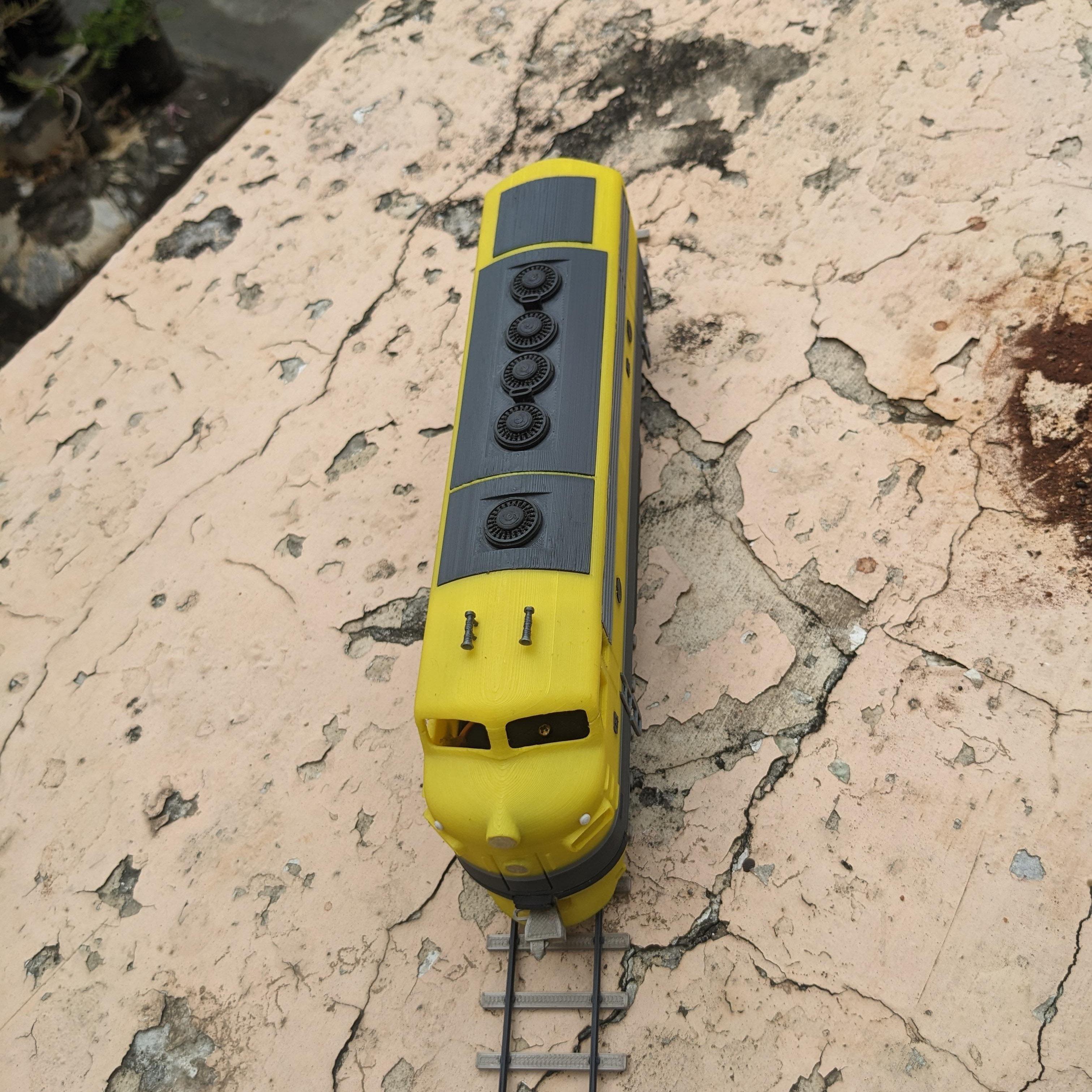

1) F7 Locomotive

The EMD F7 is a diesel-electric locomotive model produced by General Motors' Electro-Motive Division (EMD) between 1949 and 1953.

The F7 locomotive scale model is a highly detailed and accurate replica of the popular American diesel-electric locomotive that was widely used in the mid-20th century.

This 3D printable model has been designed to be fully assembled, motorized, and functional. This model features many intricate details, including working lights providing a highly realistic and visually striking experience.

Compatible Track radius: Min 300mm

Assembly Manual: Google docs

3D print files: printables.com

1B) F7 B unit

The F7 B unit locomotive was a diesel-electric locomotive produced by EMD between 1949 and 1953. It was a cabless booster unit designed to provide additional power and traction when coupled with an A unit.

The 3D printed model of the F7 B unit locomotive has been created to accurately capture the distinctive features of the original locomotive. This locomotive is intended to be used with the A unit.

Compatible Track radius: Min 300mm

Assembly Manual: Google docs

3D print files: printables.com

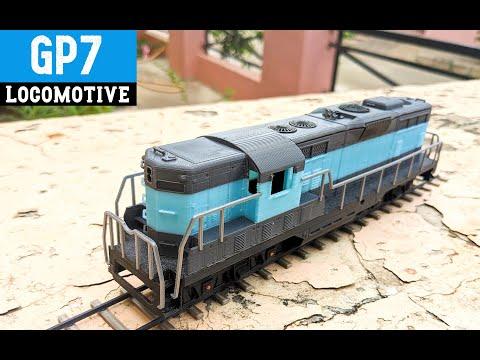

2) GP7 Locomotive

The EMD GP7 is a type of diesel-electric locomotive that was manufactured by the Electro-Motive Division (EMD) of General Motors between 1949 and 1954.

The GP7 locomotive scale model is a 3D printable and motorized working replica of the iconic GP7 diesel-electric locomotive.

This model captures the intricate details and design of the original locomotive, bringing the beauty and power of the classic locomotive in a smaller scale. The model is easy to assemble and features the same motorized bogie as the F7 locomotive.

Compatible Track radius: Min 350mm

Assembly Manual: Google docs

3D print files: printables.com - cults3d.com

3) GP60 Locomotive

The GP60 is a diesel-electric locomotive made by EMD in the 80s. It was used for freight trains and was known for its cab-forward design and improved fuel efficiency. Despite being largely replaced by newer models, it is still in service today.

The GP60 locomotive scale model has been designed to be highly detailed, right down to the smallest parts, such as the locomotive's handrails and headlights.

Whether it's for the Dragon Railway or as a display piece, the 3D printed GP60 locomotive scale model provides a unique and visually stunning representation of one of the most iconic locomotives in history.

Compatible Track radius: Min 350mm

Assembly Manual: Google docs

3D print files: printables.com

Notes:

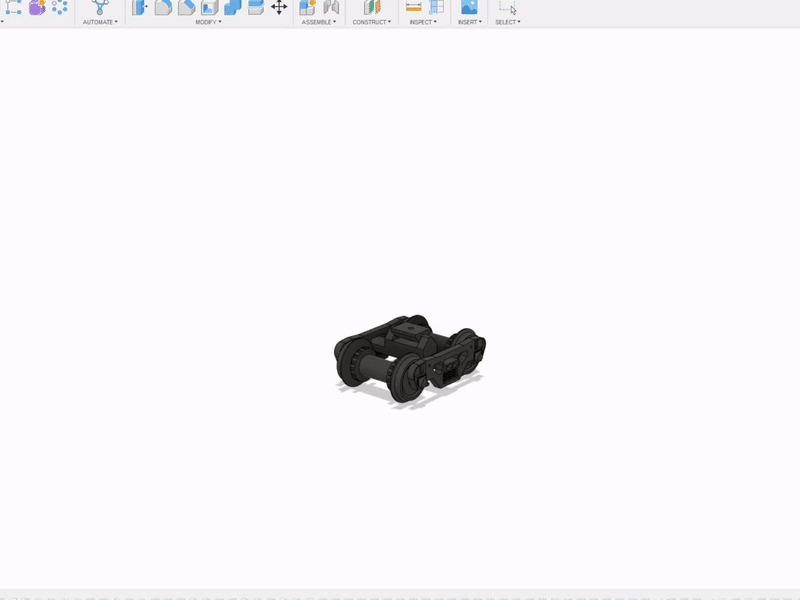

• F7, GP7, GP60 are EMD locomotives, Hence use the same bogie.
• The drive wheels require 13x1.5mm O ring.
• You can add dead weights on the chassis to increase stability and traction.
• You can have one motorized bogie and one idle bogie for the locomotive. You can also have both of them motorized just like the real one.
• Refer to the control section for code and schematics.

Source CAD Files: github.com

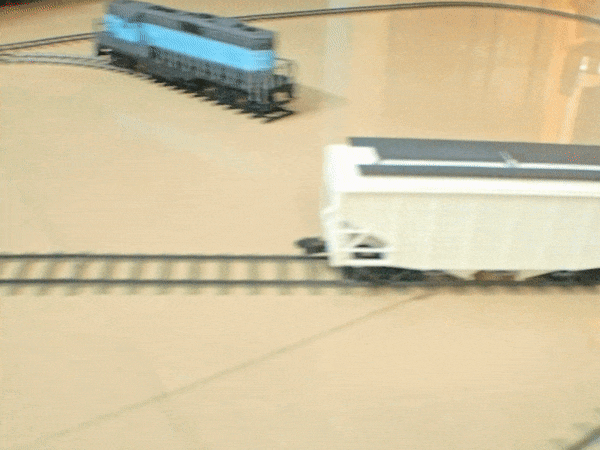

The AutoCoupler has been designed to provide a more efficient and reliable coupling system for model trains. The AutoCoupler maintains the functionality and realism of the Shibata Coupler despite being optimized for FDM printers.

The coupler automatically connects the trains when they come into contact, and can be manually decoupled by the user when desired. Note that the main advantage is that it requires very little force on the lever for decoupling.

AutoCoupler is compatible with all Dragon Railway Locomotives and Wagons.

Assembly Manual: Google docs

3D print files: printables.com

And of course, a railway system wouldn't be complete without Wagons since they are an essential component of railway transportation. They are used to transport a wide variety of goods and materials while increasing the efficiency and capacity of the railway system.

1) Tanker Car

This tanker car scale model is a miniature replica of a full-size tanker car used for transporting liquids or gases. This model has an articulated a lid that can be opened and closed.

Assembly Manual: google docs

Download STL: printables

2) Box Car

A Box car is a type of railway freight car. This particular model features doors that can be opened and closed, mimicking the movement of the doors on a real box car.

Assembly Manual: google docs

Download STL: printables

3) Gondola Car

Gondola car is a type of railway freight car that is open on top and typically used for transporting bulk goods such as coal, ore, and gravel.

Assembly Manual: google docs

Download STL: printables

4) Hopper Car (Open Top/Covered Top)

A hopper car is a type of railway car used to transport bulk materials such as coal, grain, and gravel. This scale model is a detailed representation of the original, complete with functioning doors on the underside that can be opened and closed, it provides an accurate representation of the real thing.

Assembly Manual: google docs

Download STL: printables

Get Source Files: github.com/DragonRailway/Train-Wagons

EasyRailer - the ultimate solution for seamless train placement on your 3D printed model tracks.

Say goodbye to frustrating train placement and hello to easy, precise track alignment with this user-friendly design

Haha! At first, this is something which you would see as something unecessary. But this really makes train placement a breeze. You just have to place the model on the Railer and slide it; The train automagically aligns itself on the track.

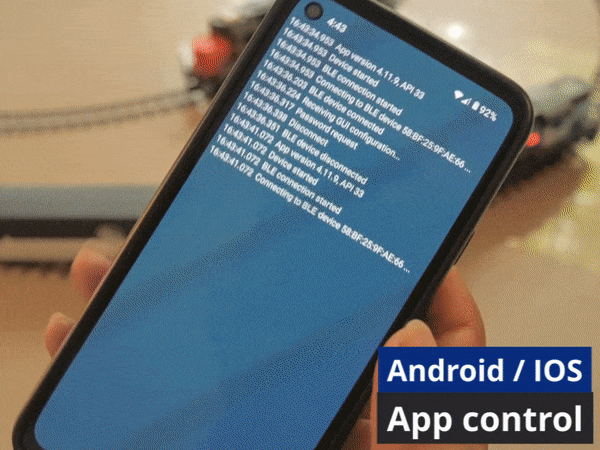

Locomotives can controlled be controlled wirelessly using an Android / IOS smartphone using the RemoteXY app. The phone connects to the train via Bluetooth Low Energy (BLE), allowing for a seamless and convenient control of the train's speed, direction, and lights.

Electronics:

• ESP32 dev board
• Motor driver (DRV8833 or L293D)
• LED lights
• Resistors (220 ohm)
• 7805 regulator (AMS1117 - 5V can also be used)
• N20 Motor (already in the Loco Bogie)
• Battery*

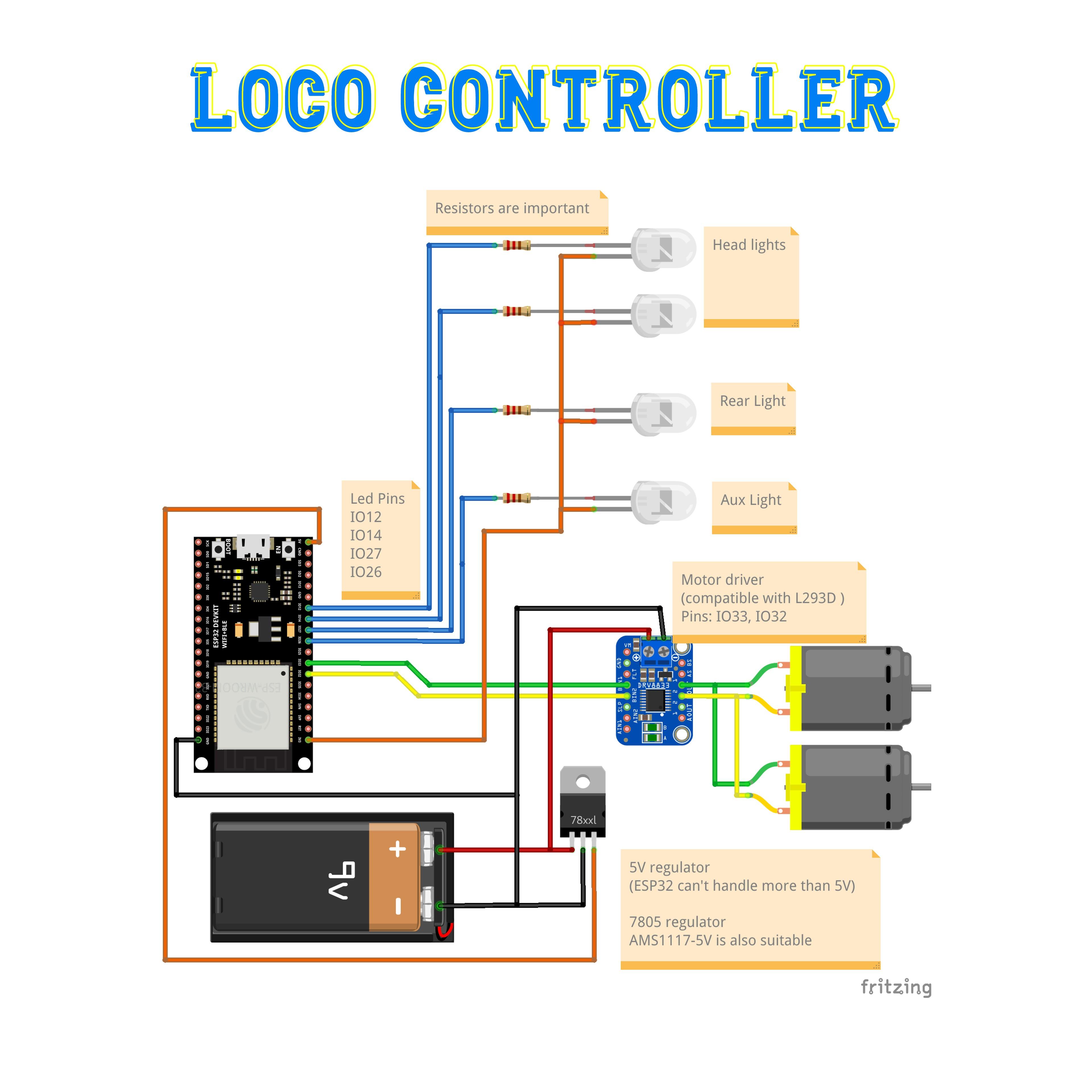

Connect the circuit as per the schematic and upload the code to the ESP32. It should Start working right away!

The lights will stop blinking as soon as the BLE connection is established. You can now control the Locomotive.

What can this do:

• BLE connection
• Motor controls with inertia simulation
• Lights control

Code: github

Software required:

Arduino IDE: Official website

RemoteXY App: Playstore - AppStore - AppGallery

*Battery remarks:

• Compatible Voltage: 6V to 9V
• Suitable batteries: 9V rechargeable battery, 2S Li-Fe(6.6V) , 2S Li-ion(7.4V) - note that lithium based batteries require BMS/ Balance chargers
• Don't use Lithium batteries without BMS
• Choose the battery which is comfortable for you. 9V rechargeable battery can be the best option for beginners

I have put a lot of time and effort into developing this project and seeing it come to life has brought me a great deal of satisfaction and happiness.

The process of designing and 3D printing the detailed models of locomotives, wagons, tracks, and other accessories has been an enjoyable learning experience.

Work in progress stuff:

1. Realistic Sounds: To be added using a simple amplifier and a speaker. That's the easy part, I still have to work on the code. Planning to fork this from TheDIYGuy999
2. Electronic Coupler Control: The AutoCoupler already has an easy release mechanism. A servo will be used to actuate the release hook. This will enable the coupling and decoupling of trains without any manual intervention.
3. More tracks: Wye turnout, Double Crossover turnout, Lapped turnout, Tracks with Ballasts - These are some of the tracks I'm working on.
4. Advanced Loco Remote: Espnow based remote for controlling multiple locomotives at the same time. It features an OLED Display and encoder to have an advanced control over the layout. Check out the code at github

Future Ideas:

1. Automatic layout control: An advanced layout control system with open source softwares like Traintastic, DCC-EX. This can be very helpful for controlling large layouts with multiple locomotives.
2. More Parametric Tracks: Crossings, Turnouts can also be made parametric, allowing even more flexibility of custom layouts

Open Source:

These Tracks, Locomotives, Wagons are Open Source. You have the ability to customize and personalize your own model railway, and also share your own modifications and improvements with the community. This will help to create a collaborative and supportive environment where you can share ideas and learn from one another.

I hope you enjoy printing and building these models!

Share your suggestions and ideas in the comments

Updates:

2023 Jan 24 - Instructable published

2023 Feb 4 - Added GP60 Locomotive

2023 Feb 26 - Added F7 B unit Locomotive
