Create a Geodesic Dome With BBQ Sticks
15525 Views, 24 Favorites, 0 Comments
Create a Geodesic Dome With BBQ Sticks

This instructable will demonstrate how to create a geodesic dome out of barbecue sticks. The type of dome you will be making is a class 1, 4 V icosahedral geodesic. Class 1 basically means it is a regular type. There are 2 more classes, and these are inverted, and irregular types. Information on dome classes are beyond the scope of this document. 4 V means that one face of the icosahedron has been split into 4 levels, creating 4 triangles per side of that face. An icosahedron is a special 3D shape, which you can look up on Wikipedia or Google images.
To view this entire tutorial properly in better detail, go here.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
To see all images of the construction click this link.
Equipment



You will need to obtain the below equipment:
BBQ sticks (30 cm, 250 pieces)
Scissors to cut the BBQ sticks
Standard 30 cm ruler
Black marker pen

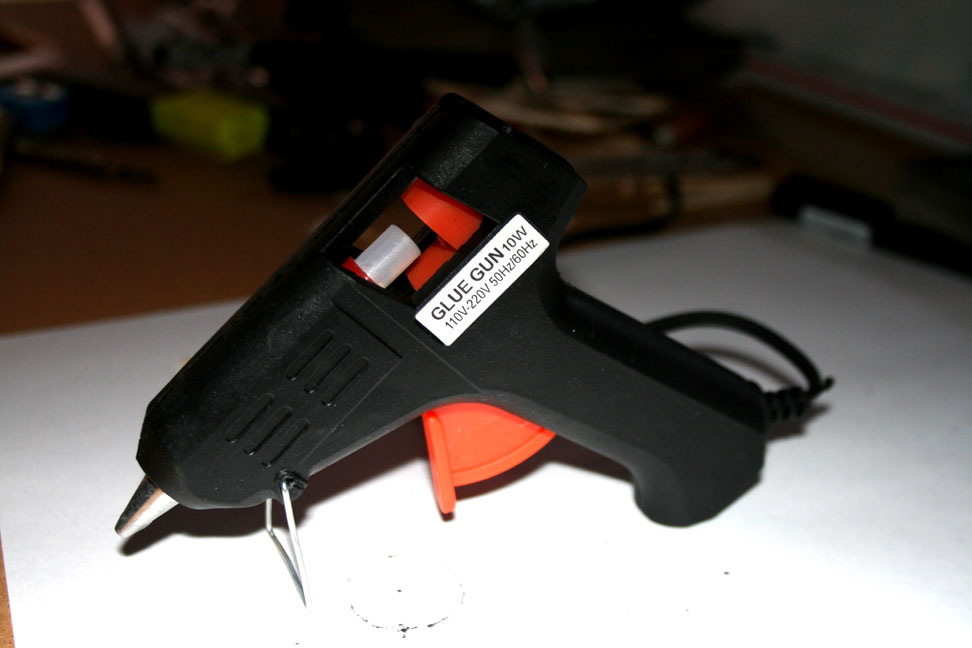

Glue gun
Glue sticks (10 pieces, extra long)
String (thread for sewing)
Elastic bands (not too large)
Ball pen for writing
Writing pad
The following images are some of the equipment I would recommend.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
BBQ sticks (30 cm, 250 pieces)
Scissors to cut the BBQ sticks
Standard 30 cm ruler
Black marker pen
Glue gun
Glue sticks (10 pieces, extra long)
String (thread for sewing)
Elastic bands (not too large)
Ball pen for writing
Writing pad
The following images are some of the equipment I would recommend.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.

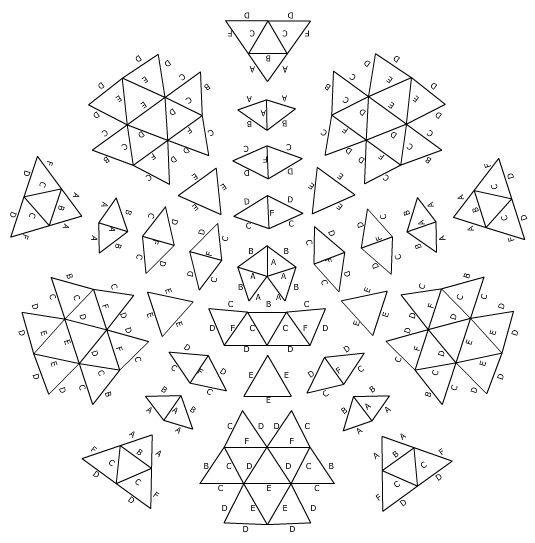

Plan


Make sure you draw these down on your writing pad.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.

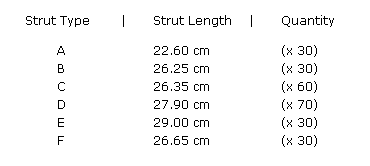

Measurements

Mark measurements on all sticks based on the data in step 2.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
Trim & Organize

After all markings have been made, begin trimming them, and then categorize them into their strut types with elastic bands.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
Glue Together



Begin constructing the nets using glue gun.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
Installation









Put together all nets using sewing thread.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.

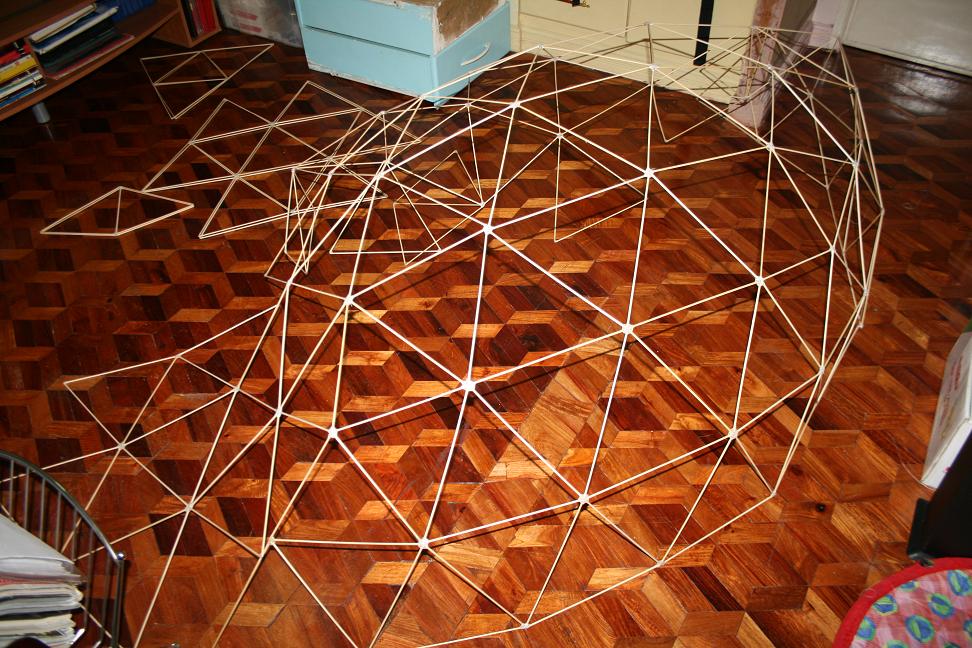

Final

If completed accurately, it should appear exactly as illustrated below.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
To see all images of the construction click this link.
To view this entire tutorial properly in better detail, go here.
