Create Tetrahedron From a Cube in Inventor

Cut out a regular tetrahedron from a cube.

One way to create a tetrahedron in a solid modeler is to cut it from a cube. A regular tetrahedron can be created by cutting along the diagonals of a cube as seen in the video. This instructable will first create a cube and then slice off its corners, leaving behind a regular tetrahedron. The basic steps are:

  1. Create a square
  2. Extrude the square into a cube
  3. Slice of the corners of the cube to reveal a tetrahedron
  4. Adjust the parameters of the part to specify and edge length for the tetrahedron

Create a Sketch in the XY-plane

002.Screen Shot 2014-06-08 at 12.48.41 PM.jpg

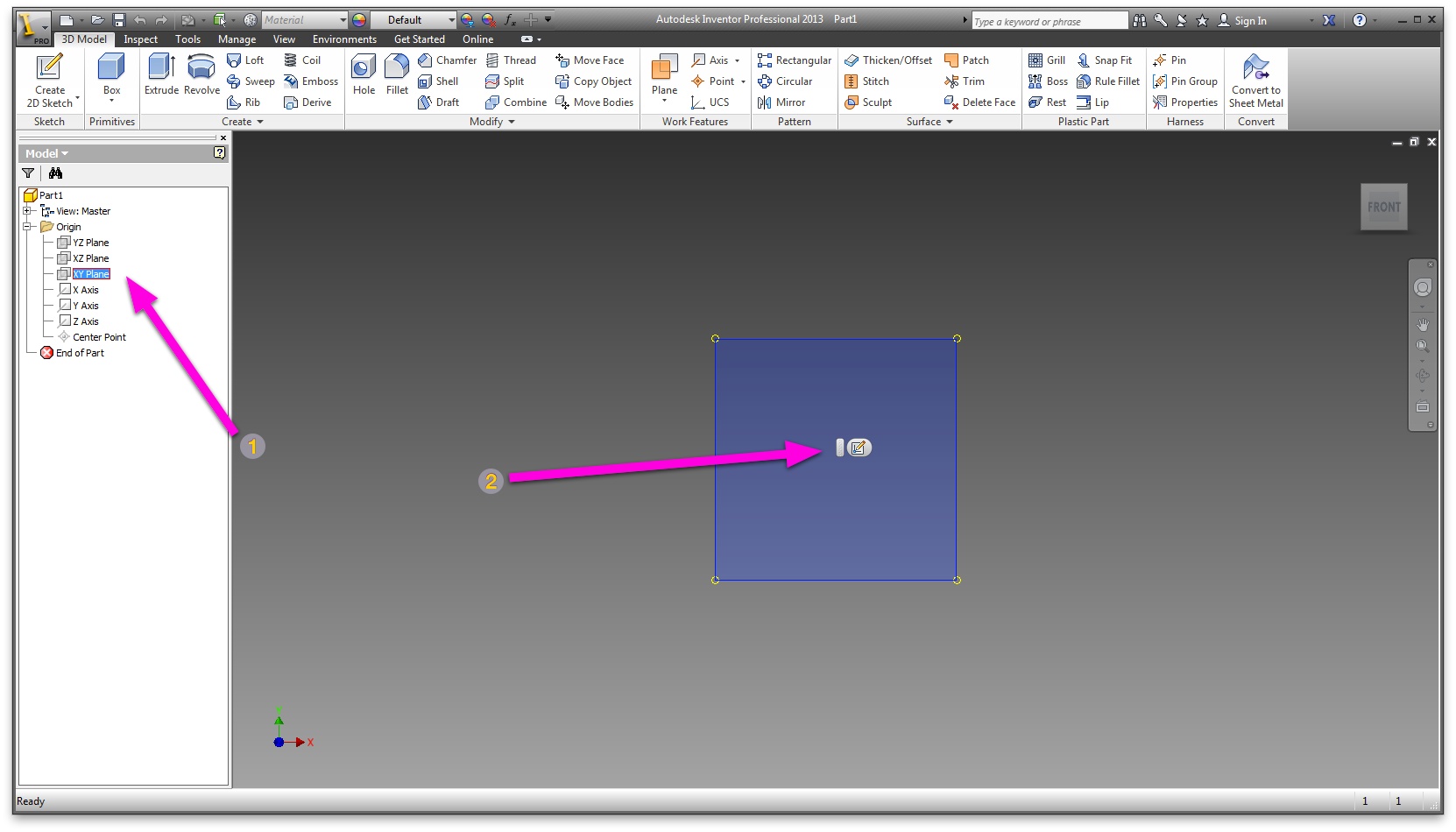

Click the "Origin" folder in the left-hand sidebar and then click the "XY Plane" item. Right click on it and make is visible, then create a new 2D sketch on it.

Create a Rectangle

003.Screen Shot 2014-06-08 at 12.49.22 PM.jpg

  1. Select the Rectangle tool and draw a rectangle
  2. Select the Dimension tool
  3. Click the mouse on the top edge of the rectangle to dimension it

Convert the Rectangle to a Square

004.Screen Shot 2014-06-08 at 12.49.33 PM.jpg

  1. Click the equal size constraint
  2. Click the top edge as one edge in the constraint
  3. Click the left edge as the second edge in the constrain to set it equal to the top edge

Name the Edge Dimension

005.Screen Shot 2014-06-08 at 12.50.09 PM.jpg
006.Screen Shot 2014-06-08 at 12.50.25 PM.jpg

  1. Click on the parameters button
  2. Click the name of the just dimensioned edge to edit
  3. Name it cube_edge_length

Extrude the Square Into a Cube

007.Screen Shot 2014-06-08 at 12.51.32 PM.jpg
008.Screen Shot 2014-06-08 at 12.51.45 PM.jpg
009.Screen Shot 2014-06-08 at 12.51.50 PM.jpg

  1. Click the extrude tool button
  2. Select the arrow next the extents amount
  3. Click "List Parameters" in the menu
  4. Select the cube_edge_length_parameter

Create First Cutting Plane

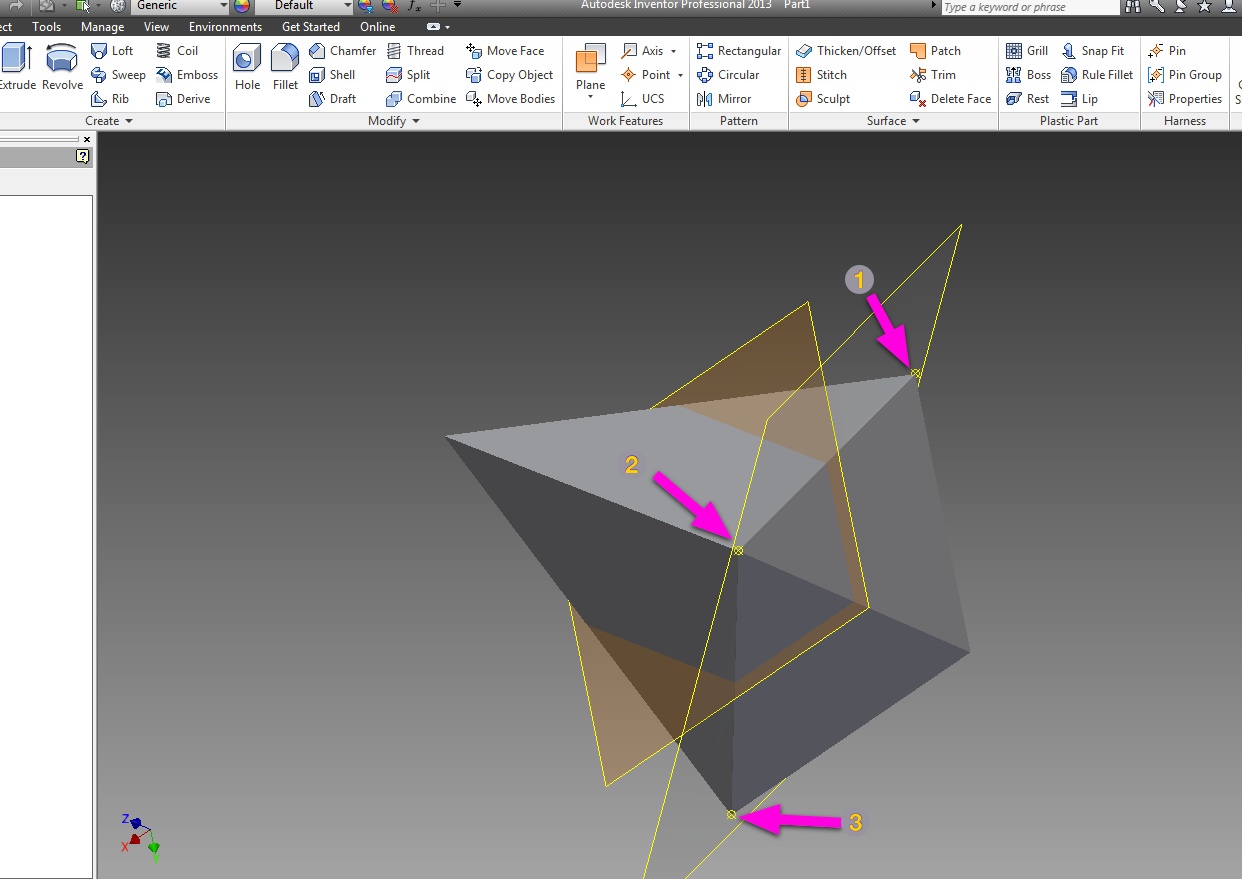

011.Screen Shot 2014-06-08 at 12.58.08 PM.jpg
012.Screen Shot 2014-06-08 at 12.58.20 PM.jpg

  1. Click the arrow on the Plane tool
  2. Select the "Three Points" option
  3. Select the three points shown to create the plane

Cut the First Face of the Tetrahedron

013.Screen Shot 2014-06-08 at 1.01.55 PM.jpg
014.Screen Shot 2014-06-08 at 1.02.10 PM.jpg

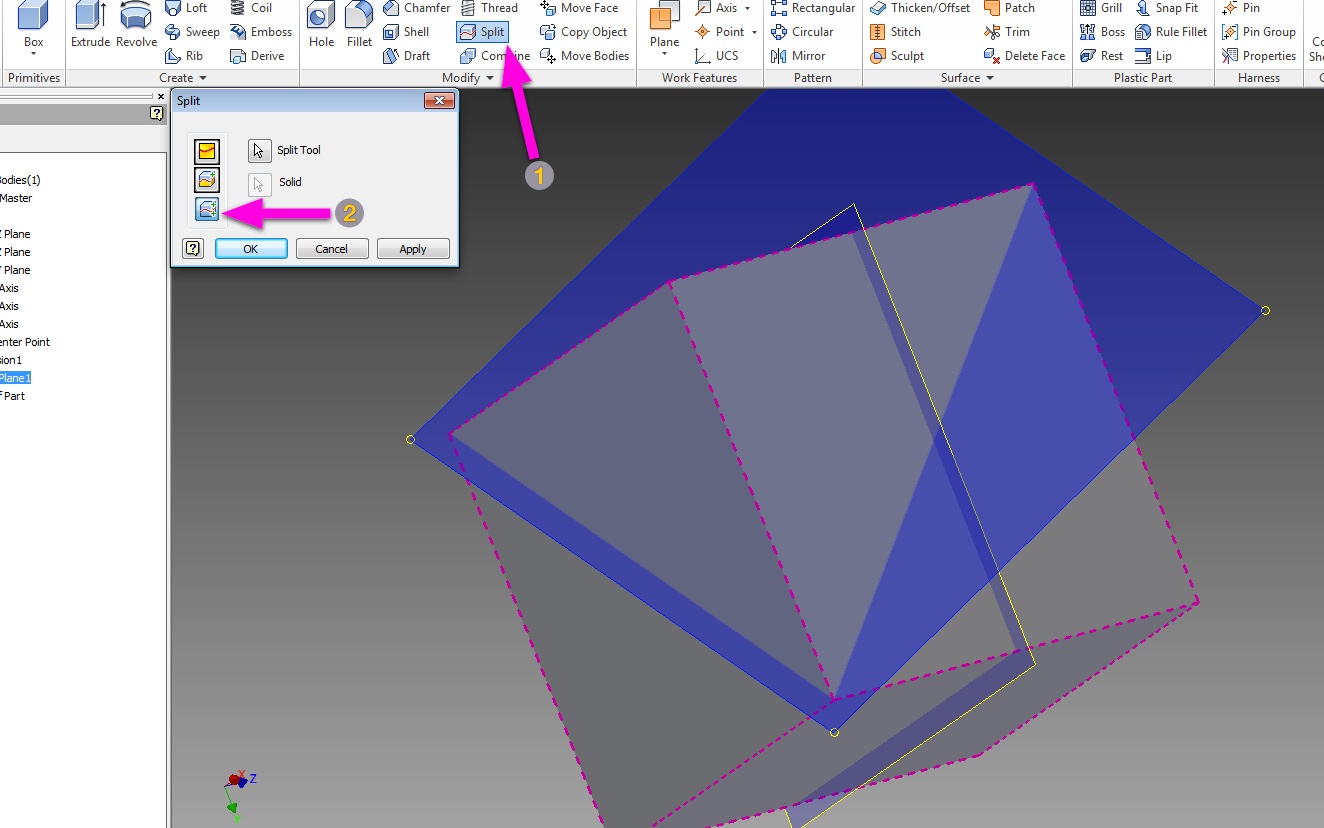

  1. Select the Split tool
  2. Click on the solid icon to make the split operation give solids as a result instead of surfaces
  3. Apply the tool

Hide the First Corner Cut

015.Screen Shot 2014-06-08 at 1.02.27 PM.jpg
016.Screen Shot 2014-06-08 at 1.02.44 PM.jpg

  1. Select the just cut cube corner from the solids folder in the side bar
  2. Right click on the solid and turn visibility off

Cut the Rest of the Tetrahedron Faces

017.Screen Shot 2014-06-08 at 1.03.16 PM.jpg
018.Screen Shot 2014-06-08 at 1.05.24 PM.jpg
019.Screen Shot 2014-06-08 at 1.06.49 PM.jpg

Following the same steps for cutting the first face, repeat for the next three faces

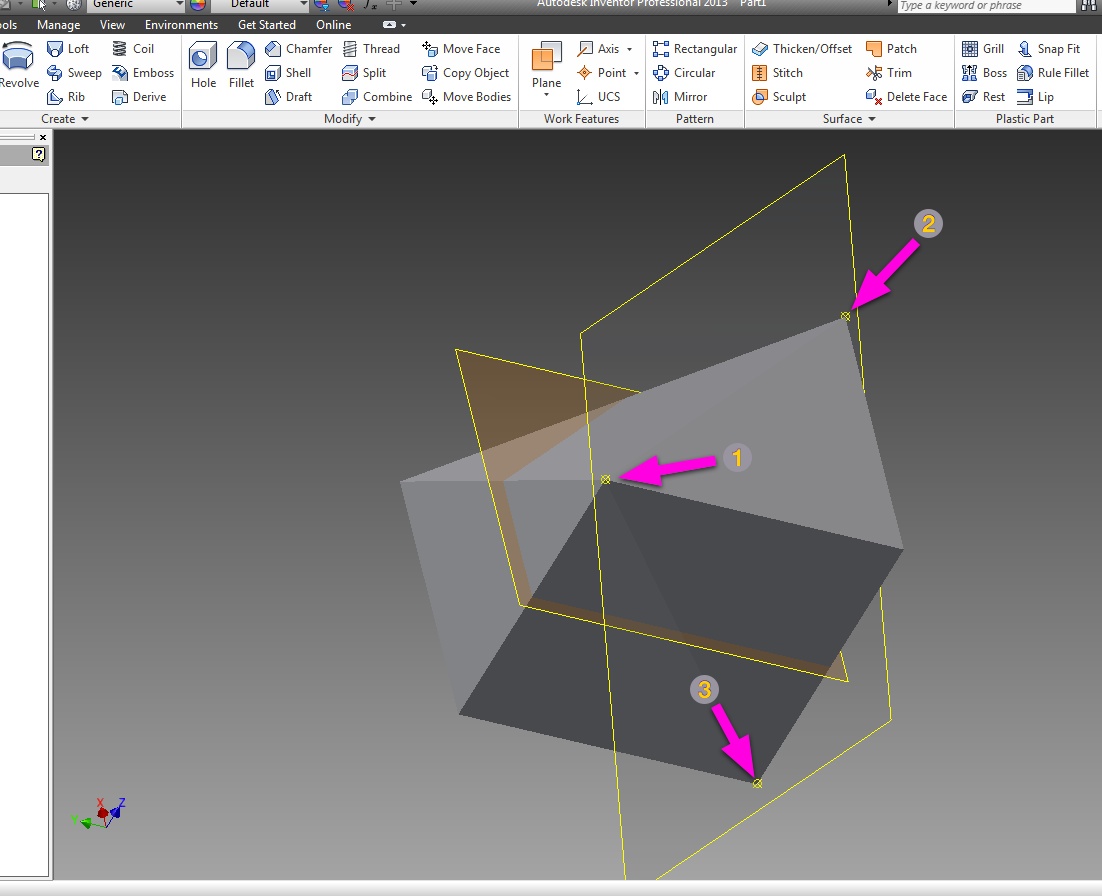

  1. Create a plane from three points as shown
  2. Use the Split tool to cut the cube corner using the plane
  3. Hide the cut corner

Set the Length of the Tetrahedron Edge

020.Screen Shot 2014-06-08 at 1.09.45 PM.jpg
021.Screen Shot 2014-06-08 at 1.14.18 PM.jpg

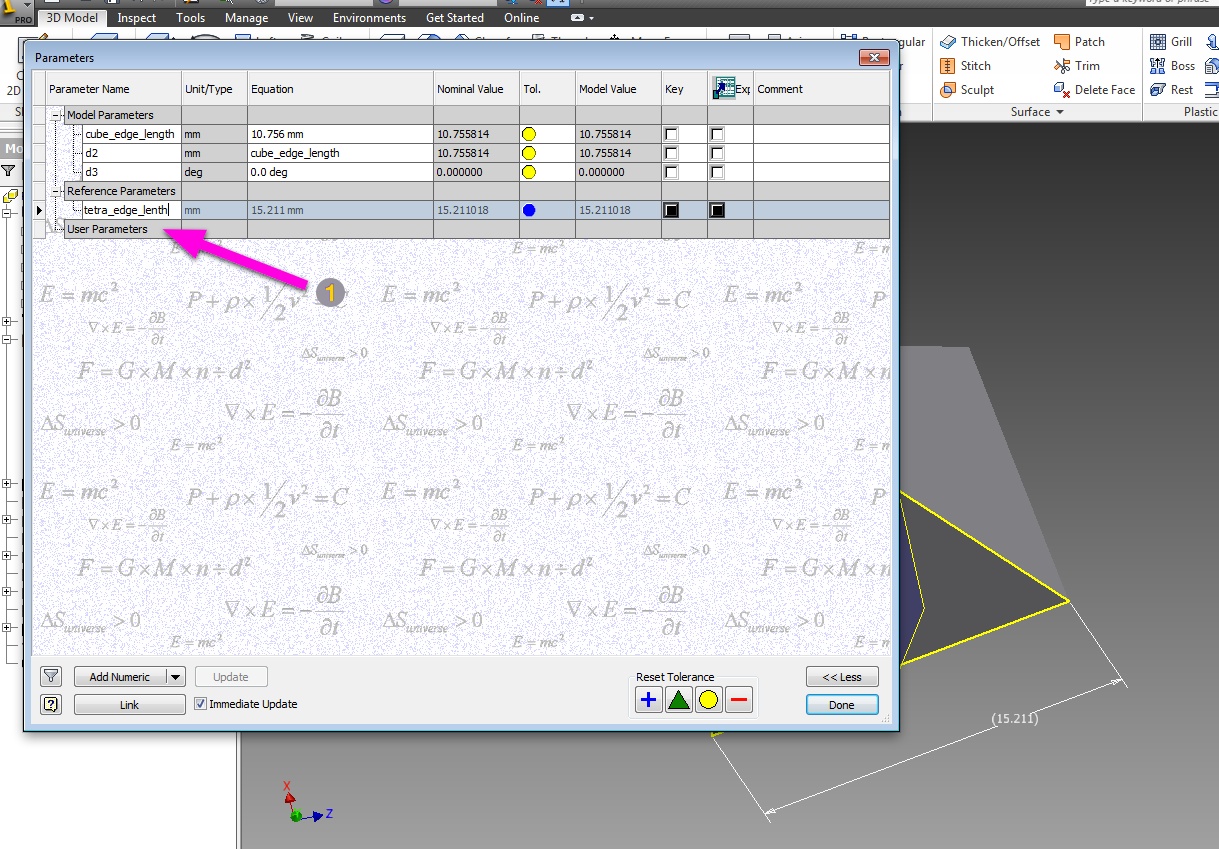

At this point, four cuts have been made to the cube, leaving behind a tetrahedron. To size the tetrahedron, we can set the size of the cube edge length. Once set, the change in length will propagate through the operations we've made and give the proper tetrahedron edge length.

  1. Create a user parameter by clicking the "Add Numeric" button
  2. Call the parameter tetra_edge_length and set it to the desired value
  3. Change the existing cube_edge_length to be calculated from the tetra_edge_length parameter. Since the tetrahedron edge length is a diagonal of a cube face, the cube_edge_length is equal to sqrt(1/2)*tetra_edge_length
