Crash Detection Module Based on MPU6050 and Raspberry Pi Pico

This is a project based on accelerometer to detect and alert the in event of a vehicle crash or accident.

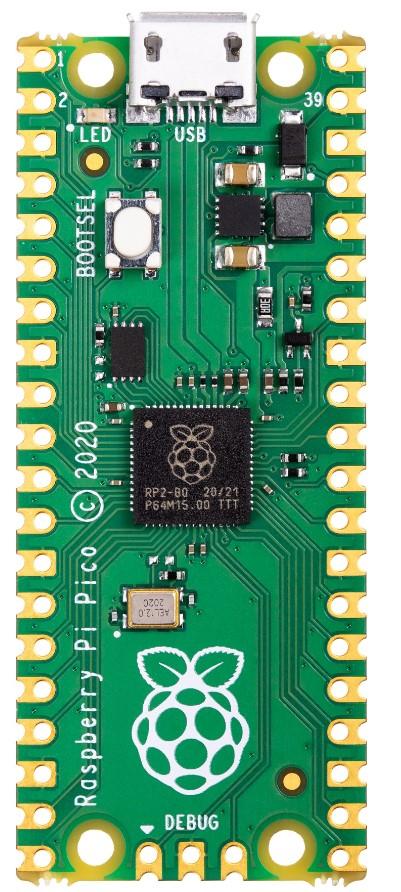

Raspberry Pi Pico

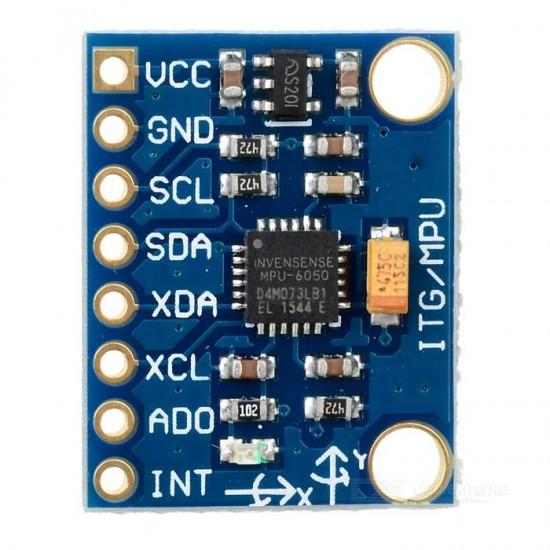

MPU6050 module

Active Buzzer

Breadboard

Solid core wires

Micro USB cable

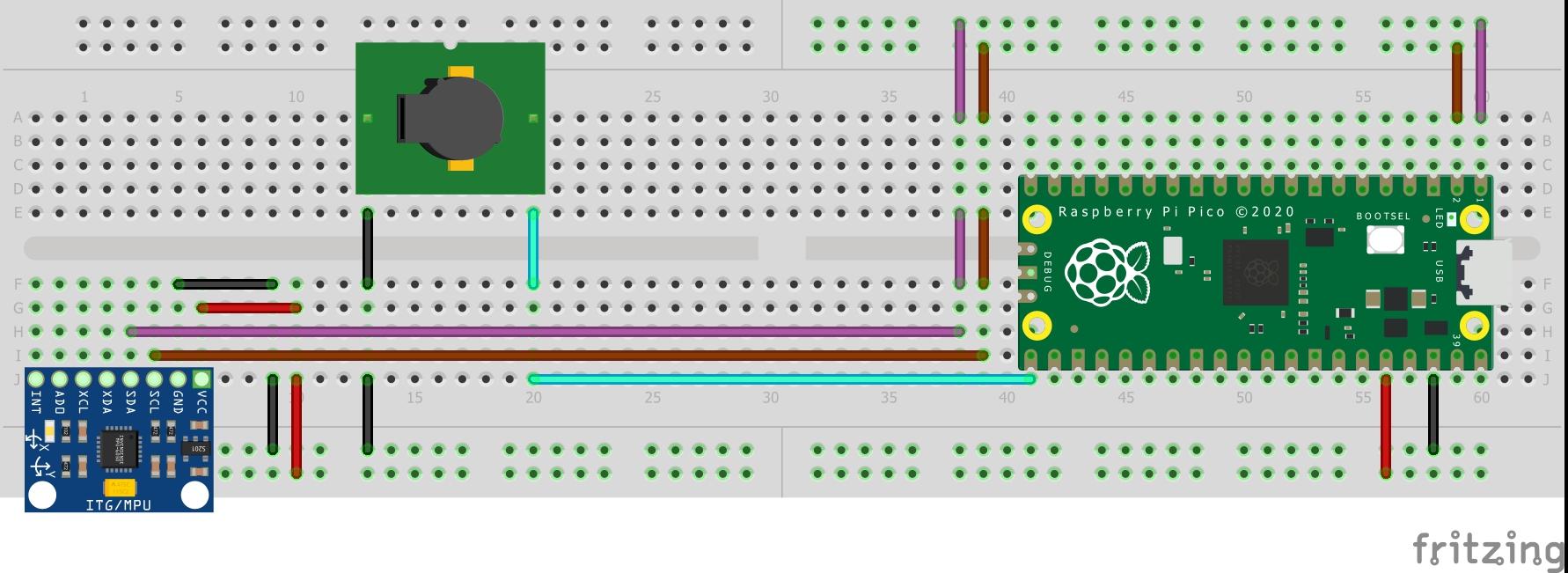

Do the wiring and note the GPIO pins you are using for later use in writng code

Install thonny from provided link from here

Hold the bootsel button while connecting raspberry to the computer.Open thonny and go tools> options>interpreter>micropython(raspberry pi pico)

from imu import MPU6050
import time
from machine import Pin, I2C


i2c = I2C(0, sda=Pin(0), scl=Pin(1), freq=400000)
imu = MPU6050(i2c)
buzzer = Pin(16, Pin.OUT)


ax=[0,0]
ay=[0,0]
az=[0,0]


while True:


        ax[0]=(imu.accel.x)
        ay[0]=(imu.accel.y)
        az[0]=(imu.accel.z)
        ax[1]=(imu.accel.x)
        ay[1]=(imu.accel.y)
        az[1]=(imu.accel.z)


        if abs(ax[0]-ax[1])>1 or abs(ay[0]-ay[1])>1 or abs(az[0]-az[1])>1 :


            buzzer.toggle()
            time.sleep(0.1)
            buzzer.toggle()


        print(abs(ax[0]-ax[1]), abs(ay[0]-ay[1]),abs(az[0]-az[1]))
