Corner Shelf for Plants in Wood and Metal

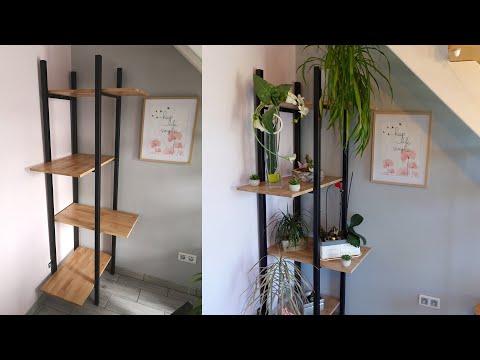

I'm getting into arc welding! I bought a small inverter welding machine and here is my first creation with: a shelf made up of a welded steel structure and 4 solid beech trays.

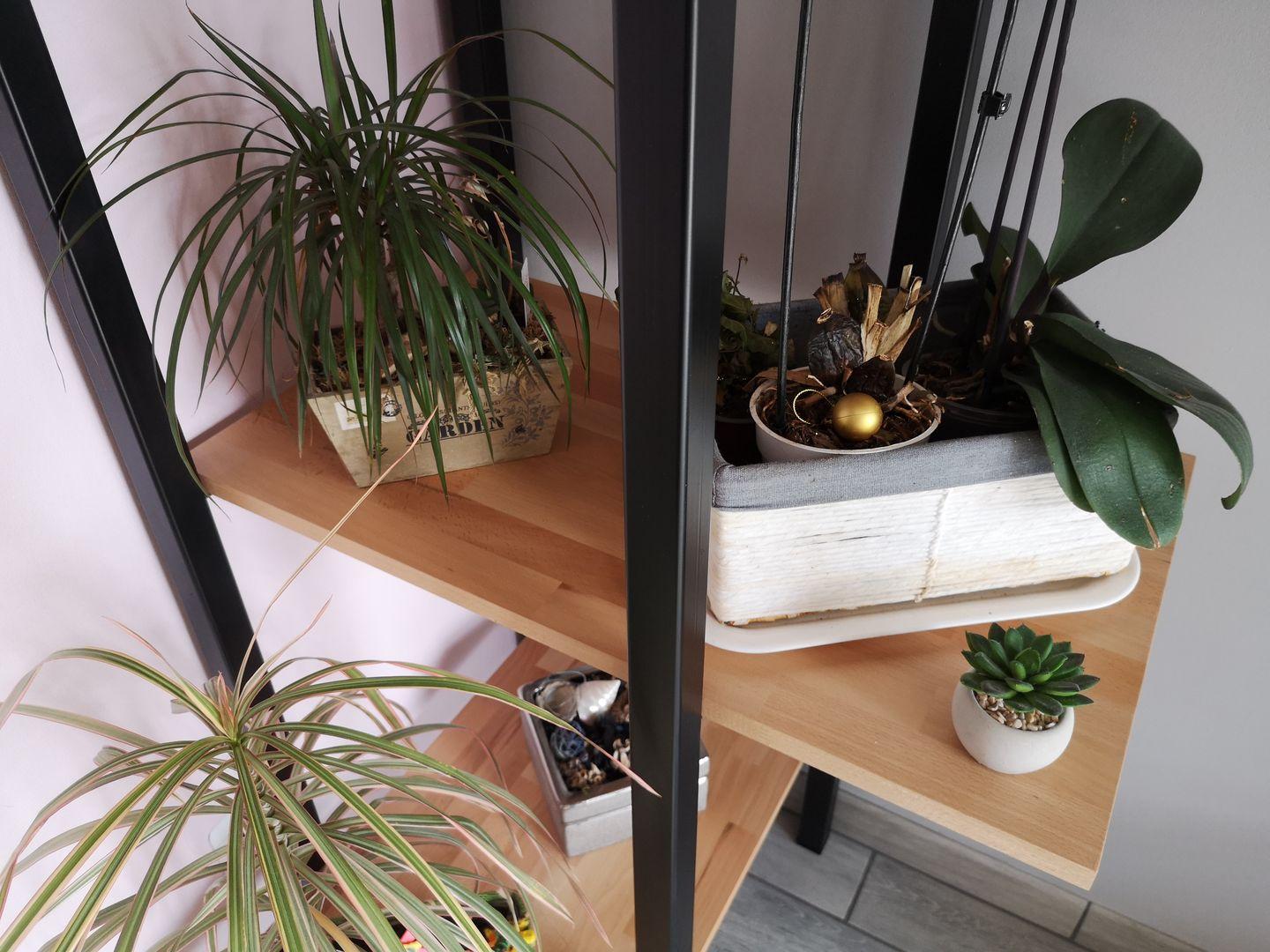

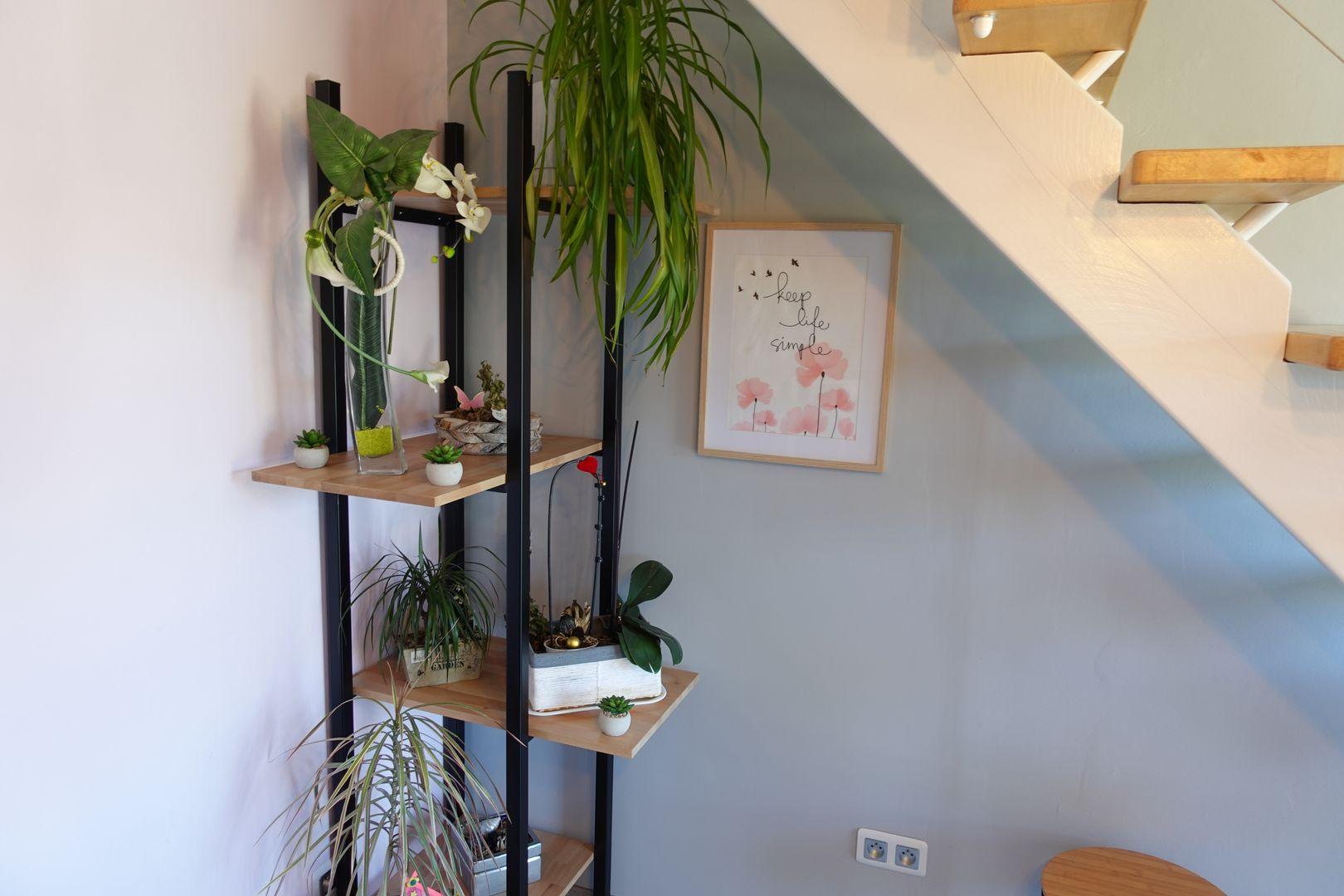

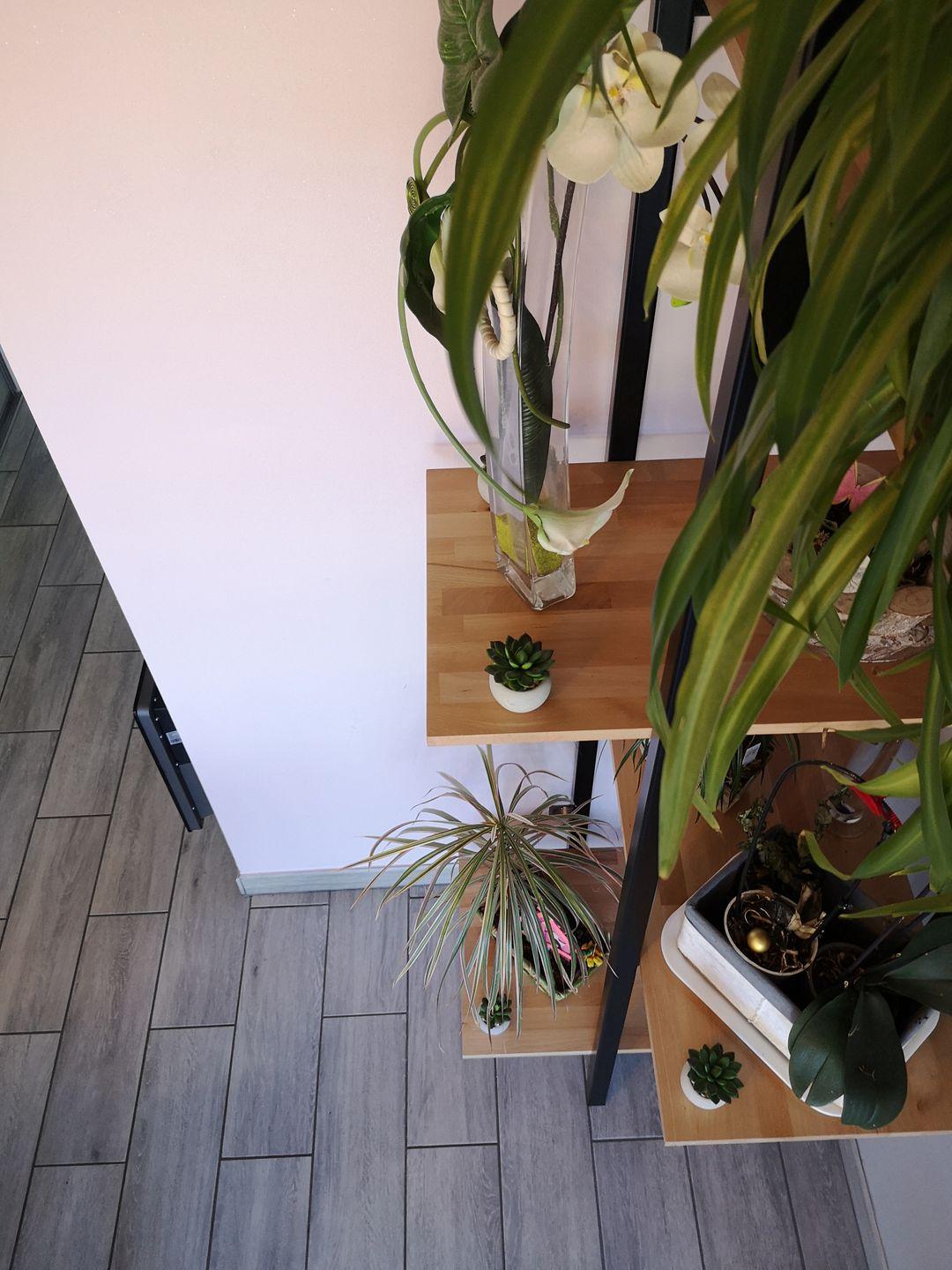

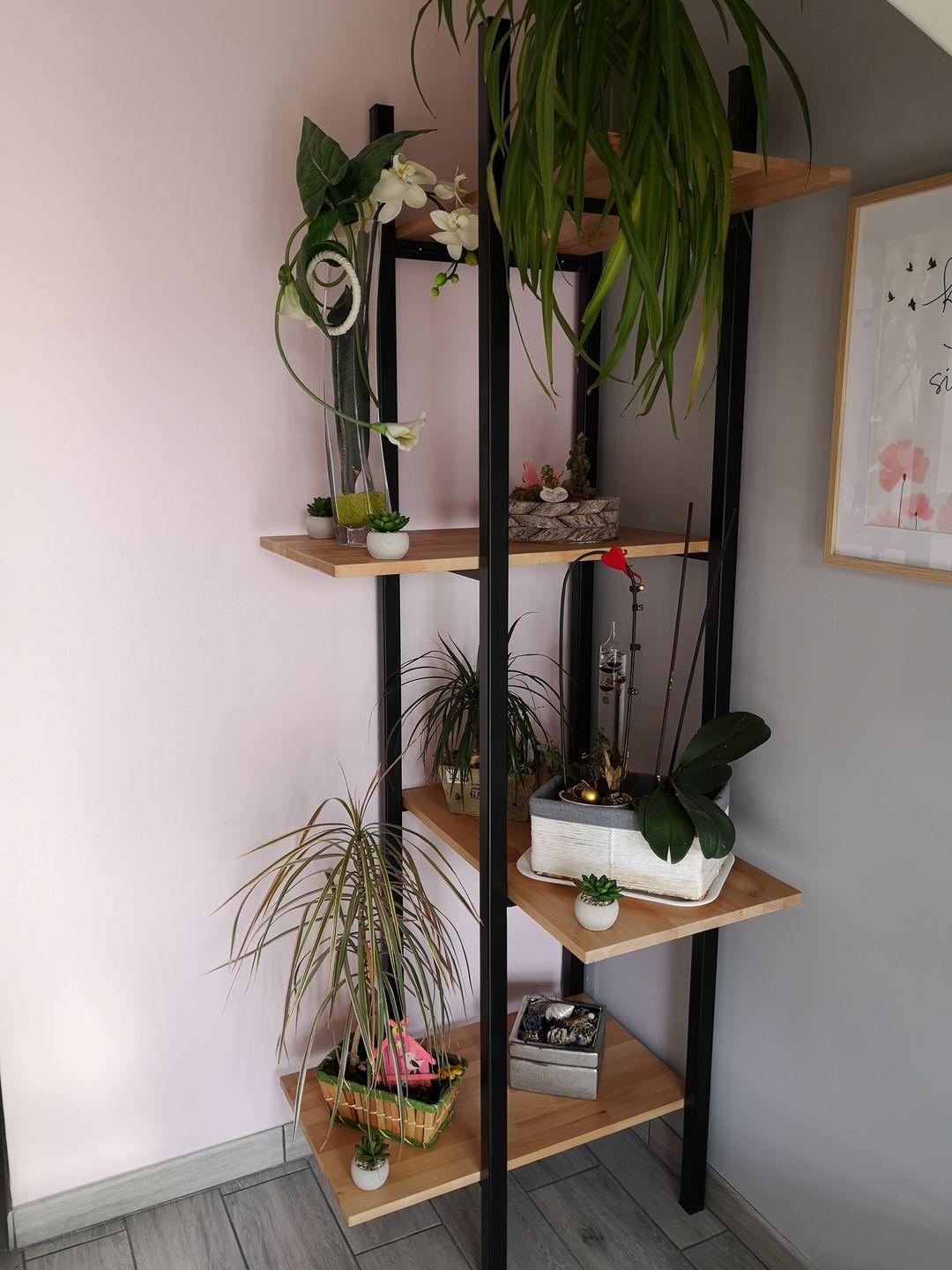

It is installed in a corner of a room and receives green plants of different sizes.

Total height: 2m
Dimensions of a tray: 40x70 cms

Tools:

• metal Cut-Off Saw
• MMA welding machine
• drill press
• circular saw
• screwdriver

Material:

• 4 square steel tubes, length 2m, section 35mm, thickness 2mm
• 2 raw iron angles, length 2m, section 21mm, thickness 3mm
• 2 glued laminated beech shelves 200x40 cms, 18mm thick
• 2 cans of black satin effect spray paint 400mL
• 4 plastic 35mm square end caps
• anti-rust primer
• glazier
• screws

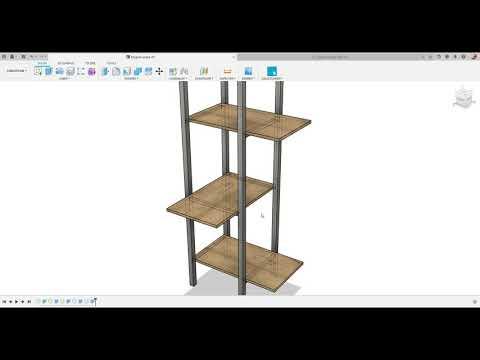

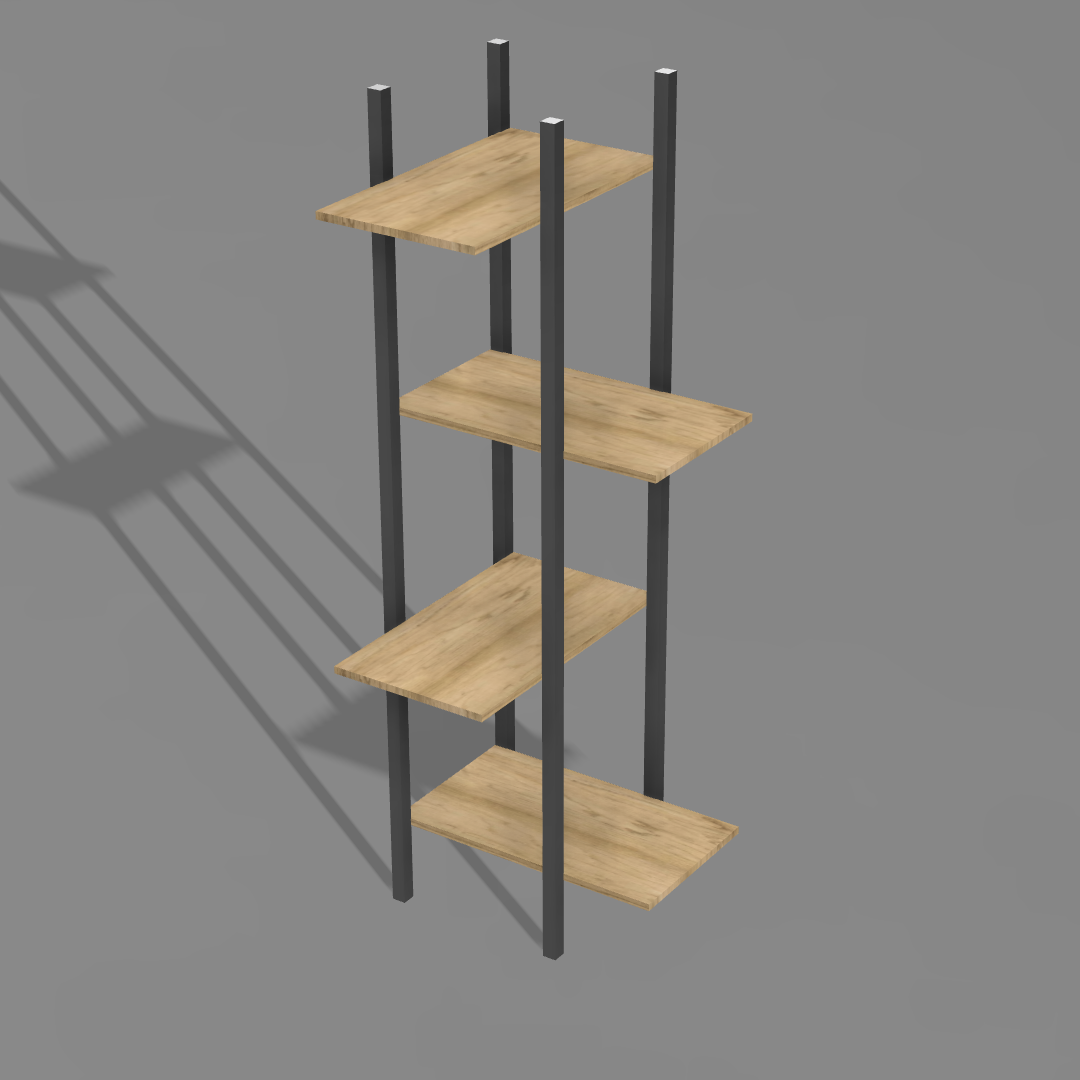

Drawing the project in 3D allows you to better understand the result but also to make precise plans that are easy to follow, which avoids errors.

For that I used Fusion 360 !

https://a360.co/3eDzusq

The plans are available in PDF format.

The metal structure is made up of two different elements: square tubes and angle profiles.

I bought the square tubes in 2m length, so no need to cut them. For the steel angles, I cut them with a small Cut-Off Saw.

Then I grinded the edge of the pieces to remove the burrs and improve the grip of the weld.

I also drilled 3 holes on each bar so that I could screw the wood planks into it.

I cleaned the metal with a grinder fitted with a flap disc, then I traced the location of the top of the angles.

I degreased the parts well with acetone.

I bought a small welding machine (Gysmi 160P) and the necessary protective equipment. I start in welding with the first tests were not necessarily conclusive. There are welds that I had to start over !

I used magnetic brackets to hold the pieces.

Then I smoothed the welds with a flap disc to have something more "beautiful".

Once well degreased, I spent a first coat of spray antirust primer.

And then I applied 2 coats of satin black spray paint.

I put plastic caps on the ends of the tubes.

I cut the 4 trays in solid beech glued laminated 18mm thick.

I used for this my new plunge saw that I paid myself thanks to the contest that I won recently!

I applied 2 coats of wood sealer.

The objective is to protect it from possible water splashes when watering the plants.

I used special staircase vitrifier V33 which I had left.

The 4 trays are installed and screwed from below with small flat head screws.

In the same principle, you can imagine any kind of size and shape! A bookcase, a shoe cabinet... get started!

If you like this Instructable, please consider voting for me in the furniture contest!

And if you have any questions, I'm here to help!
Any advice for me? I like to learn too!
