Cordless Tool Charging Station
by TheCarmichaelWorkshop in Workshop > Organizing
23008 Views, 447 Favorites, 0 Comments
Cordless Tool Charging Station
![Cordless Tool Charging Station](/proxy/?url=https://content.instructables.com/FNK/Z6H2/IKPQ1DZ2/FNKZ6H2IKPQ1DZ2.jpg&filename=Cordless Tool Charging Station)
![1.jpg](/proxy/?url=https://content.instructables.com/FFK/K2H3/IKPQ1E37/FFKK2H3IKPQ1E37.jpg&filename=1.jpg)
Unlike many other drill charging stations, this one is designed to hold a whole combo set of cordless tools. It's made from one 2'x4' sheet of 3/4" plywood for less than $20. Watch my video to see how I made it, then follow the steps in this Instructable.
Click here to get the plans and more photos on my website.
Tools: Saw, Drill, Tape Measure, Square
Supplies: 3/4" Plywood 2'x4', Sandpaper, Spray Adhesive, 1-5/8" Screws, Mounting Hardware
Rip the Plywood
![01.jpg](/proxy/?url=https://content.instructables.com/FJH/C96I/IKPQ1JSO/FJHC96IIKPQ1JSO.jpg&filename=01.jpg)
![02.jpg](/proxy/?url=https://content.instructables.com/FFJ/NPFV/IKPQ1JSQ/FFJNPFVIKPQ1JSQ.jpg&filename=02.jpg)
Rip one 16" x 48" piece from the plywood. Rip the remaining piece in half lengthwise to make two pieces for the sides, which will be about 3.75" x 48" each.
Tool Tip - You can easily make this project with a circular saw or jigsaw using a straight edge or even just by following a straight line. Just be patient because it might take a little longer.
Crosscut the Shelves
![03.jpg](/proxy/?url=https://content.instructables.com/FS8/GYEL/IKPQ1L4N/FS8GYELIKPQ1L4N.jpg&filename=03.jpg)
![04.jpg](/proxy/?url=https://content.instructables.com/FRI/YNAU/IKPQ1L4Z/FRIYNAUIKPQ1L4Z.jpg&filename=04.jpg)
Crosscut the 16"x48" piece into shelves. I cut three 8"x16" shelves and two 10.5"x16" shelves. This left me with an off-cut of about 2.5"x16" that I could use as a mounting cleat.
Note: Measure your tools to determine how many shelves you need and how deep they need to be.
Customize the Shelves
![05.jpg](/proxy/?url=https://content.instructables.com/FH1/I0TU/IKPQ1LY9/FH1I0TUIKPQ1LY9.jpg&filename=05.jpg)
![06.jpg](/proxy/?url=https://content.instructables.com/FSH/8IIT/IKPQ1LZ1/FSH8IITIKPQ1LZ1.jpg&filename=06.jpg)
![07.jpg](/proxy/?url=https://content.instructables.com/FHR/HOFU/IKPQ1LZ2/FHRHOFUIKPQ1LZ2.jpg&filename=07.jpg)

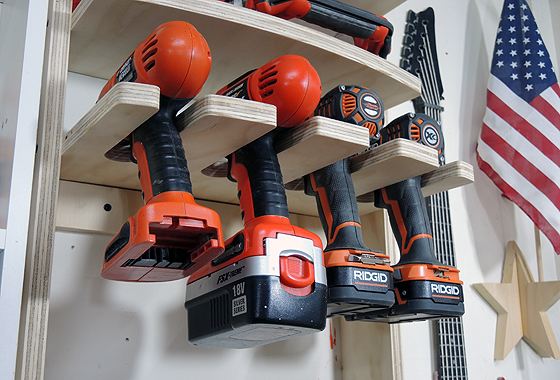

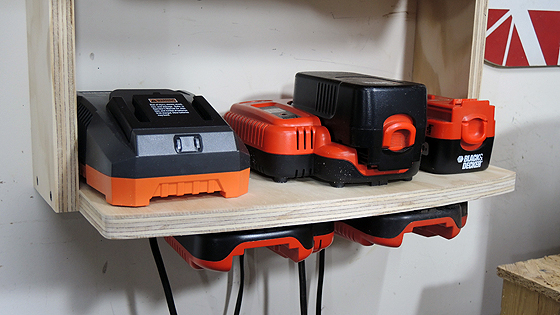

Make any additional cuts to customize the shelves to hold your tools. I cut a slot in the circular saw shelf for the blade to sit in. I made a cutout in the back of the charger shelf for power cables to pass through. I also cut slots to hold my drills. For a decorative touch, I cut a curve on the front edge of all of the shelves.
Tip - This is your chance to get creative with both form and function. Make it look cool!
Assembly
![08.jpg](/proxy/?url=https://content.instructables.com/FPE/FREF/IKPQ1M6A/FPEFREFIKPQ1M6A.jpg&filename=08.jpg)
Space the shelves out so the openings are big enough for your tools, then drill pilot holes and screw on the sides. Use a square to make sure everything is parallel and perpendicular.
Note: I did not use glue in case I want to move the shelves around in the future.
Top It Off (Optional)
![09.jpg](/proxy/?url=https://content.instructables.com/FQN/63XJ/IKPQ1MCC/FQN63XJIKPQ1MCC.jpg&filename=09.jpg)

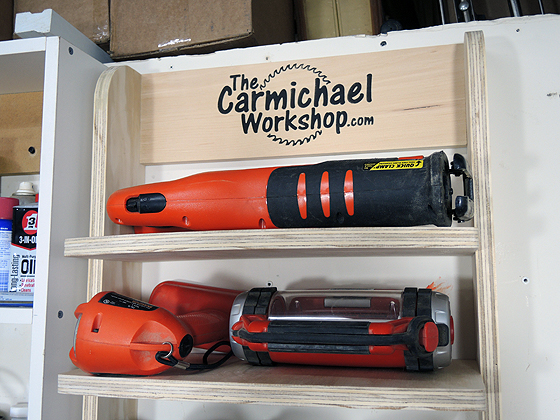

When I finished assembly, the top was just calling for a brace with my logo on it. I used my X-Carve to carve my logo into a 5"x16" board, then I painted the carving black and attached it for a brace. I think this was the cherry on top!
Mount It and Fill It Up With Tools!
![10.jpg](/proxy/?url=https://content.instructables.com/FAF/1KNQ/IKPQ1NDU/FAF1KNQIKPQ1NDU.jpg&filename=10.jpg)
![2.jpg](/proxy/?url=https://content.instructables.com/FQI/XGH4/IKPQ1MVK/FQIXGH4IKPQ1MVK.jpg&filename=2.jpg)
![3.jpg](/proxy/?url=https://content.instructables.com/FDB/25QE/IKPQ1MVU/FDB25QEIKPQ1MVU.jpg&filename=3.jpg)
![4.jpg](/proxy/?url=https://content.instructables.com/FHW/RBYO/IKPQ1MWP/FHWRBYOIKPQ1MWP.jpg&filename=4.jpg)
![5.jpg](/proxy/?url=https://content.instructables.com/FGK/OB01/IKPQ1MWQ/FGKOB01IKPQ1MWQ.jpg&filename=5.jpg)

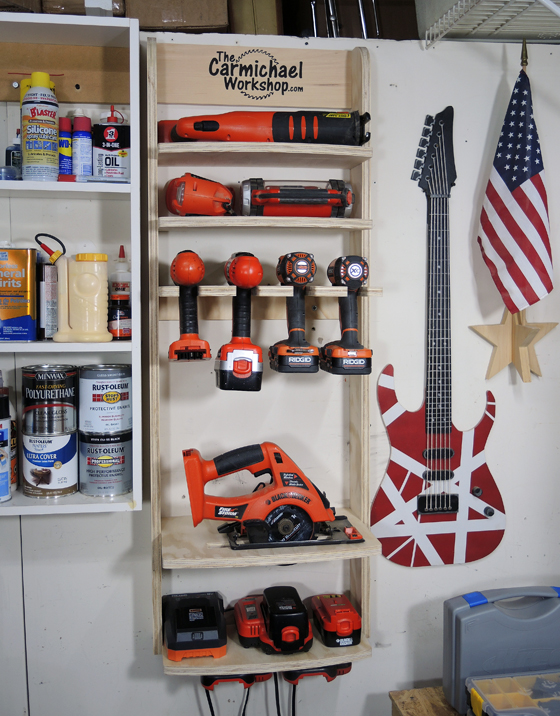

I used a small cutoff piece from the plywood to mount it on the wall. A French Cleat is a good idea for this project. It will hold a fair amount of weight for all of the tools and batteries.
I really like this design because the tools are visible from the sides and the front, unlike a box with full sides that would enclose them and be kind of dark inside. Looks sort of like a store display.
Thanks for looking at my Instructable project and I hope this gives you some ideas for organizing your cordless tools. ~ Steve...
