Cool Laptop LED Lights

BTW This is my first instructable,.. Make a cool LED lights on back of your laptop. You need to connect LEDs parallel to your speakers, leds will blink with rhythm of music yours playing.. Be careful that about your LCD, a little pressure may broke it..

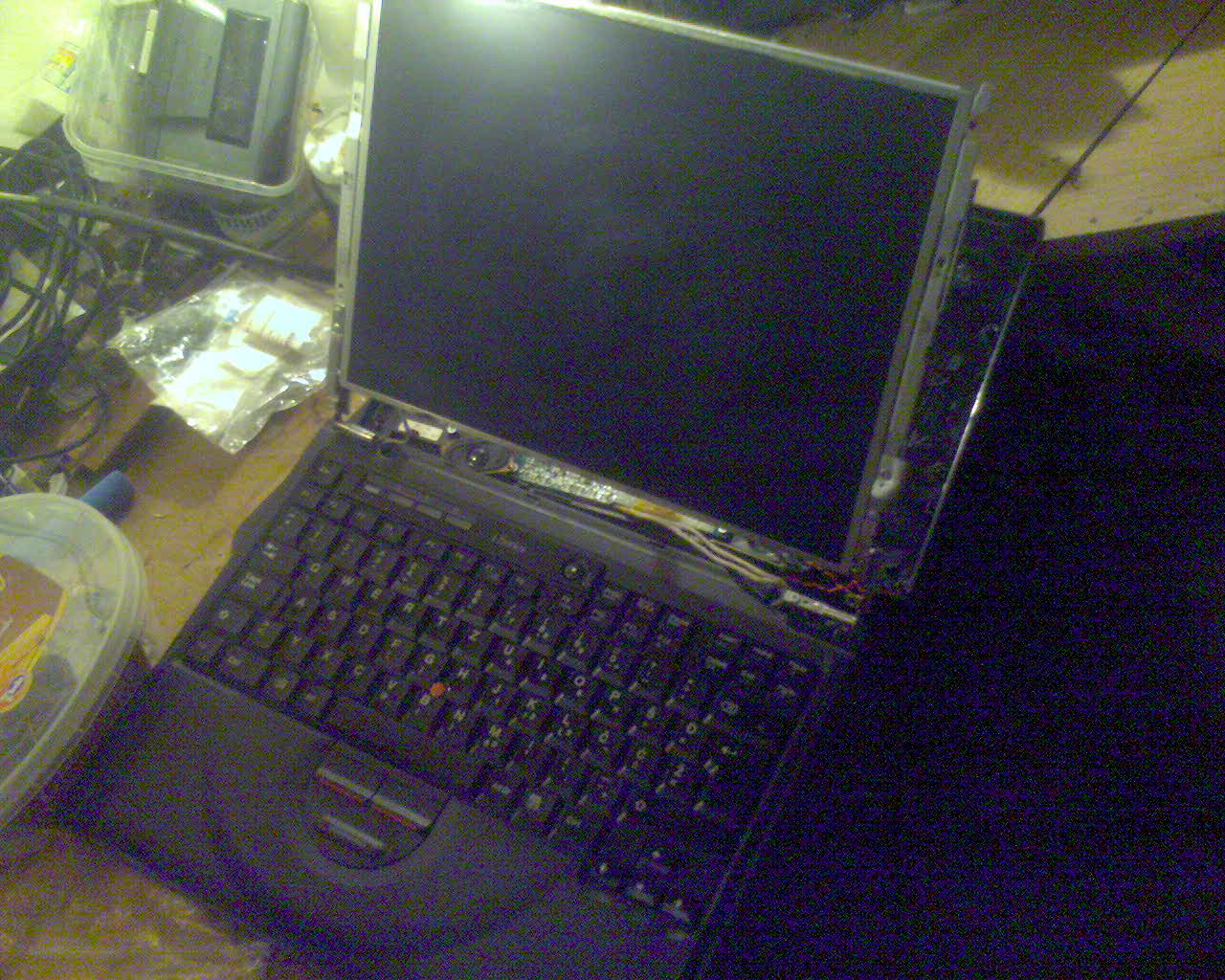

Opening Lid of Your Laptop..

First of all you must open lid of your laptop to see a situation inside, Be careful.....You must make sure that you have speakers bottom of your LCD if you want this to work, if you dont, you must take wires trough your laptop..,

Drawing on Your Lid

You draw what ever you want, skulls... Lady with tits, anything where you can put LEDs.. Now connect parallel to each speakers two wires.. I recommend to connect a 100 ohm resistor to led..High basses may burns out your LEDs..

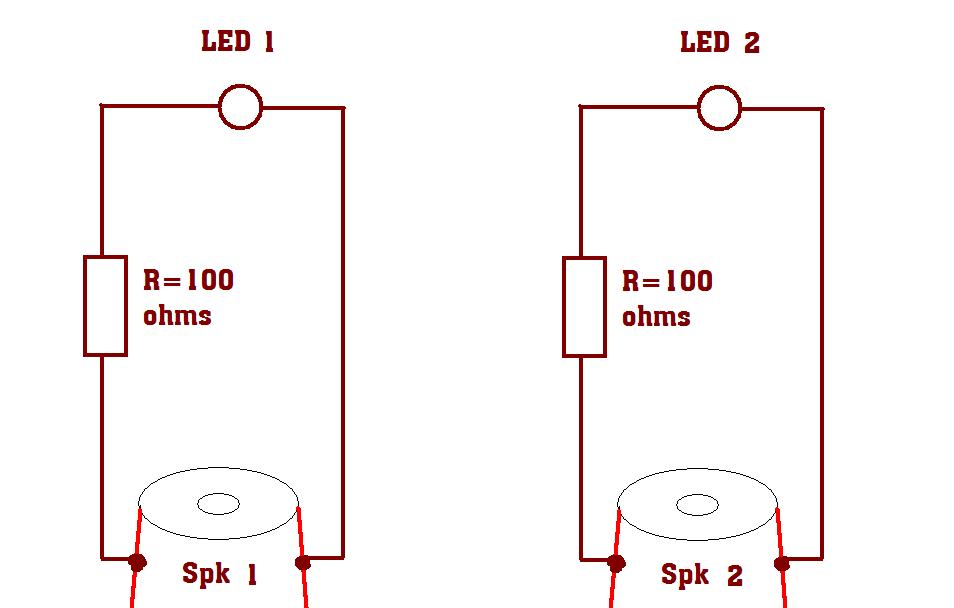

Simle Circuit Pict

This is very simple to make......

Drill Holes.

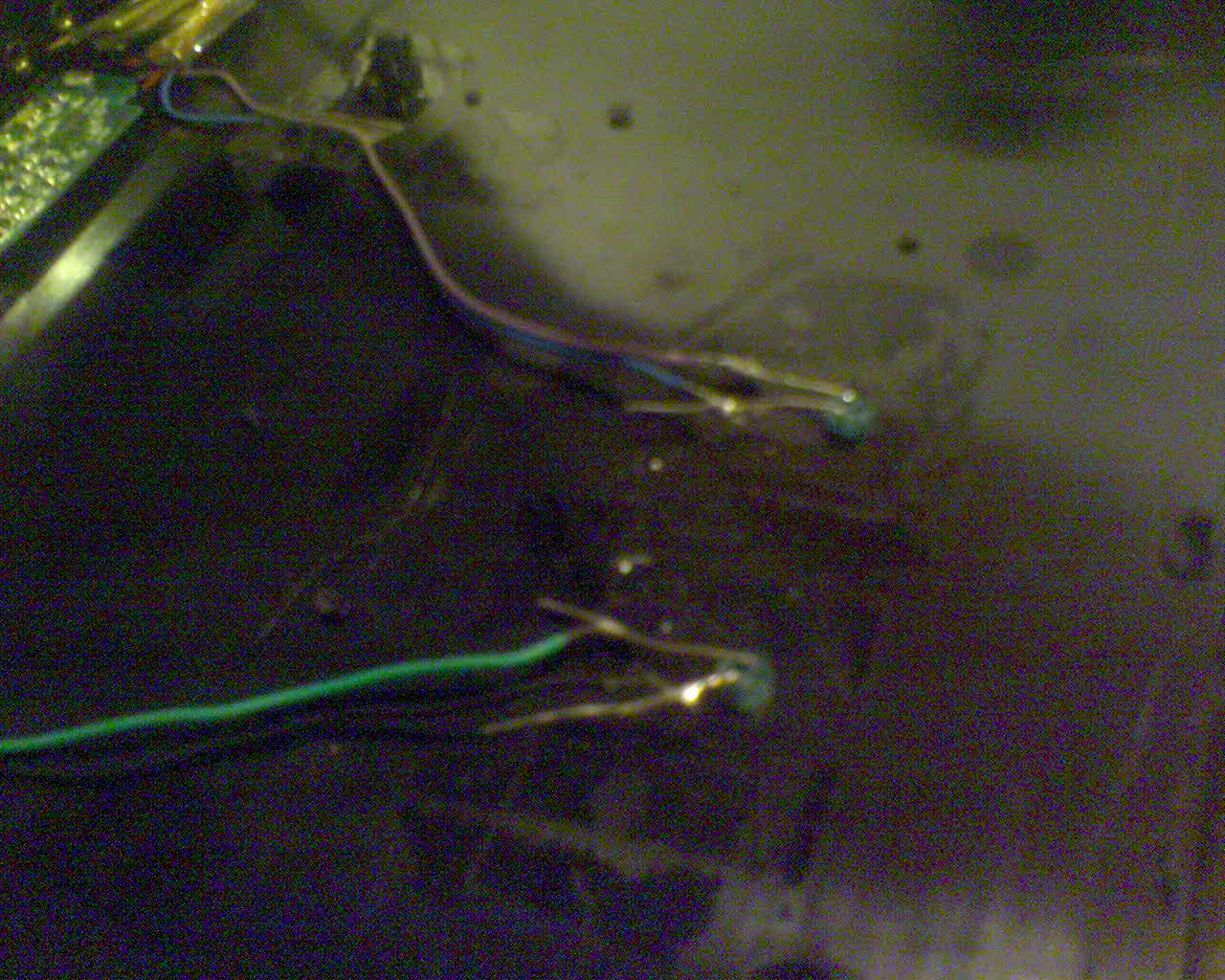

Drill two holes for LEDs and put leds inside..

Secure Your LEDs

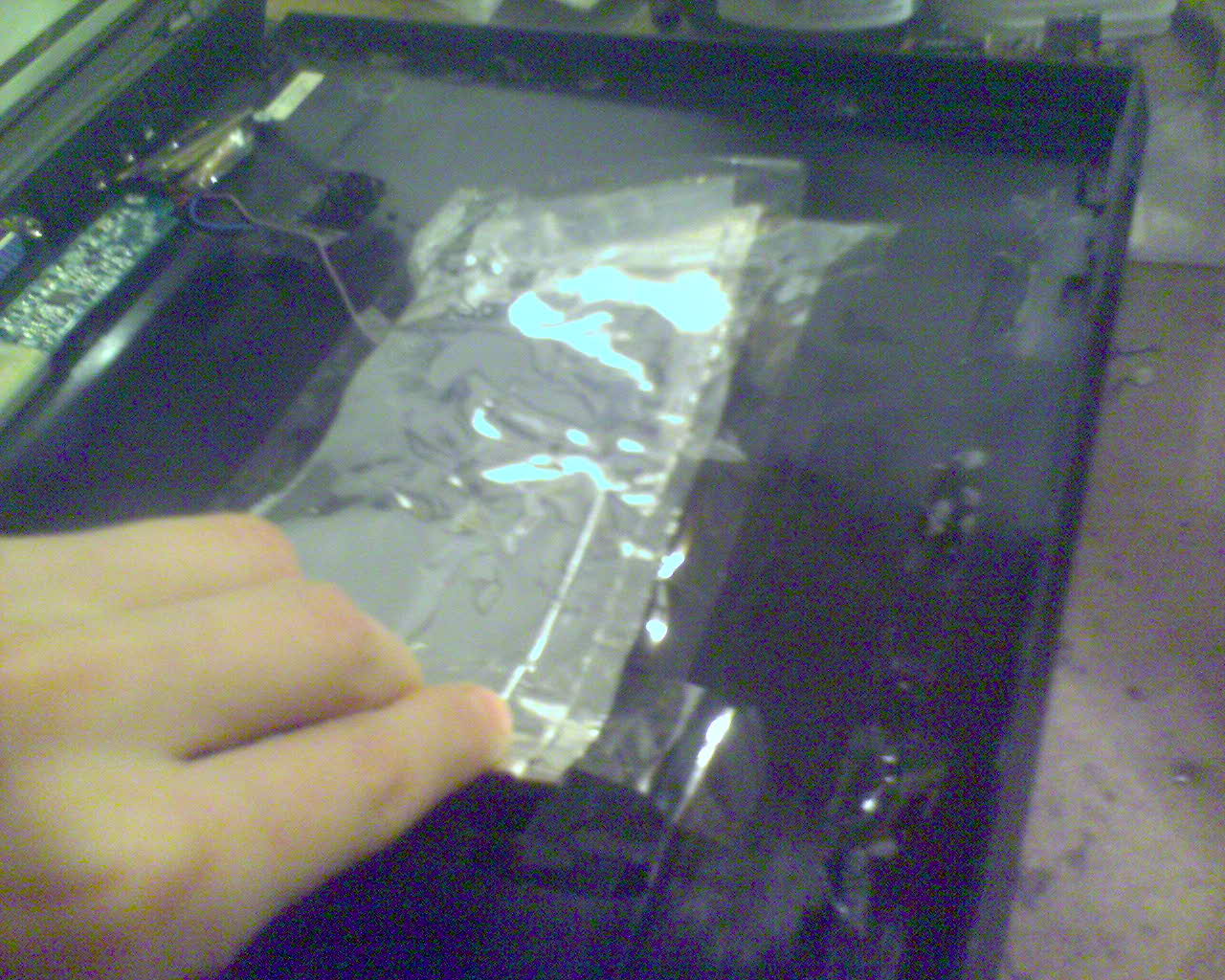

You may secure leds with wrap tape or hot glue gun.. Because external pressure may broke your LCD..

Finish It!

Put everything together and enjoy the show!!!!!!!
