Converting a 1-phase Rectifier Into a 3-phase Rectifier
by omars2 in Circuits > Electronics
6535 Views, 24 Favorites, 0 Comments
Converting a 1-phase Rectifier Into a 3-phase Rectifier
![Converting a single phase rectifier into a 3-phase rectifier (AC to DC converter): 2 steps](/proxy/?url=https://content.instructables.com/FA6/DDNB/J2UPIH83/FA6DDNBJ2UPIH83.jpg&filename=Converting a single phase rectifier into a 3-phase rectifier (AC to DC converter): 2 steps)
Hi!
This instructable is for teaching you how to convert your normal 1-phase rectifier (also called an AC to DC converter) into a 3-phase rectifier.A 3-phase rectifier is used when u have a 3-phase AC source but u need DC instead for charging your 12V batteries or operating DC LED lights and Motors.
Here is its complete step by step video.
Click here for my youtube channel :)
Rectifier and Diodes:

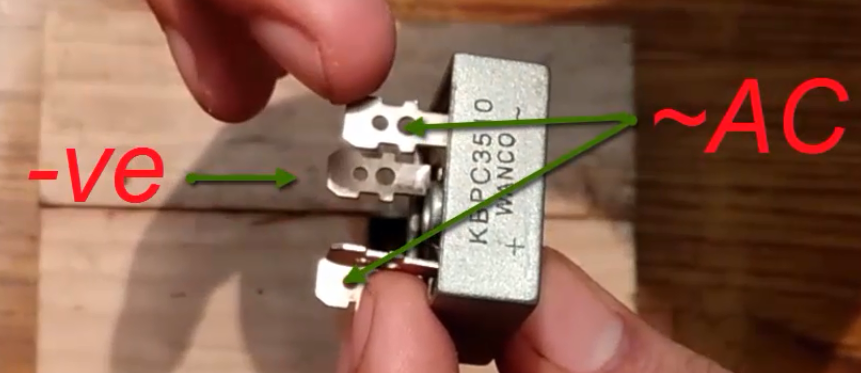

![mb.png](/proxy/?url=https://content.instructables.com/FHR/ZEJ3/J2UPIGWI/FHRZEJ3J2UPIGWI.png&filename=mb.png)
You will need one single phase bridge rectifier and 2 diodes (use power diodes for better performance)
I have used a 1-phase 35A rectifier and two 6A diodes.
Click here for my youtube channel.
Diode Connection:
![,mn.png](/proxy/?url=https://content.instructables.com/FVP/DO4M/J2UPIGQW/FVPDO4MJ2UPIGQW.png&filename=,mn.png)
![mnb.png](/proxy/?url=https://content.instructables.com/FX7/7QUN/J2UPIGX7/FX77QUNJ2UPIGX7.png&filename=mnb.png)
Connect the diodes as shown in the pics above with a wire connected in between.
Link for youtube channel.
Rectifier Wiring:
![nkk.png](/proxy/?url=https://content.instructables.com/FCG/LKW8/J2UPIGXX/FCGLKW8J2UPIGXX.png&filename=nkk.png)
![kbjkb.png](/proxy/?url=https://content.instructables.com/F4H/M5H7/J2UPIGVF/F4HM5H7J2UPIGVF.png&filename=kbjkb.png)
![hjb.png](/proxy/?url=https://content.instructables.com/FS1/TEWE/J2UPIGV3/FS1TEWEJ2UPIGV3.png&filename=hjb.png)
Connectors are to be connected to the terminals of the rectifier as shown in the pictures.
You will then be left with 2 open terminals to which AC connections are to be made.
The connectors are from the 12V 7Ah Lead Acid UPS Battery.
youtube channel link.
Completing the Remaining Circuit:
![mbm.png](/proxy/?url=https://content.instructables.com/FYH/EOJK/J2UPIGWV/FYHEOJKJ2UPIGWV.png&filename=mbm.png)
![NJM.png](/proxy/?url=https://content.instructables.com/FM0/HPOA/J2UPIS0X/FM0HPOAJ2UPIS0X.png&filename=NJM.png)
The 2 diodes have to be connected exactly as shown in the picture. ie The negative terminal of the diode will be connected to the +ve terminal of the rectifier and vise versa.
The tapping point of the 2 diodes will be the 3rd AC input terminal where as the other 2 AC terminal are on the rectifier itself.
Well done!!
Your circuit is complete :) :D
For full step by step video.
