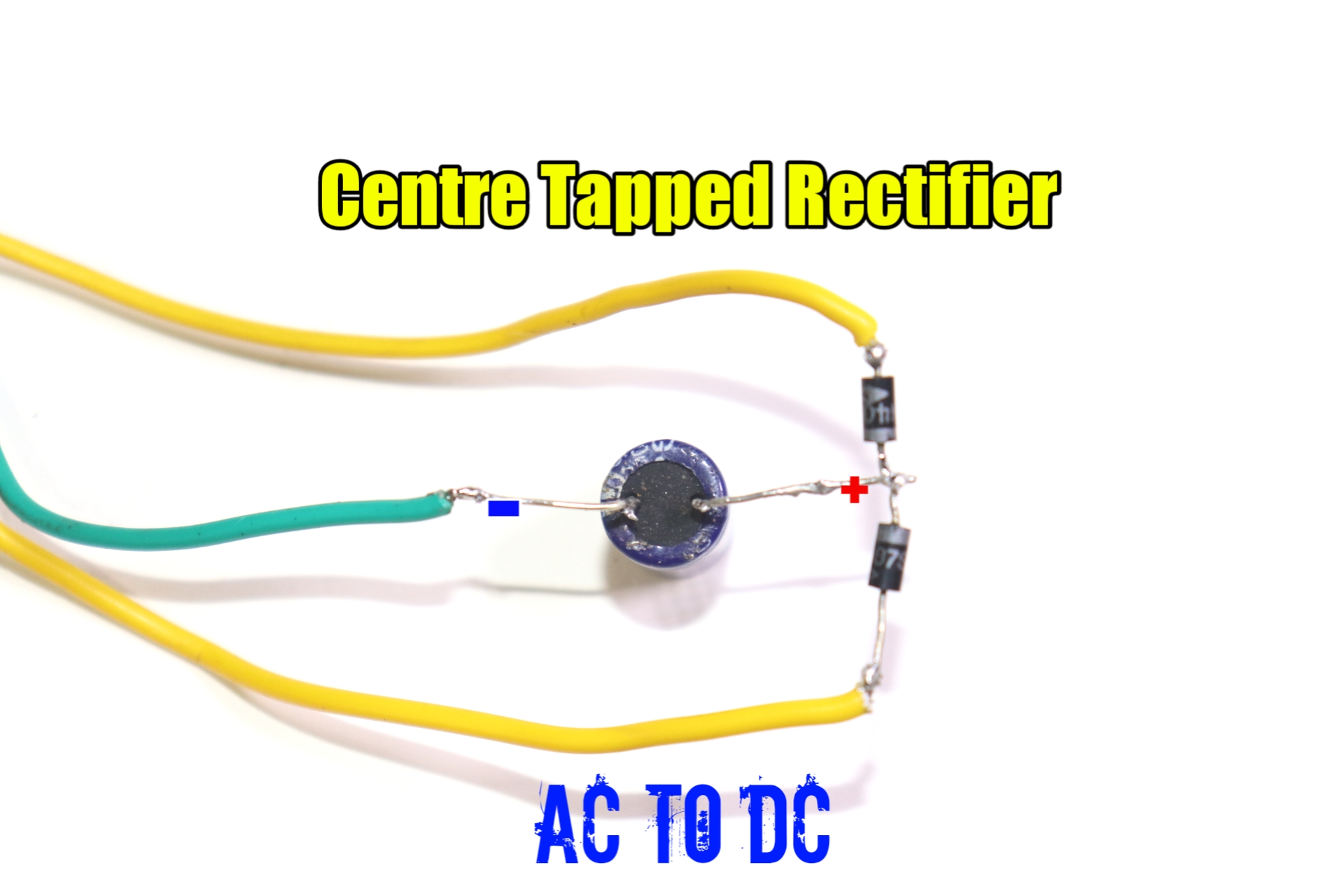

Convert AC to DC by Centre Tapped Rectifier
by Utsource123 in Circuits > Electronics
1990 Views, 1 Favorites, 0 Comments
Convert AC to DC by Centre Tapped Rectifier
Hii friend,
Today I am going to make a circuit of centre tapped rectifier.This is a full wave rectifier that will convert AC to DC.This circuit will give output DC with full wave.This is the type of full wave rectifier.
Let's get started,
Take All Materials As Shown
Materials required -
(1.) Step-down Transformer - (For AC power supply)
(2.) pn-junction diode - 1N4007 x2
(3.) Capacitor - 25V 1000uf
Connect Diodes
This transformer is 12-0-12.It converts 220V AC to 12V AC.
Connect Anode side of both diodes in 12-wire of transformer as you can see in the picture.
Connect Cathode of Both Diodes
Next we have to connect Cathode side of both diodes each other as you see in the picture.
Solder Capacitor
Now we have to solder capacitor to reduce the fluctuations of output DC power.
Solder Positive (+ve) pin of capacitor to the Cathode side of diodes and
solder Negetive (-ve) pin of capacitor to 0-wire of transformer as solder in the picture.
Connect Wires for Output
Now we have to connect wires for output power to the circuit.
Connect wires parallel with capacitor for output power supply.
DC Output wires -
From the +ve pin of capacitor will be +ve output of DC and
-ve of capacitor will be the -ve output of DC power supply as shown in the picture,
This DC power supply can use in various electronic devices.
Thank you
