Controlling LED With IR Remote

Hello. My name is Ram Chakka. I am a 6th grader. I hope you like this project!

Hello! Today we are going to control a LED using a IR Remote!

Materials Needed:

• Arduino Uno
• LED
• 220 ohm resistor
• IR remote and reciever
• jumper wires

Now it is time to build the circuit!

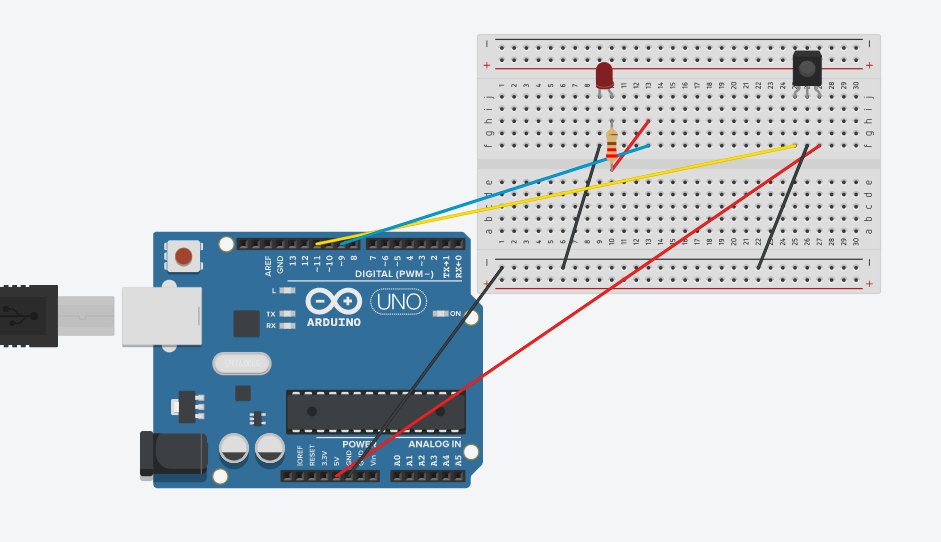

Here are the connections:

• IR Receiver: Power - 5V, GND - GND, OUT - 11
• LED: Anode - 9 with resistor, Cathode - GND

The code is attached below:

Now you can control your led with a remote! Try to add more LED's to control!

I hope you liked this project. Bye Bye!
