Controling 28BYJ-48 Stepper Motor With Arduino and Fly Sky
by MalinaPl in Circuits > Arduino
291 Views, 0 Favorites, 0 Comments
Controling 28BYJ-48 Stepper Motor With Arduino and Fly Sky
![370590289_816356826636207_6739648332810682574_n.jpg](/proxy/?url=https://content.instructables.com/FX4/2CXJ/LLTGPWBT/FX42CXJLLTGPWBT.jpg&filename=370590289_816356826636207_6739648332810682574_n.jpg)
![356595092_1405780603325193_1864629879970578448_n.jpg](/proxy/?url=https://content.instructables.com/FB2/FTME/LLTGPW9A/FB2FTMELLTGPW9A.jpg&filename=356595092_1405780603325193_1864629879970578448_n.jpg)
Hello. I've made this circuit for my RC Sailing model. My goal was to precisly rotate the masts of the model with adjustable speed. I decide to use 28BJ-48 Stepper motor and uln 2003 Driver. Rc ransmiter i used is flysky Fs-i6X and FS 10IAB receiver. You will need also Arduino board. I used arduino nano.
Supplies
-Fly sky-I6X transmitter
-FS 10IAB reciver
-28BJ-48 Stepper motor
-uln 2003 Driver
-Arduino Nano
-5 v power supply, or any other and 5 v regulator.
Code

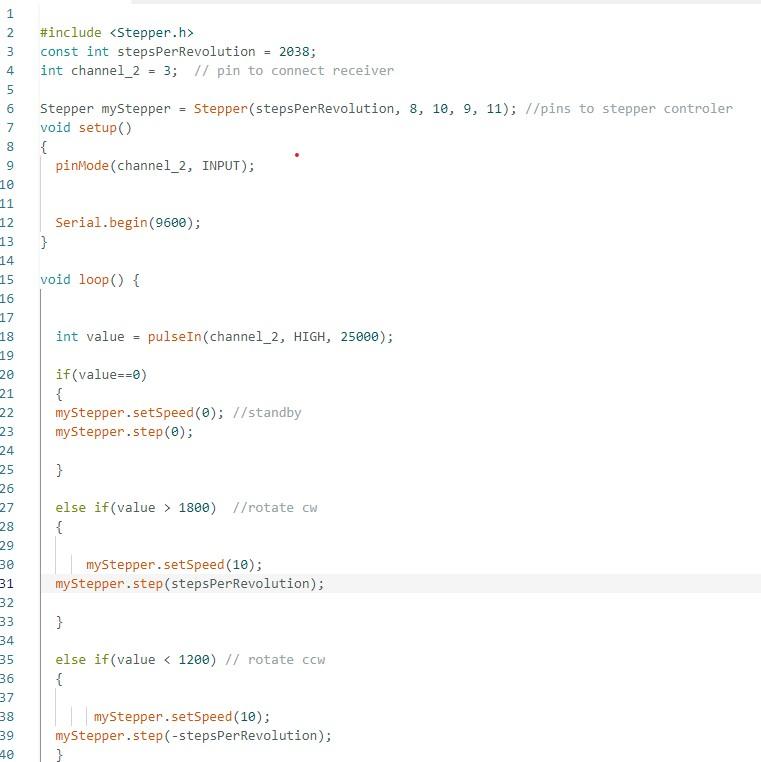

![Arduino.jpg](/proxy/?url=https://content.instructables.com/FYM/UG16/LLTGPW2C/FYMUG16LLTGPW2C.jpg&filename=Arduino.jpg)
The code is simple, it only uses 5 pins on the arduino board. Library "Stepper.h" is used.
Pin Number 3 is responsible for reading data from the Rc transmitter. Pins 8,9,10,11 control the operation of stepper motors.
#include <Stepper.h>
const int stepsPerRevolution = 2038;
int channel_2 = 3; // pin to connect receiver
Stepper myStepper = Stepper(stepsPerRevolution, 8, 10, 9, 11); //pins to stepper controler
void setup()
{
pinMode(channel_2, INPUT);
Serial.begin(9600);
}
void loop() {
int value = pulseIn(channel_2, HIGH, 25000);
if(value==0)
{
myStepper.setSpeed(0); //standby
myStepper.step(0);
}
else if(value > 1800) //rotate cw
{
myStepper.setSpeed(10);
myStepper.step(stepsPerRevolution);
}
else if(value < 1200) // rotate ccw
{
myStepper.setSpeed(10);
myStepper.step(-stepsPerRevolution);
}
}
Circuit
![Gotowy.jpg](/proxy/?url=https://content.instructables.com/F9O/S3NI/LLTGPVXW/F9OS3NILLTGPVXW.jpg&filename=Gotowy.jpg)
Connect the VIN and gnd pins to 5v power. We can use a higher voltage, but you will need a 5v voltage regulator as stepper motors is rated for 5v. Pin 3 connect with ch2 (signal) Pin 8 - in1 Pin9 - in2 Pin 10-in3 Pin 11-in4 To organize everything, it is worth using a universal PCB. I used a 5x7cm tile. I connected everything using connectors and gold pins.
Video
I've made video of builiding all project, Here is Code and electronics chapter.
https://www.youtube.com/watch?v=iMCD9L0SLgg&t=572s
