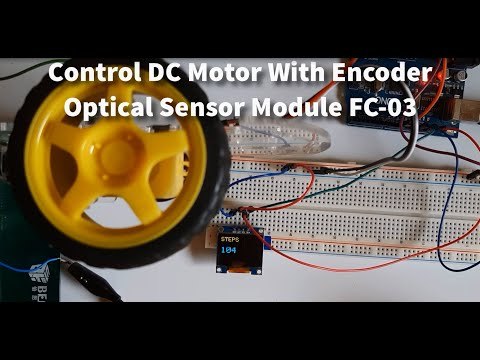

Control DC Motor With Encoder Optical Sensor Module FC-03

Control DC Motor With Encoder Optical Sensor Module FC-03

In this tutorial we will learn how to count Optical encoder interrupts using a DC motor, OLED display and Visuino.

Watch the video!

What You Will Need

  • Arduino UNO (or any other Arduino)
  • Optical Coupling Sensor Module FC-03
  • DC motor
  • Encoder wheel (with holes) that you attach on the DC motor
  • OLED Display
  • Jumper wires
  • Breadboard
  • Visuino program: Download Visuino

The Circuit

  • Connect OLED Display pin [VCC] to Arduino pin [5V]
  • Connect OLED Display pin [GND] to Arduino pin [GND]
  • Connect OLED Display pin [SCL] to Arduino pin [5V]
  • Connect Encoder FC-03 pin [VCC] to Arduino pin [5V]
  • Connect Encoder FC-03 pin [GND] to Arduino pin [GND]
  • Connect Encoder FC-03 pin [D0] to Arduino digital pin [10]
  • Connect power supply [3-6V] to the DC motor

Start Visuino, and Select the Arduino UNO Board Type


To start programming the Arduino, you will need to have the Arduino IDE installed from here: https://www.arduino.cc/.

Please be aware that there are some critical bugs in Arduino IDE 1.6.6. Make sure that you install 1.6.7 or higher, otherwise this Instructable will not work! If you have not done follow the steps in this Instructable to setup the Arduino IDE to program Arduino UNO! The Visuino: https://www.visuino.eu also needs to be installed. Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

In Visuino ADD and Set Components


  • Add "SSD1306/SH1106 OLED Display (I2C)" component

Double click on the "DisplayOLED1" component and:

in the Elements window drag "Draw Text" to the left side, On the Left side select Draw Text1 and in the properties window set size to 2 and text: STEPS

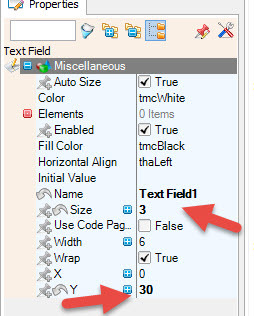

in the Elements window drag "Text Field" to the left side On the Left side select TextField1 and in the properties window set size to 3 and Y:30
Close the elements window

  • Add "Counter" component

Select Counter1 component and in the properties window set Min>Value to 0

In Visuino Connect Components

  • Connect Arduino board digital pin [10] to Counter1 pin [In]
  • Connect Counter1 pin [Out] to DisplayOLED1>TextField1 pin[In]
  • Connect DisplayOLED1 I2C pin[Out] to Arduino board pin I2C [In]

Generate, Compile, and Upload the Arduino Code


In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

Play

If you power the Arduino UNO module, and connect the DC motor to the power supply to run it the OLED Display should will show the number of interuptions (count).

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it and open it in Visuino: https://www.visuino.eu
