Component Tester

This instructable is easy to build. It will help you to find out if a component you want to use is working or not. The LED lights up if the component is working properly and is off when it's not

Components Needed

R1 = 390 Ohm/ 370 Ohm

R2 = 22K Ohm

Battery = 9V

LED=1 red better

Header Pin (3)

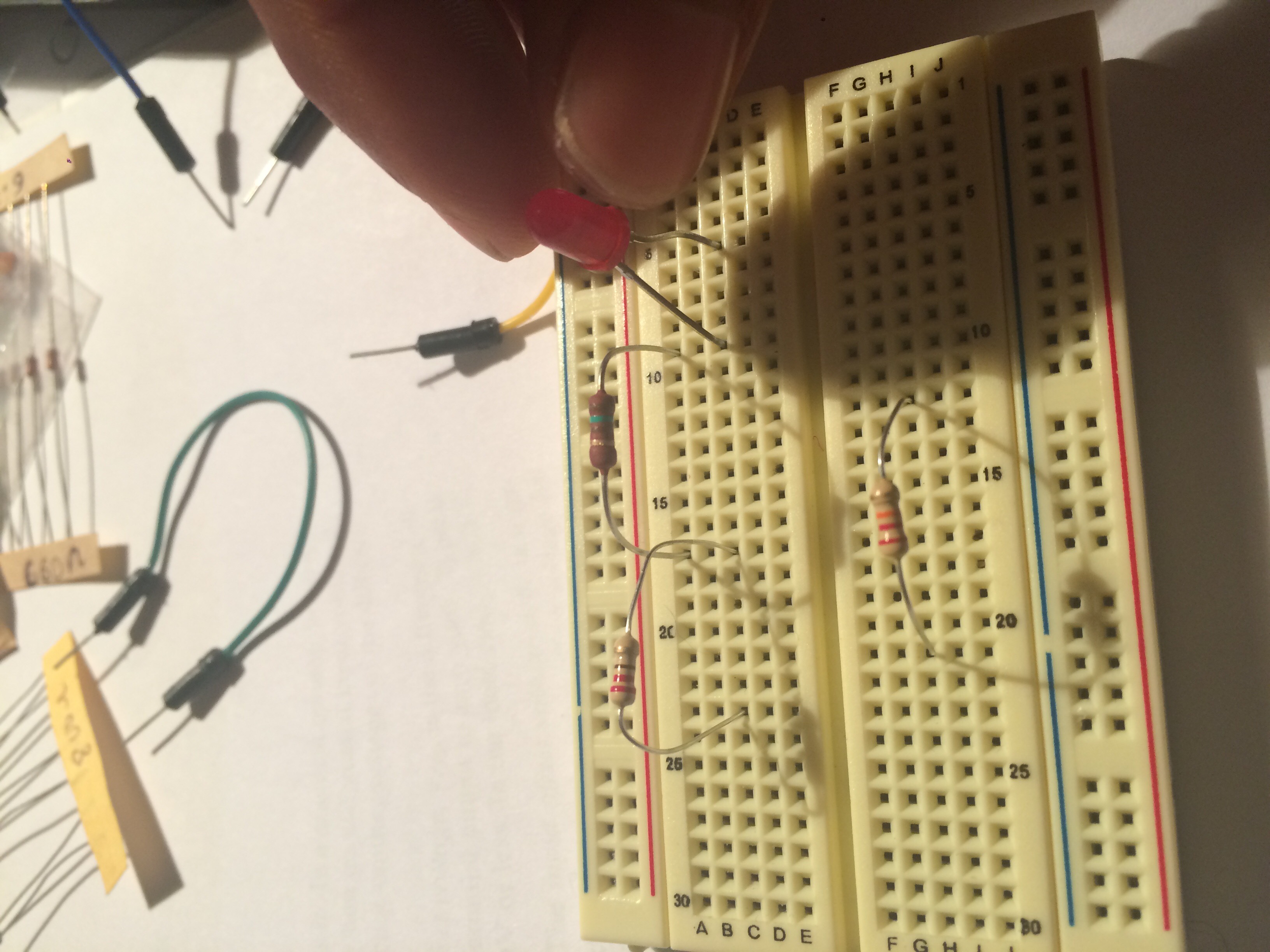

You should try it first on a solderless breadboard to be sure its working properly before building it as a device. To build it as a device, you will need the header Pin so you can insert the components in for testing.

Getting Started

You can use a solderless breadboard to start and be sure it works fine before building it on a breadboard as a permanent equipment . Tnk u any questions don't hesitate to ask ...

Components to Be Tested

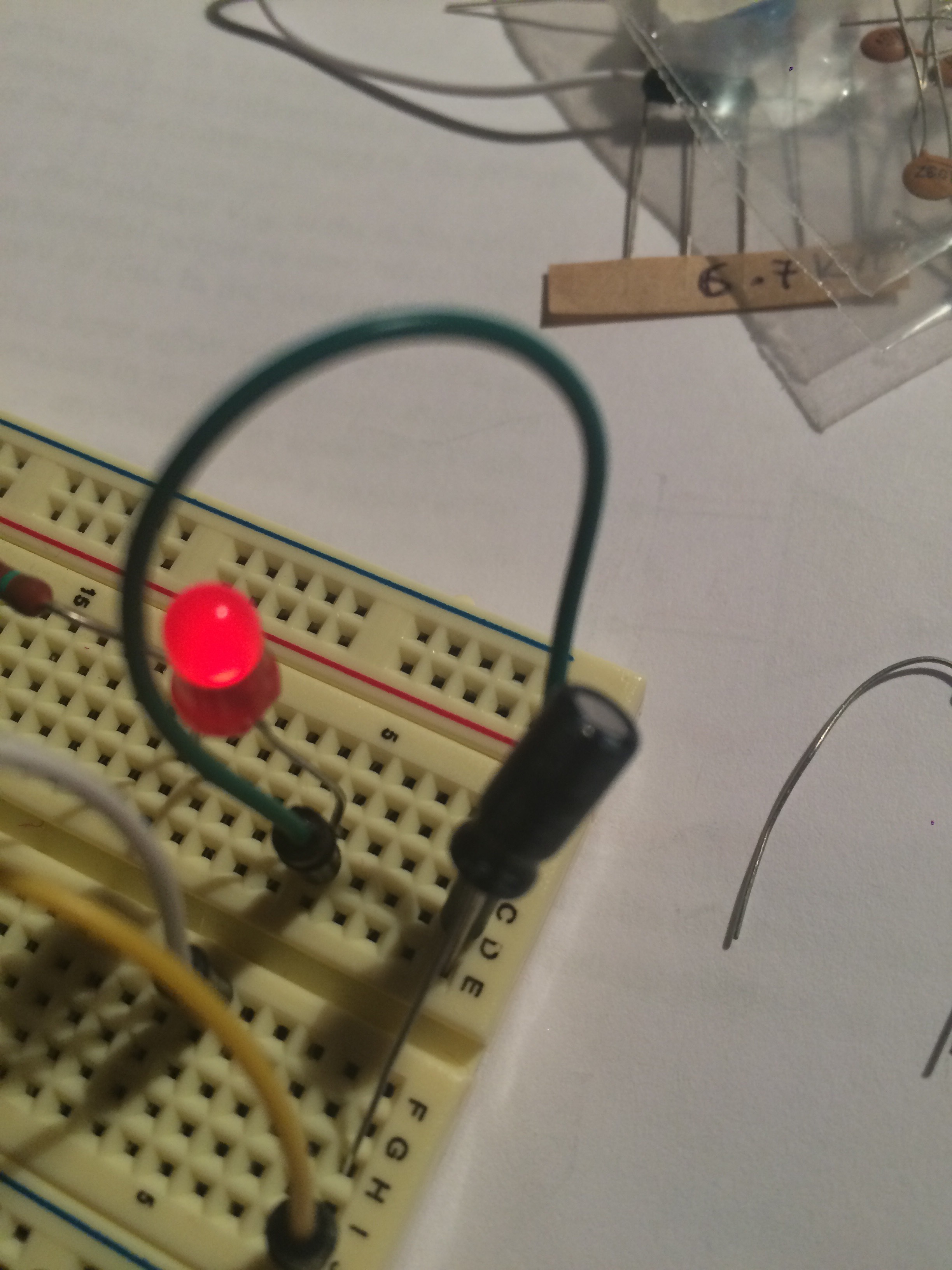

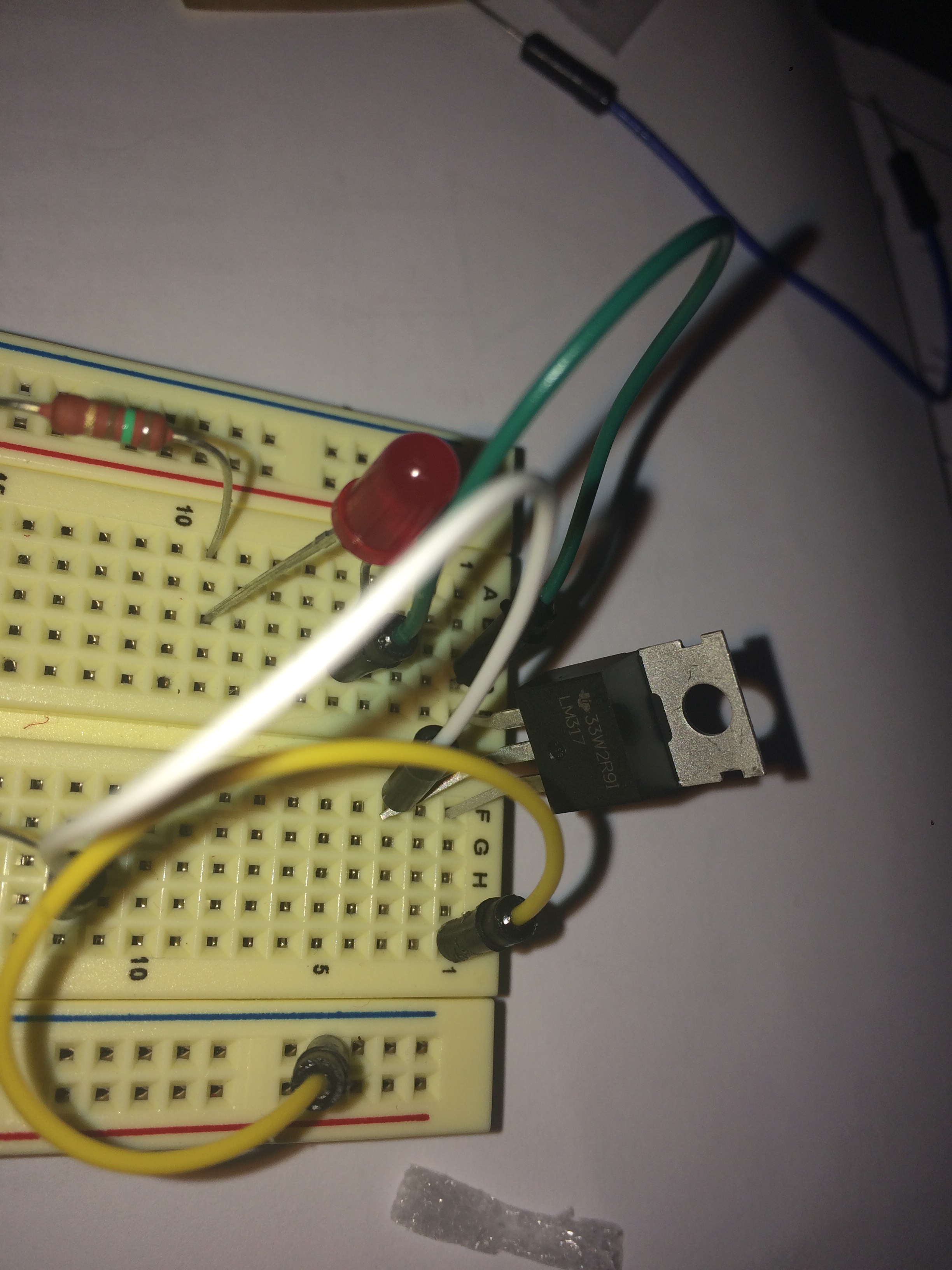

Now this device you have built can test just about lots of components as shown in the pics. The LED lights up to show its working perfectly. If it's off then the component isn't working. But mind u that with capacitors there's a charging that goes on when you connect hence the LED lights up first while it's charging and turns off when it's fully charged. So don't expect it to stay on. it just blinks.

lastly, if the LED is brighter, means higher resistance in the component and if its dimmer means lower resistance. if it doesn't light up at all then you know what's wrong.

Tests

This instructable will help you to know whether a component is working or not before using it in circuit. It can show if there's an open circuit in a component or not. It's very easy to build and requires just about four components.
