Collapsable Trekking Poles With a Plus

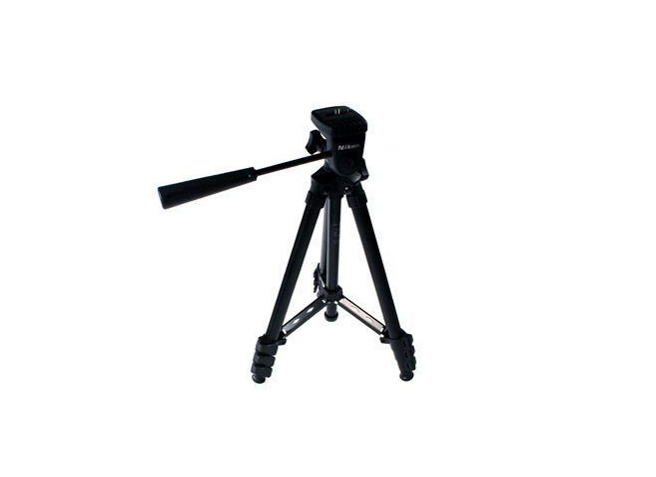

I've always been intrigued with the idea of a survival walking stick or pole but the weight of all the possible components discouraged me. When I came across a cheap tripod at a thrift store recently, I got the idea of making collapsible trekking poles instead.

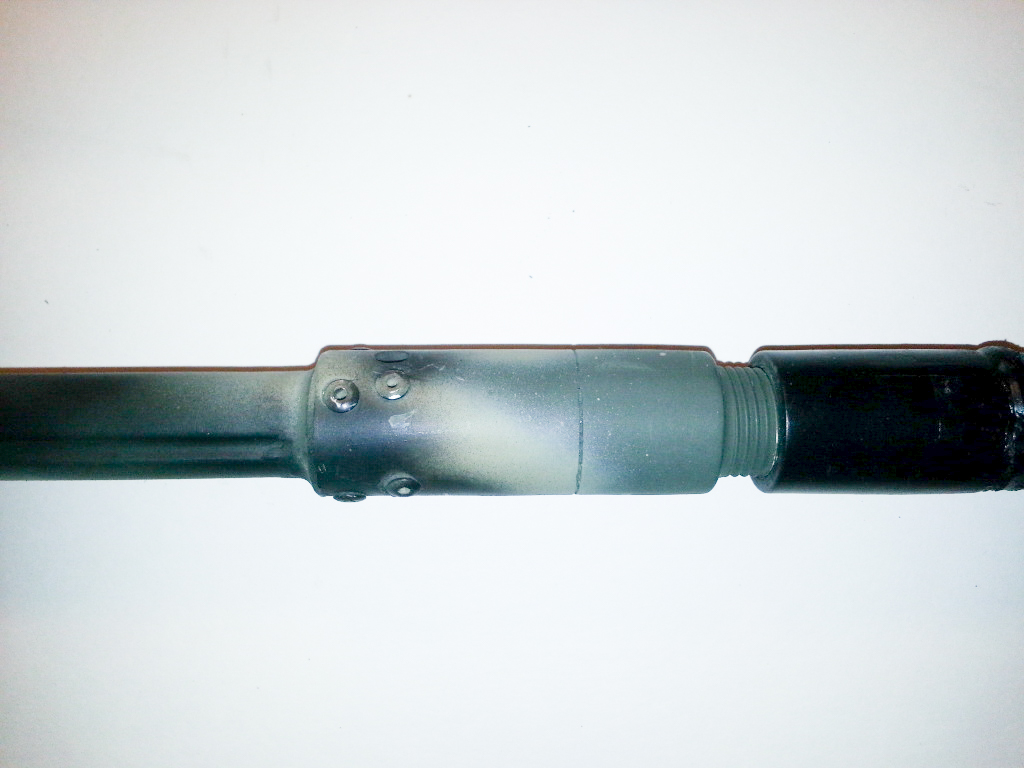

By combining the tripod legs, which collapsed and PVC pipe and threaded couplings, I could create a design that had lots of versatility. A value that I thrive on.

Design:

• Adjustable to my height
• Lightweight
• Collapsible
• Sturdy
• Different grips and tips
• Multiple uses

Uses:

• Trekking pole
• Tent pole
• Tent stake
• Fishing pole
• Fishing kit (inside handle)
• Defensive weapon (spear)
• Pack support
• Depth gauge
• Flag pole
• Signal device
• Laundry stick
• Splint
• Crutches
• Animal deterrent
• Camera support (selfie)
• Pick up trash
• Hat rack
• Arm extension
• Duct tape dispenser

Materials for a Pair:

• 4 1/2" PVC threaded caps
• 2 1" black rubber cane tips
• 6 1/2' threaded couplings
• 18" piece of 1/2" PVC pipe
• 4 1/2" non-thread couplings
• 6' of 550 Para-cord
• 2 2-1/2"x 5/16" carriage bolts
• 2 5/16" nuts
• 2 5/16" lock washers
• 1 can rubber grip spray
• Handful of 1/8" pop rivets
• 1 can camo paint
• 2 1"x 8-32 round head machine bolts and nuts
• PVC solvent
• Silicone adhesive

Optional:

• 1/4"x 18" steel rod (spear)
• 2 5/16" "T" nuts
• Small Can of Bondo

Tools:

• Hack Saw
• Files
• Drill and Bits
• Wrench Set
• Pliers
• Sandpaper
• Pop Rivet Gun
• Utility Knife

Step 1:

• Disassemble the legs from the tripod. You'll have 3 but only need 2.

Step 2.

• Start cutting the PVC as noted in the drawing supplied.

Step 3:

• Assemble all the pieces without gluing to make sure everything fits.

Step 4:

• Glue up the sections as shown in the drawing. Attach the machine screws where indicated.

Step 5:

• (Optional) If you are choosing the handle with the spear, you'll need to pre fit everything before filling the PVC pipe with Bondo as it dries very fast. While still wet insert the steel rod and let it dry. Drill 2 holes and insert the 2 pins (small finish nails) for extra strength.

Step 6:

• Wrap and glue the para-cord around the outside of the handle.

Step 7:

• Mask unpainted parts and spray the handle section with the rubber grip spray.

Step 8:

• Mask and spray the camo paint on the other sections and let dry.

Step 9:

• Assemble the tips and handles as shown in the drawing.

Step 10:

• Once everything is dry, assemble all the sections and you're done. Don't forget the hand strap made from some extra para-cord.

Here are some photos of the different tips that can be mounted on either end.

The top can accept a rubber tip or a "T" bar handle

The lower end can receive a rubber tip or a pointed tip.

If you choose, you can elect to build a spear that fits into the handle.

The clear plastic tube around the spear shaft helps keep it from rattling inside.

Here's a PDF of the construction.

Feel free to download and print to help you make your own.
