Coiled Cord (Edited)

Simple way how to make every cord coiled.

Tools

What you need:
1. Cooking pot
2. Cooker
3. Pipe or stick

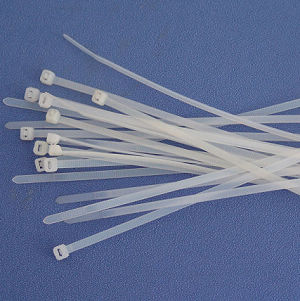

4. 2x cable tie
5. Wire

Winding

First, hold one end of wire with electrician tie, then winds wire tight around pipe and then hold another end of wire with second electrician tie.

"Cooking"

Put pipe with cord into pot with water such, that whole cord is under water. Then bring water to boil, wait about 5 minutes, then turn cooker off and wait 30 minutes. Then cool wire with pipe under cold water. It should be done, so you can cut ties and pull wire out.

Finish

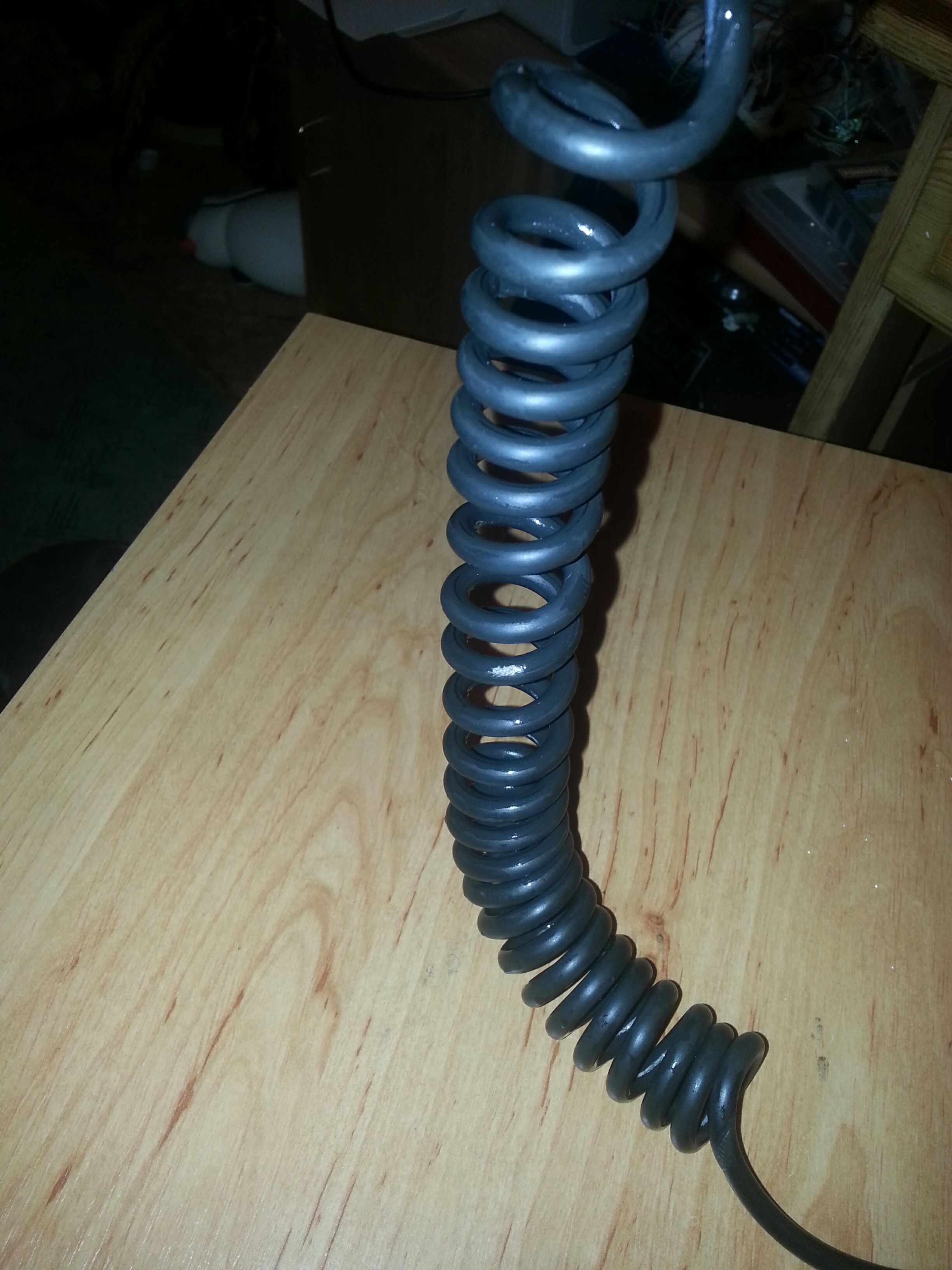

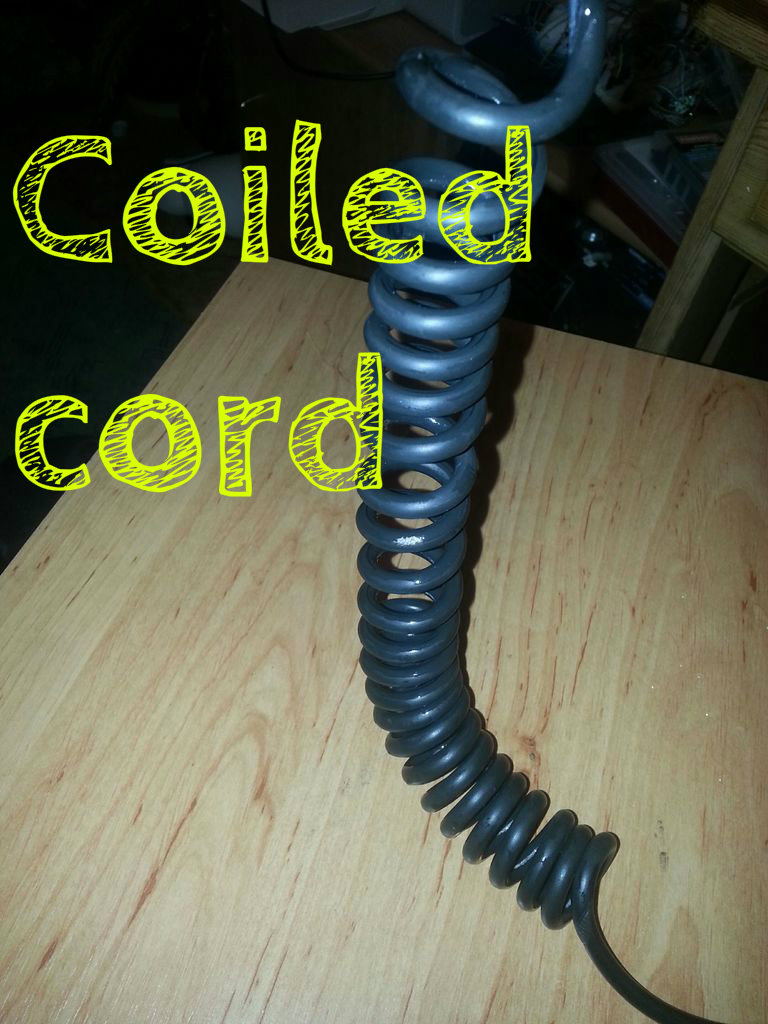

Now, you have coiled cord :).

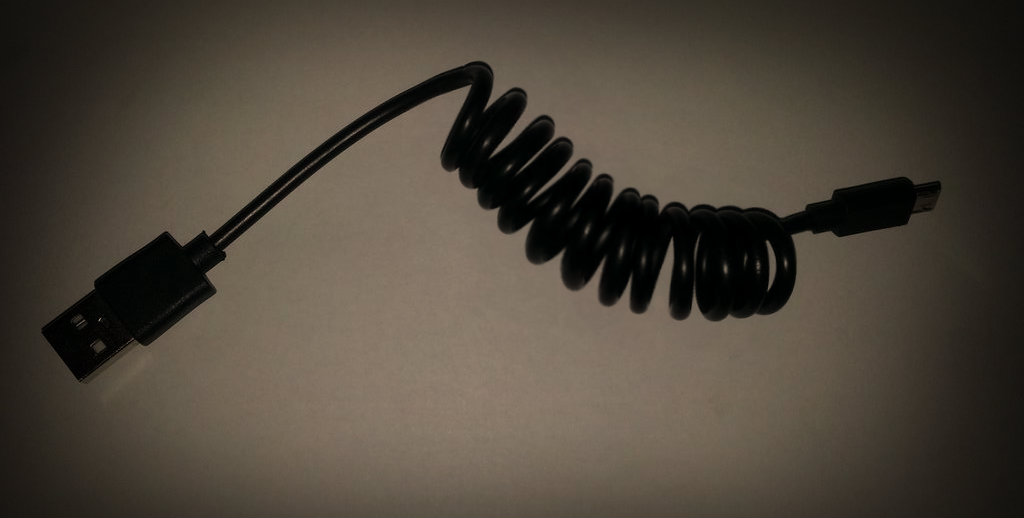

This is easy way, how you can turn every cord into coiled cord. For example mobile charger in car ;).

Another Way, How to Make Coiled Cord

How to make coiled cord

There are many questions about corrosion wire caused by water in comments. So I tried use a hair dryer instead of boiling water. And it works pretty well, but I don't know if it will work with thicker cord.
