Coil Winding Machine
Hi guy today we make Coil Winding Machine. Please check on description, My comment on Youtube and do step by step you will get good Coil Winding Machine.. I try to make the PCB by Eagle software and order PCB online on https://jlcpcb.com/. After that the circuit work great and i share it for you. i hope you can do it at home
Make the Schematic and PCB
The PCB i take from http://paja-trb.cz/konstrukce/pocitadlo_jizd.html
He wanted to monitor the actual number of trips (uphill) separately up and down. So it canot use for make the winding machine. I use PCB and edit the code, after that it can use for count widing machine. The code below has 2 version. One orginal for actual number of trips (uphill) separately up and down. One i has edit for count winding machine.
You can download it in description. It include PCB layout,schematic and Gerber file. Or you can dowload below.
Order the PCB Online With JLCPCB.COM
I make the gerber file by Eagle software and upload them to https://jlcpcb.com/ for order PCB online. Only 2$ /10pcs for 2 layer PCB and Big Discount on First order Shipping https://jlcpcb.com/ Upload your gerber files and fill in Shipping Adress then click PAY. After 2 day. I received the PCB 10PCS it look great and beauty.

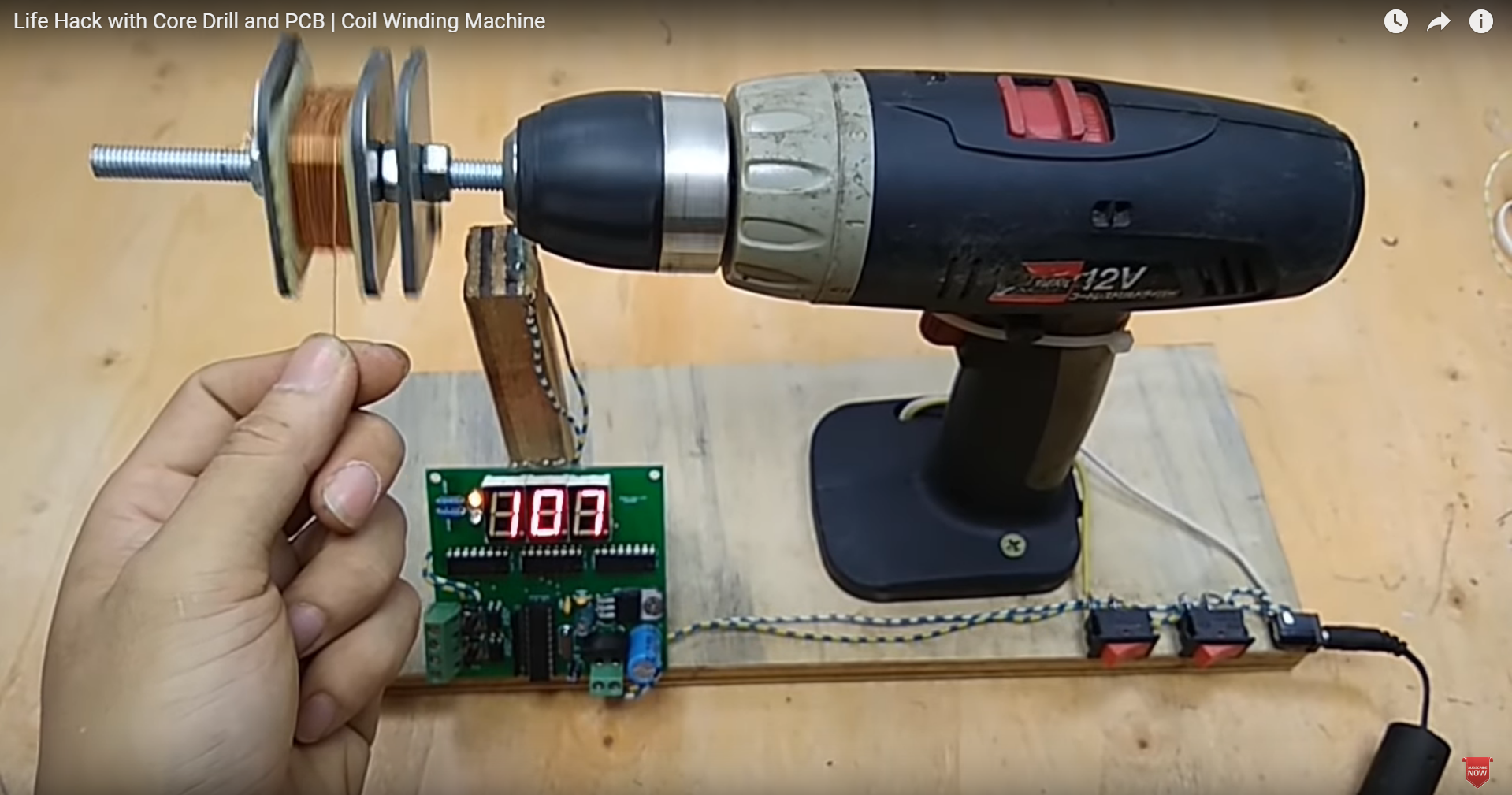

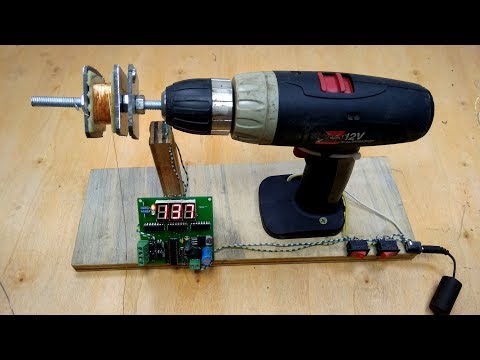

Look at Some Picture About My Project
Thank you for watching, if have any problem please contacte me i will help you
