Clone Any Remote Control With Arduino Nano

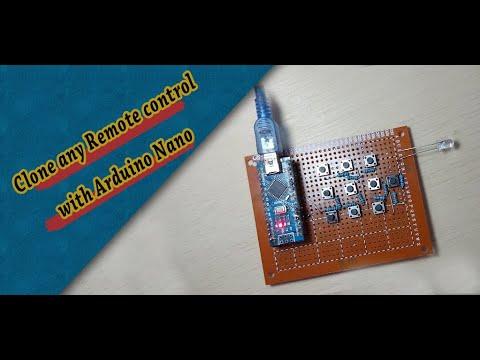

Clone any Remote control with Arduino Nano

Components

• Arduino Nano

• IR Receiver

• Battery

Connect IR Receiver to pin 11 in Arduino nano

If you didn't found this code in the library , i will upload it here ,

Upload this this code to Arduino Nano , Open serial monitor , press any key in your remote control ,

A code will appear for you, just copy this part of it and keep it

(( unsigned int raw[68] = {9050,4500,600,550,550,550,550,1700,550,600,550,550,600,550,550,600,550,550,550,600,550,1700,550,550,600,1650,600,1650,600,1650,600,550,550,1700,550,600,550,550,550,1700,550,1700,550,1700,600,550,550,550,600,550,550,1700,550,1700,550,600,550,550,600,550,550,1700,550,1700,550,1700,550,};

irsend.sendRaw(raw,68,38); ))

Repeat this step for every button on the remote control until you are sure that you have kept all the code of the buttons you want to copy.

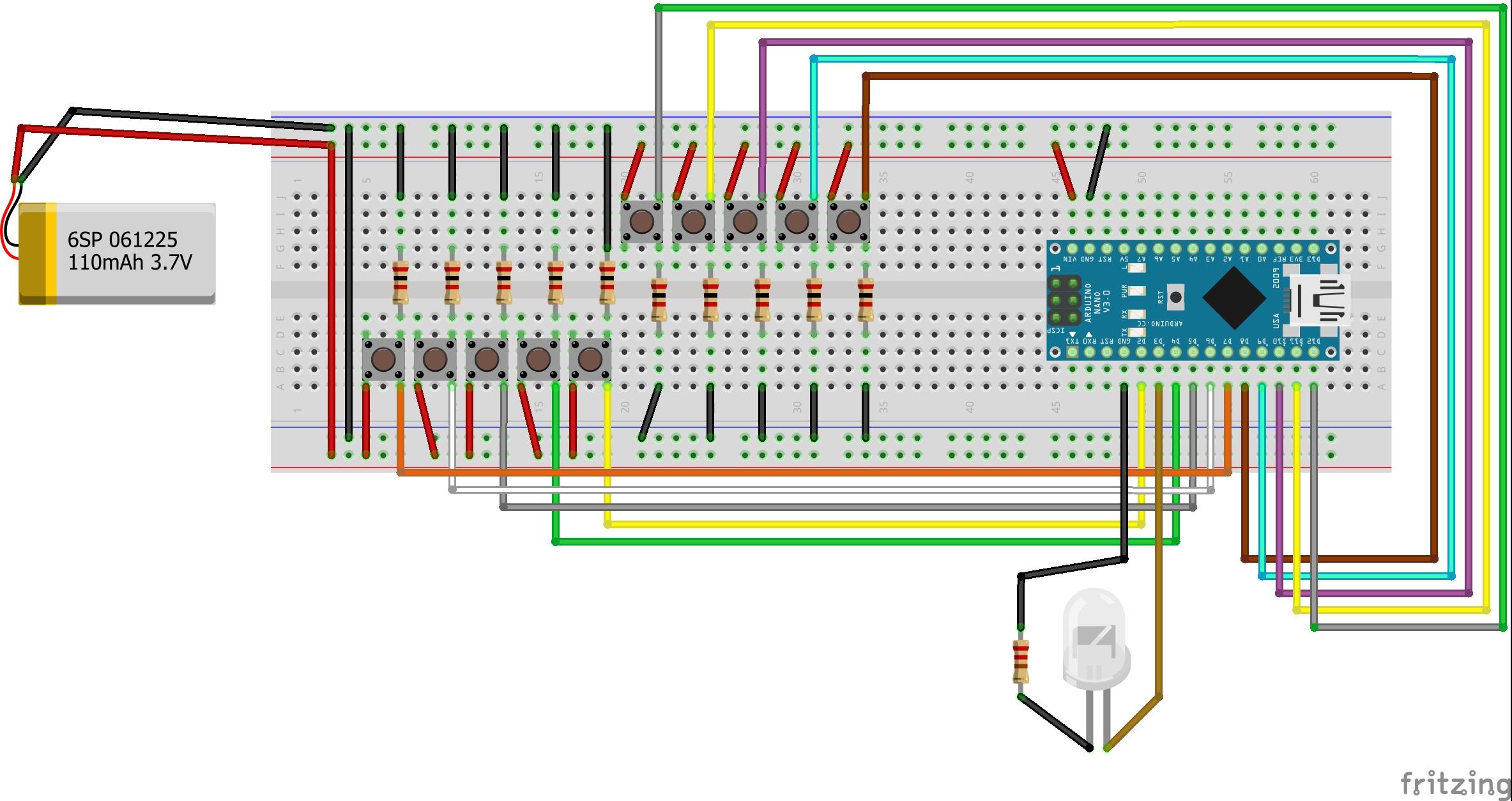

Make sure to connect IR Transmitter to pin 3 ( PWM ) ,

Components

• Arduino Nano
• IR Transmitter
• Battery
• Push button

• Resistors ( 2K for push button - 100Ohm for IR transmitter

Copy all the codes that you had copied it and put it in here ,

Evey time you will press any key it will send the code to your Tv ... etc

Check the connections more than once before connecting the battery or power source ,

I prefer to make a high-quality circuit. I do not prefer the method that I used, but this is what is available to me at the moment .
