Claw Using LED's and Servo's

Light Sculpture: Clearance (2023) is the an iteration of Clearance (2022).

Artworks are almost always exhibited in an abundance of light. Radiant, this light invites us to take our time and thoroughly absorb every detail of the artwork. We rarely question whether we’re allowed to perceive. What if the artwork prefers not to be exposed in this light? What if the work itself determines who can see their light? Clearance challenges the entitlement of the visitor, demanding a consensual encounter. It questions the relationship between observing and the observer using light and darkness

This work is meant to move like a claw (hand) that opens and closes. When you stand underneath the work the lights will go off and the work closes itself off. When it's empty the work shines bright and is fully open.

Suplies:

• 1 PVC buis van 2 meter
• 3x WorldSemi WS2812B Digitale 5050 RGB LED Strip - 30 LEDs 1m
• 1x Arduino
• Breadboard 400 points
• DuPont Jumper draad Male-Male 20cm 10 draden
• Ultrasonische Sensor - HC-SR04 (distance meter)
• houten plankje (+/- 17 x 14 x 2 cm)
• 4x TowerPro SG90 9G micro servo motor - 180°
• Computer met Arduino geïnstalleerd
• plakband
• sate prikkers

Tools:

• Boormachine
• Mini schroevendraaier (voor servo)
• Hitte föhn
• Textiel zaag
• Schaar

• Zaag de PVC buizen in stukken van 50 CM
• snij er je gewensde patroon in met de textiel zaag, voel vrij om eerst te experimenteren op overig materiaal!
• Fohn het middelpunt van de de buis met een hitte fohn een hoek ongeveer 110 graden

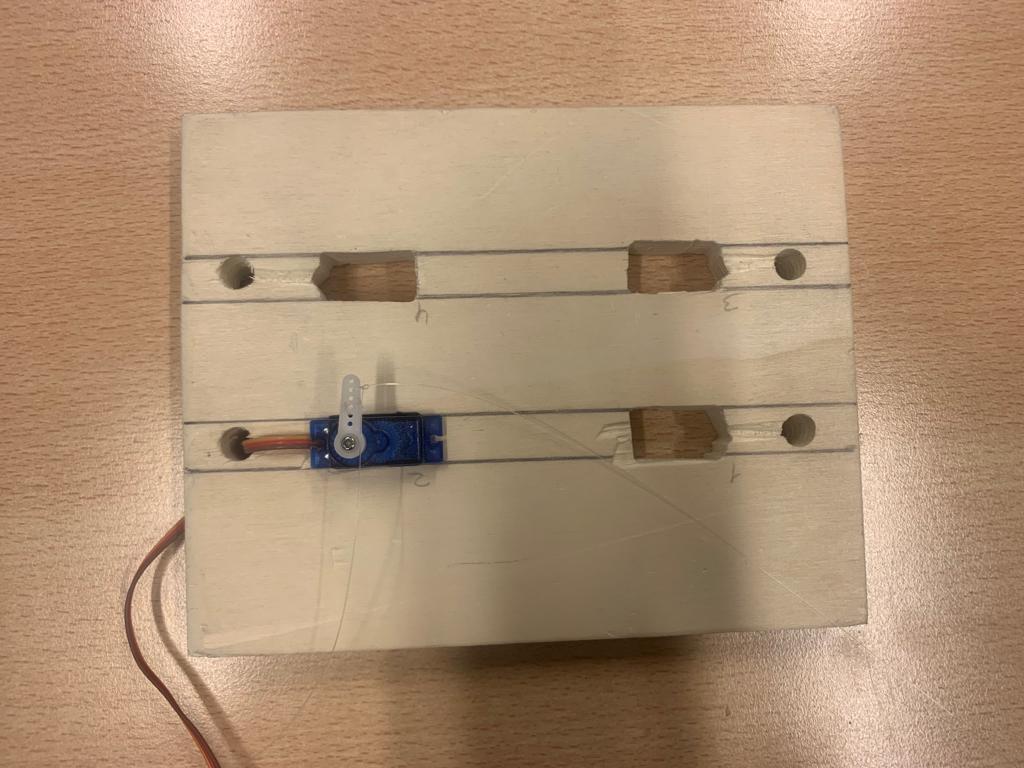

• schets de vorm van de servo in de grote van de servo uit op het hout
• boor naast elke vorm een gat in de grote van de bedrading
• monteer sate prikkers op de servo's, stapel de platte onderdelen van de stokjes indien nodig.

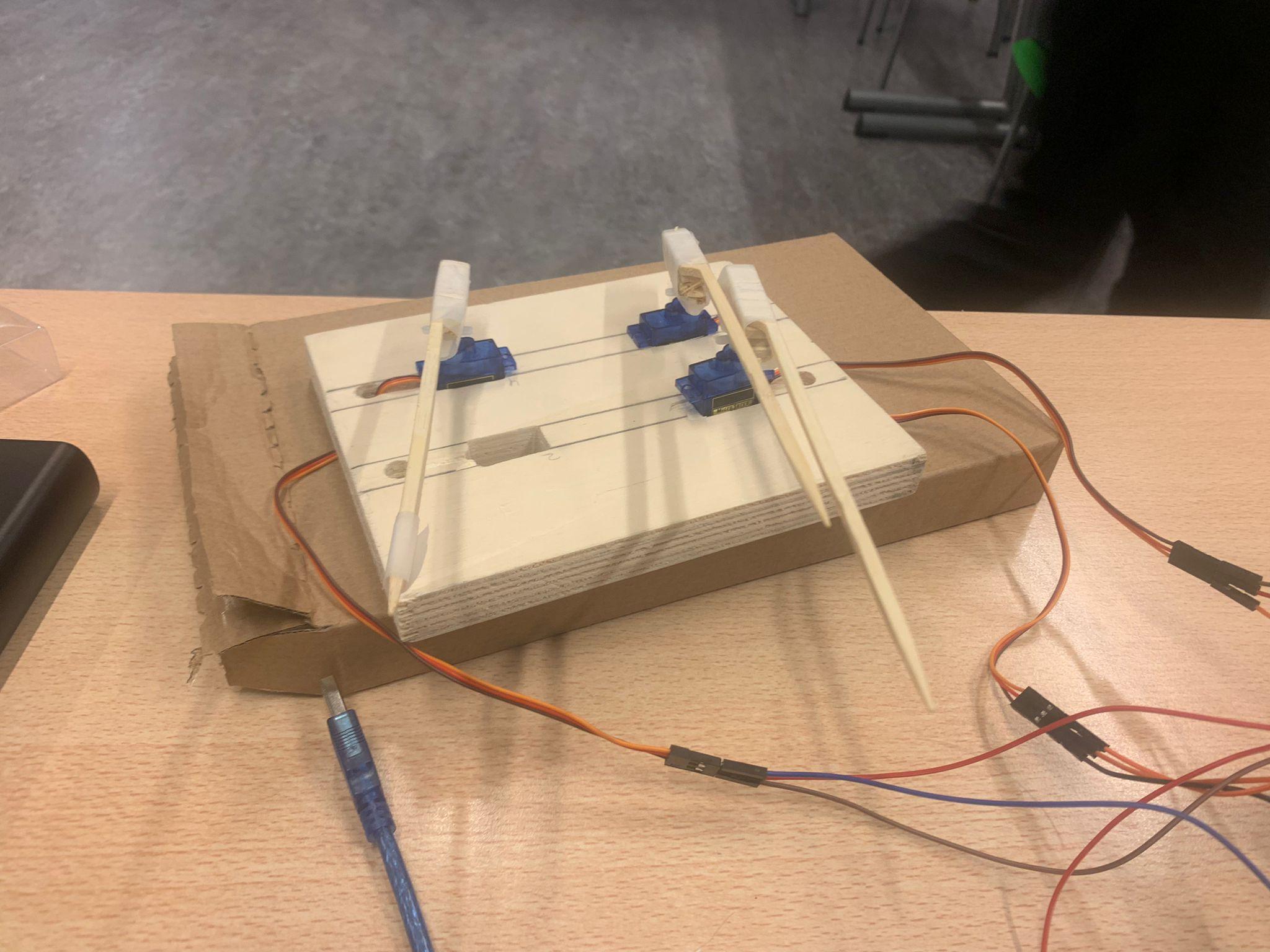

• Als het goed heb je nu iets zoals dit

Digital PIN

PIN 5 >> TRIG_PIN (Ultrasonische Sensor)

PIN 6 >> Echo_PIN

PIN 7 >> SERVO_PIN

PIN 8 >> LED strip 01

PIN 9 >> LED strip 02

PIN 10 >> LED strip 03

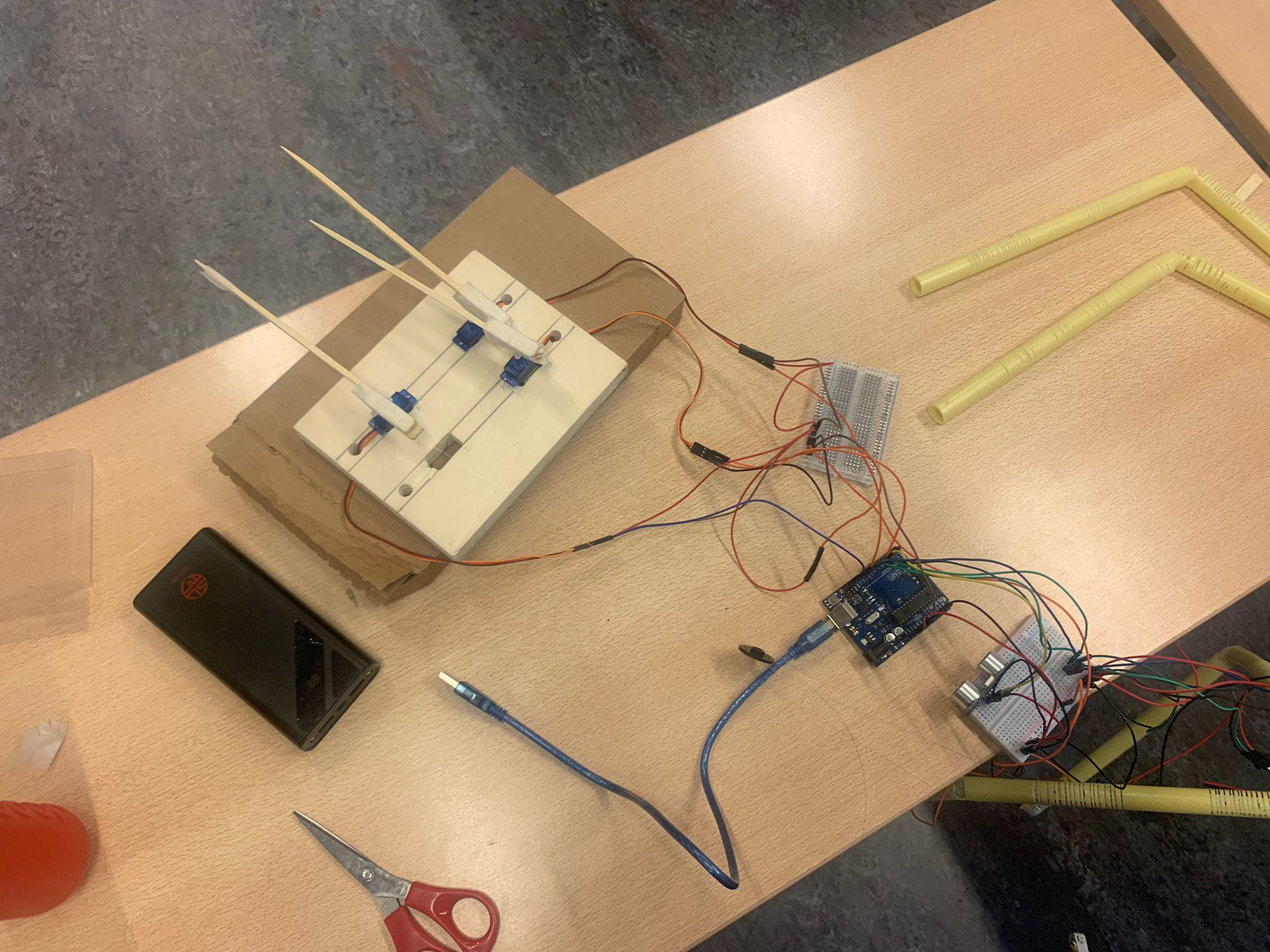

Je set up ziet er zo uit:

CODE

#include <Adafruit_NeoPixel.h>

#include <Servo.h>

//array10%3

float measurements[100];//= (te zien in serial monitor)

float average = 0; //gemiddelde van die 10 getallen

int loop_count = 0; //telt op

// SERVO

// constants won't change

const int TRIG_PIN = 5; // Arduino pin connected to Ultrasonic Sensor's TRIG pin

const int ECHO_PIN = 6; // Arduino pin connected to Ultrasonic Sensor's ECHO pin

const int SERVO_PIN1 = 7; // Arduino pin connected to Servo Motor's pin

//const int SERVO_PIN2 = 11; // Arduino pin connected to Servo Motor's pin

const int SERVO_PIN3= 12; // Arduino pin connected to Servo Motor's pin

const int SERVO_PIN4 = 13; // Arduino pin connected to Servo Motor's pin

const int DISTANCE_THRESHOLD = 30; // centimeters

Servo servo1; // create servo object to control a servo

//Servo servo2; // create servo object to control a servo 2

Servo servo3; // create servo object to control a servo 3

Servo servo4; // create servo object to control a servo 4

// variables will change:

float duration_us, distance_cm;

// LED

#define PIN1 8 //ledstrip 01

#define PIN2 9 //ledstrip 02

#define PIN3 10 //ledstrip 03

#define NUM_LEDS1 30 //eerste ledstrip is 30 leds

#define NUM_LEDS2 30 //ledstrip

#define NUM_LEDS3 30 //ledstrip

// Parameter 1 = number of pixels in strip

// Parameter 2 = pin number (most are valid)

// Parameter 3 = pixel type flags, add together as needed:

// NEO_KHZ800 800 KHz bitstream (most NeoPixel products w/WS2812 LEDs)

// NEO_KHZ400 400 KHz (classic 'v1' (not v2) FLORA pixels, WS2811 drivers)

// NEO_GRB  Pixels are wired for GRB bitstream (most NeoPixel products)

// NEO_RGB  Pixels are wired for RGB bitstream (v1 FLORA pixels, not v2)

Adafruit_NeoPixel strip1 = Adafruit_NeoPixel(NUM_LEDS1, PIN1, NEO_GRB + NEO_KHZ800); //libraries

Adafruit_NeoPixel strip2 = Adafruit_NeoPixel(NUM_LEDS2, PIN2, NEO_GRB + NEO_KHZ800); // libararies strip 2

Adafruit_NeoPixel strip3 = Adafruit_NeoPixel(NUM_LEDS3, PIN3, NEO_GRB + NEO_KHZ800); // libararies strip 3

#include <HCSR04.h> Library for HC-SR04 ultrasonic distance sensor.

int hue = 0;

int val = 255; // values LED 1

int hue2 = 0;

int val2 = 255; // values LED 2

int hue3 = 0;

int val3 = 255; // values LED 3

void setup() { // put your setup code here, to run once:

 // LED

 strip1.begin();

 strip1.show(); // Initialize all pixels to 'off'

 strip2.begin();

 strip2.show();

 strip3.begin();

 strip3.show();

 Serial.begin(9600); //initialize serial port

 //SERVO

 pinMode(TRIG_PIN, OUTPUT); // set arduino pin to output mode

 pinMode(ECHO_PIN, INPUT); // set arduino pin to input mode

 servo1.attach(SERVO_PIN1); // attaches the servo on pin .. to the servo object

 servo1.write(0);

 //servo2.attach(SERVO_PIN2); // attaches the servo on pin .. to the servo object

 //servo2.write(0);

 servo3.attach(SERVO_PIN3); // attaches the servo on pin .. to the servo object

 servo3.write(0);

 servo4.attach(SERVO_PIN4); // attaches the servo on pin .. to the servo object

 servo4.write(0);

}

void loop() {

 //LED

 for (int i = NUM_LEDS1; i > 0 ; i-- ) {

  strip1.setPixelColor(i, strip1.getPixelColor(i - 1)); //led 1 gaat aan

 }

 for (int i = NUM_LEDS2; i > 0 ; i-- ) {

  strip2.setPixelColor(i, strip2.getPixelColor(i - 1)); //led 2 gaat aan

 }

 for (int i = NUM_LEDS3; i > 0 ; i-- ) {

  strip3.setPixelColor(i, strip3.getPixelColor(i - 1)); //led 3 gaat aan

 }

// int dist = distanceSensor.measureDistanceCm(3); // afstand van de sensor in cm

//Serial.println(dist);

// voor de fade

 val = val - 50; //lengte leds 1

 hue += 2000; //kleurverloop

 if ( val < 0 ) val = 0;

 val2 = val2 - 50; //;lengte leds 2

 hue2 += 2000; //kleurverloop

 if ( val2 < 0 ) val2 = 0;

 val3 = val3 - 50; //;lengte leds 3

 hue3 += 2000; //kleurverloop

 if ( val3 < 0 ) val3 = 0;

 strip1.setPixelColor(0, strip1.ColorHSV(hue, 255, val));

 strip2.setPixelColor(0, strip2.ColorHSV(hue2, 255, val2));

 strip3.setPixelColor(0, strip3.ColorHSV(hue3, 255, val3));

 //dat hoe vaak 1 aan gaat, kleur

 if ( average > DISTANCE_THRESHOLD) { //wanner de disntance minder is dan ..cm

  if ( random(10) == 0 ) { //hoe vaak 1 aan

   hue = (54613); //kleur

   val = 255;

   strip1.setPixelColor(0, strip1.ColorHSV(hue, 255, val));

  }

  if ( random(30) == 0 ) { //hoe vaak 1 aan

   Serial.println("1");

   hue2 = (25000); //kleur

   val2 = 255;

   strip2.setPixelColor(0, strip2.ColorHSV(hue2, 255, val2));

  }

   if ( random(30) == 0 ) { //hoe vaak 1 aan

   Serial.println("2");

   hue3 = (25000); //kleur

   val3 = 255;

   strip3.setPixelColor(0, strip3.ColorHSV(hue3, 255, val3));

  }

 }

 strip1.show();

 strip2.show();

 strip3.show();

  //DISTANCE METER

 digitalWrite(TRIG_PIN, HIGH);

 //delayMicroseconds(10);

 digitalWrite(TRIG_PIN, LOW);

 // measure duration of pulse from ECHO pin

 duration_us = pulseIn(ECHO_PIN, HIGH);

 // calculate the distance

 distance_cm = 0.017 * duration_us;

 measurements[loop_count % 100] = distance_cm; // mesurements (reeks van 10 tegtallen) stoppen we distance cm in op de goede plek.

 //reset average naar 0

 average = 0;

 // in dit loopje ga je alle metingen optellen bij elkaar

 for (int i = 0; i < 100; i++)

 {

  average = average + measurements[i]; // mesurements is een bak met 100 laatjes, [i] is een van die bakjes

 }

 average = average / 100; // maak het gemiddelde door alle metingen door het aantal bakjes te delen

 //SERVO

 if(average < DISTANCE_THRESHOLD)

  servo1.write(180); // rotate servo motor to 180 degree

 else

  servo1.write(0); // rotate servo motor to 0 degree

 //if(average < DISTANCE_THRESHOLD)

 // servo2.write(180); // rotate servo motor to 180 degree

 //else

  // servo2.write(0); // rotate servo motor to 0 degree

 if(average < DISTANCE_THRESHOLD)

  servo3.write(180); // rotate servo motor to 180 degree

 else

  servo3.write(0); // rotate servo motor to 0 degree

 if(average < DISTANCE_THRESHOLD)

  servo4.write(180); // rotate servo motor to 180 degree

 else

  servo4.write(0); // rotate servo motor to 0 degree

 Serial.print("average: ");

 Serial.print(average);

 Serial.println(" cm");

 loop_count = loop_count + 1; // zorgt dat de 10 door blijft gaan

 delay(30); //vetraging van alles

}
