Clamp-on RF Current Meter
![IMG_20170804_172800.jpg](/proxy/?url=https://content.instructables.com/F2E/0N78/J69WX5TW/F2E0N78J69WX5TW.jpg&filename=IMG_20170804_172800.jpg)
Here i show a realization of a clamp-on RF ammeter which is very useful to detect a radiation from RF cables or power supply cables due to standing waves.
Scheme
![2017-08-13 10_21_30-Clamp-on RF Current Meter - Opera.png](/proxy/?url=https://content.instructables.com/FYX/EN1V/J69WXC7M/FYXEN1VJ69WXC7M.png&filename=2017-08-13 10_21_30-Clamp-on RF Current Meter - Opera.png)
![IMG_20170730_155926.jpg](/proxy/?url=https://content.instructables.com/FN7/31LV/J69WX38D/FN731LVJ69WX38D.jpg&filename=IMG_20170730_155926.jpg)
![IMG_20170804_170958.jpg](/proxy/?url=https://content.instructables.com/FOF/7G7I/J69WX38K/FOF7G7IJ69WX38K.jpg&filename=IMG_20170804_170958.jpg)
The scheme is taken from http://www.qsl.net. In my case it's composed of an ammeter of 100uA, a PVC case and a ferrite clamp from Wurth Elektronik, 23.7 x 34 x 19mm, ref: 7427113. In case you are using another ferrite the value of the first resistor may change. For this ferrite, the resistor value can be chosen from 5 to 25 ohms depending on the sensitivity you want to achieve.
Enclosure Box
![IMG_20170730_161530.jpg](/proxy/?url=https://content.instructables.com/FJH/QZHG/J69WX38G/FJHQZHGJ69WX38G.jpg&filename=IMG_20170730_161530.jpg)
![IMG_20170730_162121.jpg](/proxy/?url=https://content.instructables.com/F5Y/GOCC/J69WX38I/F5YGOCCJ69WX38I.jpg&filename=IMG_20170730_162121.jpg)
![IMG_20170730_162107.jpg](/proxy/?url=https://content.instructables.com/FDD/9NWA/J69WX38H/FDD9NWAJ69WX38H.jpg&filename=IMG_20170730_162107.jpg)
![IMG_20170804_171223.jpg](/proxy/?url=https://content.instructables.com/F82/04VU/J69WX38V/F8204VUJ69WX38V.jpg&filename=IMG_20170804_171223.jpg)

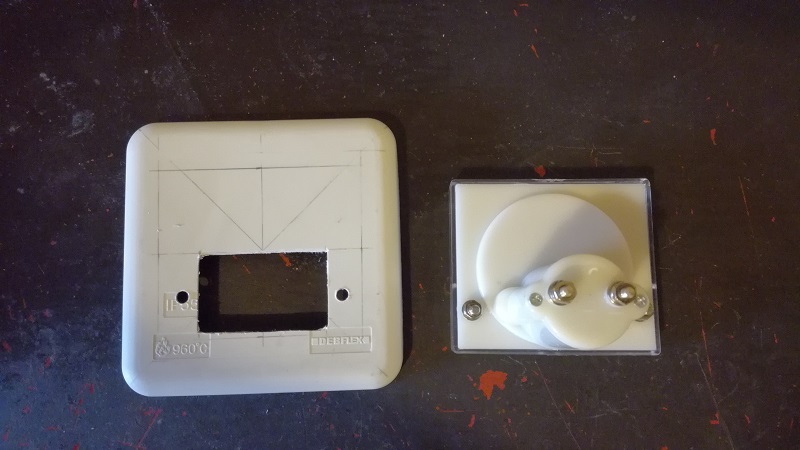

Cut out the area for the ammeter in the PVC box and connect the PCB you have made following the scheme in the previous step.
Ferrite Clamp
![IMG_20170730_170800.jpg](/proxy/?url=https://content.instructables.com/FBB/3TXV/J69WX3FM/FBB3TXVJ69WX3FM.jpg&filename=IMG_20170730_170800.jpg)
![IMG_20170804_163529.jpg](/proxy/?url=https://content.instructables.com/FNY/ZGNB/J69WX38J/FNYZGNBJ69WX38J.jpg&filename=IMG_20170804_163529.jpg)
Cut out the area shown on the photo in the case of the ferrite clamp and wound 10 turns of thin wire.
Assembling
![IMG_20170804_172625.jpg](/proxy/?url=https://content.instructables.com/FD8/KLI0/J69WX38Y/FD8KLI0J69WX38Y.jpg&filename=IMG_20170804_172625.jpg)
![IMG_20170804_171613.jpg](/proxy/?url=https://content.instructables.com/FGX/11SL/J69WX38W/FGX11SLJ69WX38W.jpg&filename=IMG_20170804_171613.jpg)
![IMG_20170804_172800.jpg](/proxy/?url=https://content.instructables.com/F2X/8CHH/J69WX39V/F2X8CHHJ69WX39V.jpg&filename=IMG_20170804_172800.jpg)
![IMG_20170804_172813.jpg](/proxy/?url=https://content.instructables.com/F5D/P0CV/J69WX39W/F5DP0CVJ69WX39W.jpg&filename=IMG_20170804_172813.jpg)
Solder the PCB wires to the secondary wounding like on photo and you're done. The ferrite clamp can be fixed to the PVC box with a hot glue.
