Circular Slide Rule Made With a Laser Cutter

I ended up making this slide rule by accident. Was looking for log circular scales and knew slide rules have log scales. But the mass of numbers in the templates looked so pretty I decided to make a circular slide rule.
The pages on https://sliderulemuseum.com/SR_Scales.htm provide quite a few templates for different kind of slide rules. I used the scales for circular slide rules created by Savard. I decided to use the third Savard scale (link) as that one contains conventional log-log and inverse log-log scales. And the last Savardscale which would be the transparent overlay that would rotate on the opaque bottom scale. Big thanks to John J.G. Savard for these scales.

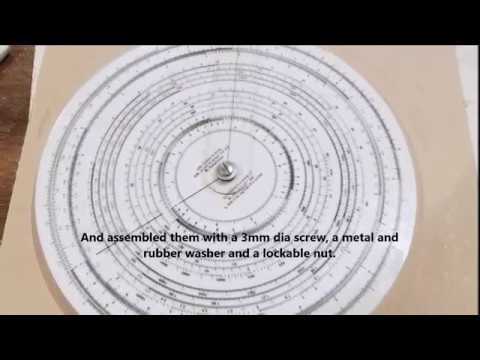

The video summarizes the construction process.

Converting the PDFs to Laser Cuttable Files.

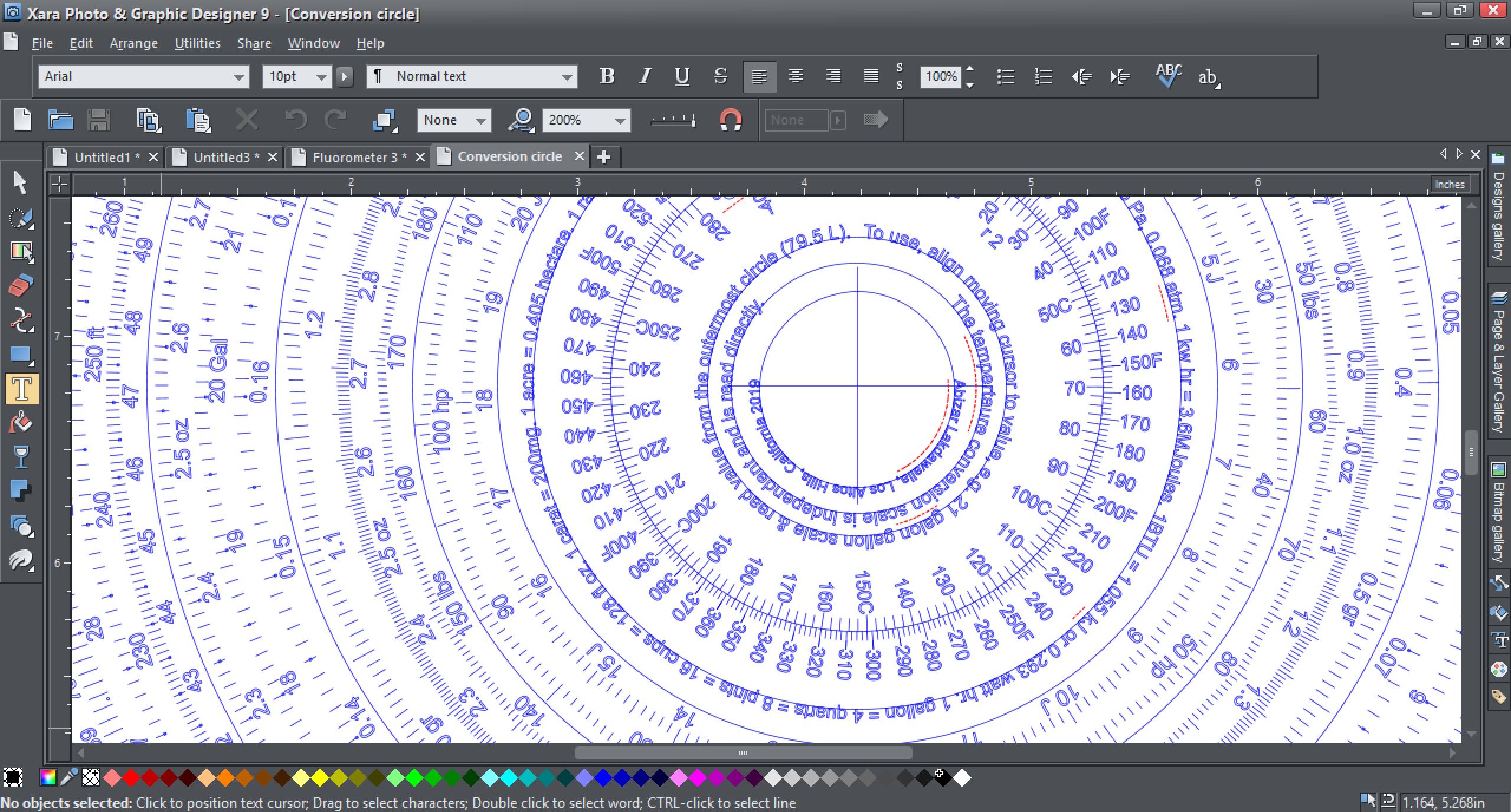

I imported the PDFs into Xara as a vector file and drew a red circle centered around the templates that would be recognized as a cut line by the laser cutter. The line markings were converted to a blue color and these would be etched as lines. The line widths were changed to 0.001 pt and the files were exported as high resolution PDFs. The numbers and texts were kept black and would be etched as raster images. The laser cutter compatible PDFs are attached here.

The transparent template was reversed to prevent parallax effects when the transparent plate was placed on the opaque base. I had scraps of thin white opaque acrylic and transparent acrylic with their protective film, so used these in the Epilog laser cutter.

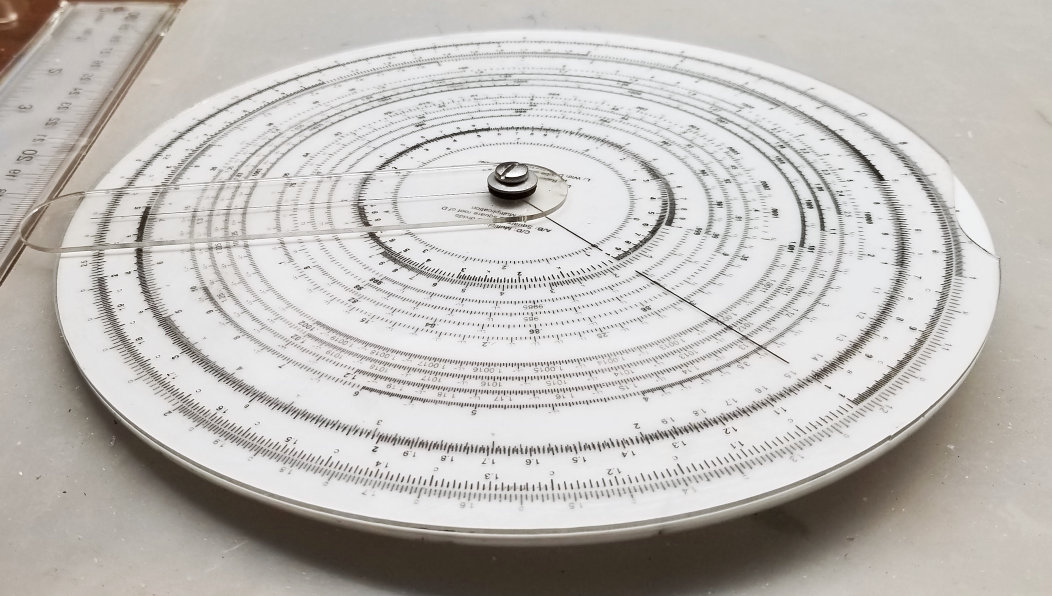

This is a large slide rule, about 8 inches in diameter, unfortunately the transparent acrylic was just a bit small in one direction and you can see a tiny piece missing. Fortunately, the numbers and markings did not overlap the missing plastic bit.

Downloads

Slide rule 3.pdf

Slide rule Transparent Reversed.pdf

Filling in the Markings With Paint

Once the pieces were etched and cut by the laser cutter I removed the protective film. The film had melted into some of the markings requiring careful scraping off with a needle. Might have been better to etch without the protective film.

The pieces were washed with Dawn dishwashing detergent, dried and then black acrylic poster paint slurry was rubbed into the etched lines and letters. The lines took up the color quite well but the letters were not etched deep enough so appeared lighter in color. I should have turned up the intensity on the raster etching on the Epilog laser cutter.

Once the paint was dried I rubbed off the excess paint with a paper tissue moistened with 70% rubbing alcohol. A light coat of acrylic varnish was applied to seal in the paint.
