Cipherbox V3.0

With the development of cryptanalysis and new hacking techniques, the cost of accessing your data without your authorization continues to decline, making it easier and more attractive for different sides to get it.

I'm not going to get into details about the motivation of each side and the goals they're trying to achieve by obtaining your data. Instead, I would like to focus on the solution to that problem.

In my opinion, the only way to keep your data private is to raise the costs of unauthorized access to it as high as possible, ideally higher than any reward that a third side can get by obtaining your data. Doing so puts away the incentives to access your data without your permission.

To raise the cost of unauthorized access to your data, I've developed Cipherbox.

The Cipherbox V3.0 is a new version of what I consider to be the "Cryptographic Swiss Army Knife."

This version of the Cipherbox utilizes six encryption algorithms with the integrity verification feature. Cipherbox is locked with four RFID cards, your username, and your password. Cipherbox allows you to create several accounts on it and use them without interfering with one another.

And unlike the two previous versions, the Cipherbox V3.0 can store your encrypted notes in the cloud!

• ESP32 x1
• Arduino Uno x1
• 2.4 Inch TFT LCD with ILI9341 x1
• Mifare RC522 RFID Reader x1
• RFID cards x4
• EC11 Rotary Encoder x1
• 580 ohm resistor x1
• 4.7k resistors x7
• 22nf capacitors x2
• Buttons x2
• 10µF capacitor x1 *optional

Out of 6 encryption algorithms utilized by this device, 4 perform something called superencryption (the first four on the list).

As defined by NIST, superencryption is an encryption operation for which the plaintext input to be transformed is the ciphertext output of a previous encryption operation.

Organizing encryption algorithms in that way allows us to easily build a combined encryption algorithm that is at least as strong as the strongest one in the cascade, has a longer key, might be more resistant to some attacks, and might produce a ciphertext with higher entropy. Anyway, it won't hurt to have an additional layer of security (or several of them).

Now, let's get to the description part.

First of all, I would like to state these three facts:

1. All encryption algorithms utilized by this device are symmetric (the same key is used to both - encrypt and decrypt data);
2. All encryption algorithms utilized by this device make use of the integrity verification feature.
3. All encryption algorithms utilized by this device make use of the key incrementation and random numbers during the encryption process to prevent the chosen-plaintext attack and increase the entropy of the ciphertext.

As for the encryption algorithms themselves:

• Blowfish + AES + Serpent + AES is the strongest encryption algorithm utilized by this device. It takes 8 characters as input and produces 64 characters long output. (I bet it can also be classified as quantum-resistant);
• AES + Serpent + AES is almost the same as Blowfish + AES + Serpent + AES, except for the Blowfish part;
• Blowfish + Serpent is an encryption algorithm that takes 8 characters as input and produces 32 characters long output;
• AES + Serpent is a bit weaker than the first two but still strong enough to keep your data secure. It takes 8 characters as input and produces 32 characters long output;

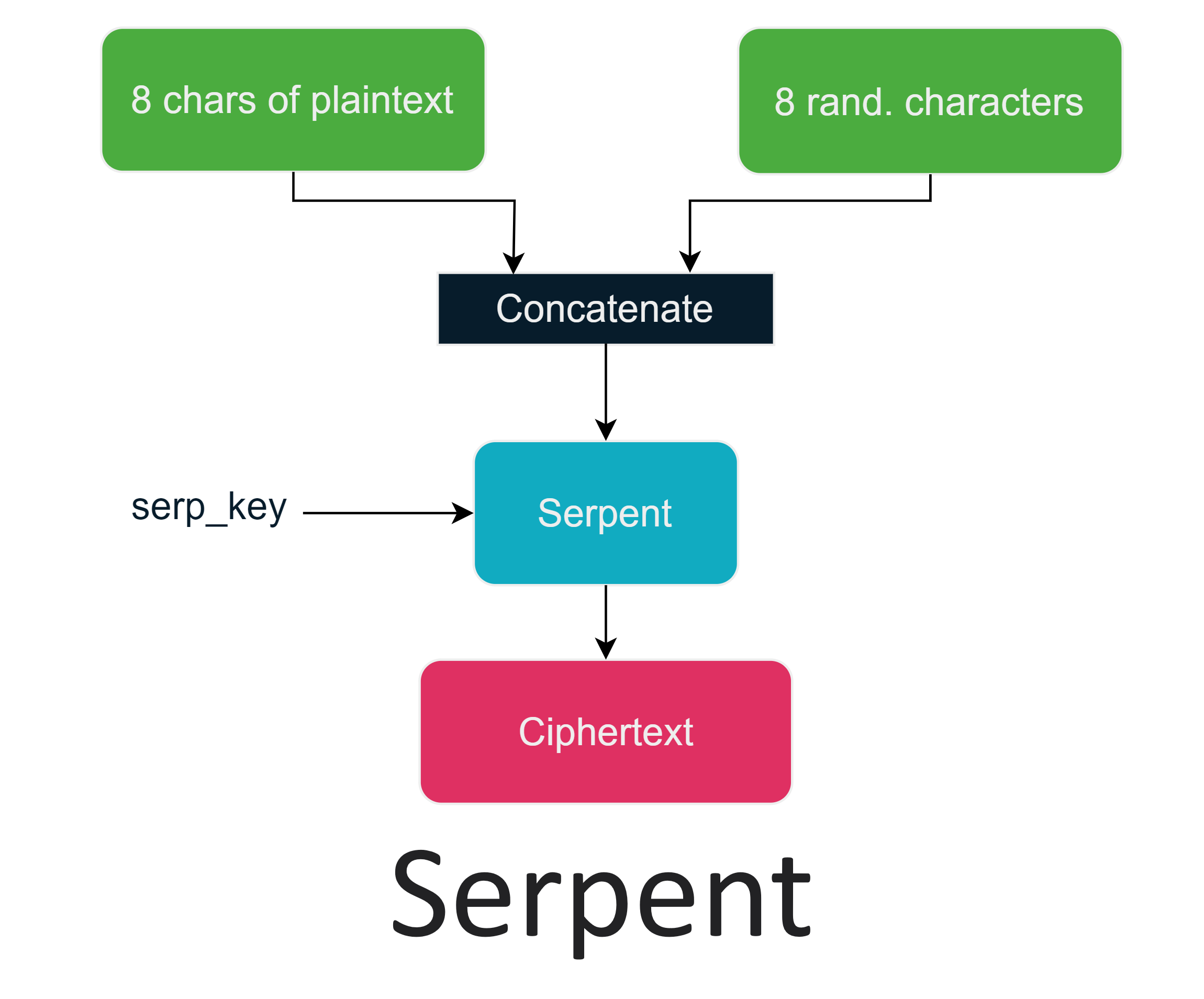

• The Serpent is the bare minimum for keeping your data secure. It takes 8 characters as input and produces 32 characters long output;
• The 3DES is an outdated and the least secure encryption algorithm utilized by this device. Although you can still use it to encrypt your data, I wouldn't recommend it for anything sensitive. I've only included this algorithm for you to play with. It takes 4 characters as input and produces 16 characters long output.

Don't forget that there's also an encrypted tag attached in front of the encrypted string.

The Cipherbox V3.0 is the second version of the Cipherbox that utilizes the integrity verification feature, the absence of that feature was (in my opinion) somewhat of a nearly-grave vulnerability present in the first version of the Cipherbox. Although that wouldn't've allowed the attacker to decrypt your ciphertexts, that would've allowed the attacker to forge a new ciphertext using the legitimate ciphertexts produced by the Cipherbox.

Let me explain how it works (and how it won't work anymore). The Cipherbox V1.0 was in no way an easy target. It's been already protected from the brute-force attack, chosen-plaintext attack, and "somewhat protected" from the block-swapping attack. I wrote "somewhat protected" because even though an attacker couldn't change the block order within the ciphertext without causing it to become at least partially undecryptable, an attacker could still swap the block N1 of the ciphertext N1 with the block N1 of the ciphertext N2, they could swap the block N2 of the ciphertext N1 with the block N2 of the ciphertext N2, so on and so forth.

By doing so, an attacker could forge a new ciphertext that would appear legitimate to Cipherbox 1 and even would've been decrypted correctly.

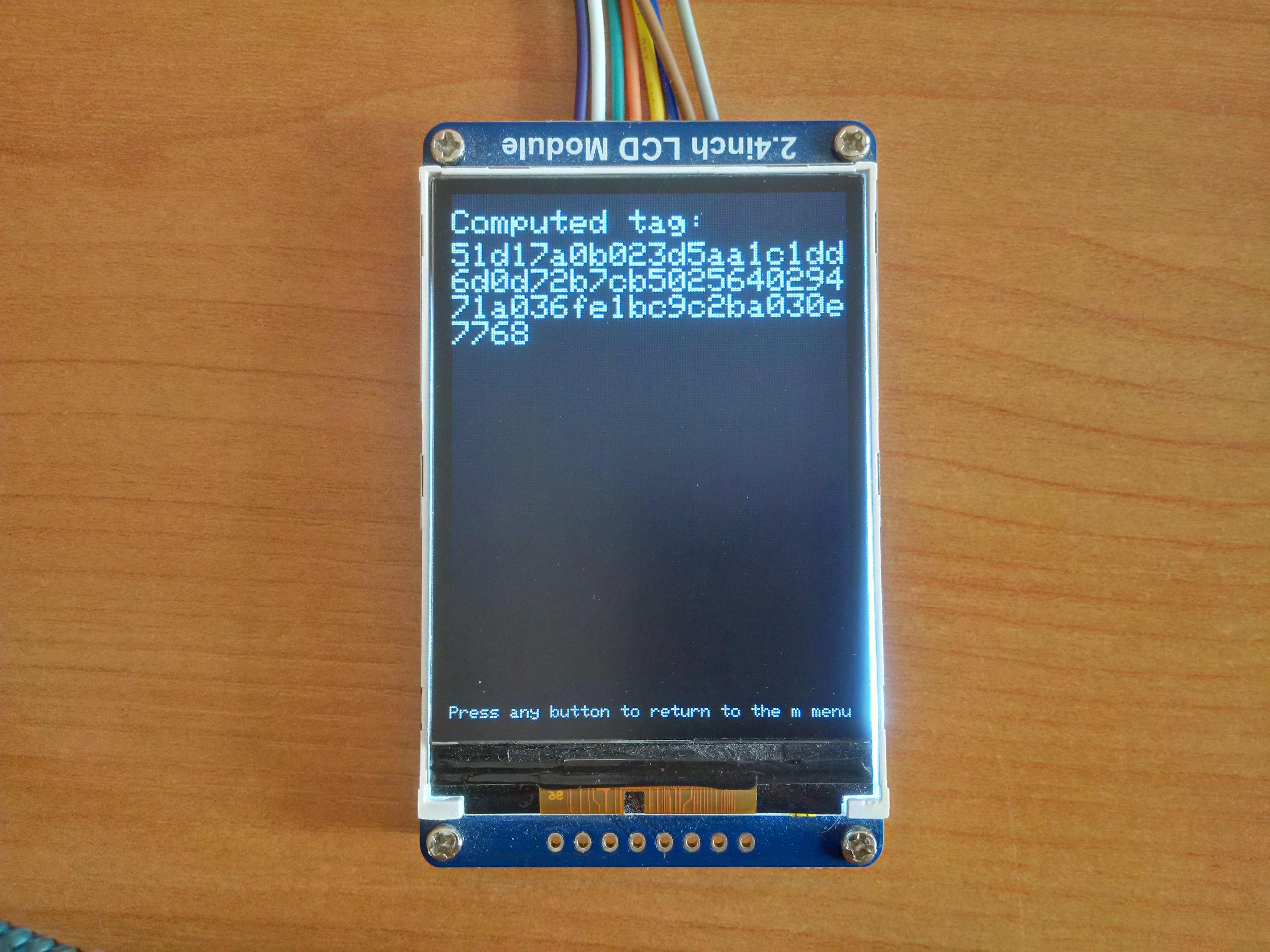

To fix that vulnerability, I've used HMAC-SHA256 (Hash-Based Message Authentication Code) to verify the integrity of the information encrypted by the Cipherbox. Unlike the usual hash function that only takes a string-to-be-hashed as an input, HMAC also takes the key to make sure that even if an attacker gets their hands on the hashes, stuff like the rainbow table will be useless.

Now let me show you how it works in practice.

Before I continue, I would like to remind you that I DO NOT ENCOURAGE HACKING IN ANY WAY!!!

I hacked MY OWN Cipherbox because I wanted to show you how the integrity verification feature works and why it's crucial to have it.

Let's suppose that there are three records stored in the encrypted form:

• Send John Smith $100
• Send Anna Smith $250
• Send Mark Brown $500

An attacker obtained physical access to the device and extracted the database from it.

An attacker found these three Ciphertexts that they're unable to decrypt. But, let's suppose that an attacker knows where the ciphertext with the value of the bonus for Mark Brown is stored, which block has the encrypted value of the bonus, and where the ciphertext with the value of the bonus for John Smith is stored. Let's suppose that attacker knows that the bonus received by Mark Brown is more than the bonus received by John Smith, and an attacker wants to increase the bonus for John Smith. To do so, the attacker takes the block with the encrypted value of the bonus for Mark Brown and replaces John Smith's bonus with Mark Brown's bonus. That trick would've worked with Cipherbox 1, and the forged ciphertext "Send John Smith $500" would've been decrypted without any problems. Cipherbox 3 (and also Cipherbox 2) would decrypt that ciphertext too. But unlike Cipherbox 1, a later version of the Cipherbox computes a tag for each plaintext and then prints that tag in an encrypted form. When Cipherbox 3 (and also Cipherbox 2) decrypts the ciphertext, it also decrypts the tag and computes the new tag for the decrypted text. It then compares both tags. If these tags don't match, it turns the decrypted text red and throws the alert "Integrity verification failed!"

*All names demonstrated here are entirely fictitious. Any similarity to actual persons, living or dead, is purely coincidental.

To store notes in the cloud, you need a ThingSpeak account. A free ThingSpeak account allows you to send data to it 3,000,000 times a year.

To create a free ThingSpeak account:

1. Go to thingspeak.com and click the "Get started for free" button;
2. On the next page, click the "Create one!" hyperlink;
3. In the form that should appear after that. Enter your email, first name, and last name. And click the "Continue" button;

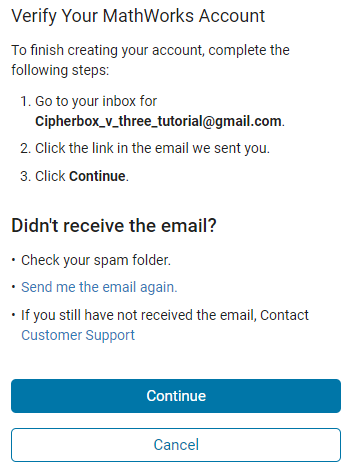

4. Open your email and find a letter from "service@account.mathworks.com";
5. Open that letter and click the "Verify email" button on it.
6. Now, get back to the tab demonstrated in picture 4 and click the "Continue" button;

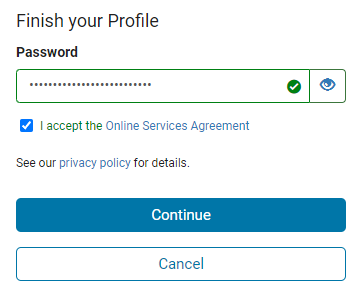

7. Set the password for your account and click the "Continue" button;
8. Click the "OK" button.

*All credentials demonstrated here are fictional. Any similarity to actual credentials is purely coincidental.

To create a channel:

1. Click "Channels" -> "My Channel";
2. On the page that will open, click the "New Channel" button;
3. Check the checkbox right of "Field 2";
4. Name the channel and fields however you want;
5. Scroll down and press the "Save channel" button.

To work with the channel - you need its ID, Write API Key, and Read API Key.

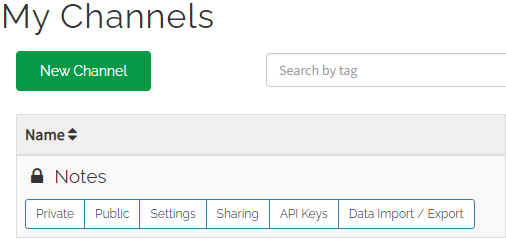

To get the channel's ID, Write API Key, and Read API Key - open the channel and go to the "API Keys" tab.

The values demonstrated on the screen are:

Channel ID: 1234567

Write API Key: A1B2C3D4E5F6G7H8

Read API Key: K9L8M7N6O5P4Q3R2

*Channel ID and API Keys demonstrated here are entirely fictitious. Any similarity to the actual channel ID and API keys is purely coincidental.

If you've never flashed ESP32 before. You'll need to configure Arduino IDE and install drivers to upload the firmware to the board.

You can find the CP210x driver for ESP32 here: https://www.silabs.com/developers/usb-to-uart-brid...

In case you don't have Arduino IDE, you can download it here: https://www.arduino.cc/en/software

Configuring IDE isn't a part of this tutorial, you can read about it here: https://randomnerdtutorials.com/installing-the-esp...

You can download the firmware from one of the three sources.

GitHub: https://github.com/Northstrix/Cipherbox

SourceForge: https://sourceforge.net/projects/mcu-cipherbox

OSDN: https://osdn.net/projects/cipherbox

The reason why I've uploaded the firmware to SourceForge and OSDN is that I realized that not everyone needs a 137Mb archive from Github with the firmware for all three versions, photos, and lots of extra code.

For comparison, the archive with the firmware hosted on SourceForge and OSDN only weighs 0.1Mb.

Adafruit-GFX-Library: https://github.com/adafruit/Adafruit-GFX-Library

Adafruit_ILI9341: https://github.com/adafruit/Adafruit_ILI9341

Adafruit_BusIO: https://github.com/adafruit/Adafruit_BusIO

esp32_arduino_sqlite3_lib: https://github.com/siara-cc/esp32_arduino_sqlite3_lib

rfid: https://github.com/miguelbalboa/rfid

DES_and_3DES_Library_for_MCUs: https://github.com/Northstrix/DES_and_3DES_Library_for_MCUs

EncButton: https://github.com/GyverLibs/EncButton

espsoftwareserial: https://github.com/plerup/espsoftwareserial/

thingspeak-arduino: https://github.com/mathworks/thingspeak-arduino

The process of unpacking libraries is typical. You can unpack the content of the archive into the folder: ...\Arduino\libraries. Or open the Arduino IDE, click Sketch -> Include Library -> Add .ZIP Library... and select every archive with the library.

Although, I provided you a link to the "thingspeak-arduino" library, I would advice you to install that library via the Library Manager (Sketch -> Include Library -> Manage Libraries...).

Important! If you have any of the following libraries installed, I would strongly advice you remove them to avoid the possible conflicts with the "DES_and_3DES_Library_for_MCUs" library.

• DES_Library
• ArduinoDES

Other required libraries are already present in one way or another.

The primary purpose of the ESP32 Filesystem Uploader is to let you upload files into ESP's filesystem. In this tutorial, the purpose of this tool is to upload an empty SPIFFS image into ESP.

Download the "ESP32FS-1.0.zip" file here https://github.com/me-no-dev/arduino-esp32fs-plugin/releases/

And then extract the content of that archive into the "...\Arduino\Tools\" folder.

After that, restart the Arduino IDE.

Click Tools -> ESP32 Sketch Data Upload. Then click Yes in the pop-up window. The program is going format the built-in flash memory.

Some boards will flash without any problems.

Unfortunately, that's not the case for all boards. If you configured IDE correctly, installed drivers, selected the corresponding port, and still keep getting this error: A fatal error occurred: Failed to connect to ESP32: Timed out waiting for packet header. Connect a 10µF capacitor to the board while flashing.

Connect the positive lead of the capacitor to the EN pin of the ESP32;

Connect the negative lead of the capacitor (usually indicated by the gray stripe) to the GND pin of the ESP32.

Don't forget to disconnect the capacitor after the board flashes.

To make the unauthorized deciphering of your data computationally infeasible - It is crucial to generate your own keys and never reuse them.

The best way to generate the keys is to throw 20-sided dice.

If you get a number from 1 to 9, write it down.

If you get a number from 10 to 15, write down a letter corresponding to that number.

10 = A;

11 = B;

12 = C;

13 = D;

14 = E;

15 = F.

If you get 20, write down 0.

If you get something else, don't write anything and throw the dice again.

There's also an easier option.

I modified one of my previous projects to work as a random number generator, the generated output seems "random enough" for me, but I haven't run any tests. So, I can't guarantee that it's random.

Use it at your own risk.

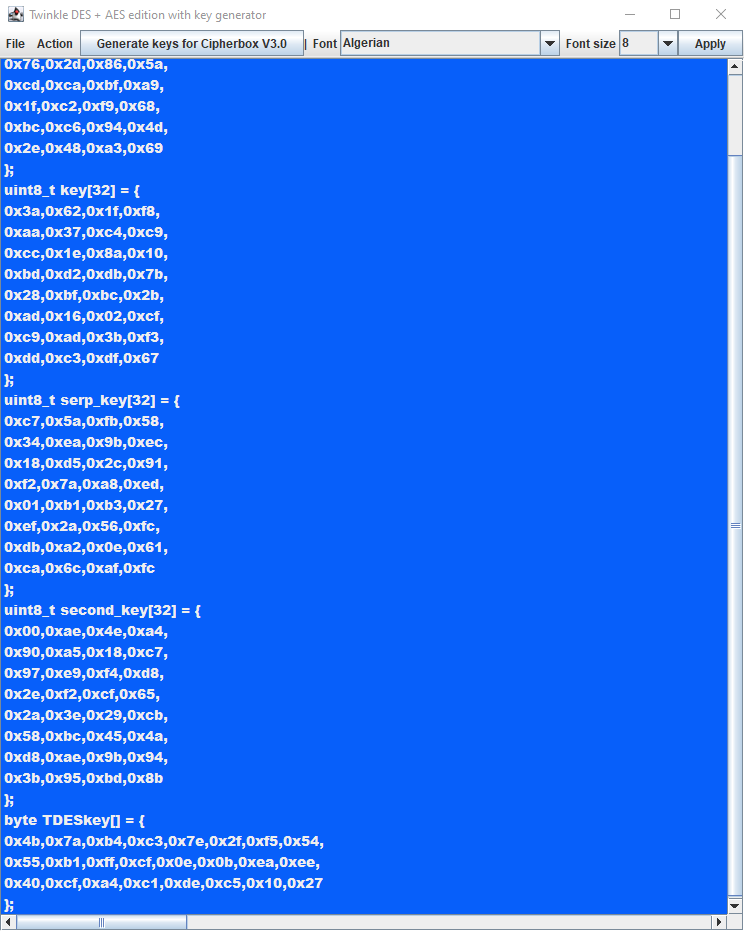

To generate the keys - launch gen.exe from the "Cipherbox-main\V3.0\Untested RNG" folder, and then click the "Generate keys for Cipherbox V3.0" button. The background turns from black to blue when you press that button.

Open the file "Firmware_for_ESP32.ino", scroll down a bit, and then replace my values of the ssid, password, myChannelNumber, myWriteAPIKey, myReadAPIKey, hmackey, Blwfsh_key, key, serp_key, second_key, and TDESkey with yours.

Upload the firmware from the folder "Firmware_for_ESP32" into the ESP32.

Upload the firmware from the folder "Firmware_for_Arduino_UNO" into the Arduino UNO.

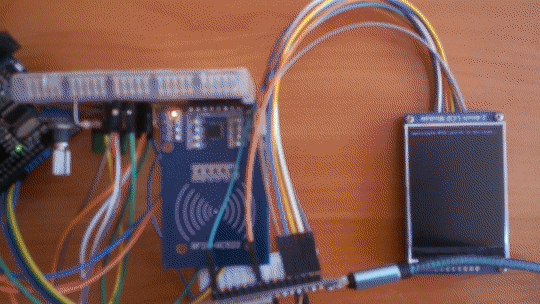

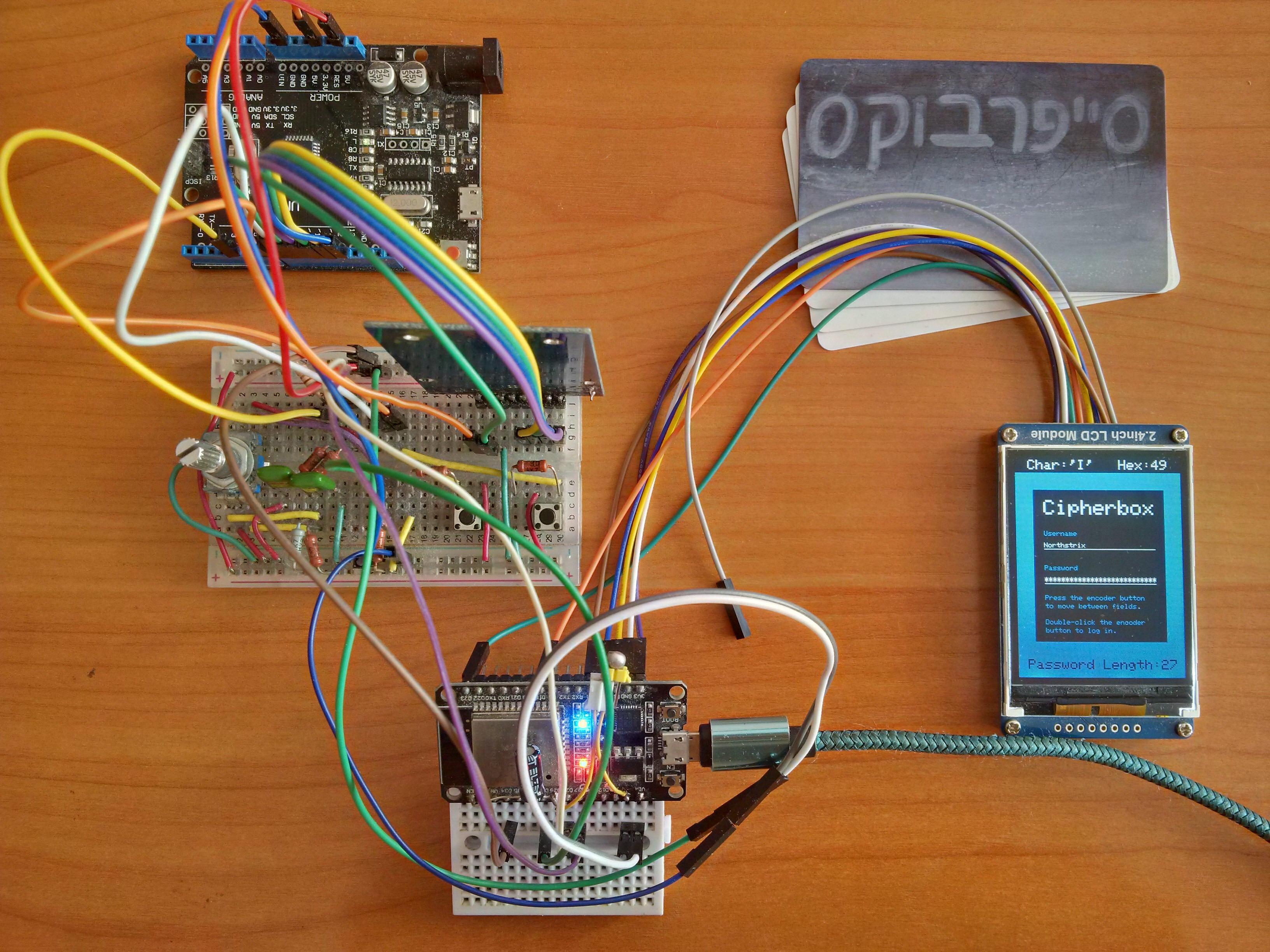

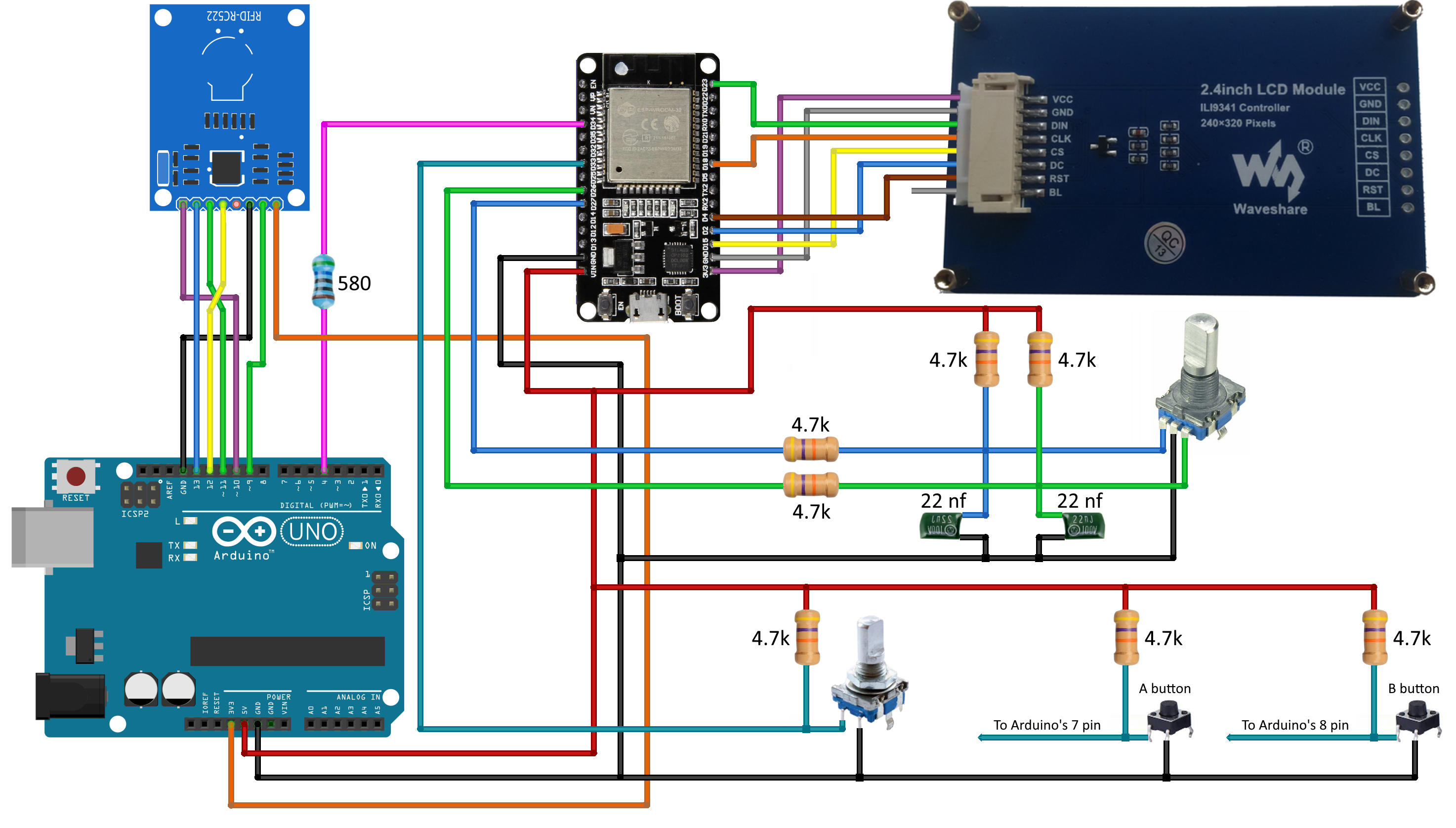

I know that the circuit diagram is a bit tangled, but believe me, it's not as bad as it looks, especially after you've started assembling the device.

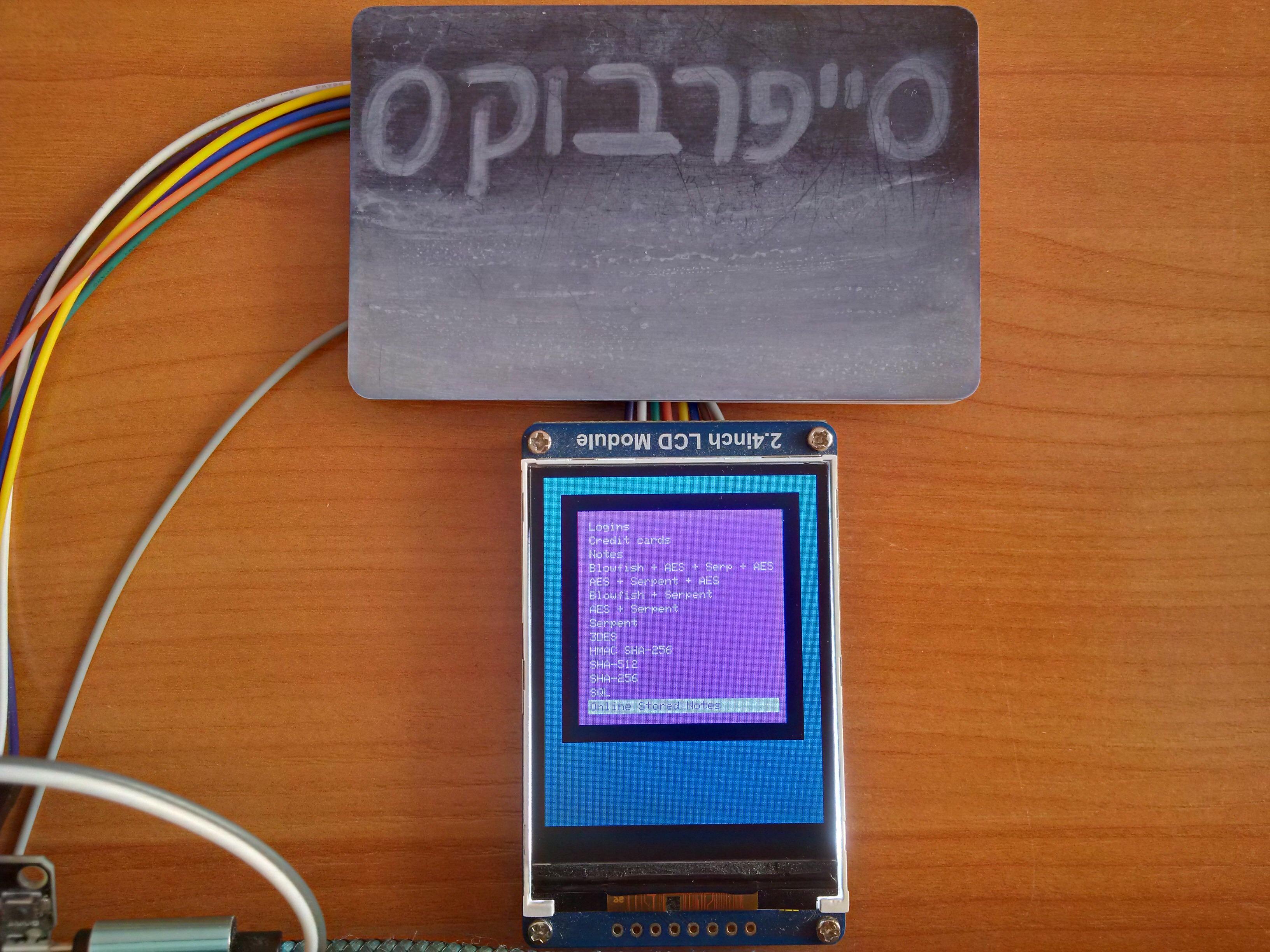

Ok, it's time to unlock the Cipherbox. Power the device up and consequently approximate four RFID cards to it. You need to approximate cards in exactly the same order every time you unlock the Cipherbox, or you won't be able to decrypt your stuff.

Well, it's more like "sign up and immediately log in" the first time you're entering a new username. Every other time, it's just "log in."

You can enter any username and password you want, just make sure to keep them both secret. Let me explain why. The username determines the name of the database that will be used to store your notes, while the password is used in the key derivation process.

If an attacker discovers your username, an attacker will be able to delete all records with your logins, credit cards, and notes. If an attacker approximates four RFID cards that you use to unlock the device in the right order and discovers your username and password, an attacker will be able to decrypt all your data.

Although if you don't need the vault capabilities and only want to use ciphers, you can log in under any username or leave the username field empty. Just make sure to always enter the same password, or you won't be able to decrypt your ciphertexts.

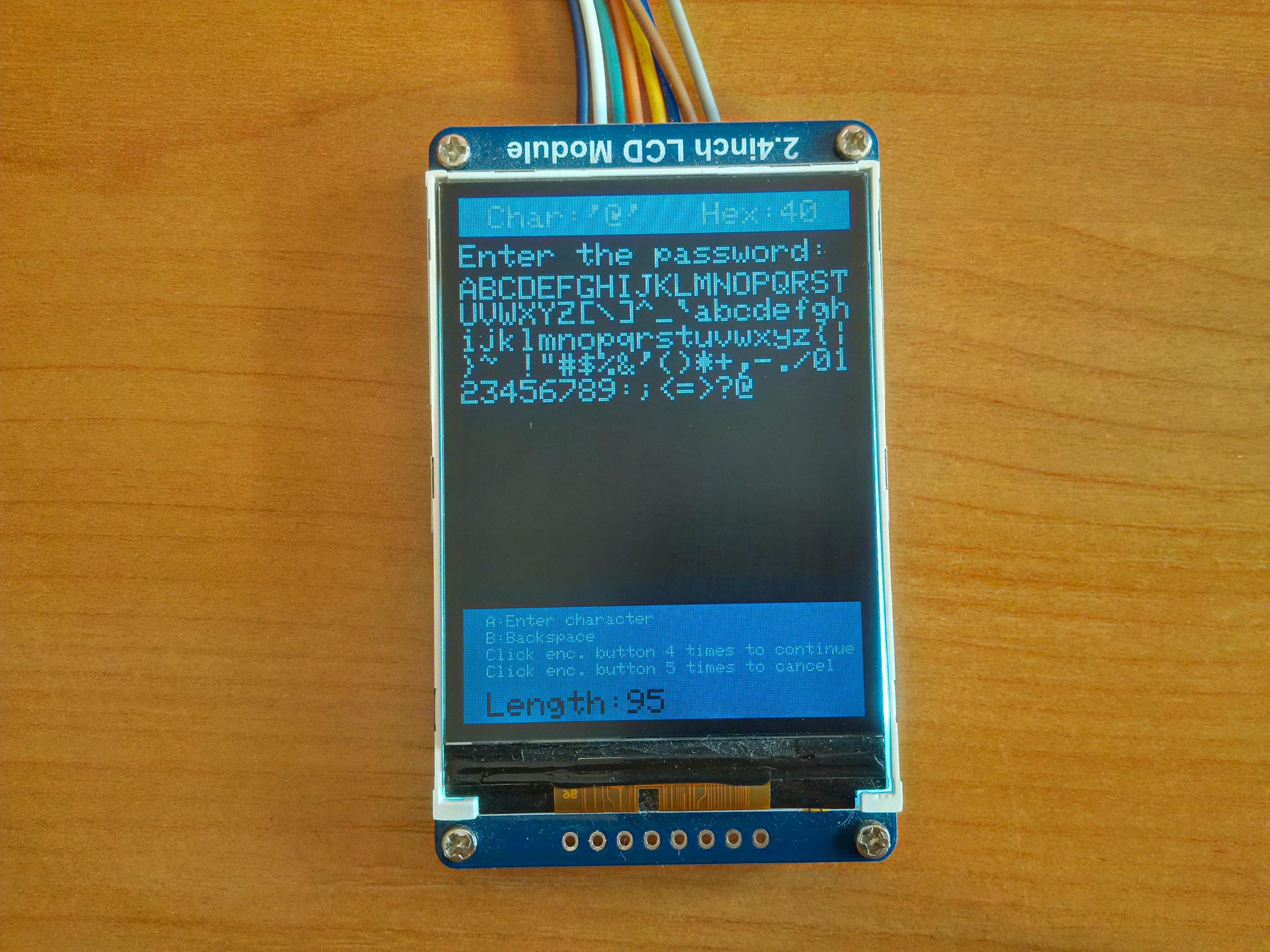

Press the encoder button to move between fields. The selected field is indicated by the inscription below. When you're done, double-click the encoder button to log in to the Cipherbox.

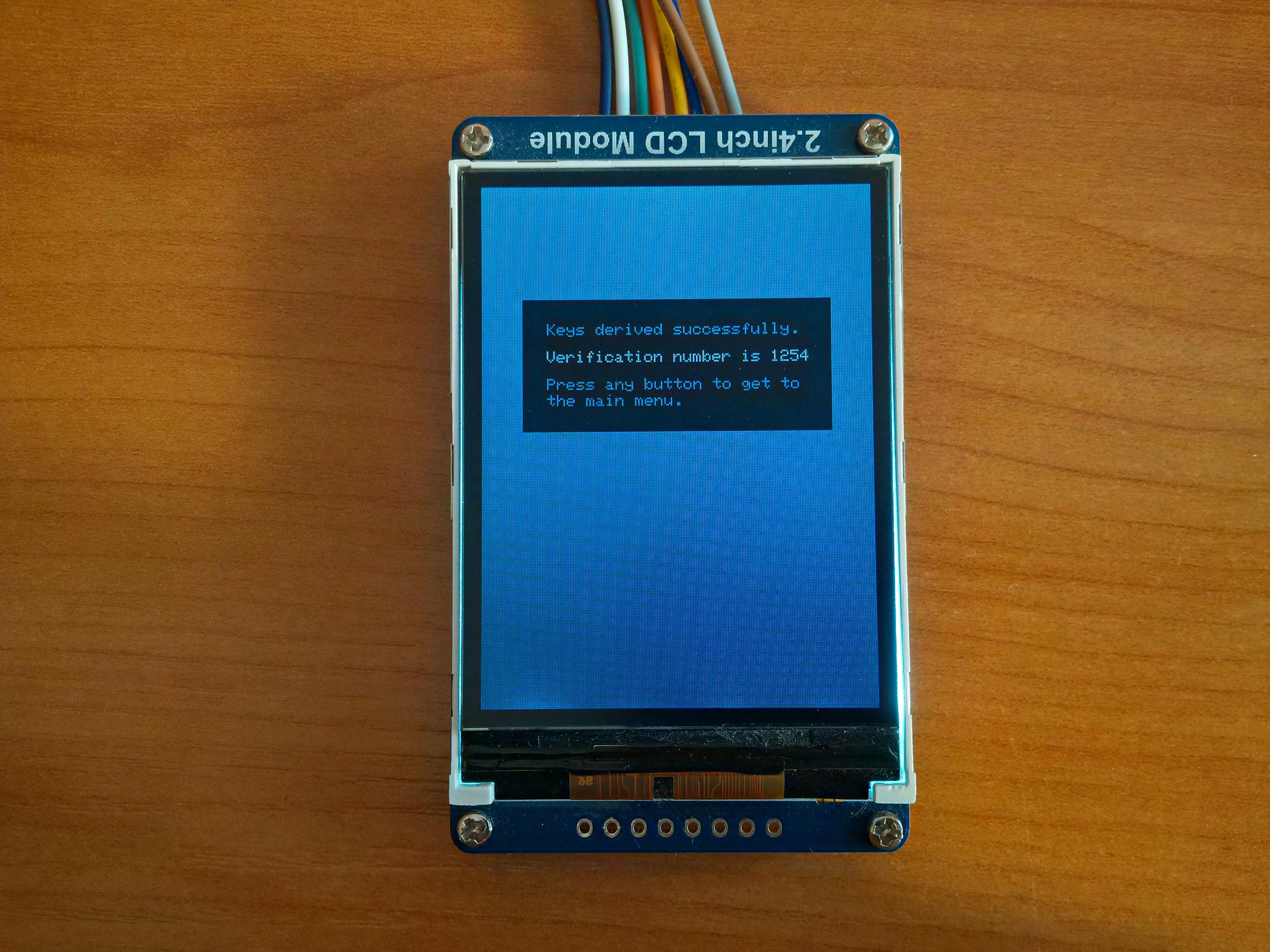

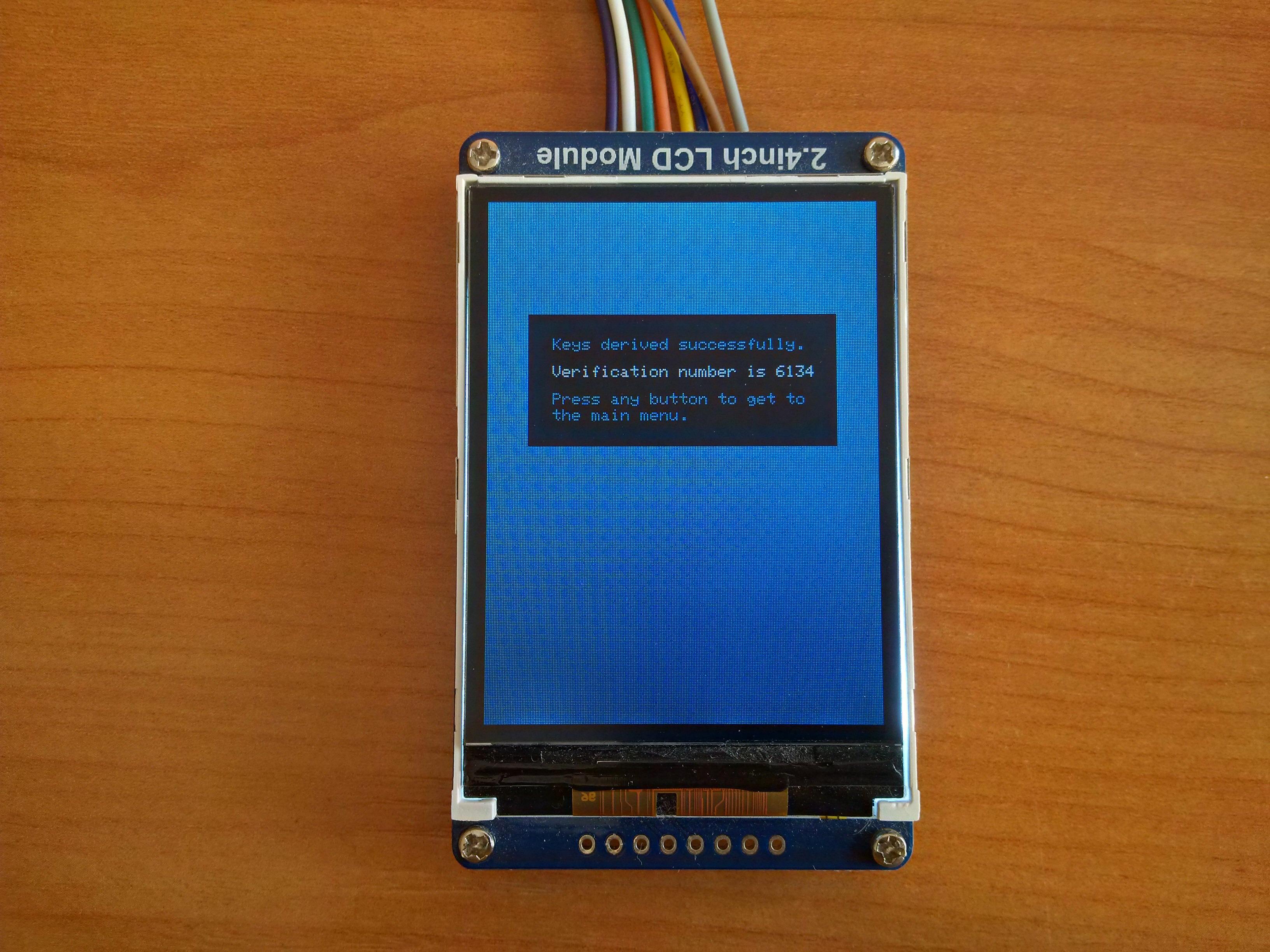

I got the verification number "4634" for the password "ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcdefghijklmnopqrstuvwxyz{|}~ !"#$%&'()*+,-./0123456789:;<=>?@"

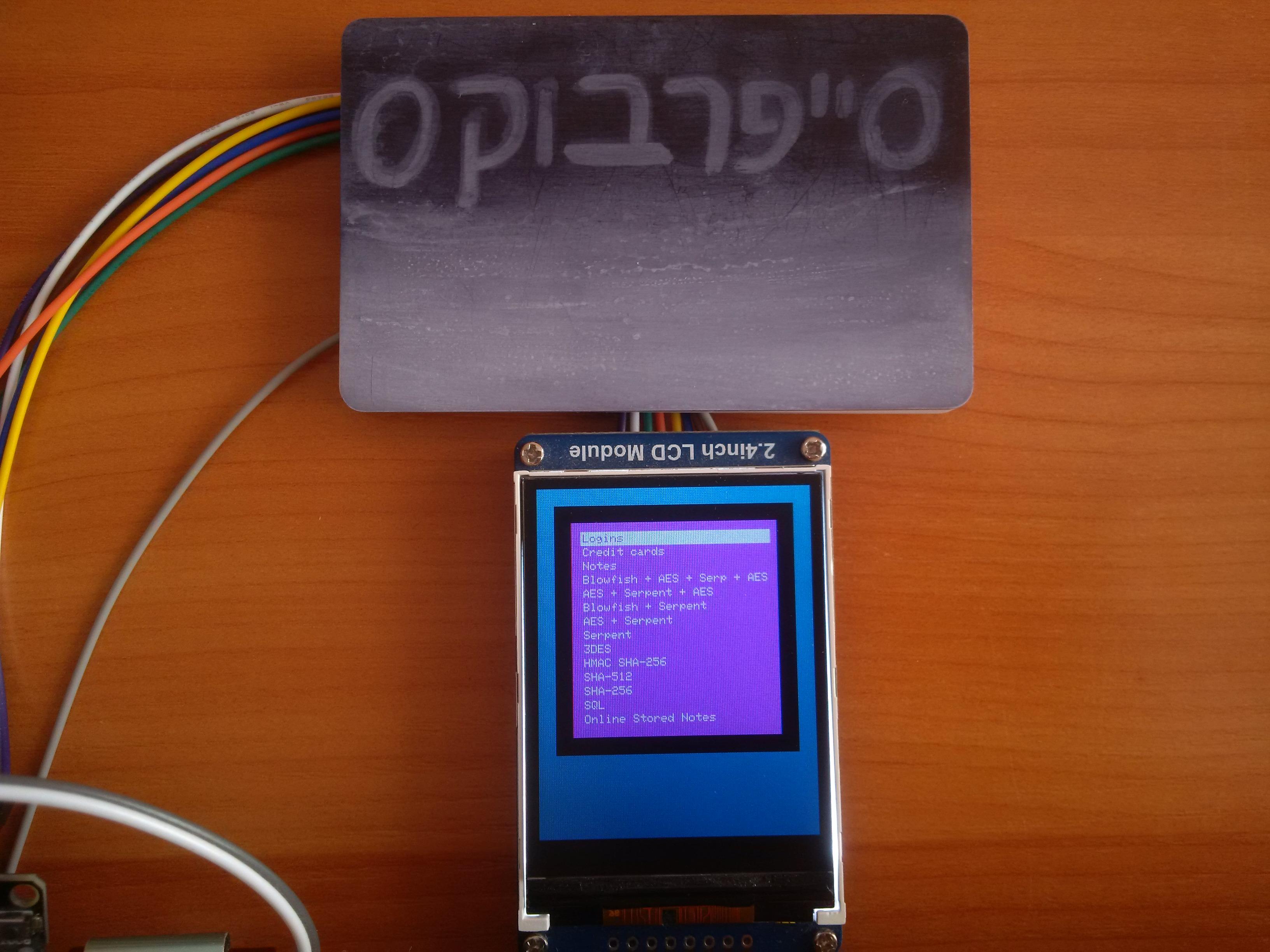

After logging in and getting to the main menu.

• Turn the rotary encoder to the right to go down the menu.
• Turn the rotary encoder to the left to go up the menu.
• Press the "A" button to open the selected menu.
• While in the submenu, press the "B" button to return to the main menu.

*If the hex value decreases when you rotate the encoder to the right, I would advise you to swap the wires connected to the D26 and D27 pins.

The Cipherbox V3.0 utilizes the "Blowfish + AES + Serpent + AES" encryption algorithm combined with the SQLite RDBMS to securely store your logins, credit cards, and notes.

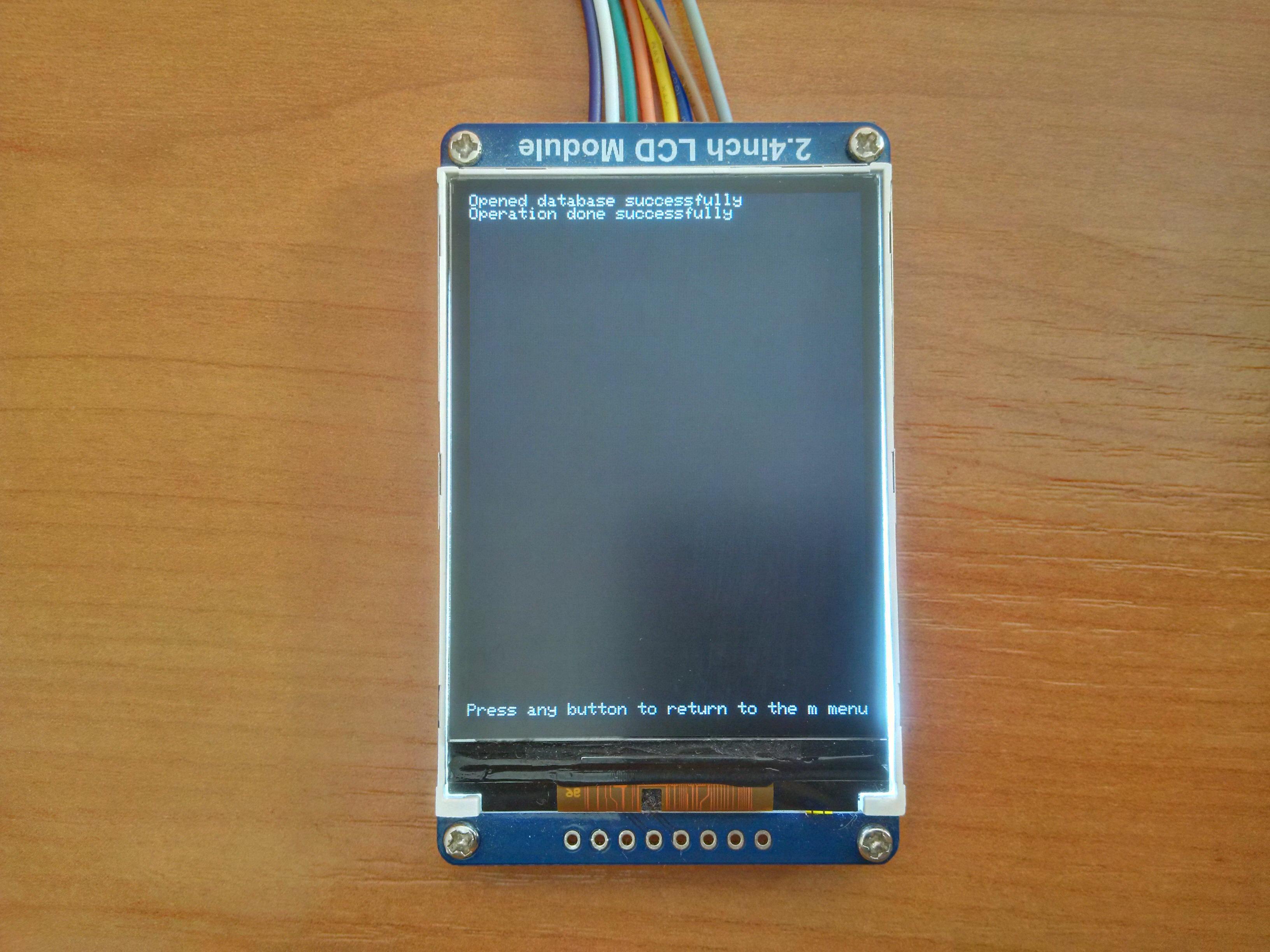

To add a login:

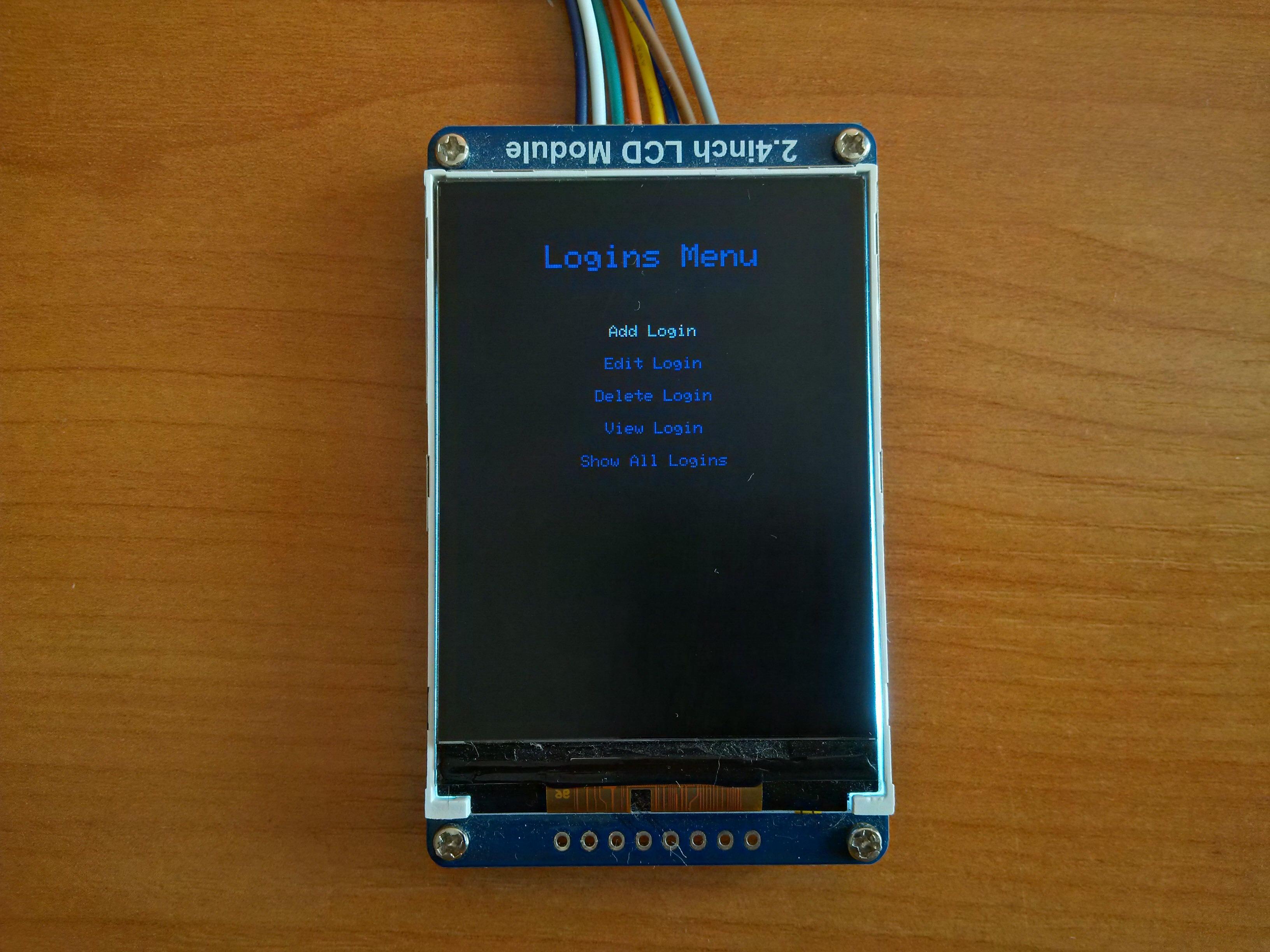

1. Select the "Logins" line in the main menu;
2. Press the "A" button;
3. Select the "Add Login" line;
4. Press the "A" button;

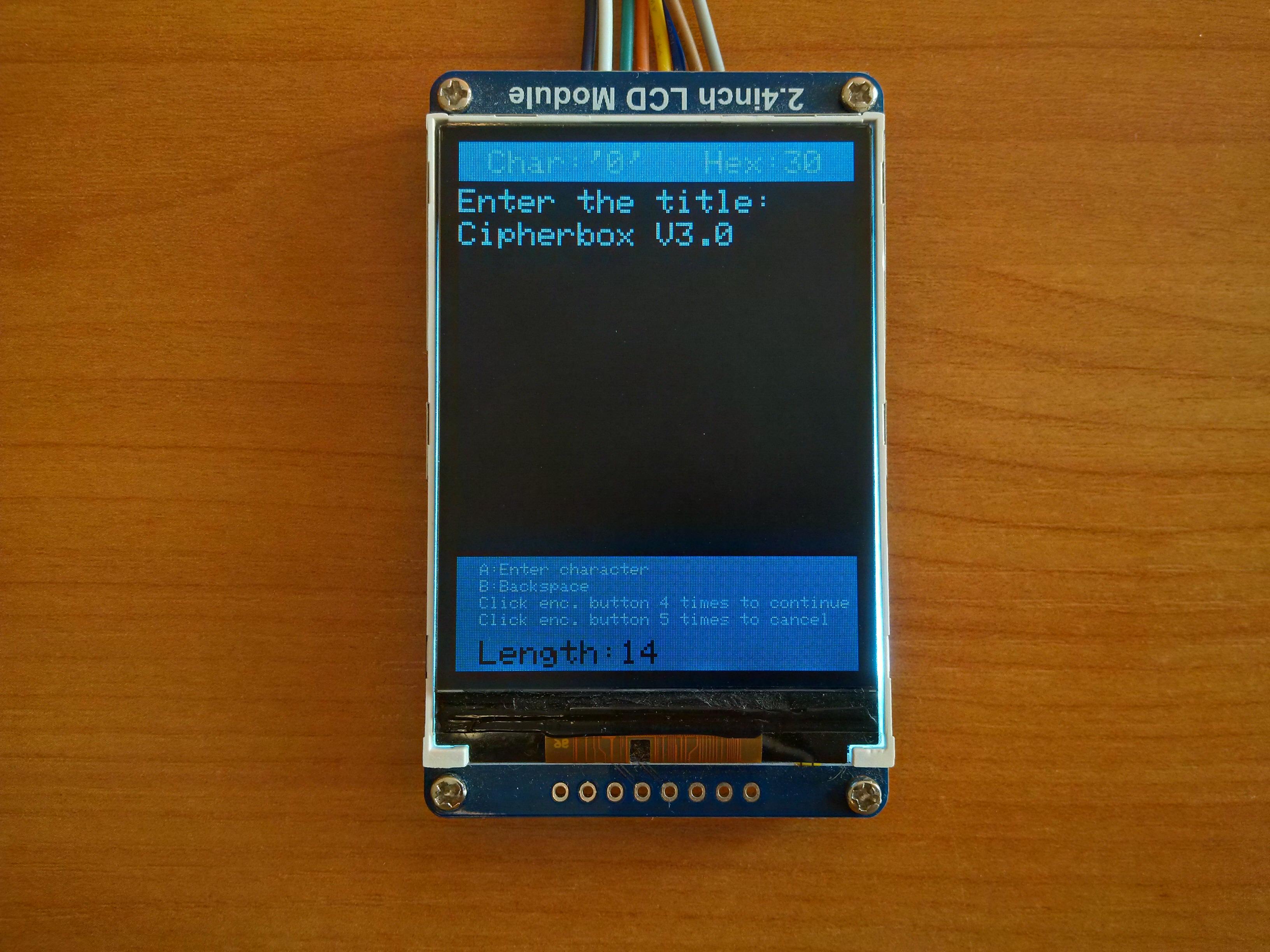

5. Enter the title;
6. Click the encoder button four times;

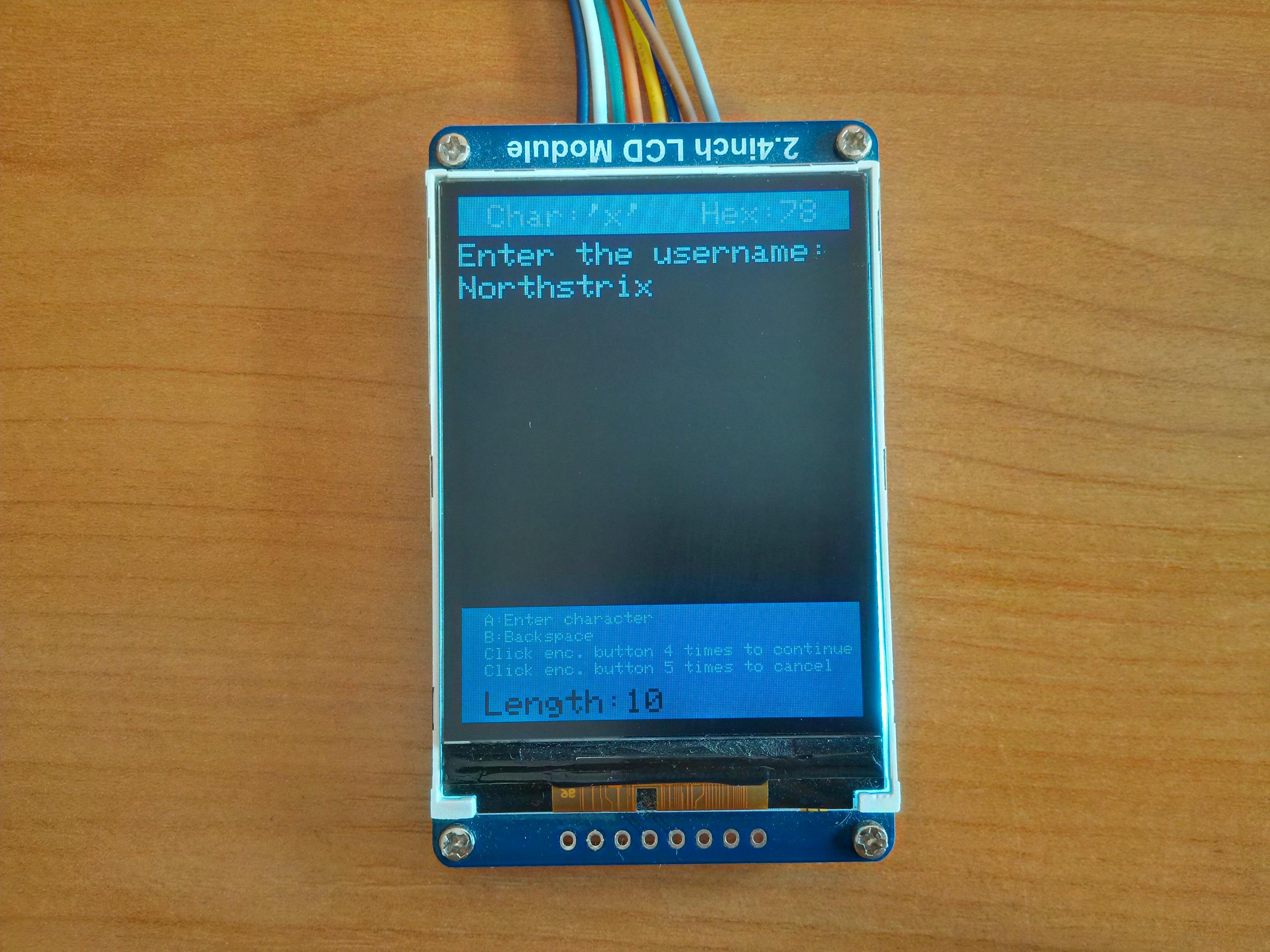

7. Enter the username;
8. Click the encoder button four times;
9. Enter the password;
10. Click the encoder button four times;

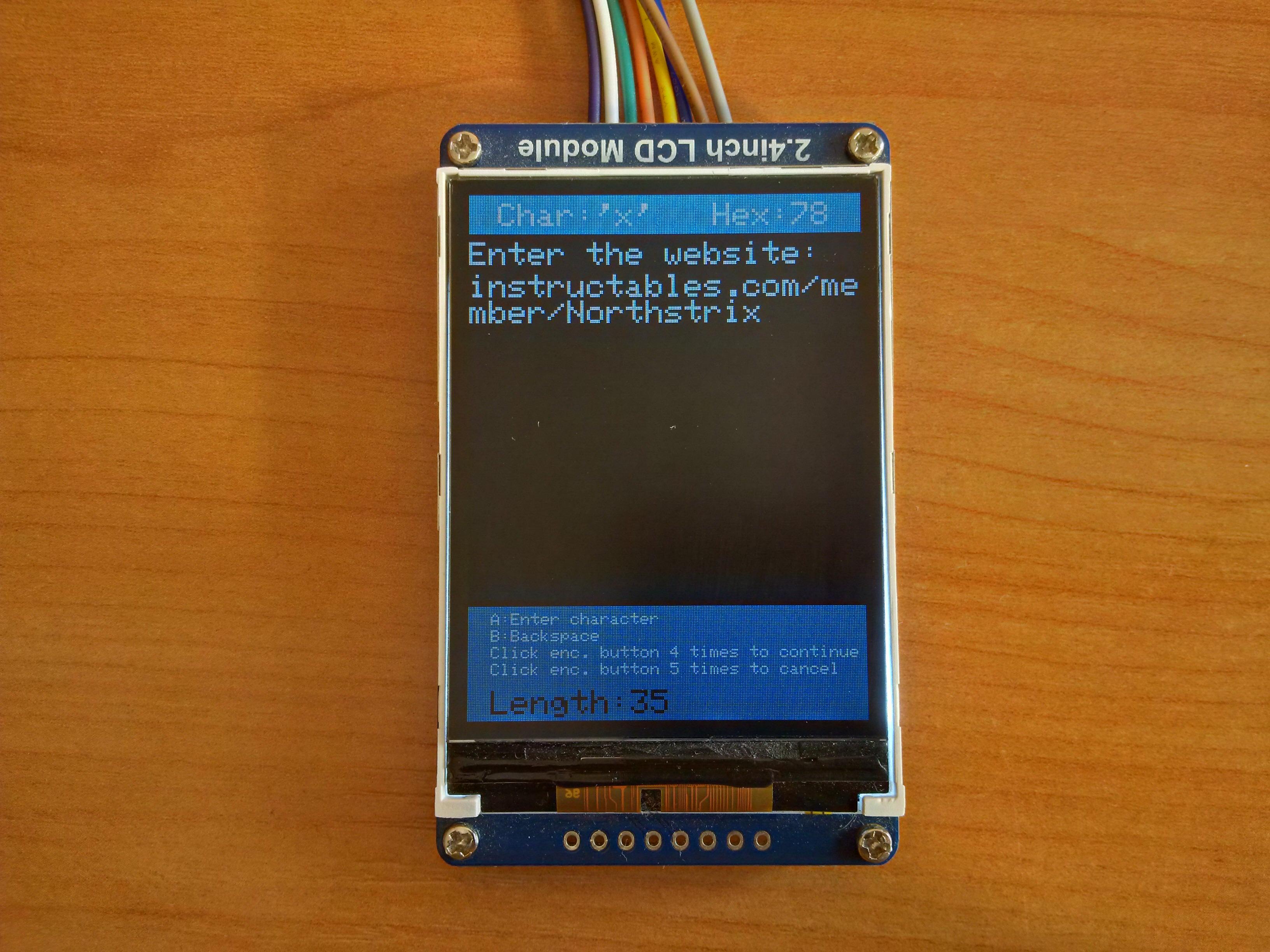

11. Enter the website;
12. Click the encoder button four times;
13. Press any button to return to the main menu.

According to the tests that I've conducted during the development of my previous projects - ESP32 can encrypt and decrypt a record with a length of 600-characters without any problems. So, technically, you can put 600 characters into each field in every category.

*All credentials demonstrated here are entirely fictitious. Any similarity to actual credentials is purely coincidental.

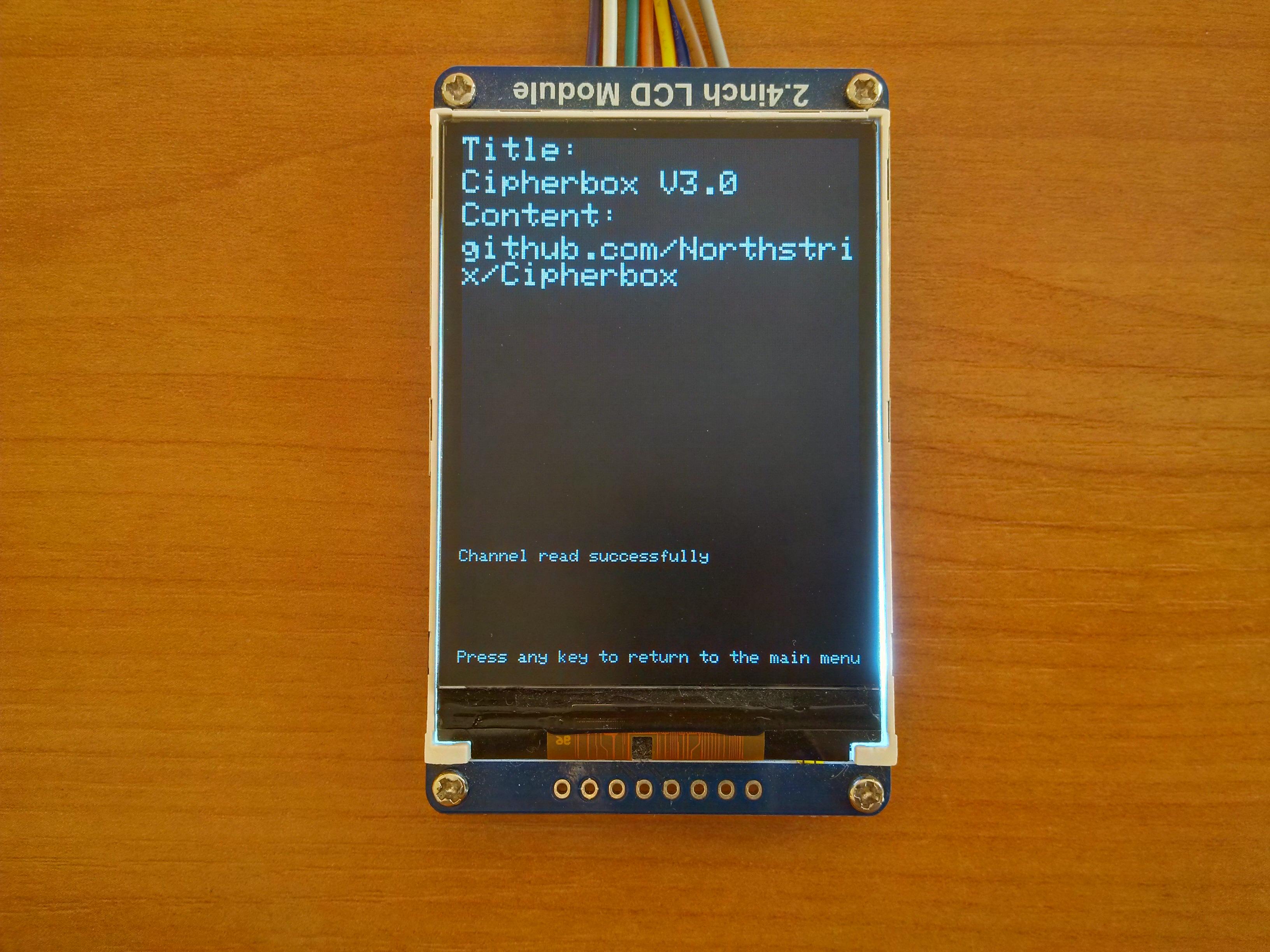

To view a login:

1. Select the "Logins" line in the main menu;
2. Press the "A" button;
3. Select the "View Login" line;
4. Press the "A" button;
5. Select the login you would like to view;
6. Press the "A" button to view the chosen record;
7. Press any button to return to the main menu.

*All credentials demonstrated here are entirely fictitious. Any similarity to actual credentials is purely coincidental.

To edit a login:

1. Select the "Logins" line in the main menu;
2. Press the "A" button;
3. Select the "Edit Login" line;
4. Press the "A" button;

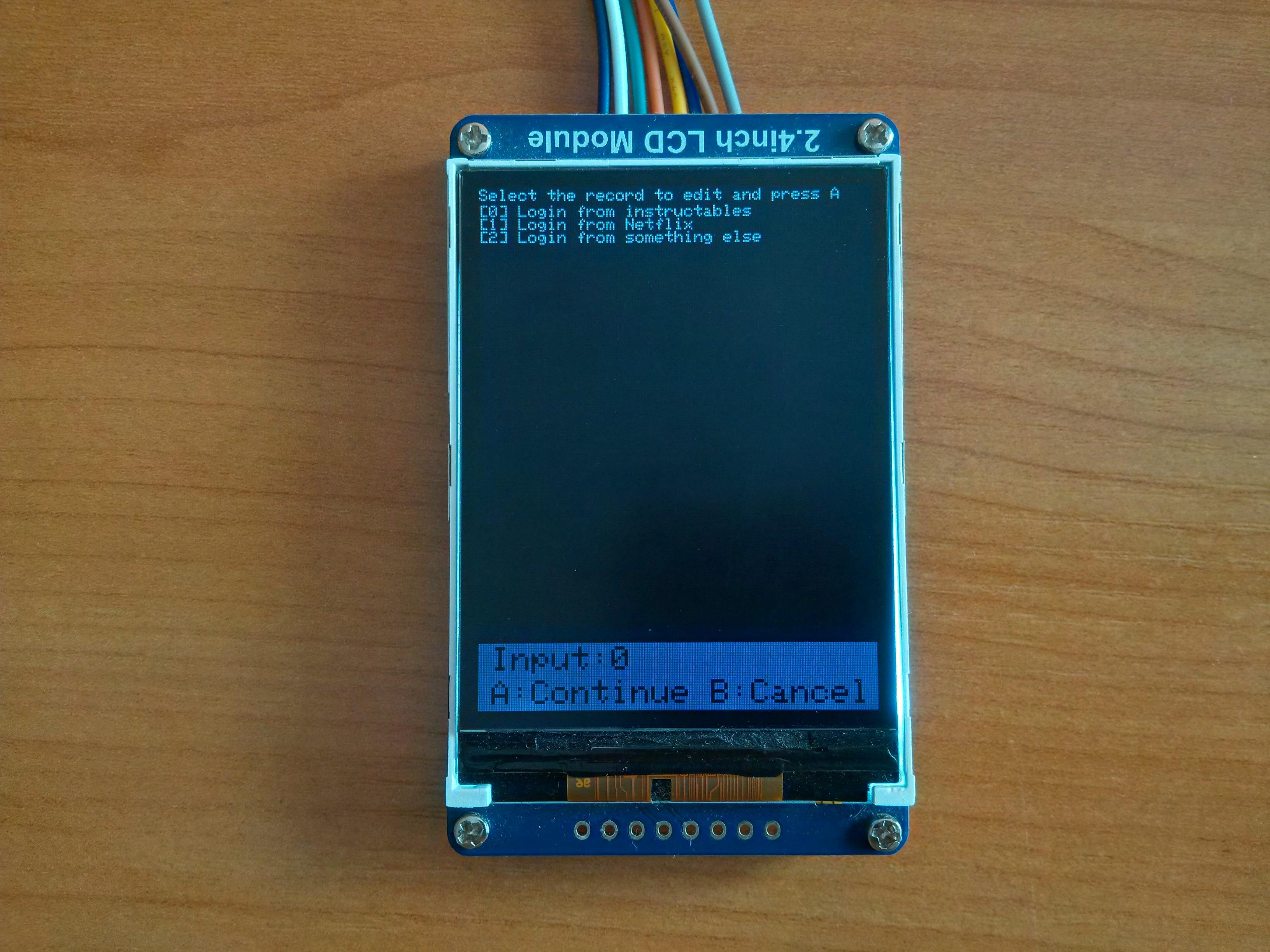

5. Select the login you would like to edit by rotating the encoder;
6. Press the "A" button to set the new password for the selected login;
7. Enter the new password;
8. Click the encoder button four times;
9. Press any button to return to the main menu.

To delete a login:

1. Select the "Logins" line in the main menu;
2. Press the "A" button;
3. Select the "View Login" line;
4. Press the "A" button;
5. Select the login you would like to delete;
6. Press the "A" button to delete the chosen record;
7. Press any button to return to the main menu.

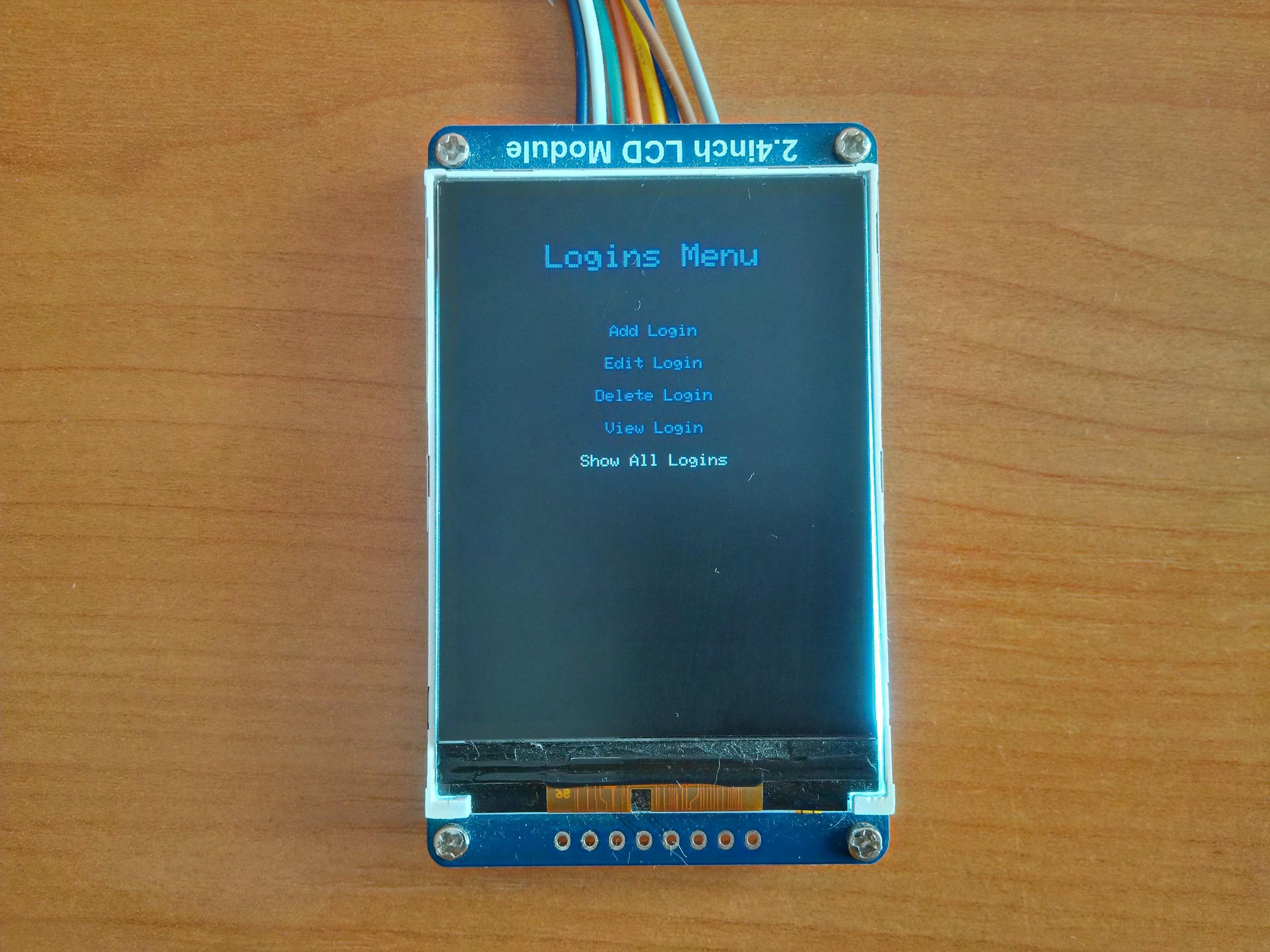

To view all logins:

1. Select the "Logins" line in the main menu;
2. Press the "A" button;
3. Select the "Show All Login" line;
4. Press the "A" button;
5. Press any button to return to the main menu.

As I've mentioned before, Cipherbox utilizes six encryption algorithms.

You can use any of them to encrypt your data.

To encrypt text:

1. Open the Serial Monitor because the ciphertext will be printed to it.

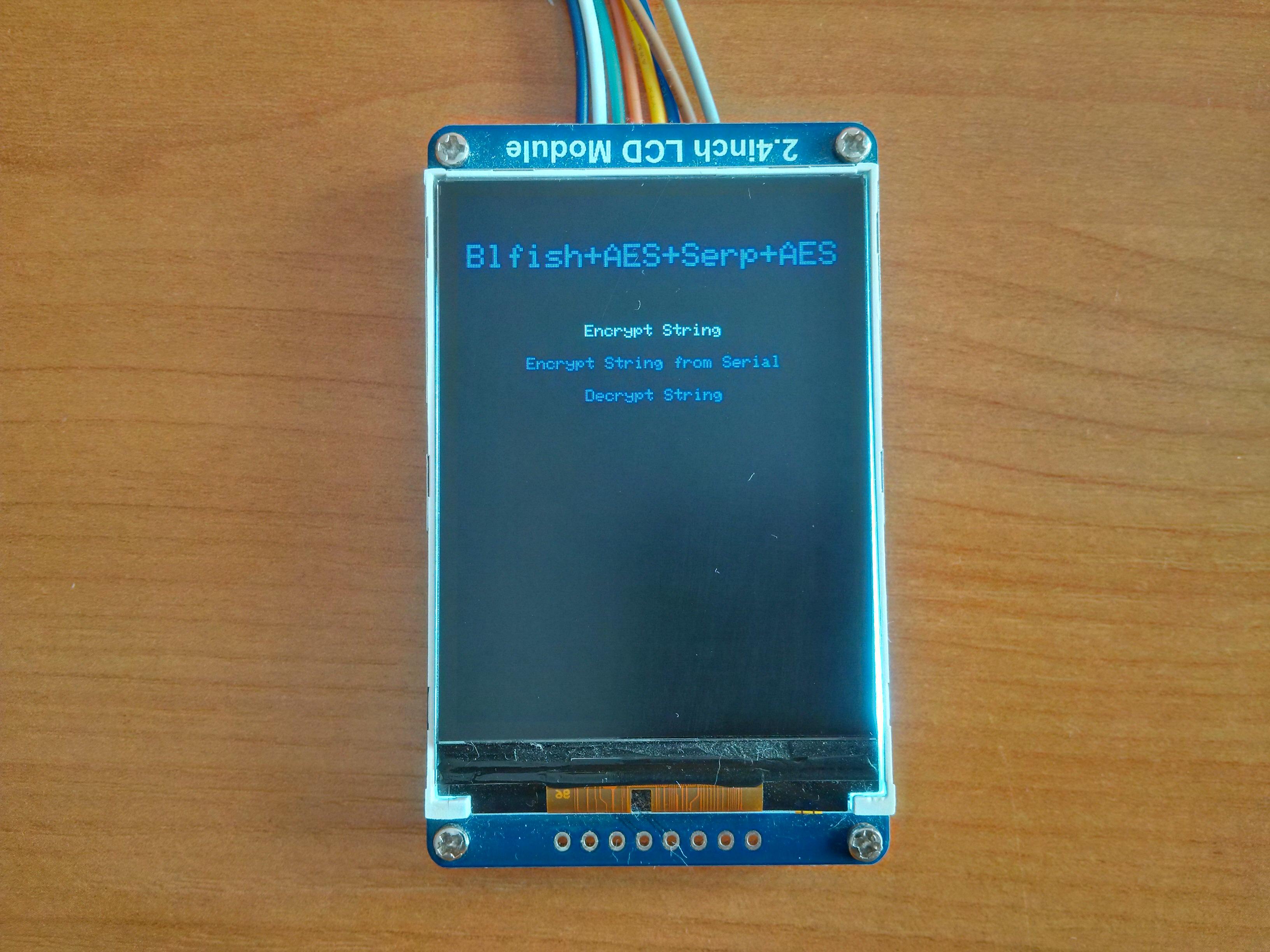

2. Select the line with the name of the encryption algorithm you would like to use. (Blowfish + AES + Serp + AES; AES + Serpent + AES; Blowfish + Serpent; AES + Serpent; Serpent; 3DES);
3. Press the "A" button;
4. Choose the input source;
5. Press the "A" button;
6. Enter the text you want to encrypt;
7. Either click the encoder button four times or press the "Send" button in the Serial monitor depending on the chosen input source to encrypt the text.

Plaintext:

There's always room for improvement!

Ciphertext:

7d1c07b8b47b3279b078a156447b0ba56f8005529e940146bc054a5cc5e5862ef0ad9013470d372386f5a85251ab42f0b56b10de88c24148b00b4faede8a965bc4ebf60f44f73315e3eba27248efc2da6683f64658287ab8b99994d10dc3da4b645afafcad2b73fc2470aa6124cfbc10b4c15c2b429064f62f0657e844450ab1d797bbb46b5b3f7ec3fa9a75f4615732cb2719a54095c8ca574192eb1266e0d81c9ffdc35ce1d91c535156b1be22da7dd5cec3e8b41705845779b4ca190ba319489039f04163329d6a2fe349281b373e9ee65a70bc6927b94508af865f43bd763af9565186deda1c3bcad2824486cdb234287d5d2508f1e7679b0eaf11f8cb9796d2ec304a5dd93f5bc04c97b1111a47de2df92c84573a5a8df7f0700a493c23

To decrypt text:

1. Open the Serial Monitor because you'll need to paste the ciphertext to it.
2. Select the line with the name of the encryption algorithm you've used to encrypt the text;
3. Press the "A" button;
4. Select the "Decrypt String" line;
5. Press the "A" button;
6. Paste the ciphertext to the Serial Monitor;
7. Press the "Send" button in the Serial monitor.

Ciphertext:

7d1c07b8b47b3279b078a156447b0ba56f8005529e940146bc054a5cc5e5862ef0ad9013470d372386f5a85251ab42f0b56b10de88c24148b00b4faede8a965bc4ebf60f44f73315e3eba27248efc2da6683f64658287ab8b99994d10dc3da4b645afafcad2b73fc2470aa6124cfbc10b4c15c2b429064f62f0657e844450ab1d797bbb46b5b3f7ec3fa9a75f4615732cb2719a54095c8ca574192eb1266e0d81c9ffdc35ce1d91c535156b1be22da7dd5cec3e8b41705845779b4ca190ba319489039f04163329d6a2fe349281b373e9ee65a70bc6927b94508af865f43bd763af9565186deda1c3bcad2824486cdb234287d5d2508f1e7679b0eaf11f8cb9796d2ec304a5dd93f5bc04c97b1111a47de2df92c84573a5a8df7f0700a493c23

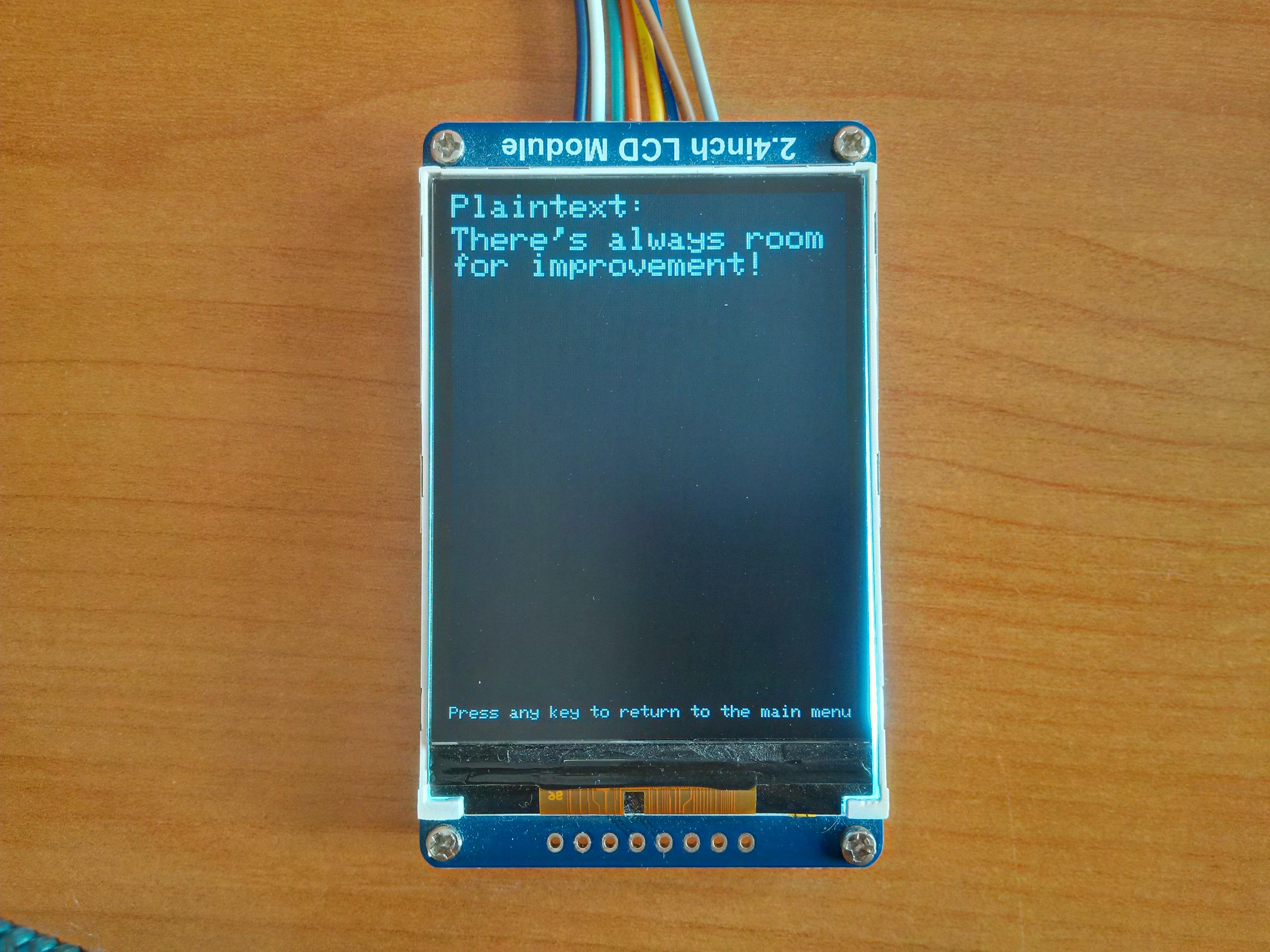

Plaintext:

There's always room for improvement!

The Cipherbox utilizes two hash functions: SHA-256 and SHA-512.

If you're not familiar with the hash functions, let me give you a simple explanation of what the hash function is.

The hash function is an algorithm that takes your input (in that case, it's a string) and gives you a fixed-length output derived from that input. One of the most important properties of the hash function is that it always produces the same output for the same input. That allows you to use the hash function to verify the data integrity.

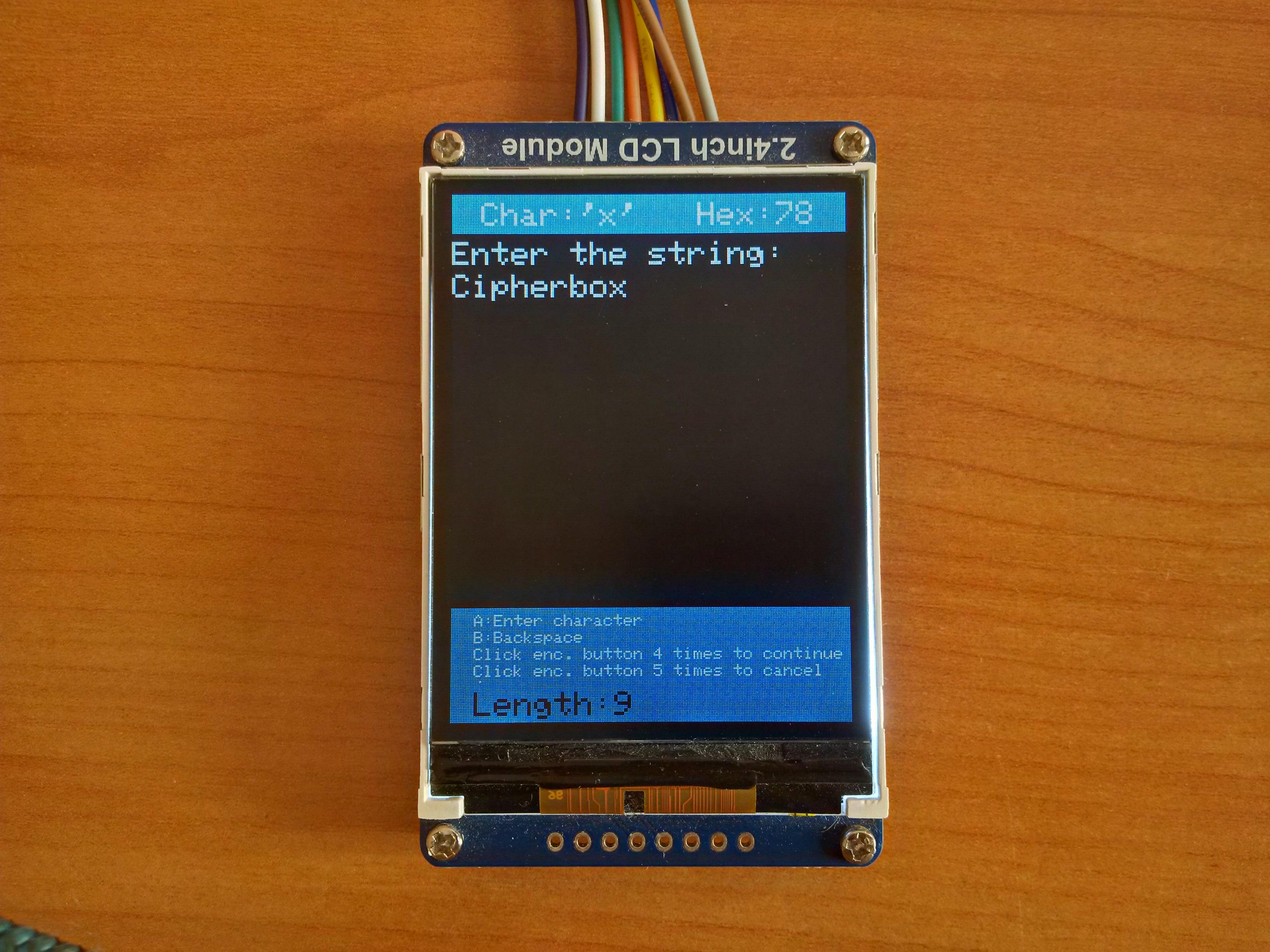

To hash a string:

1. Select the "SHA-512" or "SHA-256" line in the main menu, depending on the hash function you want to use;
2. Enter the string you want to hash;
3. Click the encoder button four times.

Input:

Cipherbox

Hash:

97e52cf8b4c283a38d85a8e52dd9ce62f57f6e004b4c2ef35ad91f5a3c5378769d578eee19a8dae5386df5406ed5a5262c76043558cd5418e2c53f27f01b6106

Cipherbox can do more than just "hash a string" - it can compute a tag for it using the Hash-Based Message Authentication Code.

The difference between the hash function and HMAC is that, unlike the hash function, the HMAC takes two inputs: a string and a key.

HMAC always produces the same output for the same input if you give it the same key!

To compute a tag for the string:

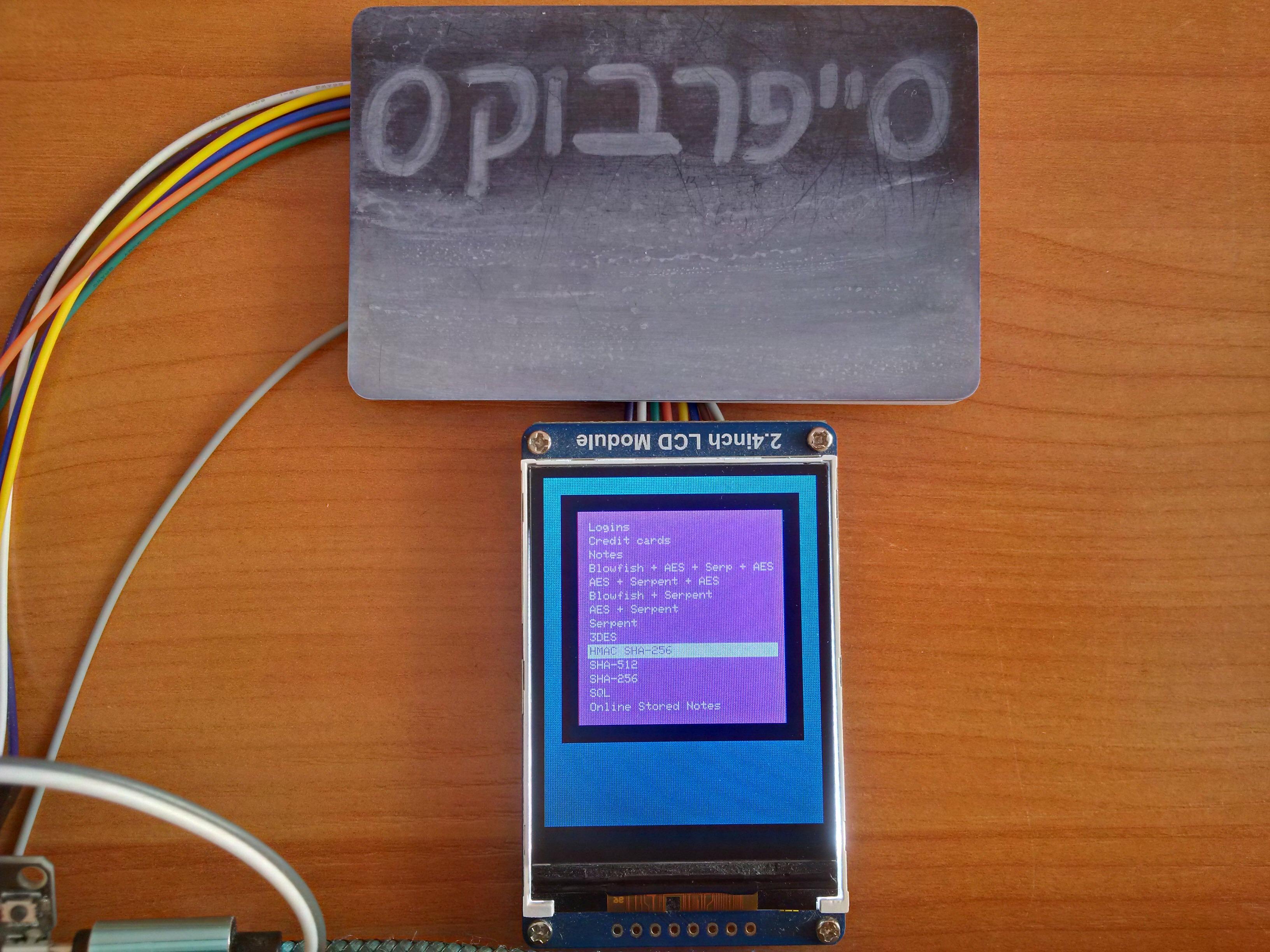

1. Select the "HMAC SHA-256" line in the main menu;
2. Press the "A" button;
3. Choose the input source and whether you want to use the key derived from your master password or an RFID card as a key;
4. *Approximate the RFID card to the reader if you've chosen to use an RFID card as a key;
5. Enter the string you want to compute the tag for;
6. Either click the encoder button four times or press the "Send" button in the Serial monitor depending on the chosen input source to compute a tag for the string.

Input:

It kinda works.

Key:

15fea9ab

Tag:

51d17a0b023d5aa1c1dd6d0d72b7cb502564029471a036fe1bc9c2ba030e7768

The Cipherbox utilizes the SQLite relational database management system to store your encrypted data in an organized form.

SQLite allows you to execute queries and statements on it. The difference between a query and a statement is that a query returns something after being executed. I wrote the word "query" in the "SQL" submenu because the Cipherbox always prints the output of the callback function after something is executed, even if you execute a statement.

To execute a query or a statement on the SQLite:

1. Select the "SQL" line in the main menu;
2. Press the "A" button;
3. Choose the input source;
4. Press the "A" button;

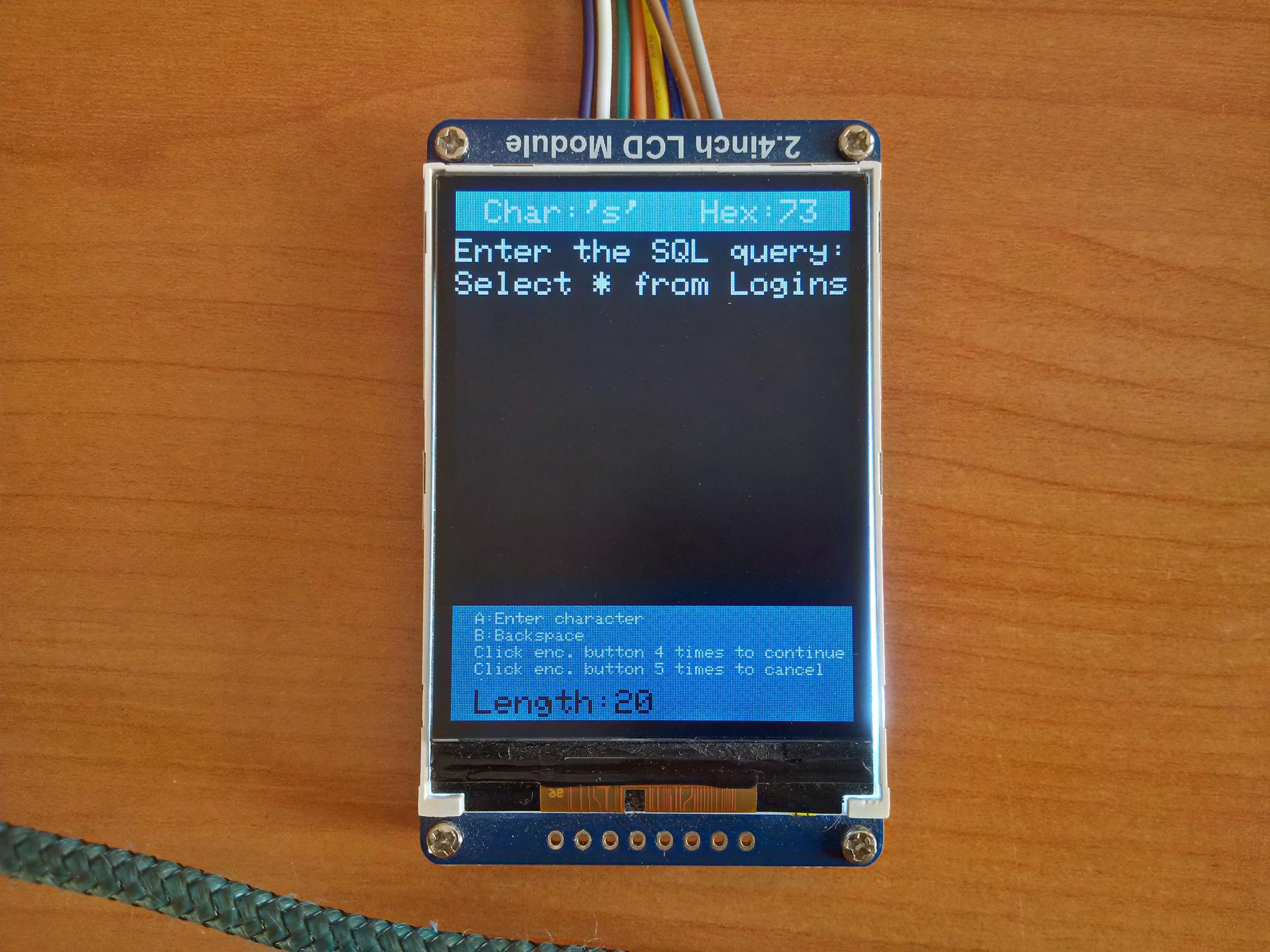

5. Enter the query you want to execute;
6. Either click the encoder button four times or press the "Send" button in the Serial monitor depending on the chosen input source to execute the query.

Here are three useful statements for you:

• Drop table Logins
• Drop table Credit_cards
• Drop table Notes

Each of these statements removes all records in the corresponding category. As a side effect, you won't be able to add a record to that category until you reboot the device.

Ok, let's get to the final feature utilized by Cipherbox V3.0 - the ability to store the encrypted notes in the cloud.

Before you continue reading this tutorial, I would like to remind you that the so-called "Online Stored Notes" is a raw and unstable feature. And there's no guarantee that it would work at all! There's also no warranty of any kind provided for anything you do with the Cipherbox V3.0 or any of its component(s). Proceed at your own risk.

To add an encrypted note to the cloud:

1. Select the "Online Stored Notes" line in the main menu;
2. Press the "A" button;

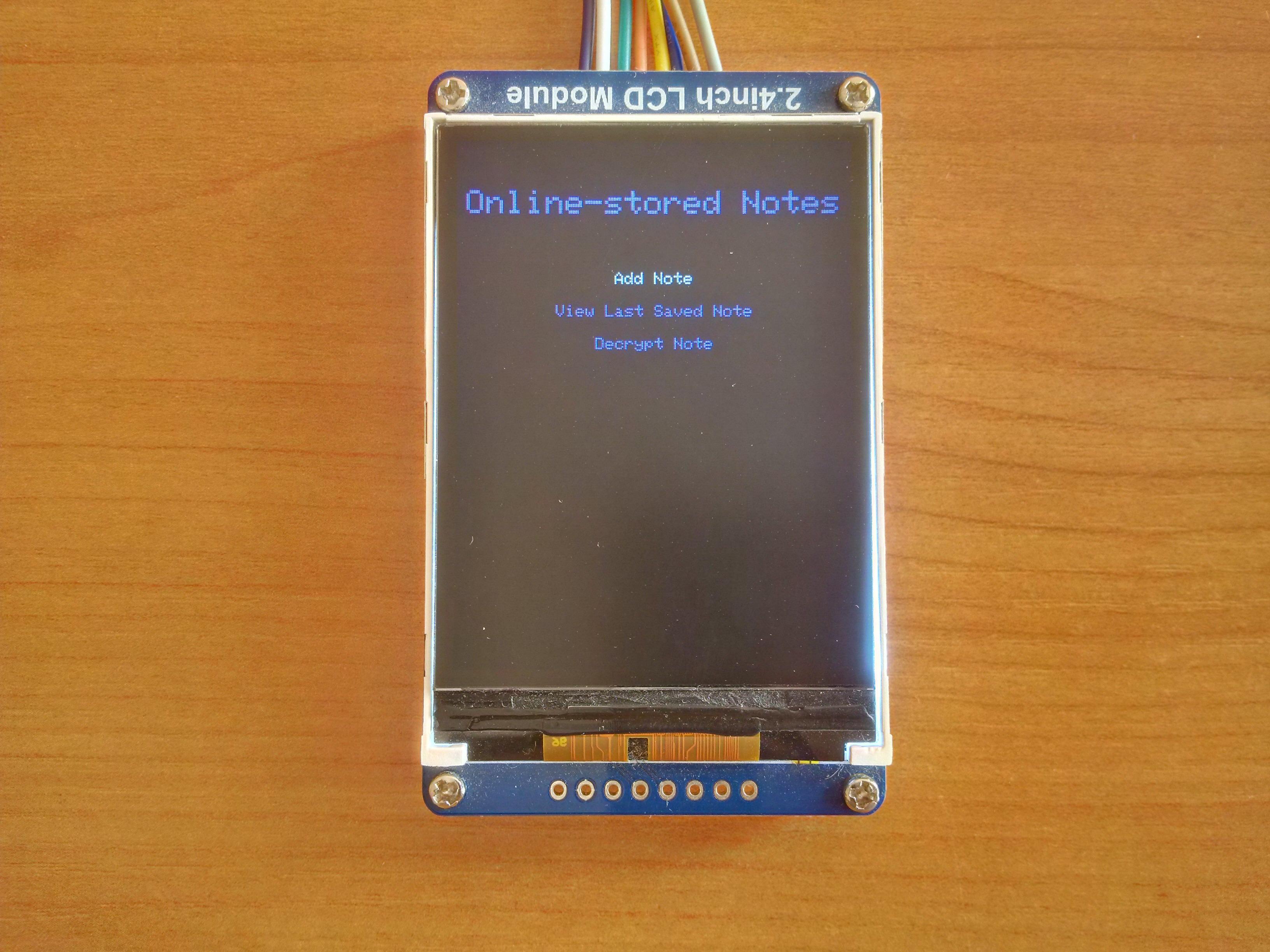

3. Select the "Add Note" line in the "Online Stored Notes" submenu;
4. Press the "A" button;
5. Enter the title (max. length - 16 chars);
6. Click the encoder button four times;
7. Enter the content (max. length - 32 chars);
8. Click the encoder button four times;

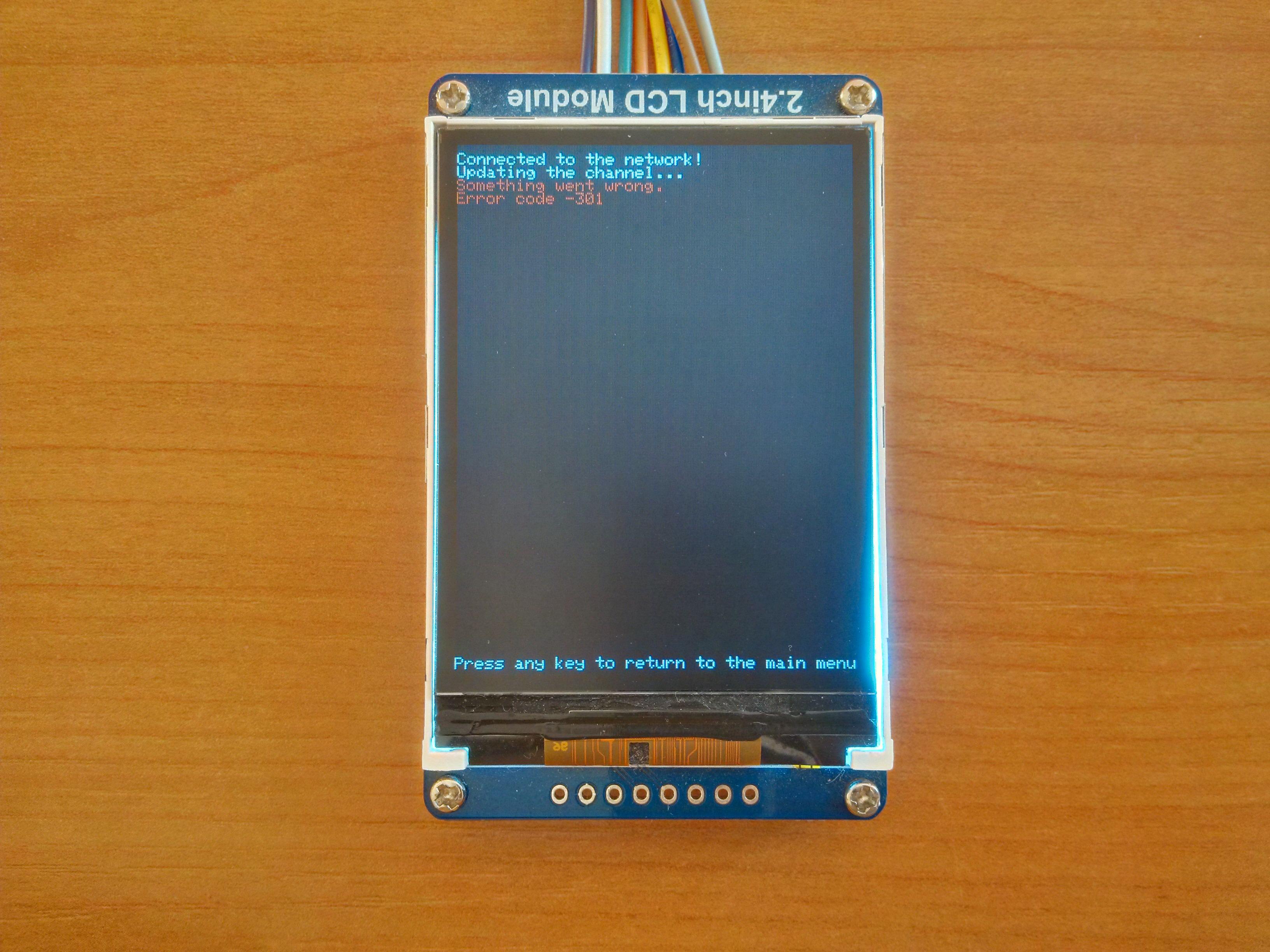

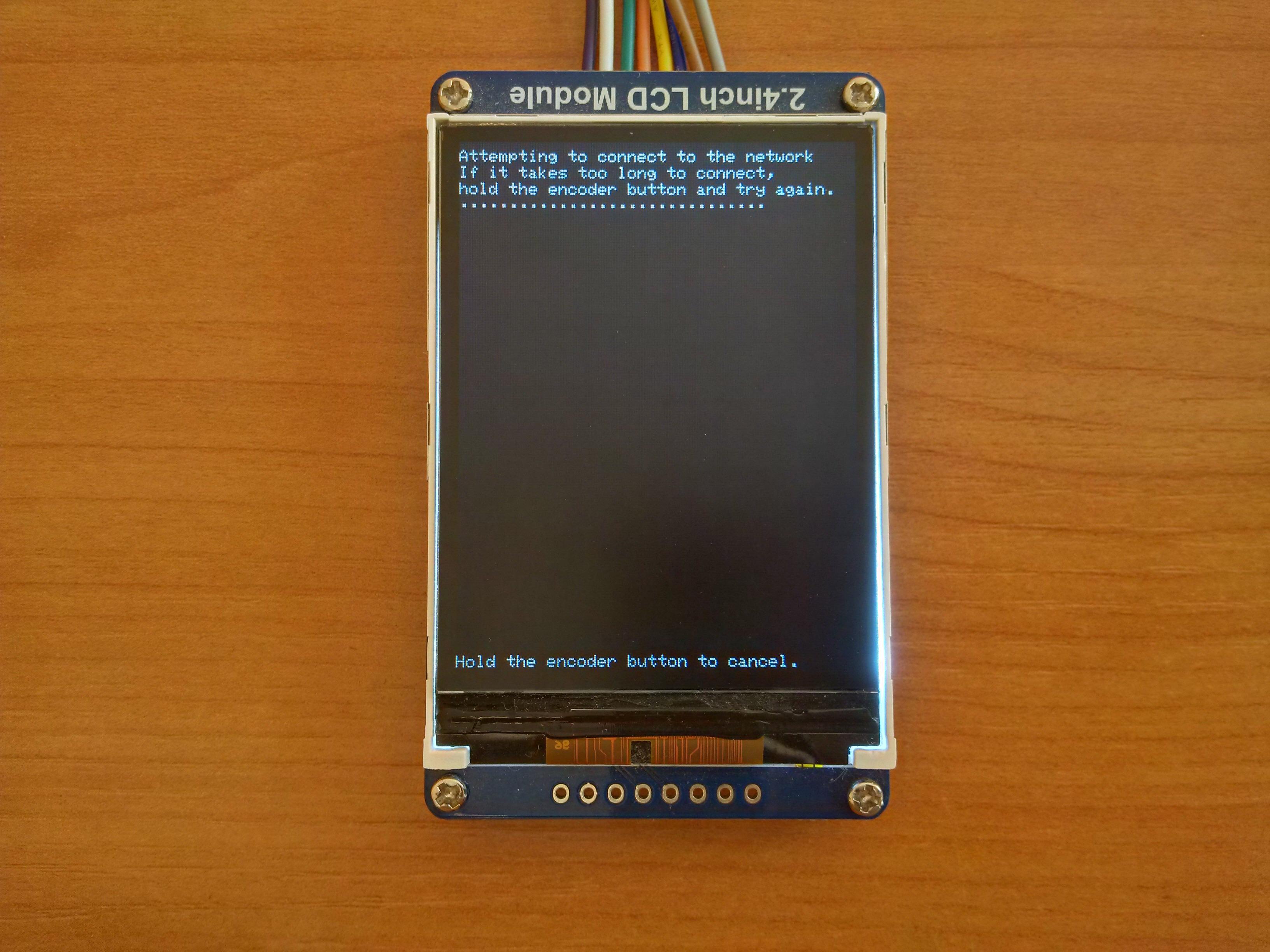

9. Wait till the Cipherbox connects to the Wi-Fi network using the credentials you've specified in the firmware. If it takes too long, hold the encoder button and return to step 1;
10. Wait till you see the "Press any key to return to the main menu" inscription at the bottom of the screen;
11. Press any button to return to the main menu.

Cipherbox V3.0 encrypts all "Online Stored Notes" notes with the "Blowfish + Serpent" encryption algorithm.

Because the "Online Stored Notes" feature is still raw, and because of my lack of knowledge of how to properly pull data from ThingSpeak - you can only view the last saved note.

To view the last saved note:

1. Select the "Online Stored Notes" line in the main menu;
2. Press the "A" button;
3. Select the "View Last Saved Note" line in the "Online Stored Notes" submenu;
4. Press the "A" button;
5. Wait till the Cipherbox connects to the Wi-Fi network using the credentials you've specified in the firmware. If it takes too long, hold the encoder button and return to step 1;
6.  Wait till the Cipherbox reads the channel and decrypts the last saved note;
7. Press any button to return to the main menu.

Well, necessity is the mother of invention. Just because the Cipherbox can't pull the arbitrary note from the cloud doesn't mean you can't.

To decrypt an arbitrary note from the cloud - log in to your ThingSpeak account, get to that channel's "Data Import / Export" tab, and click the "Download" button.

Then, open the "feed.csv" file that just got downloaded and open the Serial Monitor because you'll need to paste the encrypted title alongside the encrypted content to it.

After that:

1. Select the "Online Stored Notes" line in the main menu;
2. Press the "A" button;
3. Select the "Decrypt Note" line in the "Online Stored Notes" submenu;
4. Press the "A" button;
5. Paste the encrypted title to the Serial Monitor;
6. Press the "Send" button in the Serial monitor;
7. Paste the encrypted content to the Serial Monitor;
8. Press the "Send" button in the Serial monitor;
9. Press any button to return to the main menu.

I put a lot of effort into improving the Cipherbox even further, but don't get me wrong - I didn't make it perfect in any possible way. Although the Cipherbox can significantly raise the cost of unauthorized access to your data, even that "cryptographic fortress" can't give you a 100% guarantee that your personal data would stay untouchable to anyone.

Perhaps, it's not about giving you a 100% guarantee. It's about raising the costs of unauthorized access to your data as high as possible.

And by the way, if you want to make your own version of the Cipherbox, please do so! It would be interesting to observe how many forks will be available on GitHub and how each fork will evolve. Don't forget that there's always room for improvement, even if it seems that there's none.

I hope you will find a good use for this device.

If you like this tutorial, please share it.

Thank you for reading this tutorial.
