Christmas Tree PCB
![IMG_20191217_202153.jpg](/proxy/?url=https://content.instructables.com/F4B/3I6V/K4K1L228/F4B3I6VK4K1L228.jpg&filename=IMG_20191217_202153.jpg)
Instead of buying a generic Christmas present I created this small Christmas tree out of PCBs and added these lovely RGB LEDs that fade out into different colors.
Supplies
Soldering iron
Design and Order
![Christmass PCB tree!](/proxy/?url=https://content.instructables.com/F05/H275/K4K1L26G/F05H275K4K1L26G.jpg&filename=Christmass PCB tree!)

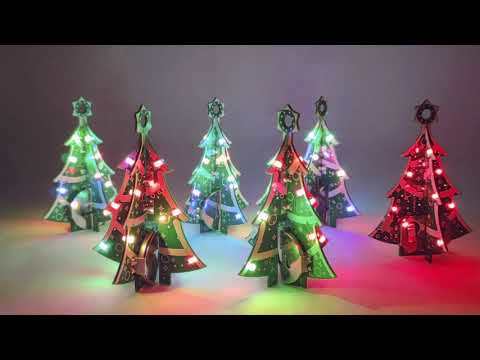

This Christmas tree is designed as a three PCB's soldered vertically one to another. There are no 3D printed parts or extra DIY parts, all you need is PCB's that you order, SMT components and a soldering iron.
Christmas tree consists of 20x 0805 LED spots that you can mount all kinds of LEDs. Blinking ones, fade-in out, programmable, etc..
To power the device I use two CR2032 batteries. Every LED is paired with one resistor, choosing a higher value resistor will dim the lights but extend the battery life. Here I provided you with a list of every component used in this build.
Results
![IMG_20191217_202254.jpg](/proxy/?url=https://content.instructables.com/FUM/7UC0/K4K1L22A/FUM7UC0K4K1L22A.jpg&filename=IMG_20191217_202254.jpg)
I hope you like this short Instructables! Feel free to leave a comment :)
